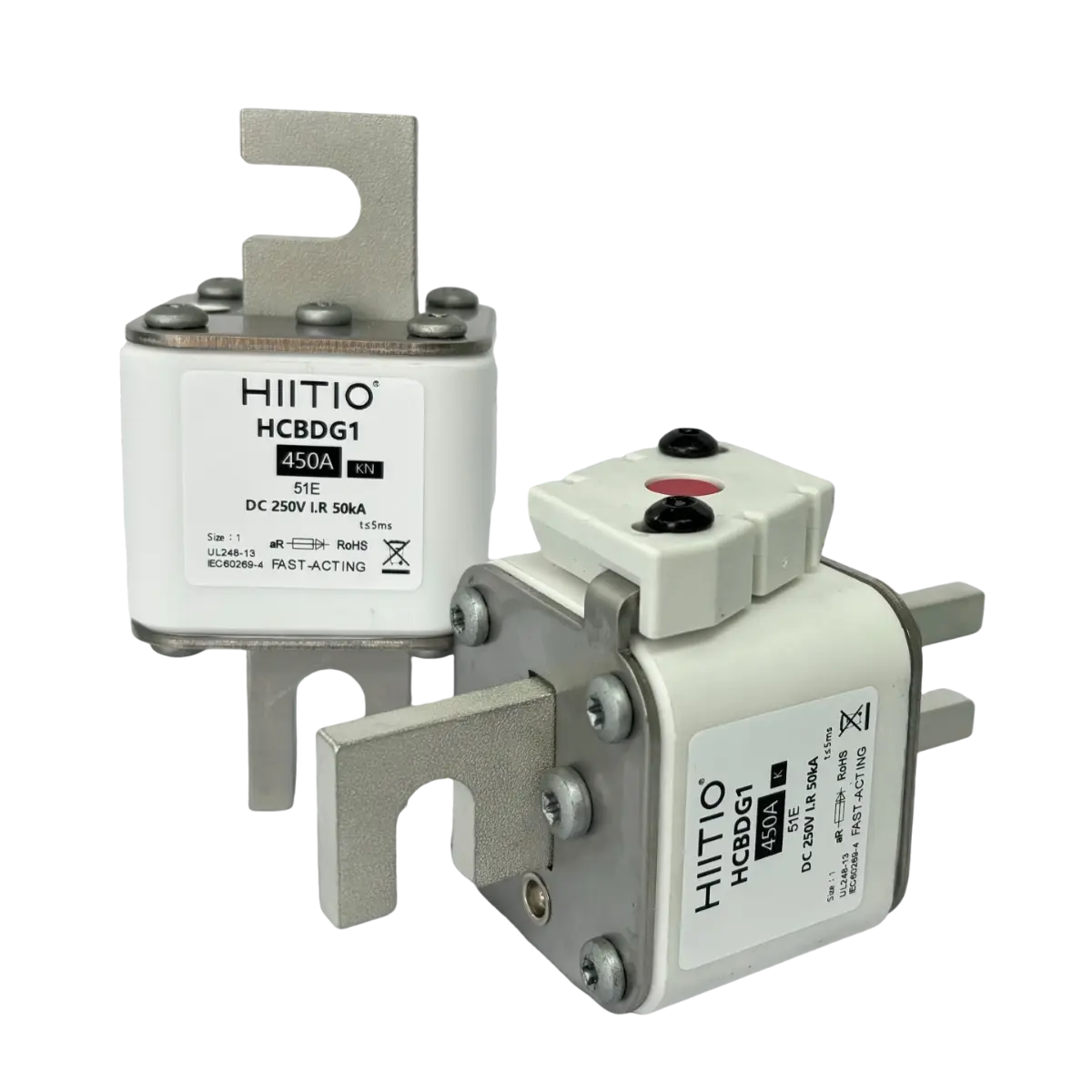

250Vdc 200-450A 50kA aR Fast-Acting Square Body Fuse 1#
- Volts: 250Vdc;
- Amps: 200-450A;
- Interrupting Capacity: Max 250Vdc 50kA; (L/R≤5ms);
- Min BC ≥ 5In;
- Class Type: aR;
,
,
,
Description
CERTIFICATIONS
- Refer To UL 248.1/UL 248.13
- CE
- Reach Declaration Available Upon Request
- RoHS Compliant
Fuse Ratings
| Part No. | Fuse Amps | Size | Average @50KA/250Vdc | Power Loss (W) | |||||||||
| A²s Melting | A²t Clearing | 100% | |||||||||||
| HCBDG1-200K | 200 | 1# | 11,590 | 138,180 | 18 | ||||||||
| HCBDG1-250K | 250 | 1# | 19,850 | 233,940 | 20 | ||||||||
| HCBDG1-275K | 275 | 1# | 28,450 | 335,580 | 23 | ||||||||
| HCBDG1-315K | 315 | 1# | 39,490 | 478,690 | 25 | ||||||||
| HCBDG1-350K | 350 | 1# | 50,540 | 616,350 | 26 | ||||||||
| HCBDG1-400K | 400 | 1# | 68,980 | 848,350 | 28 | ||||||||
| HCBDG1-450K | 450 | 1# | 101,600 | 1,290,200 | 39 | ||||||||
Optional base indicator, the standard product is the “Default” configuration.

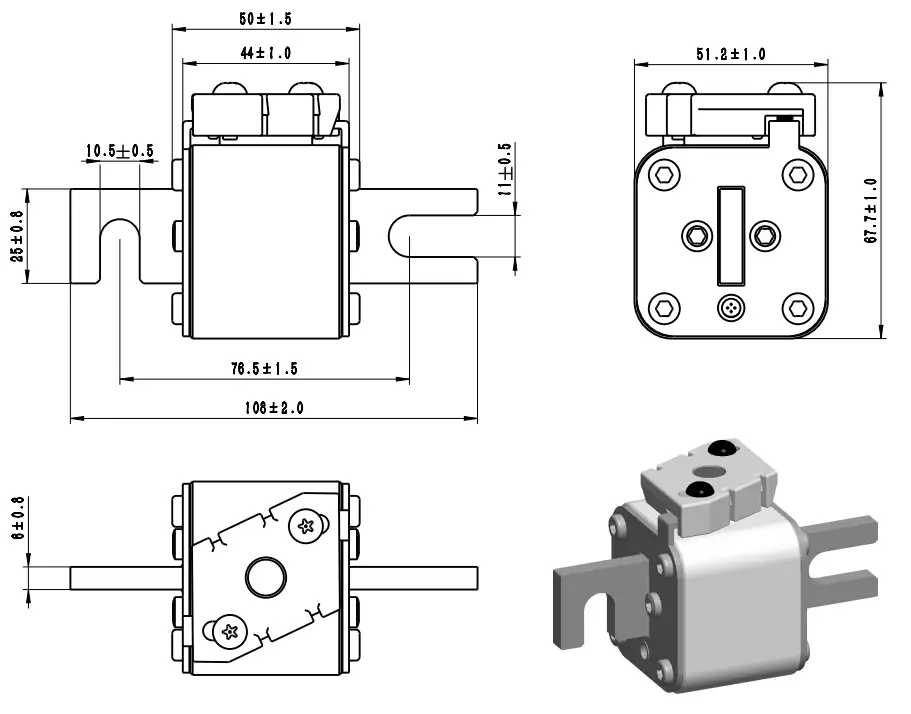

Default: K–with fuse indication, e.g.: HCBDG1-450K;

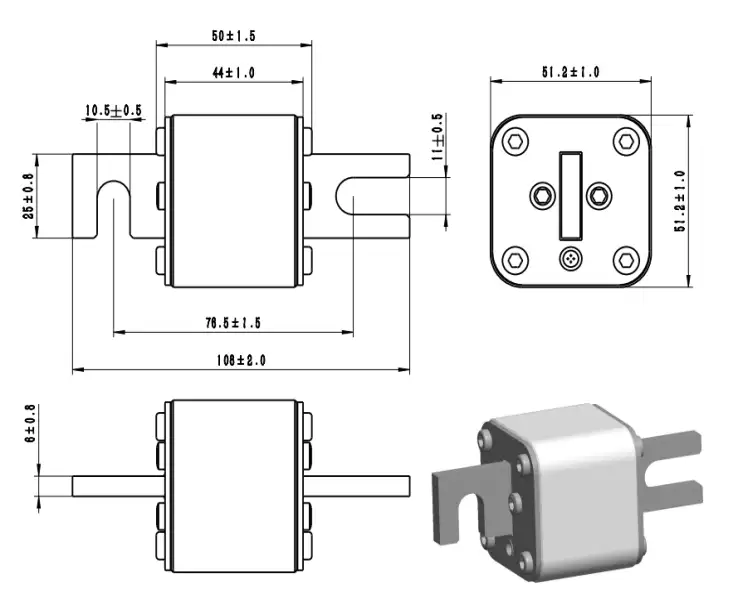

Optional: KN–without fuse indication, e.g.: HCBDG1-450KN;
Applications
- Electrical Energy Storage
