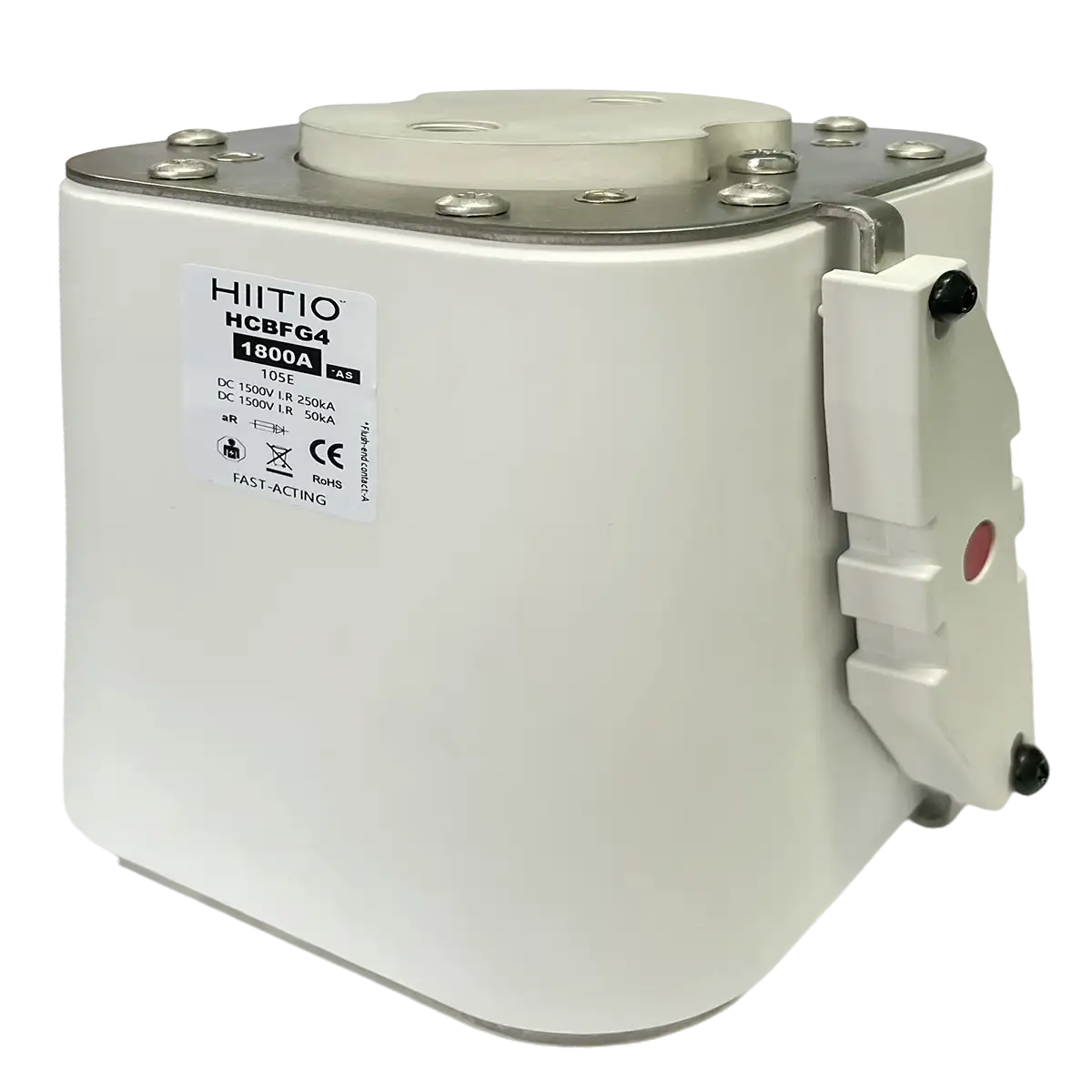

1500Vdc 50Ka 400-2000A Square Body ESS Semiconductor Fuse S 4#

  • Volts: 1500Vdc
  • Amps: 400-2000A
  • Interrupting Capacity:
    • 1500Vdc 50kA (L/R ≤ 15ms)
    • Min BC: >5 In
  • Class Type: aR
, ,
SKU HCBFG4-S-105ES Category Tags , , ,

Description

Standards & Approvals

  • Refer to UL 248-13
  • Reach declaration available upon request
  • CE certified
  • RoHS compliant

Work/Storage Conditions

  • Operating temperature: -40℃ to +85℃
  • Storage:
    • Fuses should be stored in their original packaging under clean, dust-free conditions
    • Storage conditions should not exceed 70% relative humidity
    • Storage temperature range: -40℃ to +85℃

Features & Benefits

  • Bolt-connected fuse designed for partial range protection
  • Strong current limiting and high breaking capacity
  • Suitable for energy storage, wind power, and other industrial applications
  • Provides short-circuit protection for energy storage systems, power systems, and other equipment

Fuse Ratings

Part No. Fuse Size Average @ 50KA/1500Vdc Power Loss (W) 1.0In
Amps  A²s Melting A²s Clearing
HCBFG4-400S-105ES 400 4 # 42,250 255,800 168
HCBFG4-500S-105ES 500 4 # 93,500 585,500 175
HCBFG4-630S-105ES 630 4 # 163,000 1,020,500 185
HCBFG4-700S-105ES 700 4 # 225,500 1,320,000 192
HCBFG4-800S-105ES 800 4 # 310,000 1,970,000 196
HCBFG4-900S-105ES 900 4 # 425,000 2,600,000 200
HCBFG4-1000S-105ES 1000 4 # 640,000 4,005,000 210
HCBFG4-1100S-105ES 1100 4 # 780,300 4,950,000 220
HCBFG4-1200S-105ES 1200 4 # 915,000 5,865,500 242
HCBFG4-1250S-105ES 1250 4 # 1,080,000 7,150,600 255
HCBFG4-1300S-105ES 1300 4 # 1,300,000 8,040,000 260
HCBFG4-1350S-105ES 1350 4 # 1,320,000 9,060,000 266
HCBFG4-1400S-105ES 1400 4 # 1,665,000 10,700,000 275
HCBFG4-1500S-105ES 1500 4 # 1,870,000 11,950,500 282
HCBFG4-1600S-105ES 1600 4 # 2,235,000 14,880,000 294
HCBFG4-1800S-105ES 1800 4 # 2,850,000 17,950,000 313
*HCBFG4-2000S-105ES *2000 4 # 3,750,000 23,900,000 345
*:If there are any requirements, please communicate with the original factory staff first.
