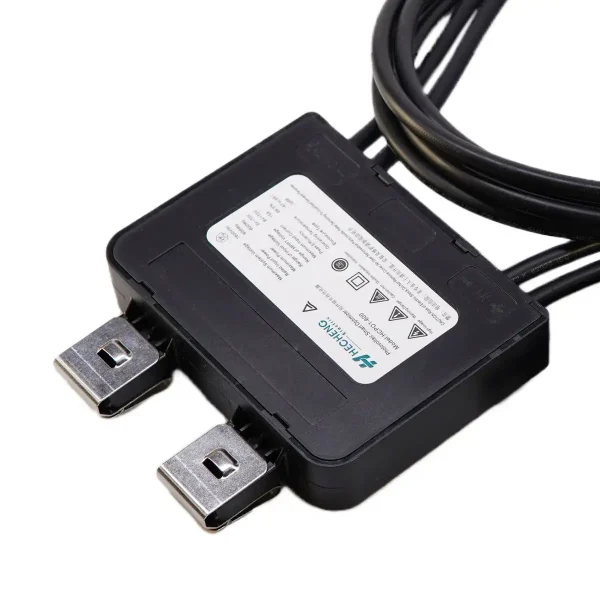

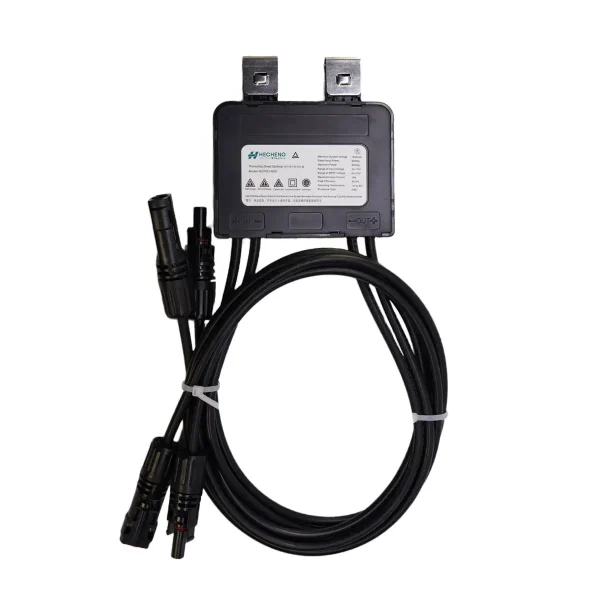

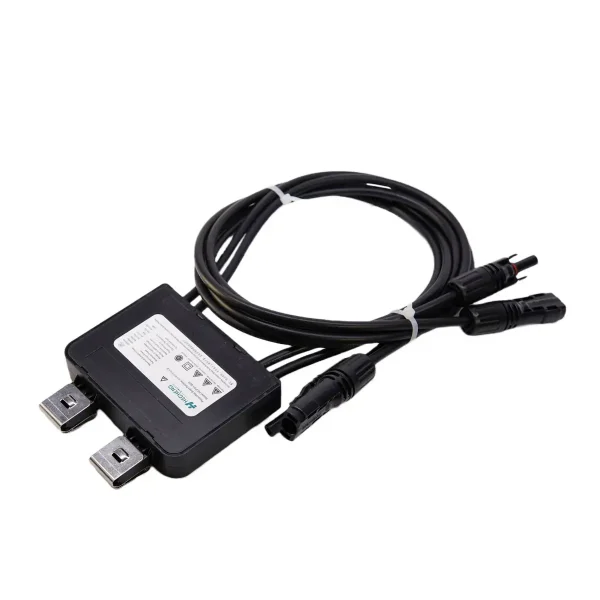

800W Solar Module Power Optimizer

  • Recovery power generation loss 3%~25%
  • With wireless 2.4GHz communication
  • Real-time monitoring of monolithic photovoltaic panel power generation
  • Voc limit function for longer string
  • Maximum input power: 800Wp
  • Δ <10℃ None-Hotspot, more safe and durable
  • Certification: TUV
, ,
SKU HS4-O-800 Category Tag

Description

Technical Specifications

Model HS4-0 Solar Optimizer
INPUT PARAMETER Maximum Input Power 800 W
Operating Voltage Range 7 – 70 V
MPPT Voltage Range 7 – 70 V
Maximum Input Current 20 A
Over-current Protection 25 A
Over-temperature Protection 160 °C
OUTPUT PARAMETER Maximum Output Current 22 A
Theoretical Maximum Output Voltage 65 V
Output Voltage Limiting Threshold 42 V
Total Maximum System Voltage 1500 V
72 Type Module String@1500 V 36 Modules
72 Type Module Stringâ’1100 V 26 Modules
72 Type Module String@1000 V 24 Modules
CONVERSION EFFICIENCY Peak Conversion Efficiency 99.596
Power Consumption@5 A 0.9 W
Power Consumption@8 A 1.4 W
Power Consumptione 2 A 2.9 W
Power Consumption@15 A 3.8 W
SPECIFICATIONS Dimensions (L x W x H) 105*105*20 mm
Weight 500 g
Cable 4.0 mm*
Input Wire 50 cm*2pcs Output Wire 100 cm*2pcs
Connector MC4 (Compatible)
Operating Temperature Range -40 – +85 °C
Protection Rating IP65
Design Standard Designed Life 25 Years
Function Standard Features Optimization | Voltage Limiting | Anti-Hotspot
