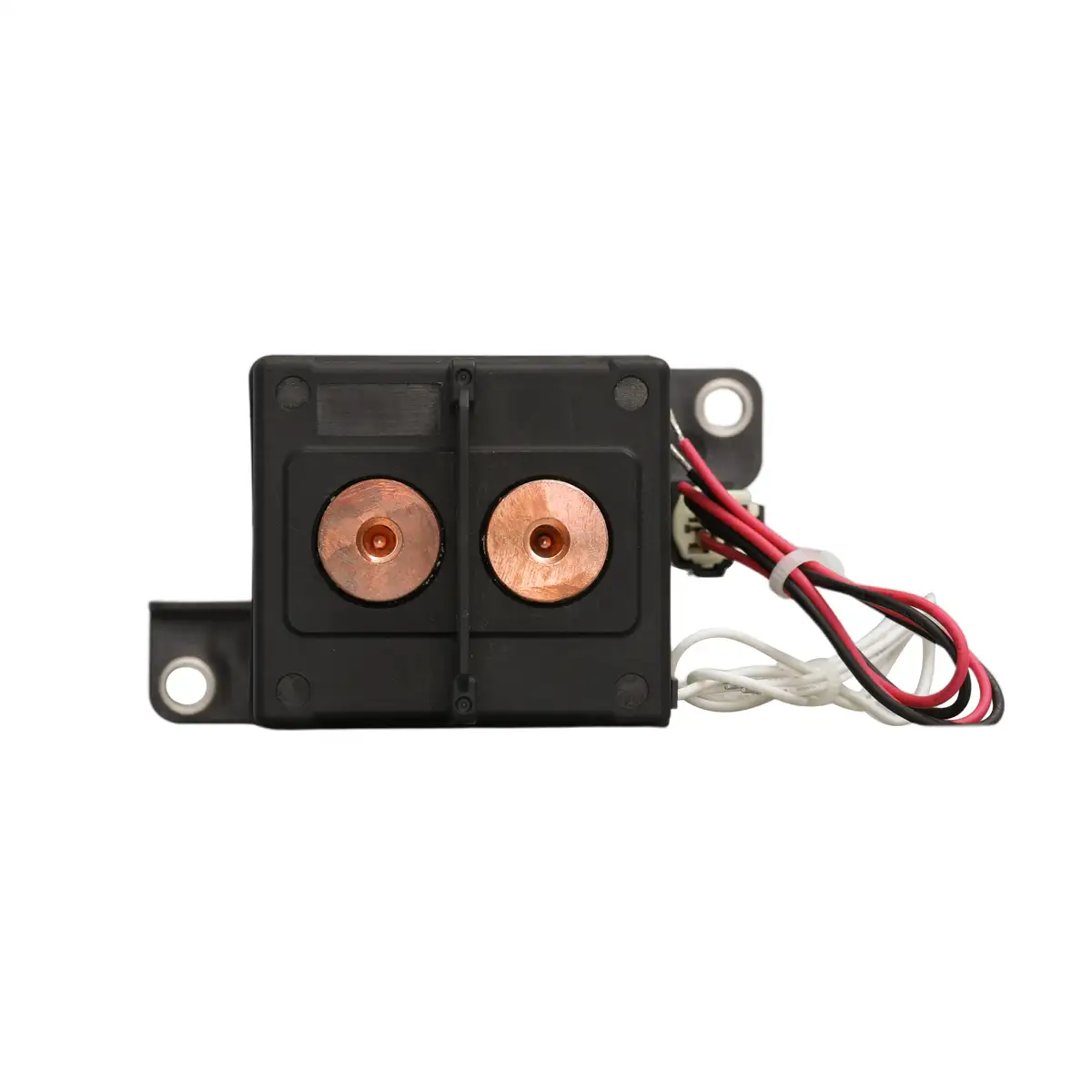

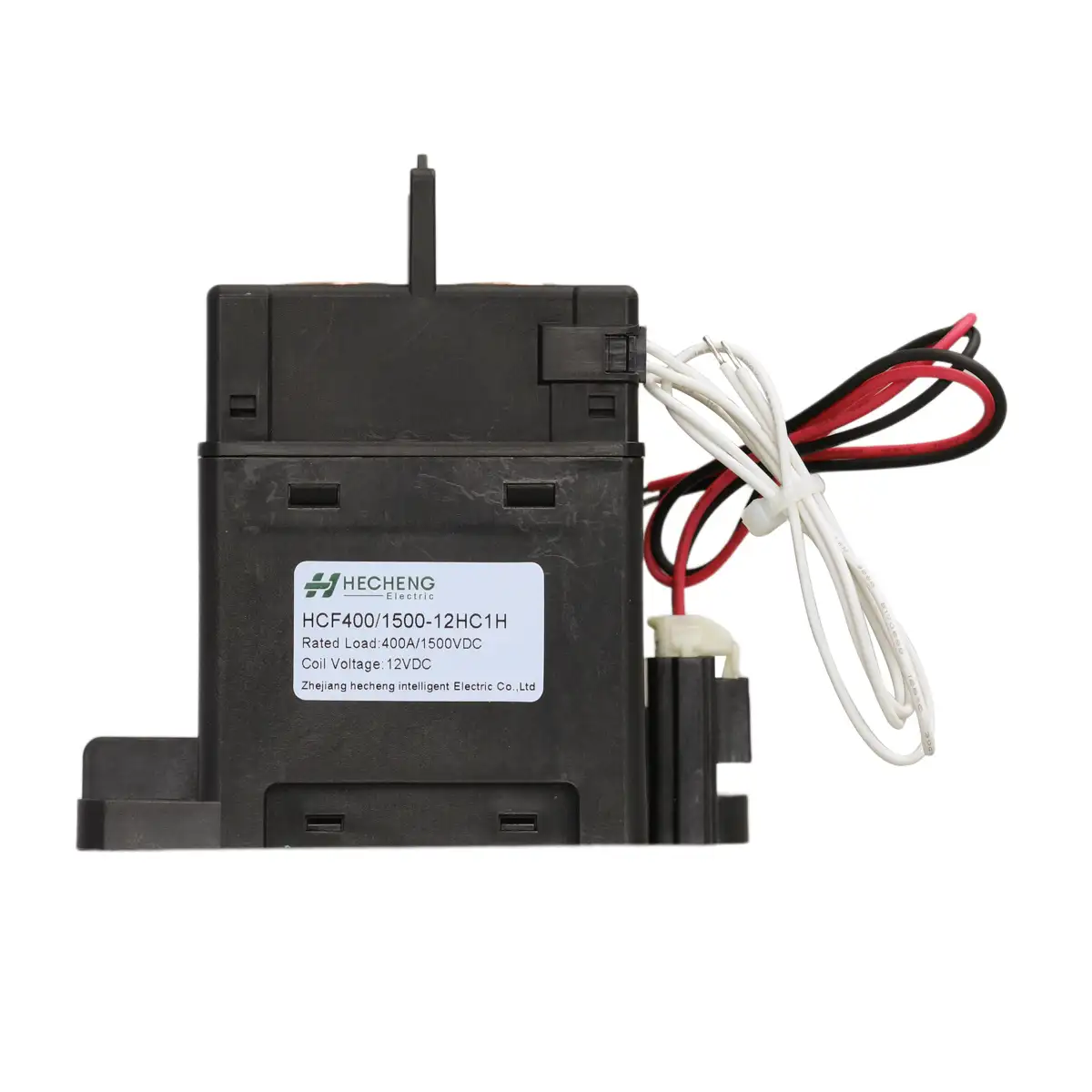

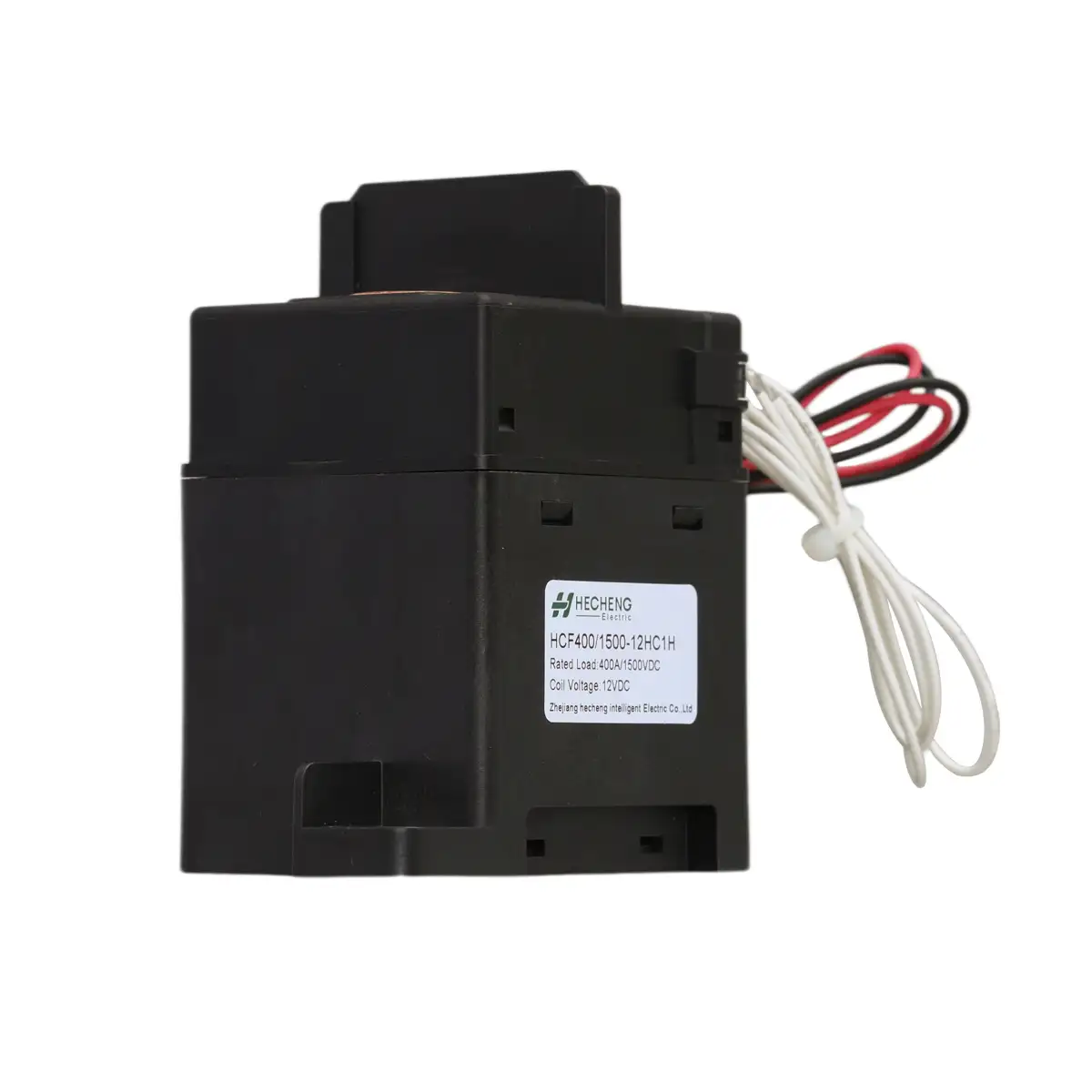

High Voltage DC Relay Contactors 400A 450Vdc-1500Vdc
- Ceramic seal structure, filled in H2 mixed gas, resist contacts oxidation, the contact resistance is low and stable
- Ceramic seal structure with magnetic blow-out technology, realize zero arcs, ensure safety and reliability when you using
- Carrying current 400A continuously at 85 ??
- No polarity requirement on loading and coil side
- Full compliance with RoHS requirements
- UL CUL CB CE CCC approved
,
,
,
,
,
,
Applications
- Electric vehicles
- Rail transit
- Charging system
- Energy storage system
- Photovoltaic system
- Aviation
- Military
Product Model
| HC | F | 400 | □ / | 1000 | – 12 | H | C | 1 | H | □ | – () | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HC: Company Code | |||||||||||||||||
| F: Square Series | |||||||||||||||||
| Contact Rating: 400: Rated Current 400A | |||||||||||||||||
| Derivative Model Nil: Basic Model | |||||||||||||||||
| Load Voltage 450: 450VDC; 800: 800VDC; 1000: 1000VDC;1500:1500VDC | |||||||||||||||||
| Coil Voltage: 12:12VDC; 24:24VDC; 48:48VDC | |||||||||||||||||
| Main Contact Type H: SPST-NO | |||||||||||||||||
| Coil Input Terminal C: Connector | |||||||||||||||||
| Load Input Terminal 1: Internal Thread | |||||||||||||||||
| Auxiliary Contact Nil: No Auxiliary Contact; H: SPST-NO | |||||||||||||||||
| Mounting Nil Vertical Mounting | |||||||||||||||||
| Special Code XXX: Customer Special Code; Nil: Standard | |||||||||||||||||
