SA Series 3 Pole 20-40A 24Vac Definite Purpose Contactor
- Standard: UL508; ARI 780/790
- Class 3211 04/3211 84; Class NLDX2, NLDX8
- Load: 40FLA Coil: 24Vac
,
,
,
,
Description
Certificates:
- UL-E246810
- CSA-256361
- CCC- 2013010304614127
- Semko/CE File No. EN60947-4-1:2010
- Intertek
- RoHS Compliance
Applications
- Air conditioning
- Resistive heating
- Refrigeration equipment
- Motors
- Welding
- Pumps
- Power supplies
- Food service equipment
- Compressors
- Business machines
- Lighting
Product Model
| SA | 3P | 40A | 240V | -001 | ||||
|---|---|---|---|---|---|---|---|---|
| HECHENG DP Contactor Model Number | ||||||||
| Pole and Form: P=Form NO 1P=1pole; 2P=2poles; 3p=3poles; 4p=4poles; 1.5P= Only for 1pole without shut K= Only for 3poles,2 form NO, 1 form NC | ||||||||
| Contact Rating: 20A,25A,30A,40A,50A,60A,75A,90A,120A; | ||||||||
| Coil Voltage: 50/60Hz Frequency 24V, 120V, 208-240V, 277V, 480V, 300V; | ||||||||
| Customer Identification: 001-999 optional customer sepcifics designation assigned by HECHENG to specify significant variation from the standard construction | ||||||||

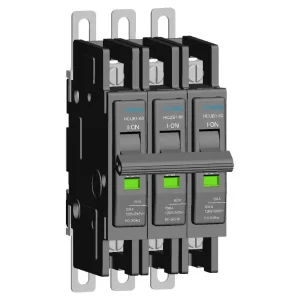

HCUB1-125/3
