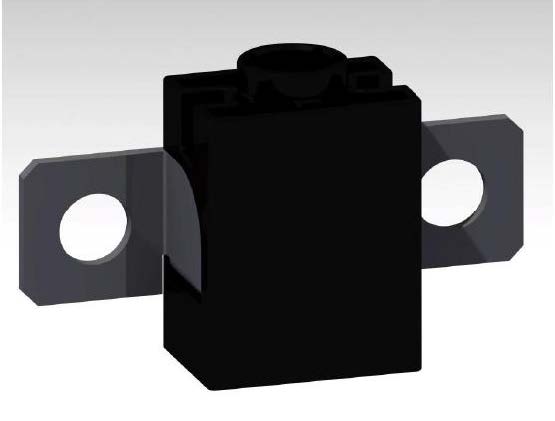

Pyro Safety Module (PSM) HCEVSPF-1L

  • The breaking of this product is realized by pyrotechnic drug producing high pressure gas to cut off the conductor.
  • It can control the action by triggering signal and does not depend on the thermal effect of current.
  • Therefore, it can be broken reliably in the case of low multiple or even no current, the breaking time is less than 1ms;
  • When the short circuit current is large, it can also cut off the circuit quickly to limit the peak current;
  • The external or built-in control circuit can set flexible protection strategy according to the actual working conditions of the system.
SKU HCEVSPF-1L Category Tags , , ,


Electric Parameter

  • Rated Voltage: 500VDC
  • Rated Current: 50-250A
  • On State Resistance: ≤50uΩ
  • Off-impedance: ≥50MΩ/500V
  • Breaking Capacity: 0-0.6kA,L≤20uH
  • Actuator Resistance: 2±0.5Ω
  • Trigger Current: ≥1.75A/0.5ms,Nonpolarity
  • Safe Current: ≤0.4A

Other Parameters

  • Operating Temperature: -40℃~+105℃
  • Storage Temperature: -40℃~+70℃
  • Altitude: ≤4000m*
  • IP Grade: IPX2
  • Weight: <60g
  • Impact And Vibration Resistance AK-LV 124

*If the rated working voltage is greater than 2000m, it should be modified


  • Electric Vehicle
  • Charging Pile
  • Energy Storage System
  • Large Capacity DC Power Supply Equipment
