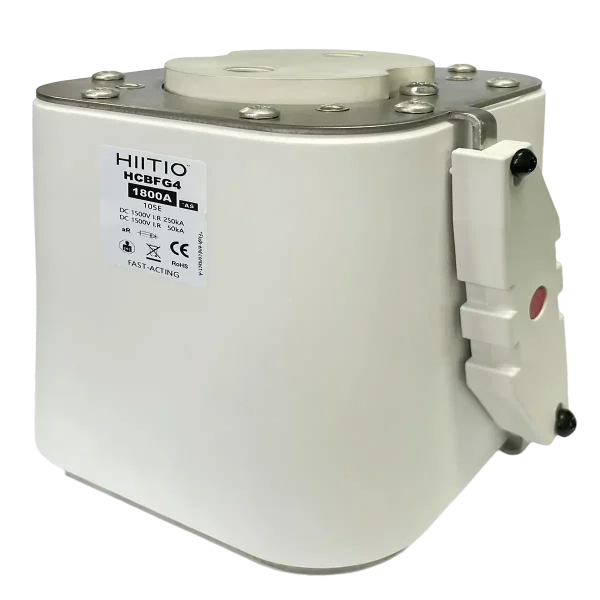

1500Vdc 250Ka 400-2000A ESS Fuse Connect S 4#

Ratings & Features Applications

  • Volts: 1500Vdc
  • Amps: 400-2000A
  • Interrupting Capacity: 1500Vdc 250kA (L/R ≤ 5ms); Min BC: ≥ 3 In
  • Class Type: aR
  • Design For DC Applications
  • Excellent DC Performance
  • Superior cycling capability
  • Application: Industrial ESS
, , ,
SKU HCBFG4-S-105E Category Tags , ,

Description

Standards / Approvals

  • Refer To UL 248-13
  • Reach Declaration Available Upon Request
  • CE
  • RoHS Compliant

Work/Storage condition

  • Work within the temperature -40℃  to +100℃  range.
  • Fuses should be stored in their original boxes under typical warehouse conditions for electromechanical products (free from any dirt and dust). Storage conditions should be no more than 70 percent relative humidity and in the -40℃  to +85℃ range.
  • This product is a bolt connected fuse for partial range protection, with strong current limiting, high breaking capacity and other characteristics. It is suitable for energy storage, wind power and other industry applications, which can be used as short-circuit protection for energy storage systems, power systems and other devices and equipments.

Fuse Ratings

Part No. Fuse Size Average @ 250KA/1500Vdc Power Loss (W) 1.0In
Amps A²s Melting A²s Clearing
HCBFG4-400S-105E 400 4 # 42,500 267,800 165
HCBFG4-500S-105E 500 4 # 93,700 593,500 172
HCBFG4-630S-105E 630 4 # 165,000 1,060,000 184
HCBFG4-700S-105E 700 4 # 223,500 1,420,000 190
HCBFG4-800S-105E 800 4 # 317,000 2,010,000 194
HCBFG4-900S-105E 900 4 # 443,000 2,800,500 203
HCBFG4-1000S-105E 1000 4 # 665,000 4,190,000 210
HCBFG4-1100S-105E 1100 4 # 795,600 5,050,400 220
HCBFG4-1200S-105E 1200 4 # 954,000 6,065,670 243
HCBFG4-1250S-105E 1250 4 # 1,154,000 7,250,780 255
HCBFG4-1300S-105E 1300 4 # 1,331,000 8,520,500 261
HCBFG4-1350S-105E 1350 4 # 1,450,000 9,140,800 268
HCBFG4-1400S-105E 1400 4 # 1,765,000 11,200,500 273
HCBFG4-1500S-105E 1500 4 # 1,934,000 12,175,530 280
HCBFG4-1600S-105E 1600 4 # 2,435,000 15,580,500 291
HCBFG4-1800S-105E 1800 4 # 3,045,000 19,200,700 310
*HCBFG4-2000S-105E *2000 4 # 4,050,000 25,820,000 348
*If there are any requirements, please communicate with the original factory staff first.
