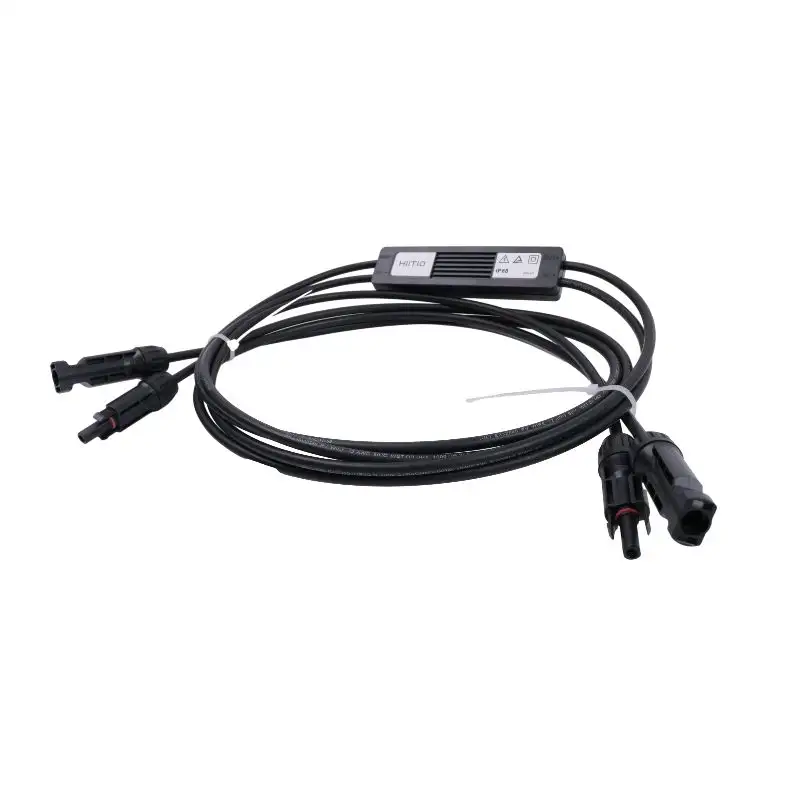

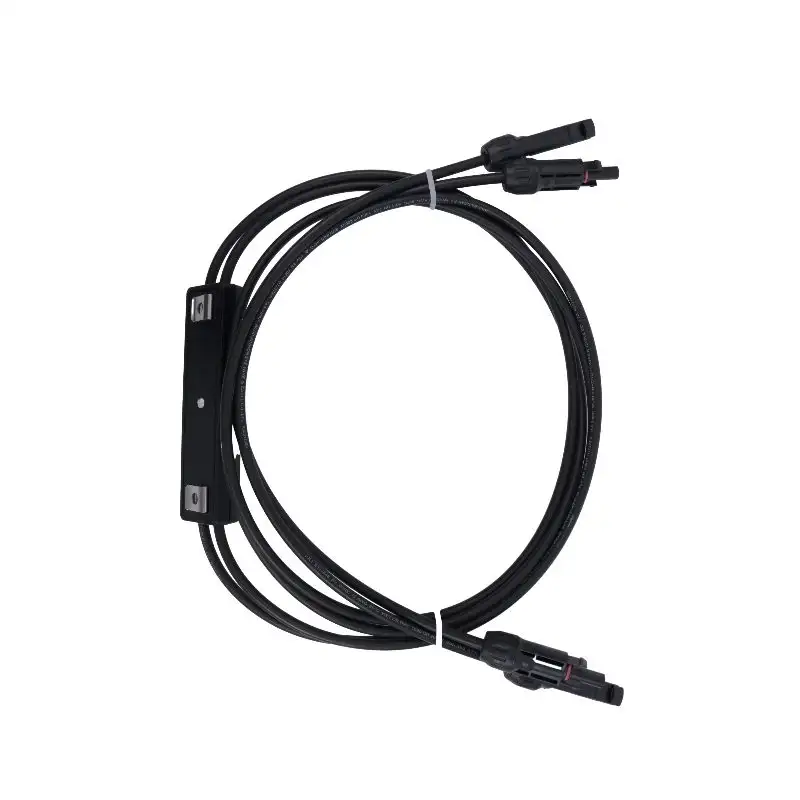

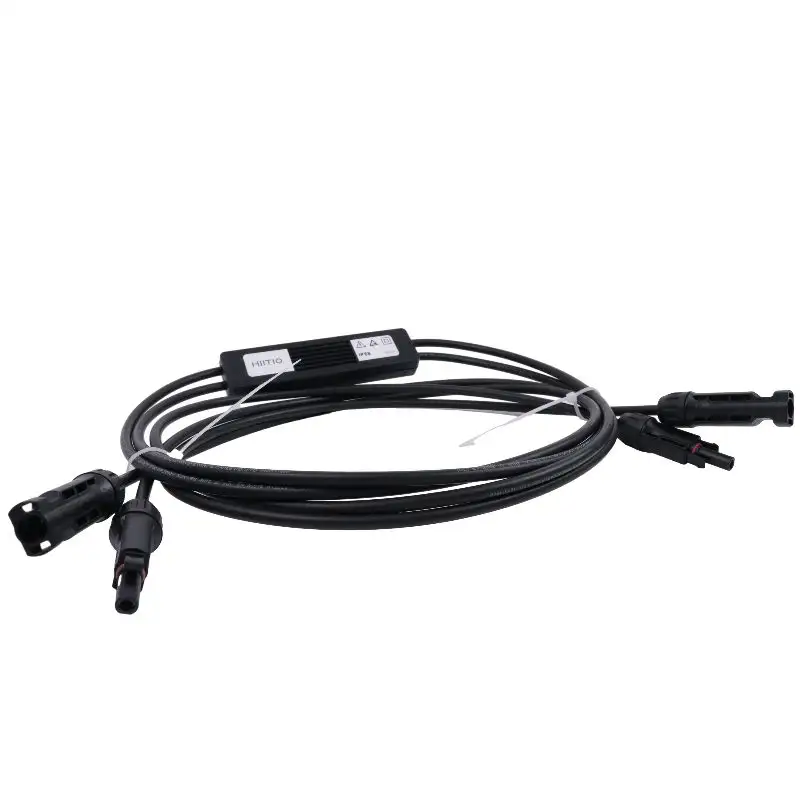

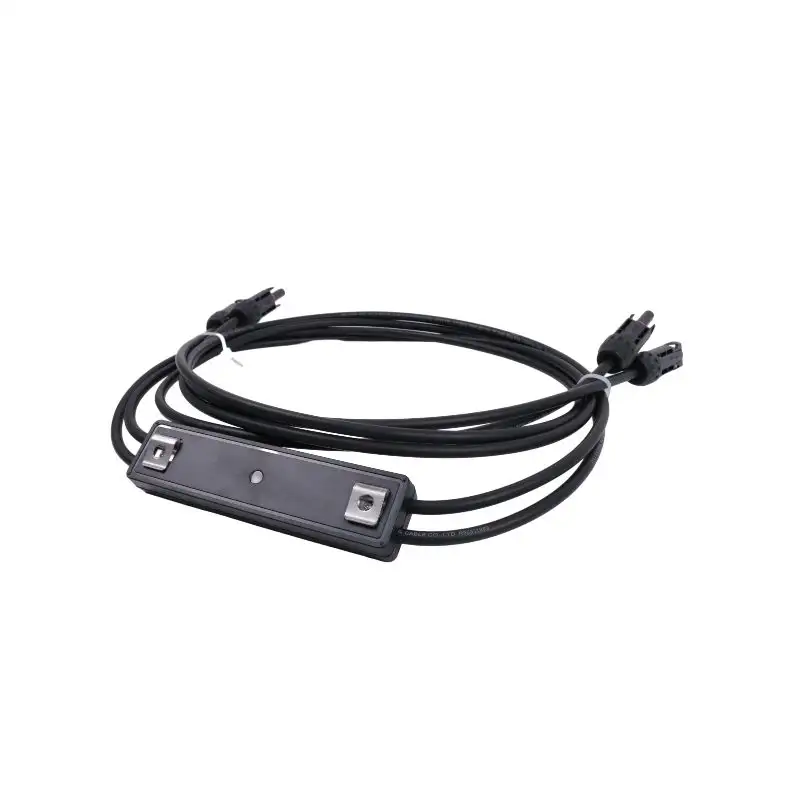

Photovoltaic Rapid Shutdown Switch 600W

Module Level Rapid Shutdown System
PLC communication technology, simpler installation
Manual Shutdown: Firefighters or house owners can manually switch off the manual switch to shut down the DC power of the panels if there is an emergency situation

SKU HS3-AF Category Rapid Shutdown Device (RSD) Tag PV/Solar Power

Description

Project	Parameter
Maximum system voltage	1500V
Maximum input voltage	80V
Maximum input power	600W
Starting voltage	12V
Rated current	16A
Level of protection	IP68
Operating temperature range	-40℃ ~ +85℃
Connector	MC4 Or Compatible with MC4
Size (L x W x H)	143.235.417.5mm
Weight （g）	405g
