PV Smart gateway
- Communication Protocol: Zigbee
- Warranty Period: 3 years
- Lifetime: 10 years
,
,
Description
HS4-A-O and HS4-A-M work together
Web: https://solar-eu.solarpilot.com/
APP: google play or Apple store/solarpiot
| communication | Communication protocol | Zigbee |
| Wireless distance | 100m outdoor 30m indoor |
|
| Maximum number of connected | 30 | |
| Communicate with the quick break button | Control mode | IO |
| Communicate with – the cloud | Wired Internet access | RJ 45×1 100Mbps |
| Wireless Internet access | Wifi 802.11b/g/n 2.4G | |
| Number of antennas | 2 | |
| Sample interval | 1 minute | |
| Extended communication interface | RS485 | COMx1, 9600bps, ModBus-RTU |
| Interaction | Reset button | Self-reset button*1 |
| pilot lamp | LED pilot lamp*2 | |
| APP | Monitoring APP | |
| General Parameter | Operating temperature | -20°C~55°C |
| Size | 181mm*163mm*51mm (L*W*H) | |
| Weight | ≤200g | |
| Way to install | Wall mounting | |
| Level of protection | IP65 | |
| Power supply mode | DC 12V power supply | |
| Certificate | CE ROSH |
HCPT1
HS4-O-800
HS4-A-O-800

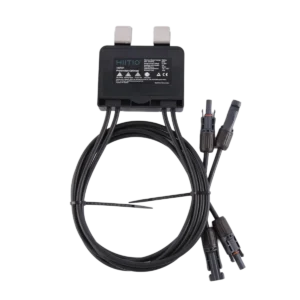

HCPO1
