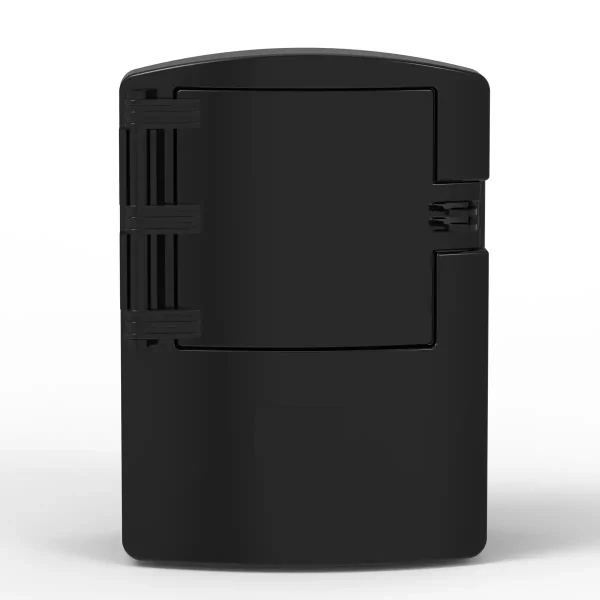

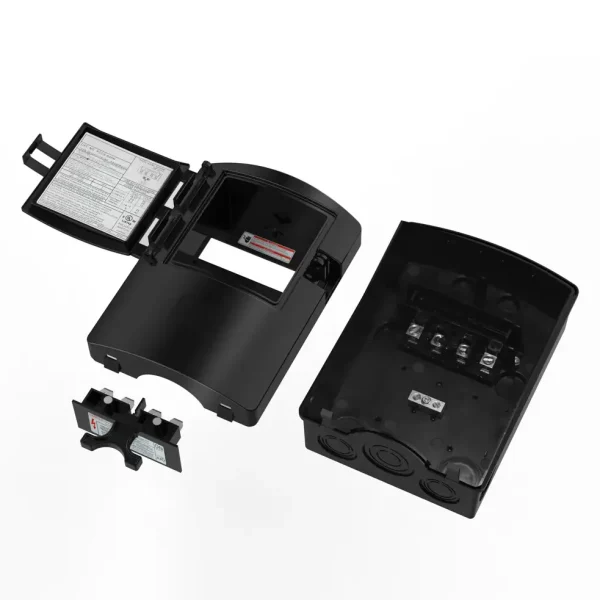

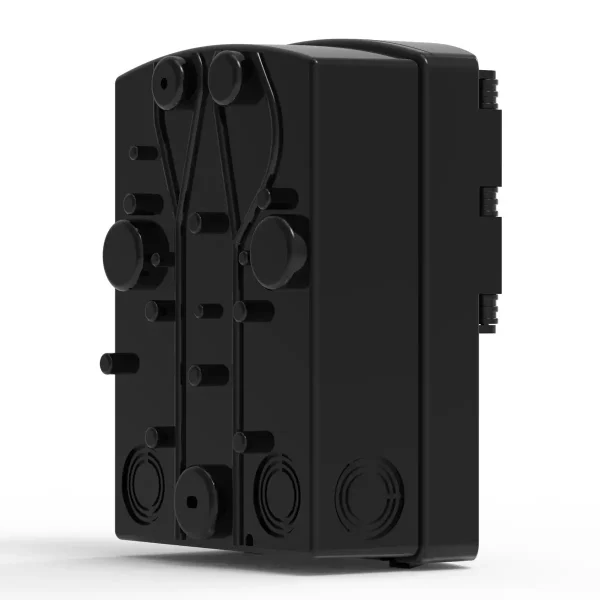

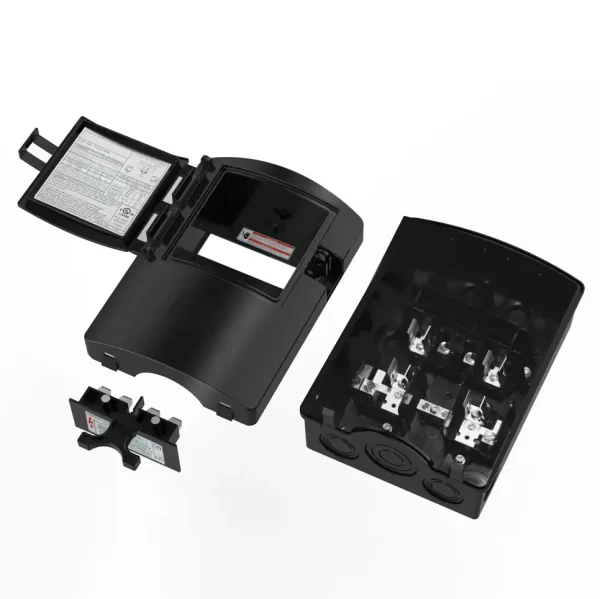

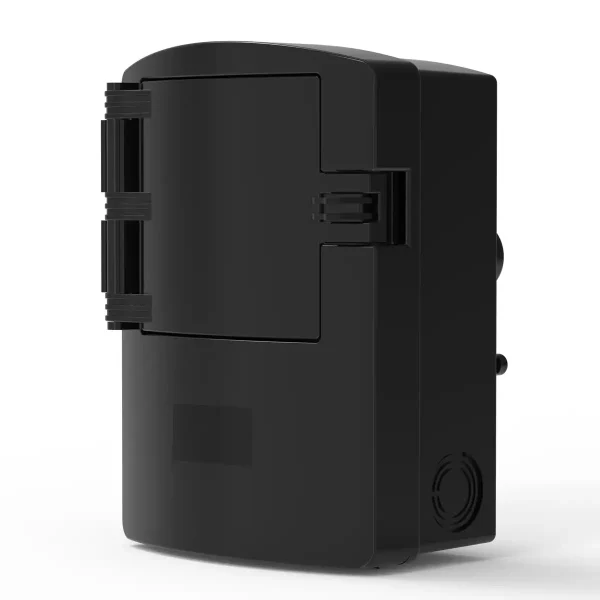

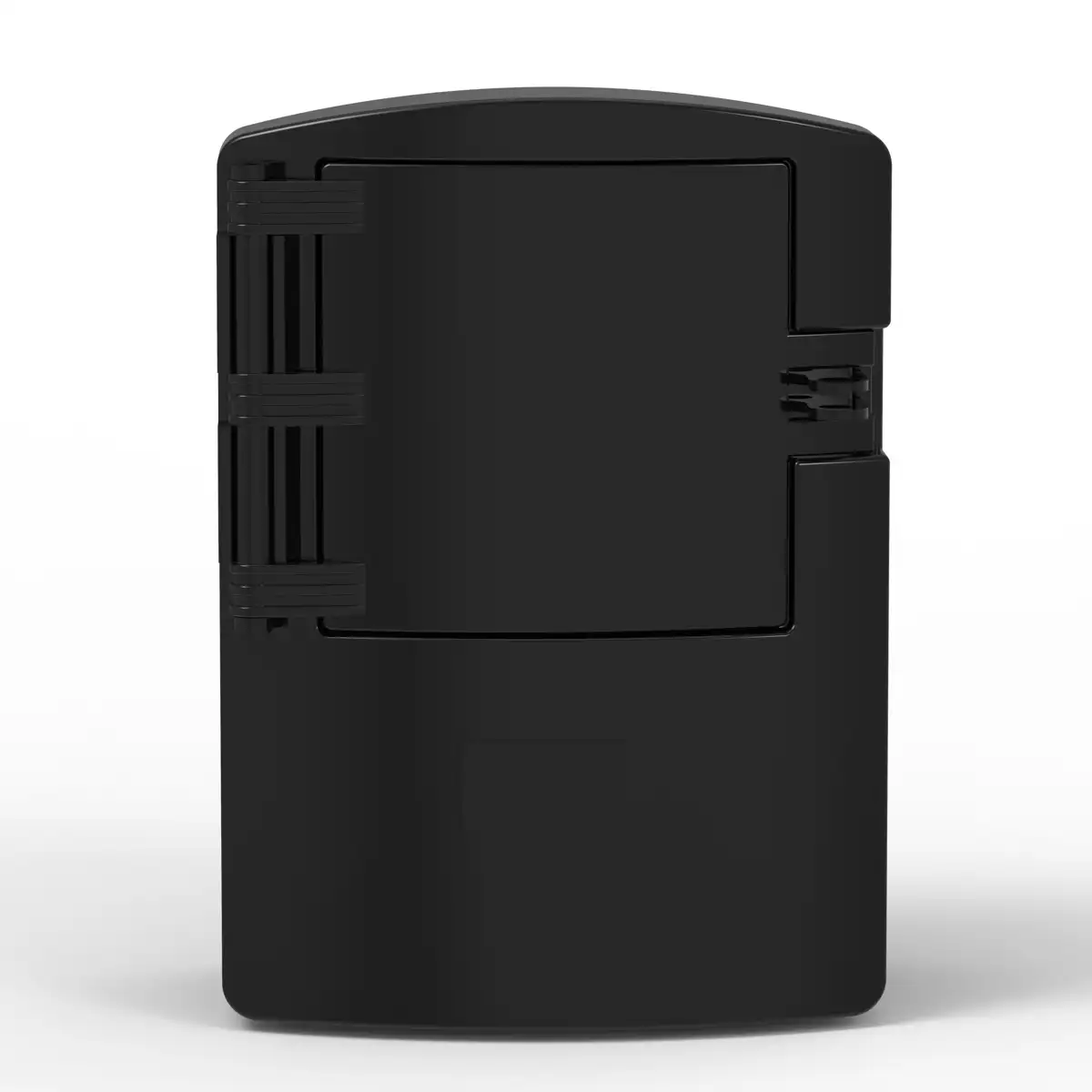

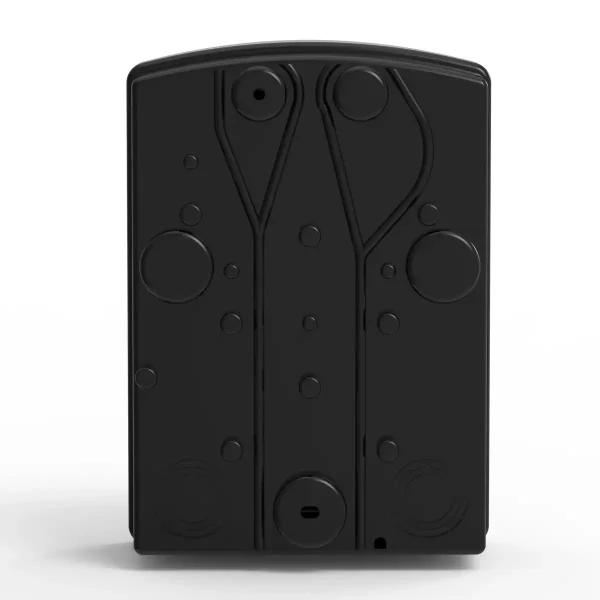

PCDS Series AC Disconnect Switch Box Plastic Enclosure

30AMP, 240VAC,1 PHASE, 3 WIRE

,
SKU PCDS Category Tag
Fast Quote
Specification
Description​
Downloads
Certifications

Description

Specification

Cat. No. Main Ampere Rating HP Rating Wire Size
Range Cu/Al 60℃ or 75 ℃
120V 240V
PDS-30A, PCDS-30A 30AMP, 240VAC
1 PHASE, 3 WIRE		 STD. 0.5
MAX. 2		 STD. 1.5
MAX. 3		 #14-3
PDS-60A, PCDS-60A 60AMP, 240VAC
1 PHASE, 3 WIRE		 STD. 1.5
MAX. 3		 STD. 3
MAX. 10		 #14-3
PDS-60AN, PCDS-60AN 60AMP, 240VAC
1 PHASE, 3 WIRE		 - STD. 3
MAX. 10		 #14-3

Product Mode

PCDS - 60A N
Product Code:
PCDS: Plastic Enclosure;
PDS: Metal Enclosure

Full Load Amps: 60A: 60A; 30A: 30A
Fuse: Nil: Fused; N: Non-Fused
  • An air conditioning disconnect is a disconnect located between a load center(distribution panel) and air conditioner.
  • Air Conditioning Disconnects product line provides an installer or repair personnel with a visible disconnecting means when performing maintenance.
  • Air Conditioning Disconnects are also known as disconnects, pullouts or air Non-fused pullout devices conditioning switches.
  • Provide personnel with a visible ON-OFF disconnecting means. While fused pullout units also perform this function, they also provide an additional level of devices are of a pullout design, where the user physically removes or “pulls out” a tab to break the electrical connection.
