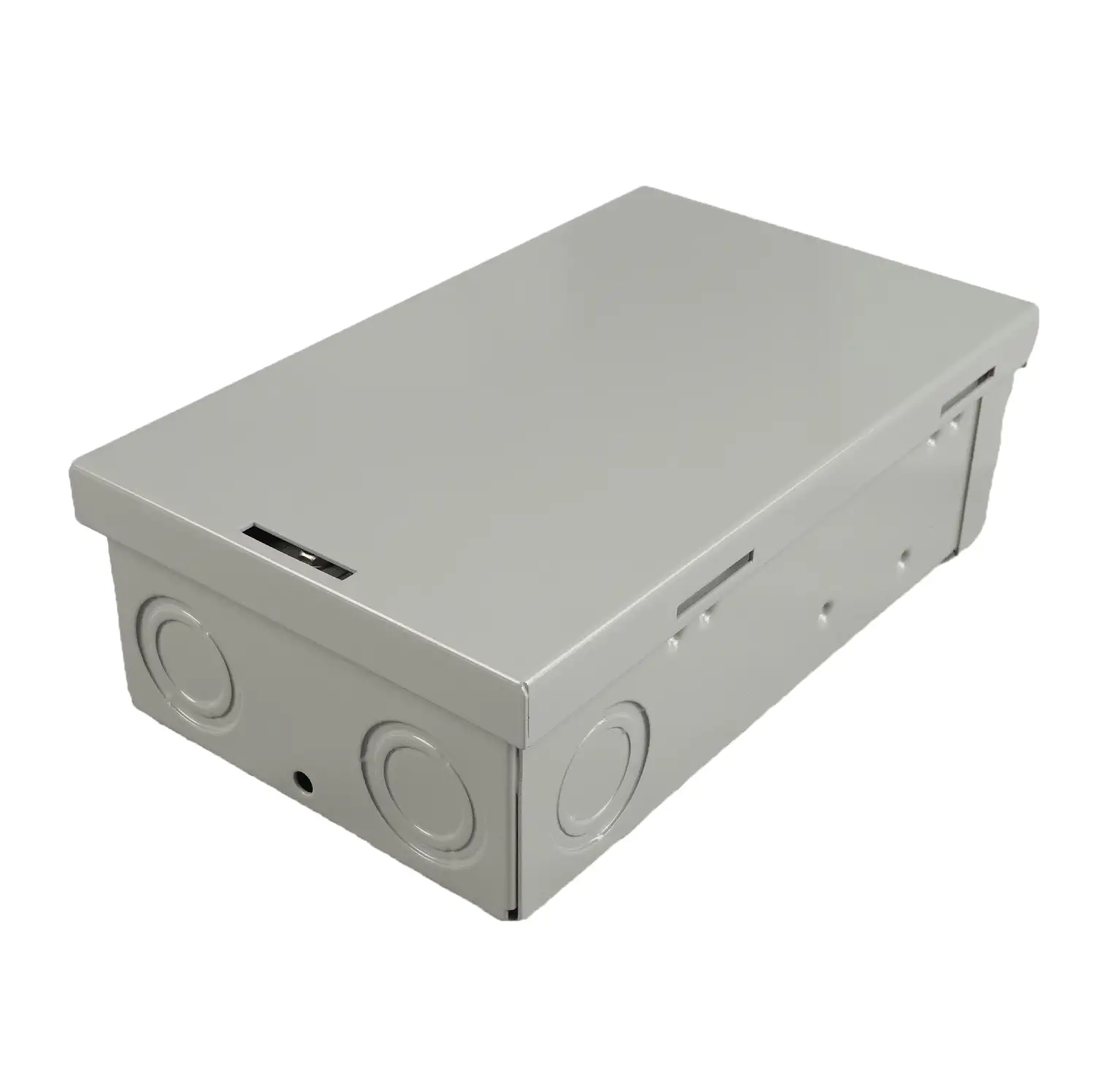

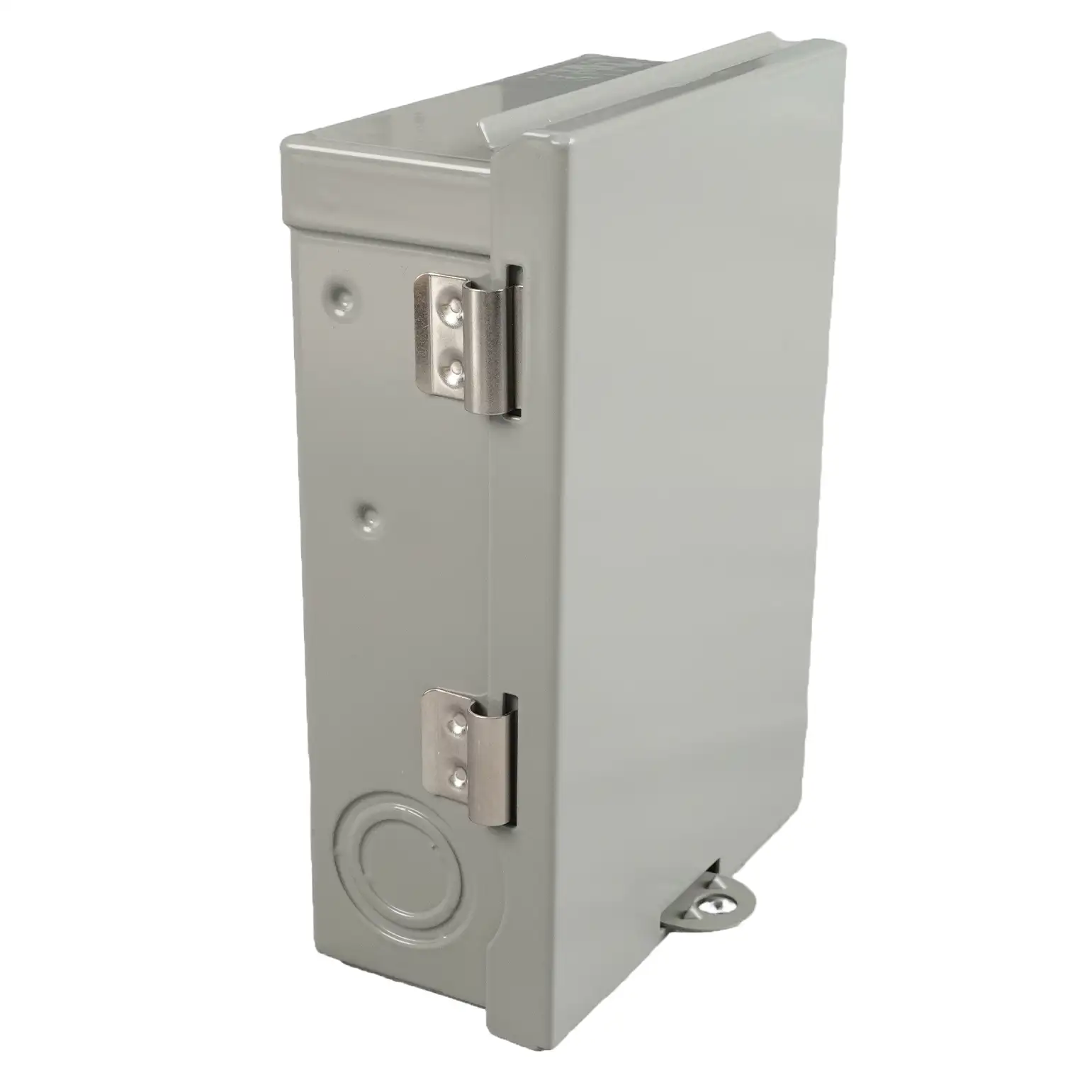

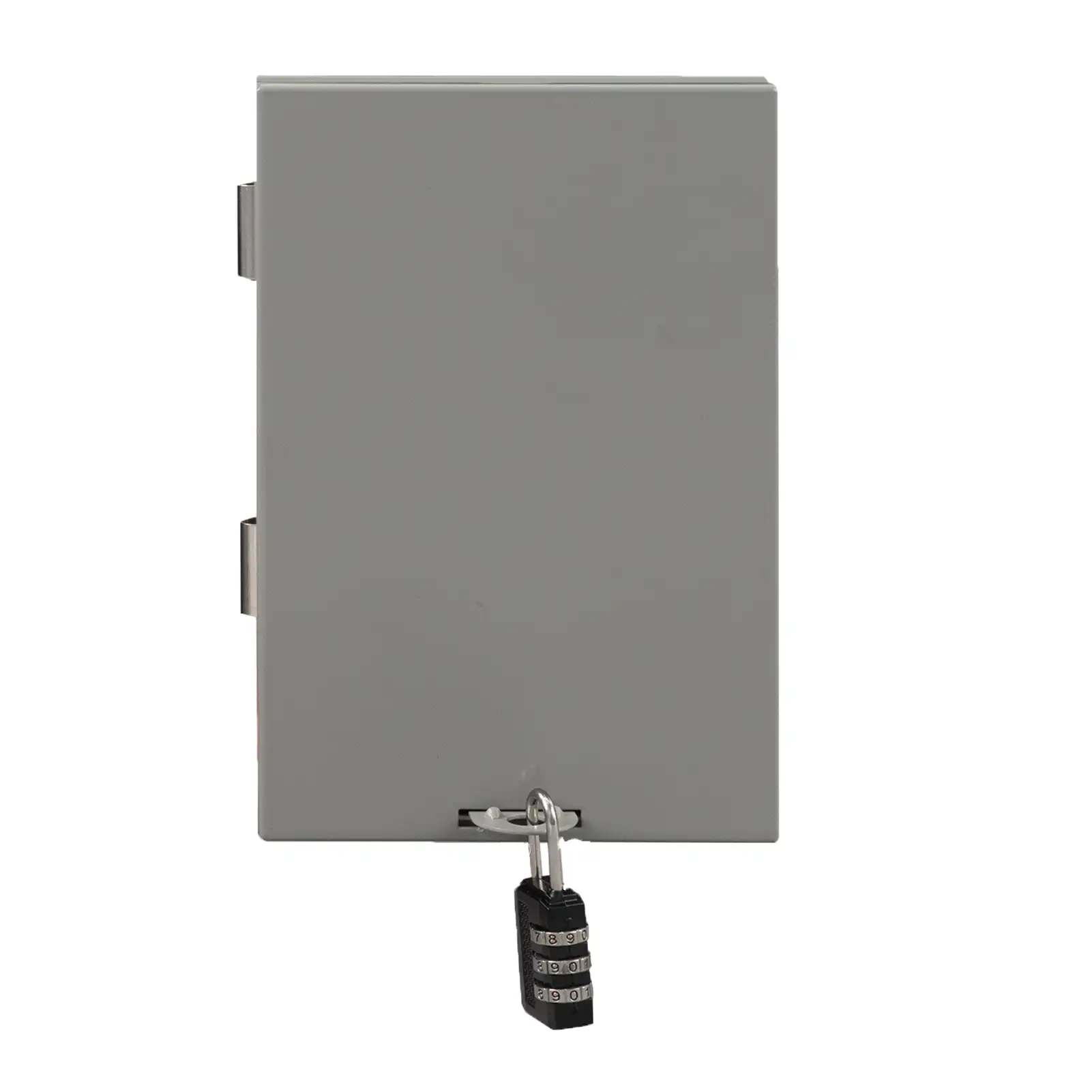

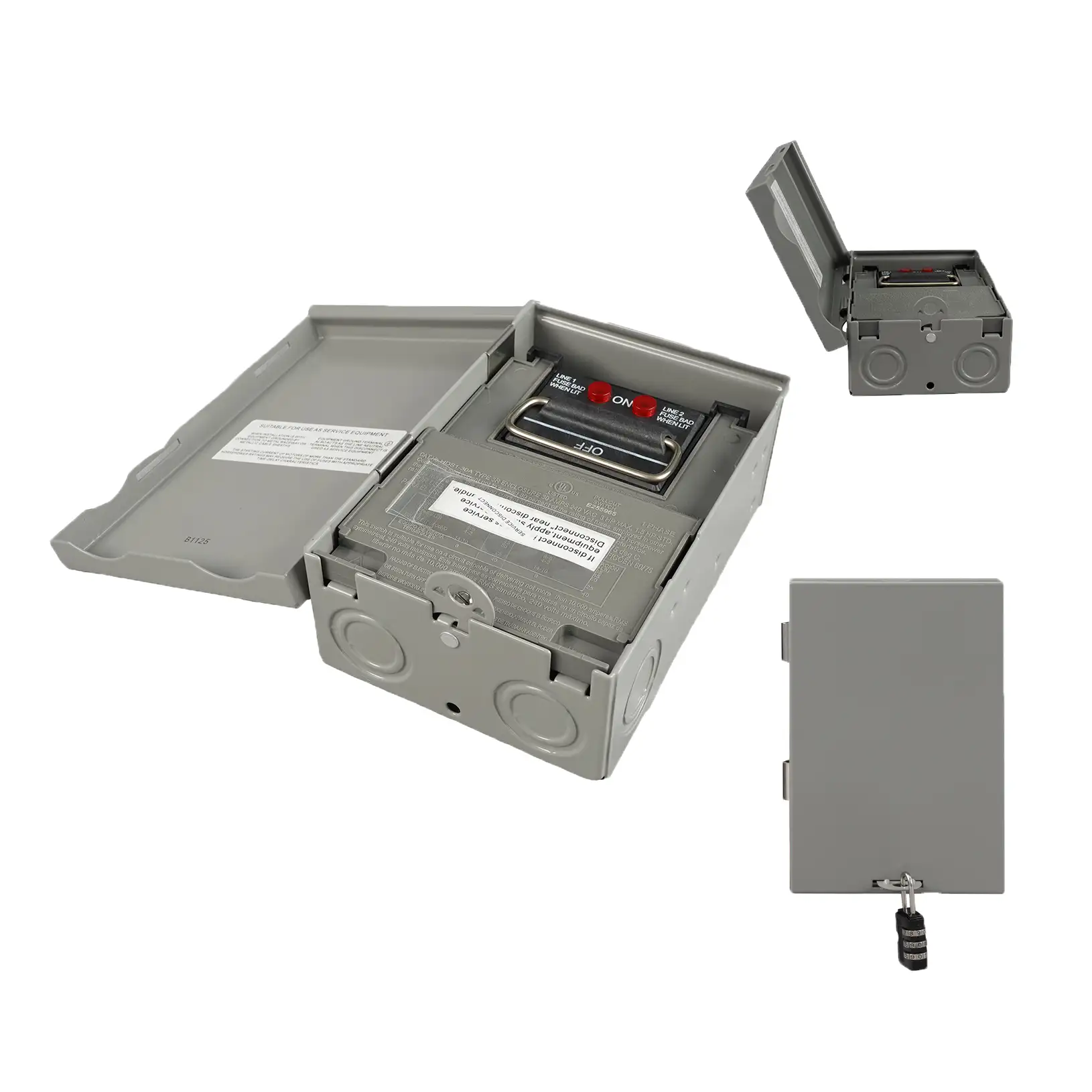

HIITIO HDS1 Air Conditioning Disconnects provide safe, convenient outdoor disconnect means for residential and light commercial AC units. Available in 30A and 60A fused or non-fused versions, these NEMA 3R enclosures feature copper lugs, padlockable doors, and factory-installed GFCI receptacles for reliable service and code compliance.
| Cat. No. | Description | Main Ampere Rating | HP Rating (120V) | HP Rating (240V) | Wire Size (AWG) & Torque – LINE/LOAD | Wire Size (AWG) & Torque – GROUND |
|---|---|---|---|---|---|---|
| HDS1-30A | Enclosed Fused ACD | 30A 240V 1-Phase 2-Pole 3-Wire | STD 0.5 / MAX 2 | STD 1.5 / MAX 3 | #14-10 35 lb-in #8 40 lb-in #6-4 45 lb-in #2 50 lb-in |
#14-10 25 lb-in #8 40 lb-in |
| HDS1-60A | Enclosed Fused ACD | 60A 240V 1-Phase 2-Pole 3-Wire | STD 1.5 / MAX 3 | STD 3 / MAX 10 | #14-10 35 lb-in #8 40 lb-in #6-4 45 lb-in #2 50 lb-in |
#14-10 25 lb-in #8 40 lb-in |
| HDS1-60AN | Enclosed Non-Fused ACD | 60A 240V 1-Phase 2-Pole 3-Wire | — | STD 3 / MAX 10 | #14-10 35 lb-in #8 40 lb-in #6-4 45 lb-in #2 50 lb-in |
#14-10 25 lb-in #8 40 lb-in |
