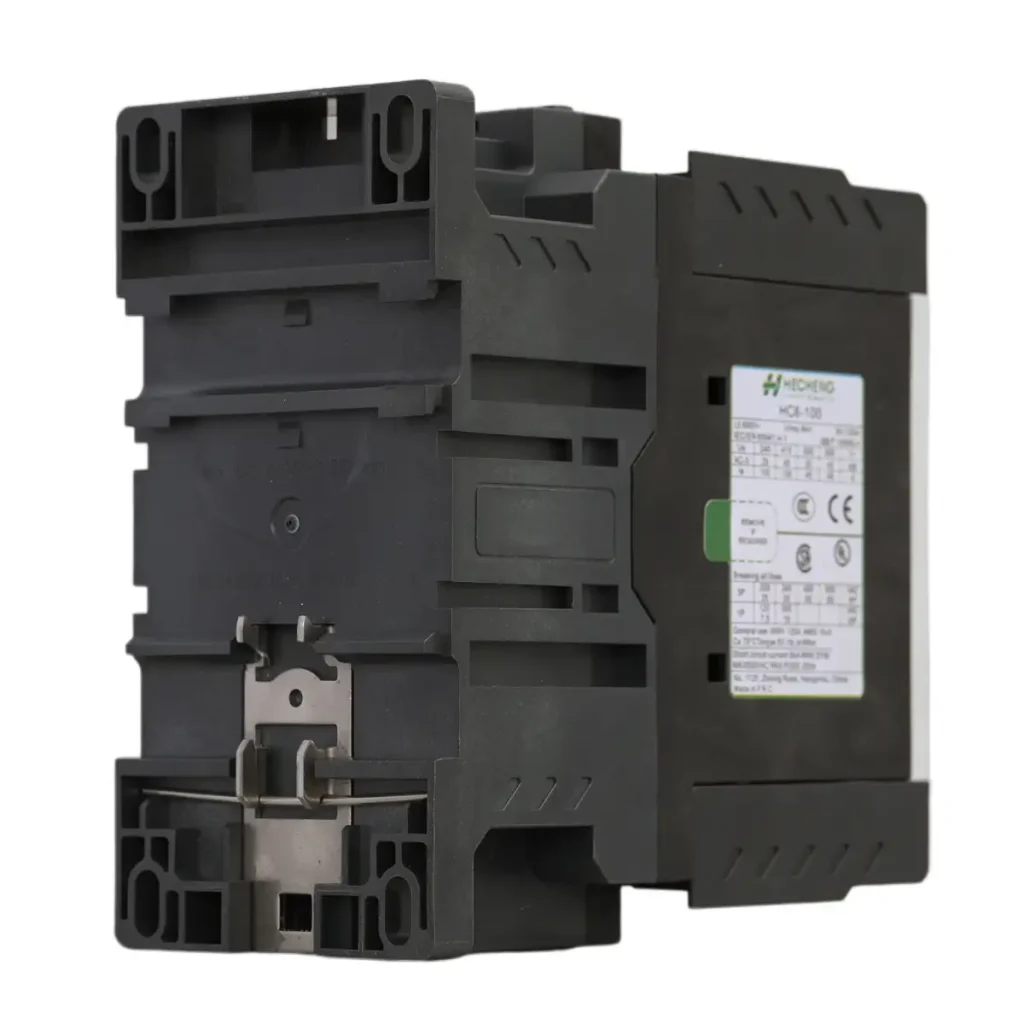

HC6 Series 75 to 100 Ampere Current Standard IEC Contactors
- Modular design, compact product structure
- Safe and reliable operation performance
- The special process of the contacts ensures continuous and reliable conduction
- Convenient installation without tools to install and remove accessories
- A variety of connection wire terminal options, wide range of wiring capabilities
- Better impact resistance and seismic performance
- Low power consumption coil
- Dustproof performance, optional dustproof accessories can be added
- Complete accessories
,
,
,
,
Description
Standard:
- UL 60947-1
- UL 60947-4-1
- GB/T 14048.1/IEC 60947-1
- GB/T 14048.4/IEC 60947-4-1
- GB/T 14048.5/IEC 60947-5-1
- GB 21518
Main Parameter
- Rated operational current (Ie): 6-100A
- Rated operational voltage (Ue): Up to 690V
- Rated insulation voltage (Ui): 690V
- Number of Pole: 3P, 4P (HC6-06M – 12M)
- Coil control mode: AC
- Mounting Support: DIN Rail, Plate
Applications
HC6 series AC contactor, novel appearance, compact structure. It is mainly used for frequent starting and controlling AC motors, connecting and disconnecting circuits at a distance, and forming electromagnetic starters with appropriate thermal overload relays.
- Lift / Elevator
- Crane
- Compressor
- Pumps
- Machine tool manufacture
- Machinery
Product Model
| HC6 | – 0 | M | 1 | /22 | /N | 220V | 50/60H | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Company Code | ||||||||||||
| Rated Current：06=6A; 09=9A; 12=12A; 18=18A; 25=25A; 32=32A; 38=38A; 40=40A; 50=50A; 65=65A; 75=75A; 85=85A; 100=100A; 115=115A; 150=150A; | ||||||||||||
| Contactor Type：M: For 06 – 12 A Mini contactor Nil: For 09 – 100 A contactor | ||||||||||||
| Auxiliary Contact Type：10: 1 NO (only Mini contactor) 01: 1 NC (only Mini contactor) Nil: For 09 –100 A contactor (09-18 A contactors are equipped with 1 NO and 1NC auxiliary contacts.) | ||||||||||||
| Main Contact Type：22: 2 NO + 2 NC (only Mini and 09-18 4-Pole AC contactor) 40: 4 NO (only Mini and 09-18 4-Pole AC contactor) Nil: For 09 –100 A contactor | ||||||||||||
| Special Function：N: Reversing contactor Nil: Non-Reversing contactor | ||||||||||||
| Control Circuit Voltage：24V; 36V; 48V; 110V; 127V; 220V; 230V; 240V; 380V; 415V | ||||||||||||
| Frequency：50/60Hz | ||||||||||||
