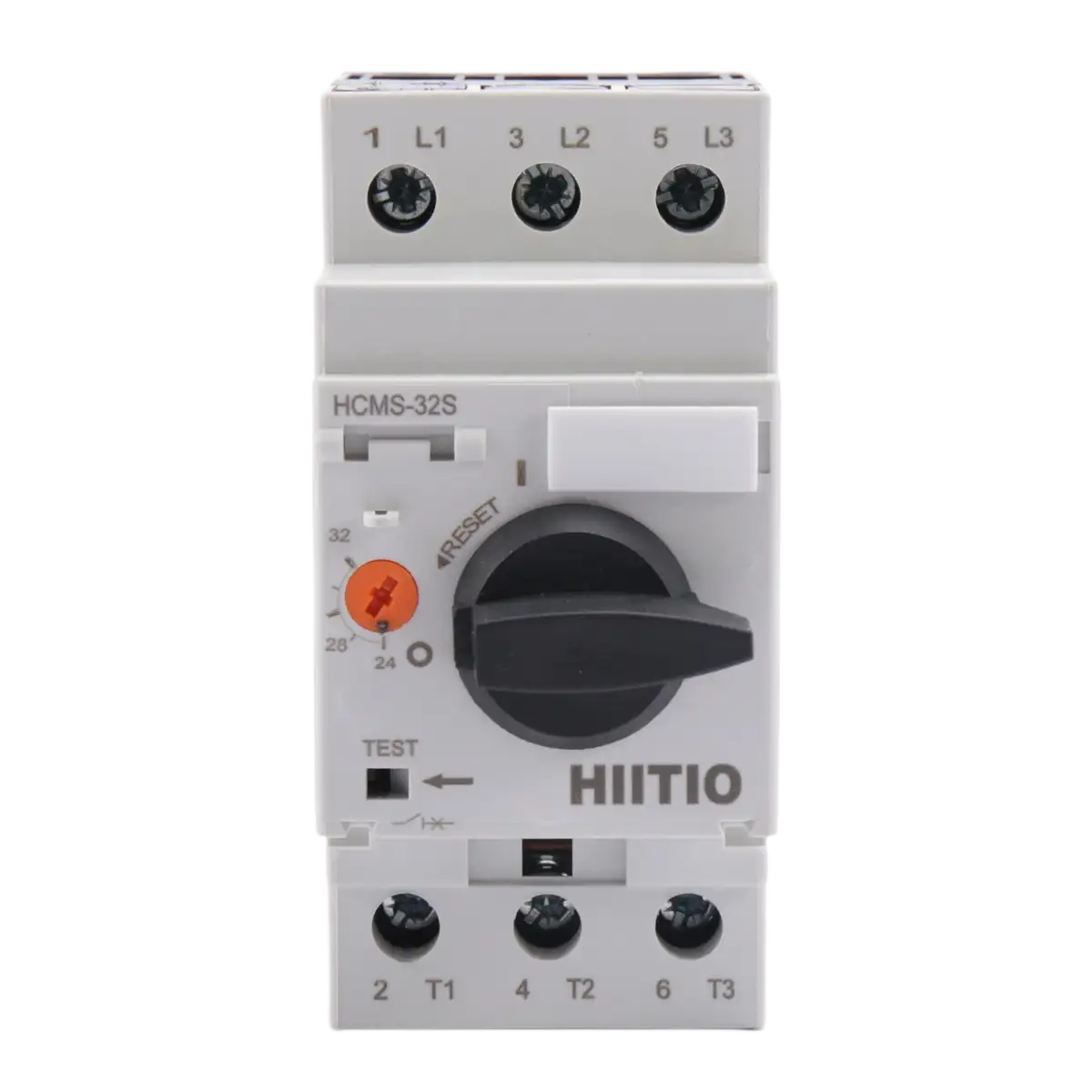

690V 32A Manual Motor Protection Starter
- Maximum Rated Current: 32A
- Rated insulation voltage: 1000 V/AC
- Rated Operating Voltage: 690 V/AC
- Trip level: IEC 10A/UL 10
- Mechanical Life: 100,000 Ops
- Electrical Life: 100,000 Ops
,
,
Description
- Overload, under phase and high breaking protection;
- Short-circuit electromagnetic tripping value 13 times le;
- Thermodynamic adjustable tripping, Class10 tripping grade;
- Miniaturized device integrating the functions of molded case circuit breaker and thermal overload relay;
- Excellent performance, space-saving, can be a perfect replacement for circuit breaker and contactor heating relay schemes in industrial control applications.
- Compliant with multiple specifications:
- IEC 60947-1,60947-2,60947-4-1
- EN 60947-1,60947-2,60947-4-1
- GB/T 14048.1,14048.2,14048.4
- UL 60947-4-1
