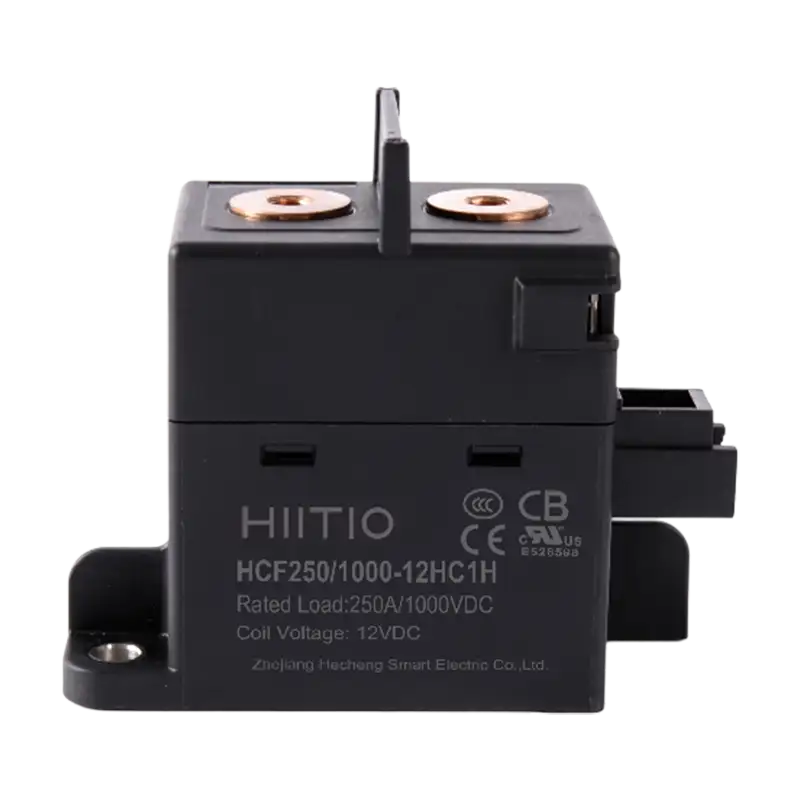

Ceramic sealing structure with H₂ mixed gas filled in the chamber, no risk of arc leakage, low & stable contact resistance;
High value of short-circuit current withstanding to ensure the contacts can be reliably closed when encountering short-circuit current, contributing to no risk of fire and explosion;
Non-polarity arc extinguishing design that is applicable to a range of scenarios with bidirectional current circuit safely and reliably;
A set of NO auxiliary contacts is optional;
Carrying current 250A continuously at 85°C;
MAIN CONTACT DATA
| Parameter | Value |
|---|---|
| Max. Switching Voltage | 1500VDC |
| Rated Current | 250A |
| Contact Arrangement | SPST-NO |
| Contact Voltage Drop | ≤0.125V (at 250A) |
| Limiting Short-time Current | 375A:10min; 500A:120s; 1000A:20s; 2500A:0.6s |
| Electrical Life (Resistive Load) | 450V Model: 250A 450VDC 1000 ops 800V Model: 250A 800VDC 500 ops 1000V Model: 250A 1000VDC 500 ops, Only Breaking 1500V Model: 50A 1500VDC 6000 ops; 50A 1500VDC 11000 ops, Only Making |
| Max. Breaking Current (Resistive Load) | 2000A 450VDC 1 ops |
| Overload Breaking (Resistive Load) | 500A 450VDC 10 ops |
| Short Circuit Current Withstanding | 8000A (5ms) No Smoke or Fire |
CHARACTERISTIC DATA
| Parameter | Value |
|---|---|
| Dielectric Strength (Between Main Contacts and Coil) | Before Test ≥4000VAC (1min) After Test ≥2500VAC (1min) |
| Dielectric Strength (Between Open Main Contacts) | Before Test ≥3000VAC (1min) After Test ≥2500VAC (1min) |
| Insulation Resistance (Between Main Contacts and Coil) | Before Test ≥1000MΩ (1000VDC) After Test ≥50MΩ (1000VDC) |
| Insulation Resistance (Between Open Main Contacts) | Before Test ≥1000MΩ (1000VDC) After Test ≥50MΩ (1000VDC) |
| Shock Resistance (Functional) | 20g Half-Sine Wave 11ms |
| Shock Resistance (Destructive) | 50g Half-Sine Wave 6ms |
| Vibration Resistance (Functional) | 5.79g (10~2000Hz, Random) |
| Operate Time | Max: 30ms |
| Release Time | Max: 10ms |
| Mechanical Life | 2×10⁵ ops |
| Weight | Approx 415g |
COIL DATA
| Parameter | 12VDC | 24VDC | 48VDC |
|---|---|---|---|
| Pick-up Voltage | ≤9VDC | ≤18VDC | ≤36VDC |
| Drop-out Voltage | ≥1.2VDC | ≥2.4VDC | ≥4.8VDC |
| Rated Operating Power | Approx 6W | Approx 6W | Approx 6W |
| Max. Allowable Voltage | 16VDC | 32VDC | 64VDC |
HCF250-Dimension-1
HCF250-Dimension-2
HCF250-Dimension-3
HCF250-Dimension-4
