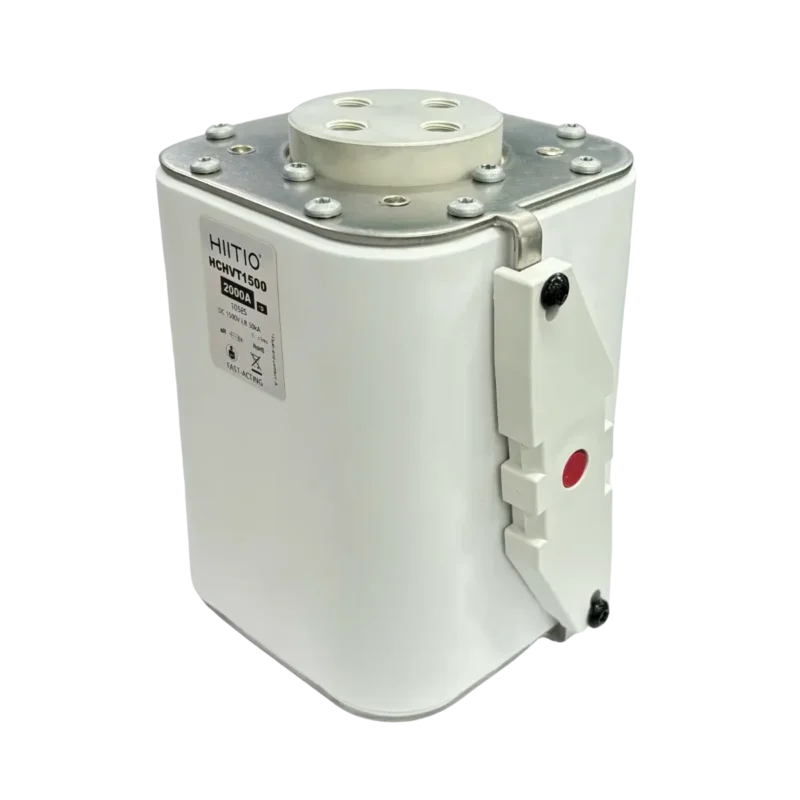

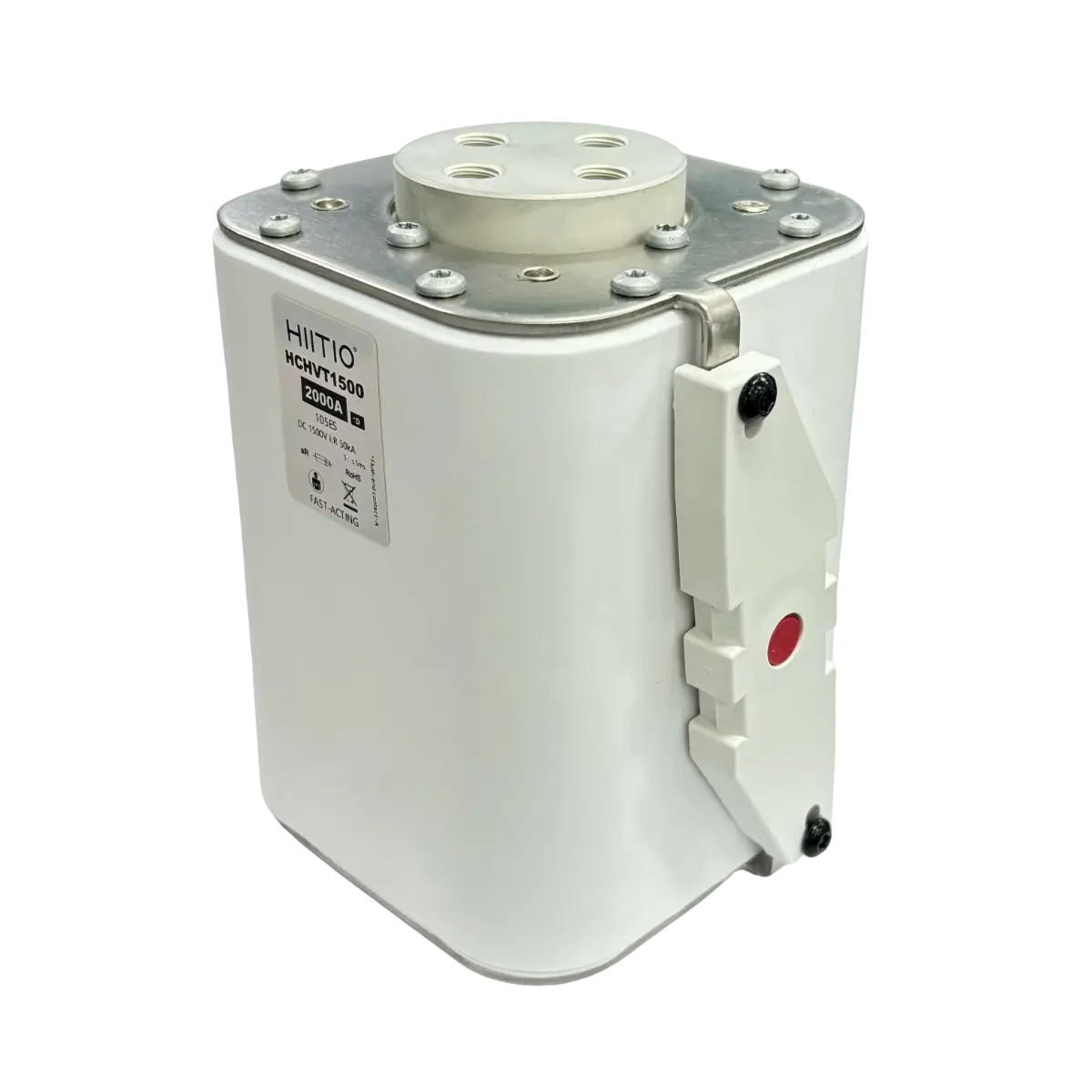

1500Vdc 50Ka 400-2000A Fast-Acting High Speed Fuse D 4#
Ratings & Features Applications
- Volts: 1500Vdc
- Amps: 400-2000A
- Interrupting Capacity: 1500Vdc 50kA (L/R ≤ 5ms); Min BC: ≥ 2 In
- Class Type: aR
- Design For DC Applications
- Low arc voltage and low energy let-through(I2t)
- DC Drives
- Battery pack protection
- Excellent DC Performance
- Superior Cycling Capability
,
,
,
Description
Standards / Approvals
- Refer To UL 248-13, IEC 60269-4
- Reach Declaration Available Upon Request
- CE
- RoHS Compliant
Work/Storage condition
- Work within the temperature -40℃ to +100℃ range.
- This product is a bolt-connected fuse for partial range protection, with strong current limiting, high breaking capacity, and other characteristics.
- It is suitable for energy storage, wind power, and other industry applications, which can be used as short-circuit protection for energy storage systems, power systems, and other devices and equipment.

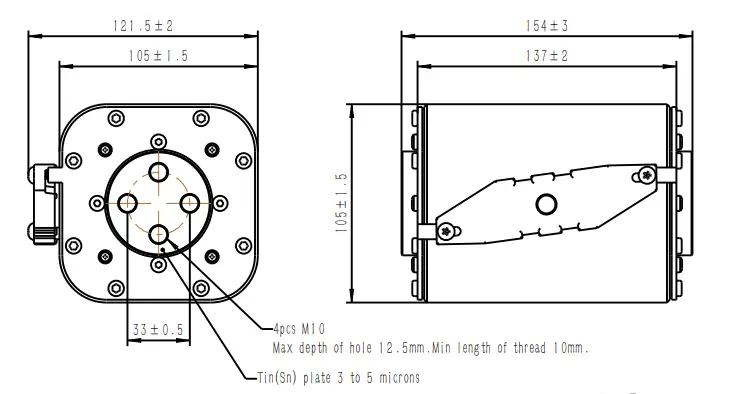

Fuse Ratings
| Part No. | Fuse | Size | Average @ 50KA/1500Vdc | Power Loss (W) 1.0In | ||
| Amps | A²s Melting | A²s Clearing | ||||
| HCHVT1500-400D-105ES | 400 | 4 # | 25,840 | 136,400 | 198 | |
| HCHVT1500-500D-105ES | 500 | 4 # | 57,350 | 275,430 | 200 | |
| HCHVT1500-630D-105ES | 630 | 4 # | 117,640 | 563,500 | 232 | |
| HCHVT1500-700D-105ES | 700 | 4 # | 164,320 | 783,000 | 249 | |
| HCHVT1500-800D-105ES | 800 | 4 # | 242,100 | 1,160,250 | 256 | |
| HCHVT1500-900D-105ES | 900 | 4 # | 345,700 | 1,668,800 | 277 | |
| HCHVT1500-1000D-105ES | 1000 | 4 # | 470,500 | 2,290,100 | 293 | |
| HCHVT1500-1100D-105ES | 1100 | 4 # | 625,200 | 3,005,000 | 312 | |
| HCHVT1500-1200D-105ES | 1200 | 4 # | 752,500 | 3,600,200 | 320 | |
| HCHVT1500-1250D-105ES | 1250 | 4 # | 915,200 | 4,430,000 | 325 | |
| HCHVT1500-1300D-105ES | 1300 | 4 # | 1,005,500 | 5,230,500 | 338 | |
| HCHVT1500-1350D-105ES | 1350 | 4 # | 1,290,000 | 6,245,000 | 348 | |
| HCHVT1500-1400D-105ES | 1400 | 4 # | 1,350,900 | 6,980,500 | 354 | |
| HCHVT1500-1500D-105ES | 1500 | 4 # | 1,580,560 | 7,630,000 | 362 | |
| HCHVT1500-1600D-105ES | 1600 | 4 # | 1,940,500 | 9,295,950 | 375 | |
| HCHVT1500-1800D-105ES | 1800 | 4 # | 2,728,600 | 13,120,650 | 394 | |
| *HCHVT1500-2000D-105ES | *2000 | 4 # | 3,300,980 | 18,560,370 | 412 | |
| * If there are any requirements, please communicate with the original factory staff first. | ||||||
