1000-2000A 1000Vdc Square Body Semiconductor Fuse 4#
- Volts: 1000Vdc
- Amps: 1000-2000A
- Interrupting Capacity:
- 1000Vdc 100kA (L/R: 10~15ms)
- Min BC: >5 In
- Class Type: aR
- Refer to UL 248-13
- Reach Declaration Available Upon Request
- RoHS Compliant
- Work within the temperature range of -40°C to +85°C.
,
Description
The HCBVG4-S-105E Series of fuses offers high-performance protection in DC electrical systems, designed for use in industrial energy storage systems (ESS), wind power, and other applications. With current ratings from 1000A to 2000A and a voltage capacity of 1000Vdc, these fuses provide exceptional interruption capacity of up to 100kA, ensuring superior safety and reliability. The bolt-connected design allows for easy integration into existing systems, while its excellent cycling capabilities make it an ideal choice for applications requiring frequent operation.
Fuse Ratings
| Part No. | Fuse | Size | Average @ 100KA/1000Vdc | Power Loss (W) | ||
| Amps | A²s Melting | A²s Clearing | 0.5 In | 1.0 In | ||
| HCBVG4-1000S-105E | 1000 | 4 # | 290,000 | 1,200,500 | 38 | 210 |
| HCBVG4-1250S-105E | 1250 | 4 # | 767,580 | 2,795,600 | 50 | 266 |
| HCBVG4-1350S-105E | 1350 | 4 # | 950,700 | 3,345,700 | 52 | 275 |
| HCBVG4-1400S-105E | 1400 | 4 # | 1,109,000 | 4,328,000 | 55 | 283 |
| HCBVG4-1500S-105E | 1500 | 4 # | 1,590,450 | 5,435,000 | 58 | 295 |
| HCBVG4-1600S-105E | 1600 | 4 # | 1,800,600 | 6,454,000 | 60 | 320 |
| HCBVG4-1700S-105E | 1700 | 4 # | 2,080,700 | 7,620,000 | 64 | 350 |
| HCBVG4-1800S-105E | 1800 | 4 # | 2,580,500 | 9,053,400 | 68 | 355 |
| HCBVG4-1900S-105E | 1900 | 4 # | 2,970,870 | 10,510,000 | 70 | 430 |
| HCBVG4-2000S-105E | 2000 | 4 # | 3,550,000 | 12,400,000 | 73 | 445 |
- I²t test：1070Vdc，101kA，T：3ms；DC Peak arc voltage1690v；
Applications
- Energy storage systems (ESS)
- Wind power systems
- Power systems and other industrial equipment

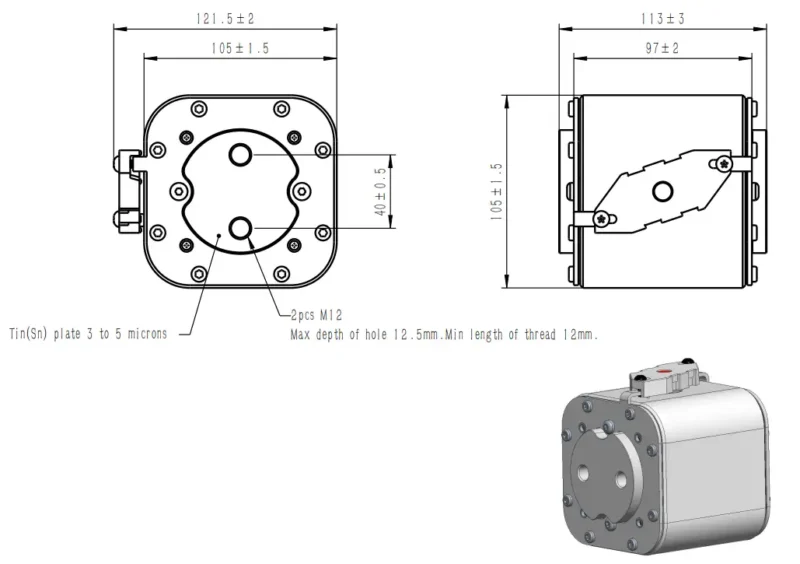

Dimensions (mm)
