The Gate Driver Cores is a high-performance dual-channel driver core independently developed by HIITIO based on intelligent chip technology. It supports IGBT modules with voltage ratings from 1200 V to 3300 V. Featuring a simplified peripheral circuit design, it enables customers to safely and reliably drive IGBTs without the need for additional effort in driver debugging or tuning.
| Product part No. | Output power per channel/ Gate peak current | Voltage class | Cross reference | |
|---|---|---|---|---|
|

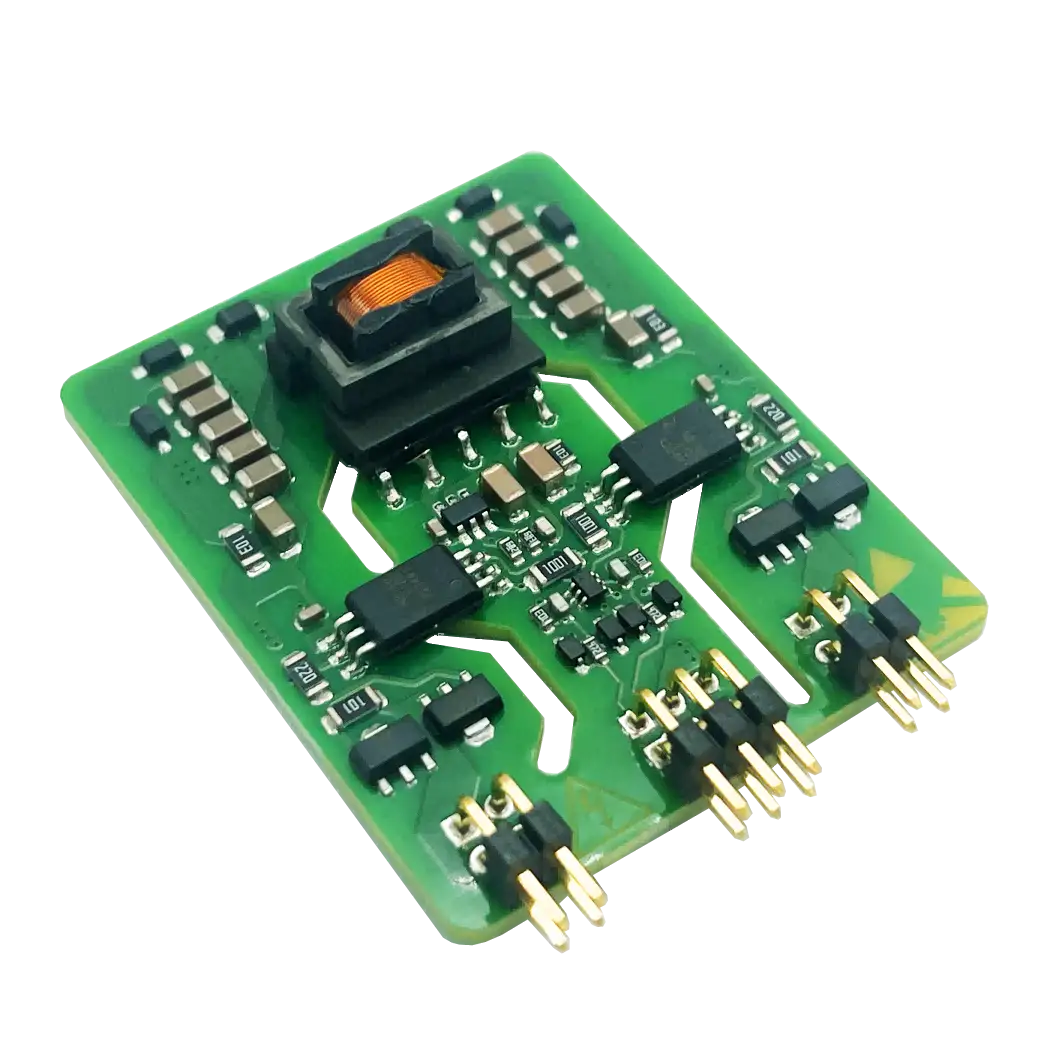

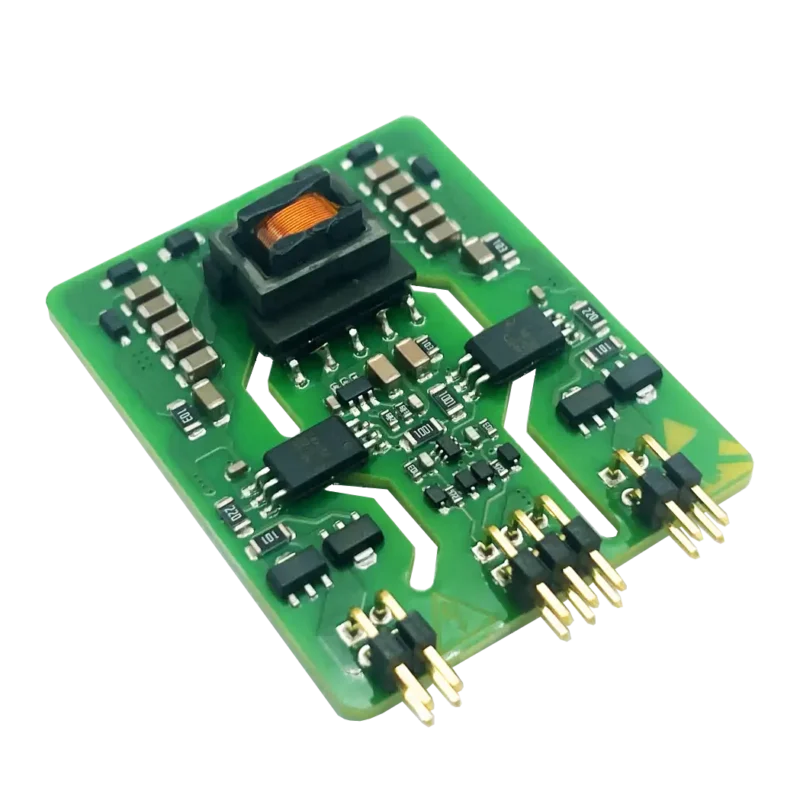

H2SC0110 | 1W/10A | 1200V | / |
|

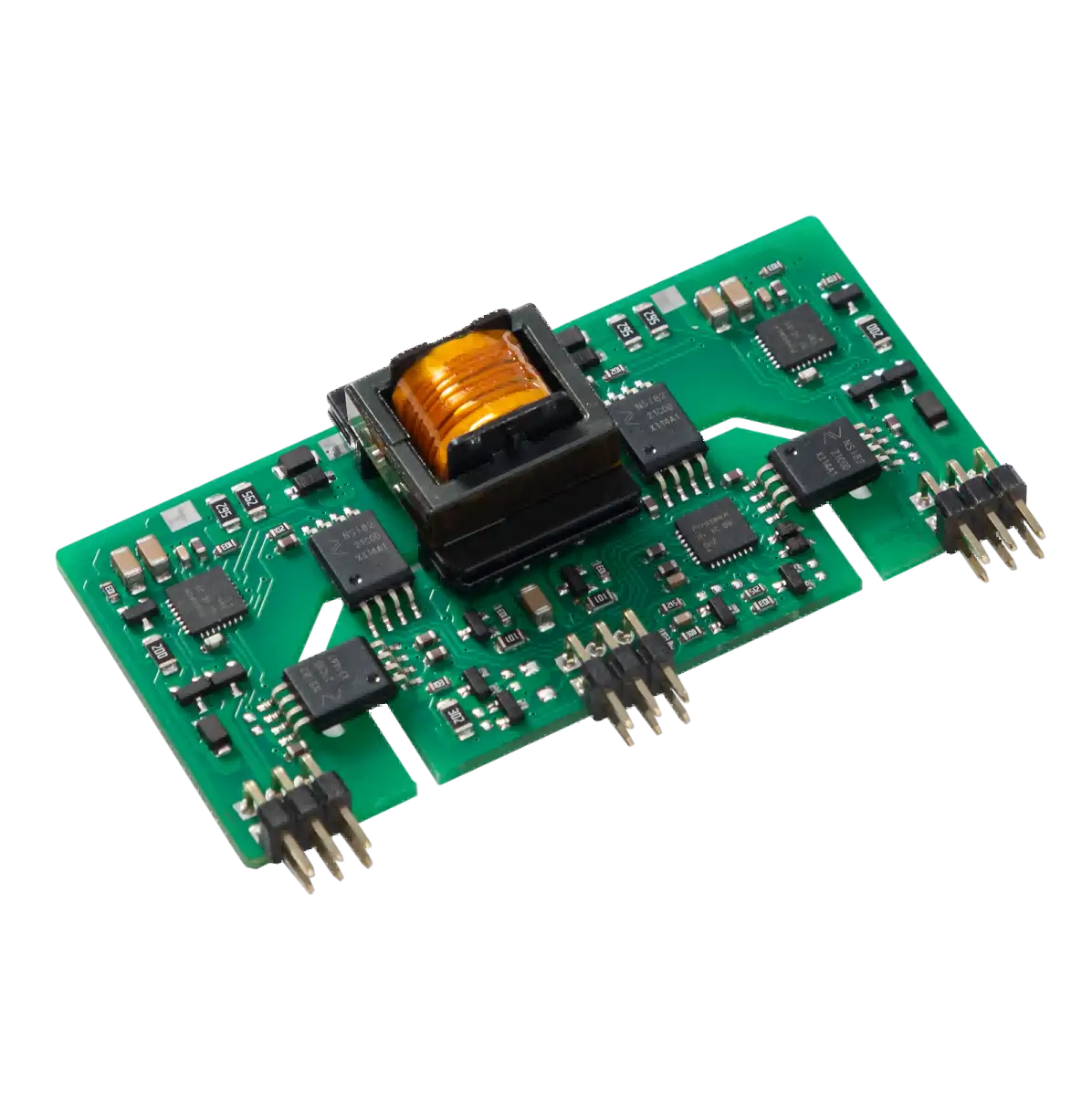

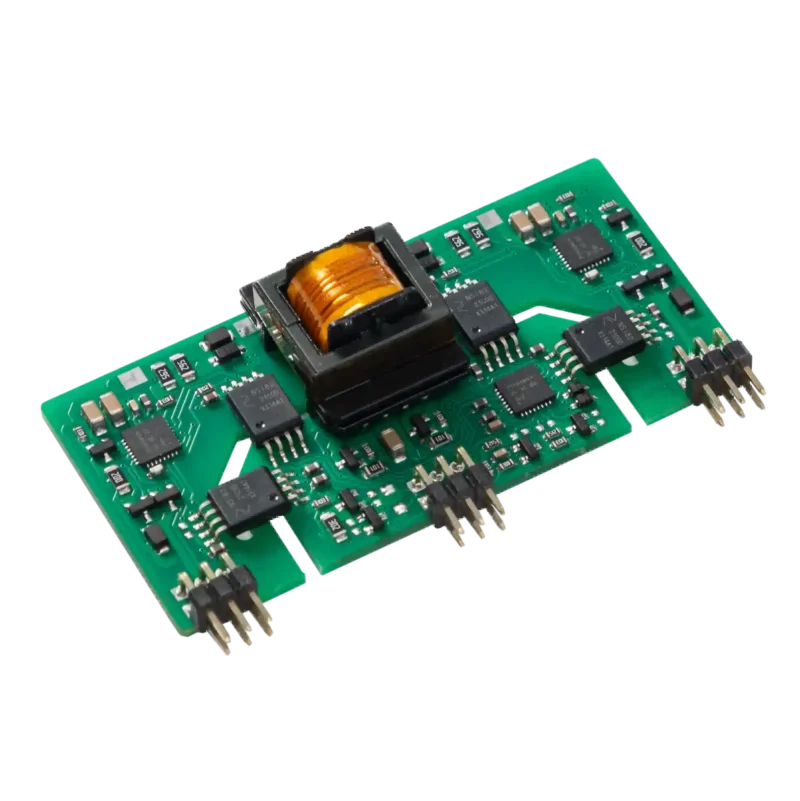

H2HC0215B1V | 2W/15A | 1700V | / |
|

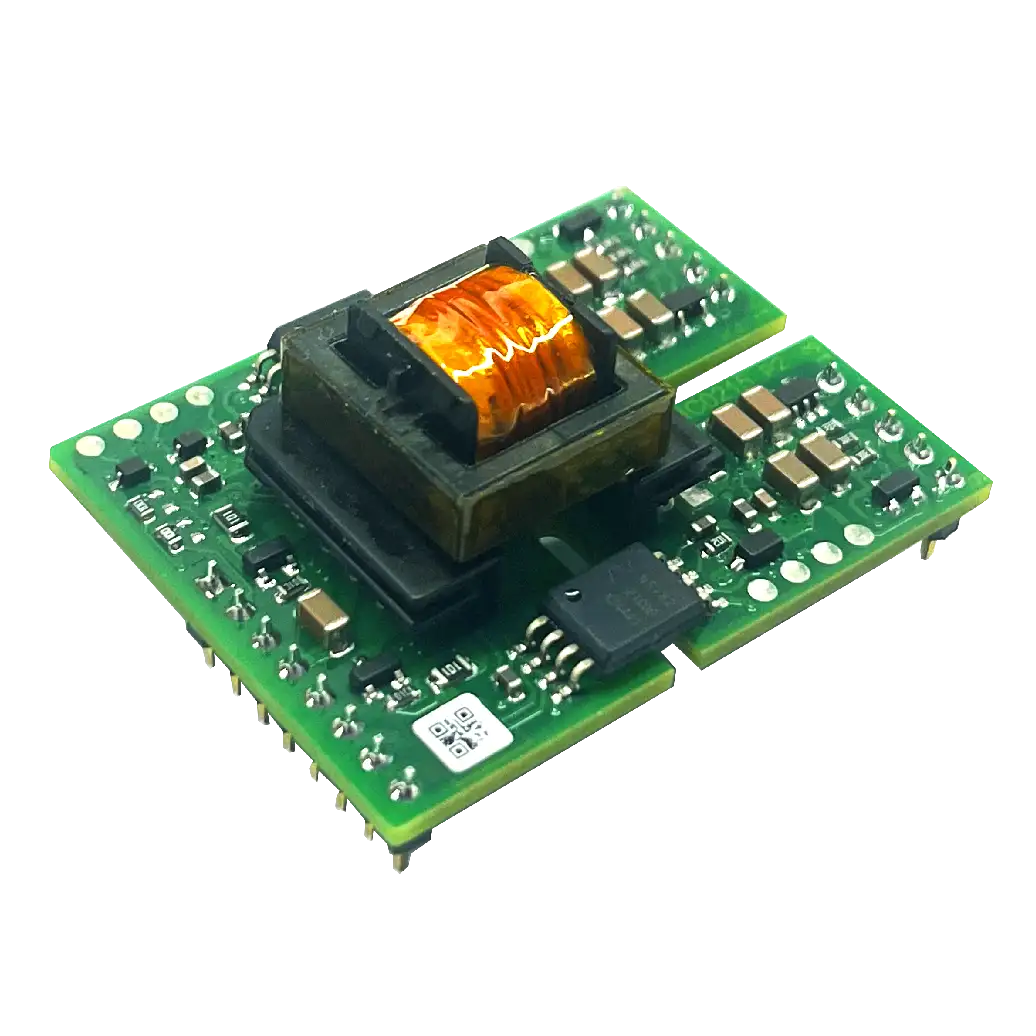

H2HC0215 | 2W/15A | 1700V | 2SC0108T |
|

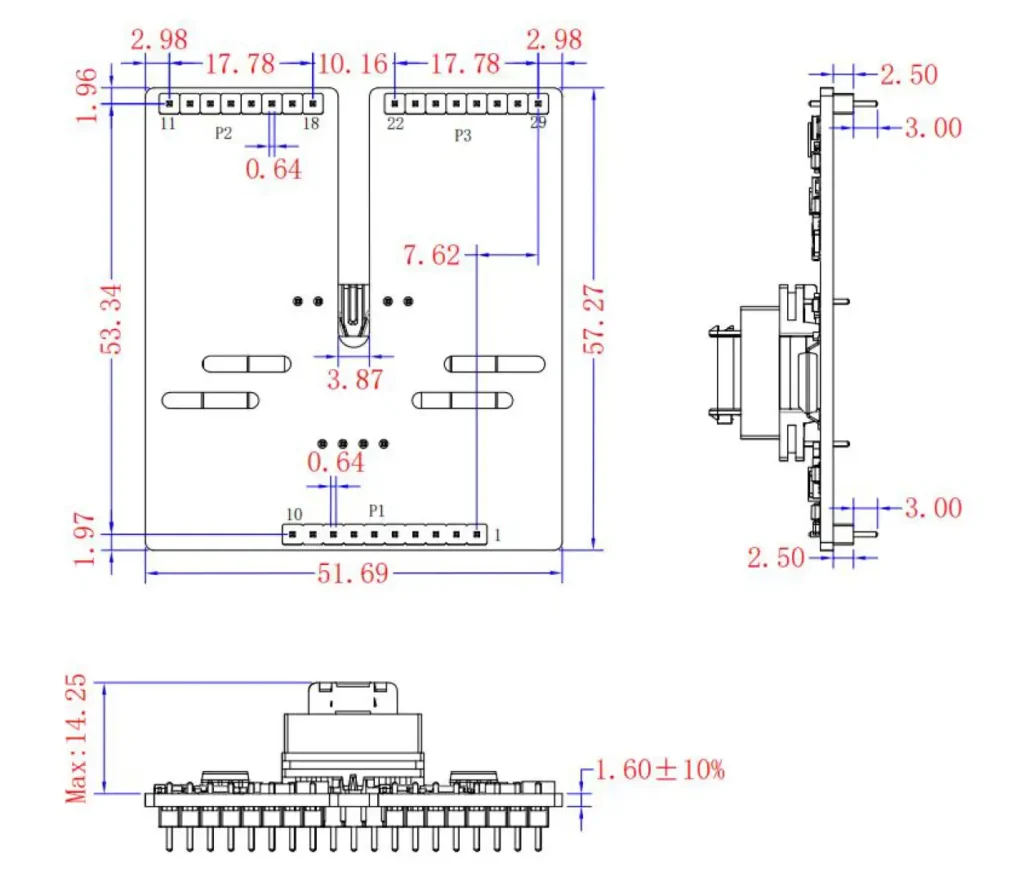

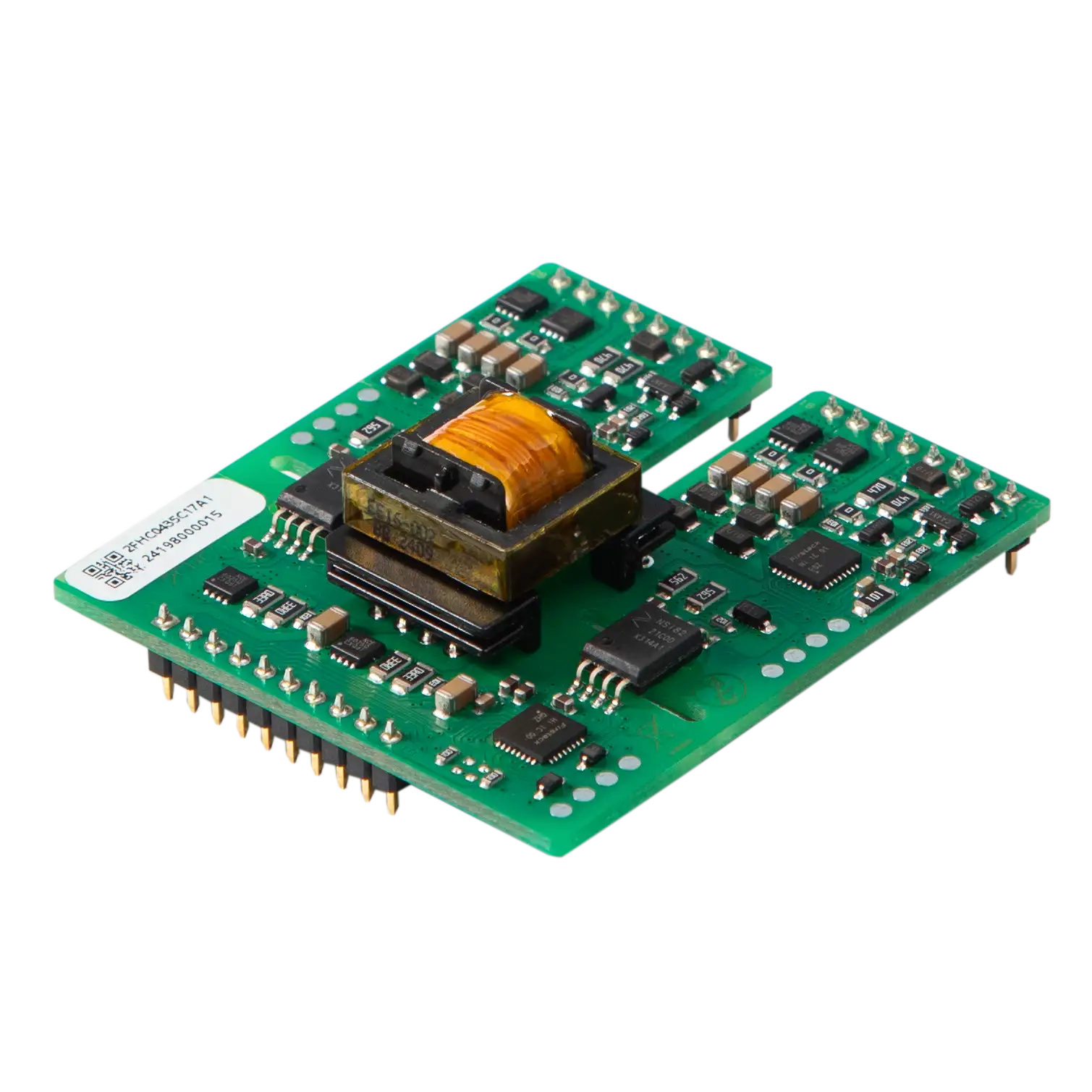

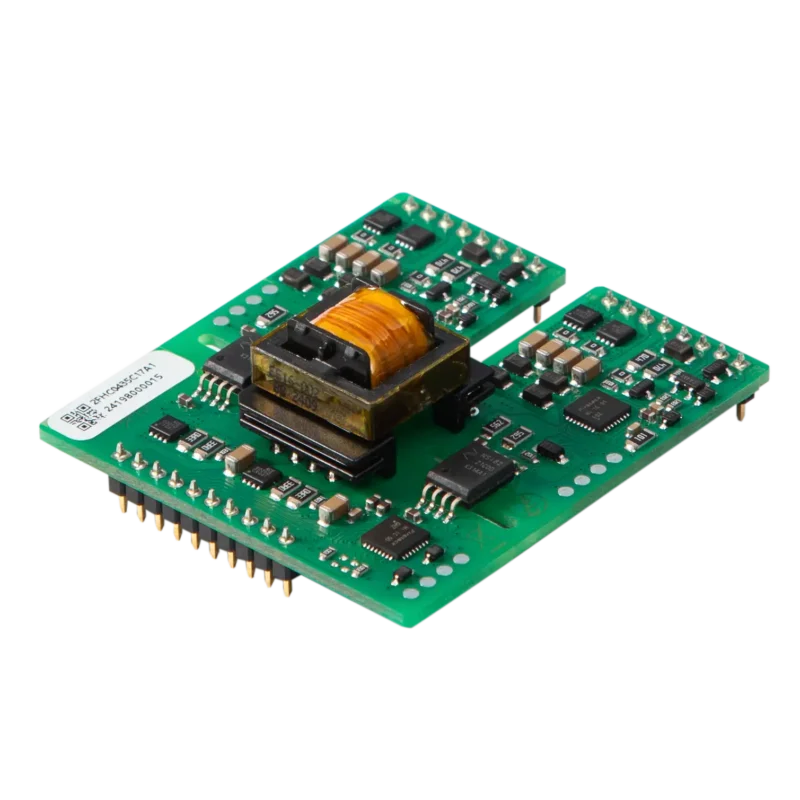

H2HC0435 | 4W/35A | 1700V | 2SC0435T |
|
H2HC0660 | 6W/60A | 3300V | 2SC0535T |
