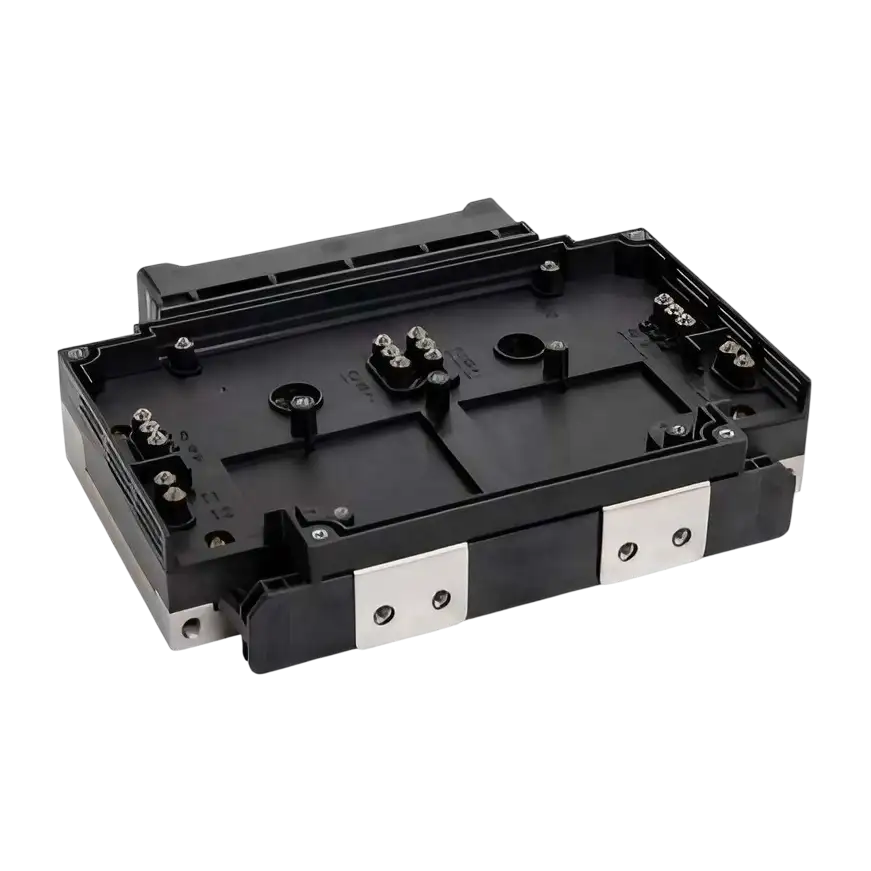

6500V 750A High Voltage IGBT Power Module

The HCGM750PHM65-TSA000 High Voltage IGBT Power Module is designed for high-voltage, high-power applications, rated at 6500V/750A. Featuring direct liquid-cooling and AIN substrates, it ensures superior thermal performance and system stability. The low inductive design minimizes parasitic inductance, enhancing switching efficiency, while the 10μs short-circuit withstand capability improves system protection, making it an ideal choice for traction drives, motor control, smart grids, and high-reliability inverters.

Features

• Direct Liquid-Cooling: Enhances thermal management and system reliability
• AIN Substrates: Improves electrical insulation and long-term stability
• Low Inductive Design: Reduces parasitic inductance, improving switching efficiency
• 10μs Short Circuit Withstand: Provides superior circuit protection for enhanced safety

Applications

• Traction Drives (rail transportation, electric locomotives)
• Motor Controllers (industrial drives, automation systems)
• Smart Grid (efficient power management and distribution)
• High Reliability Inverters (wind and solar energy conversion systems)
