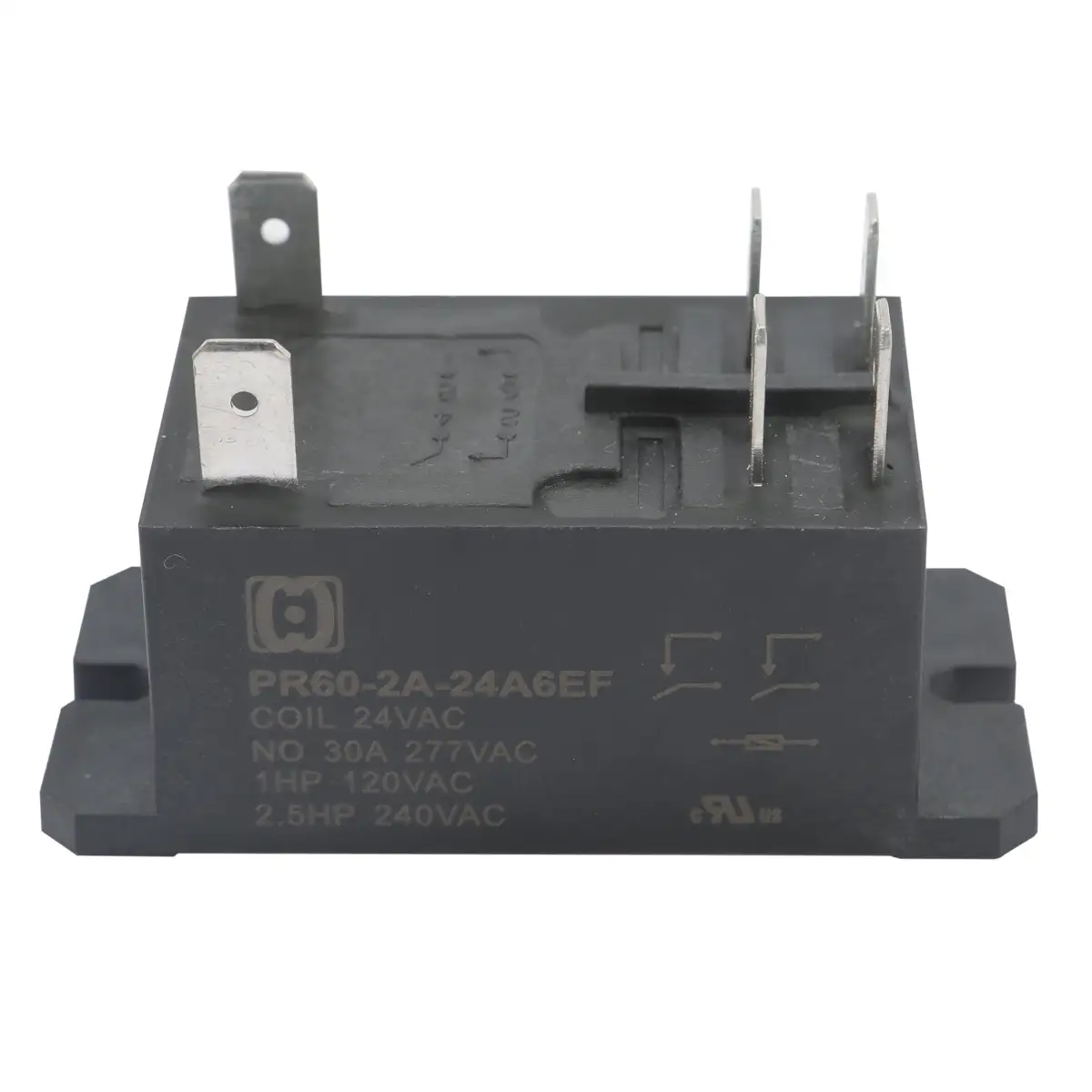

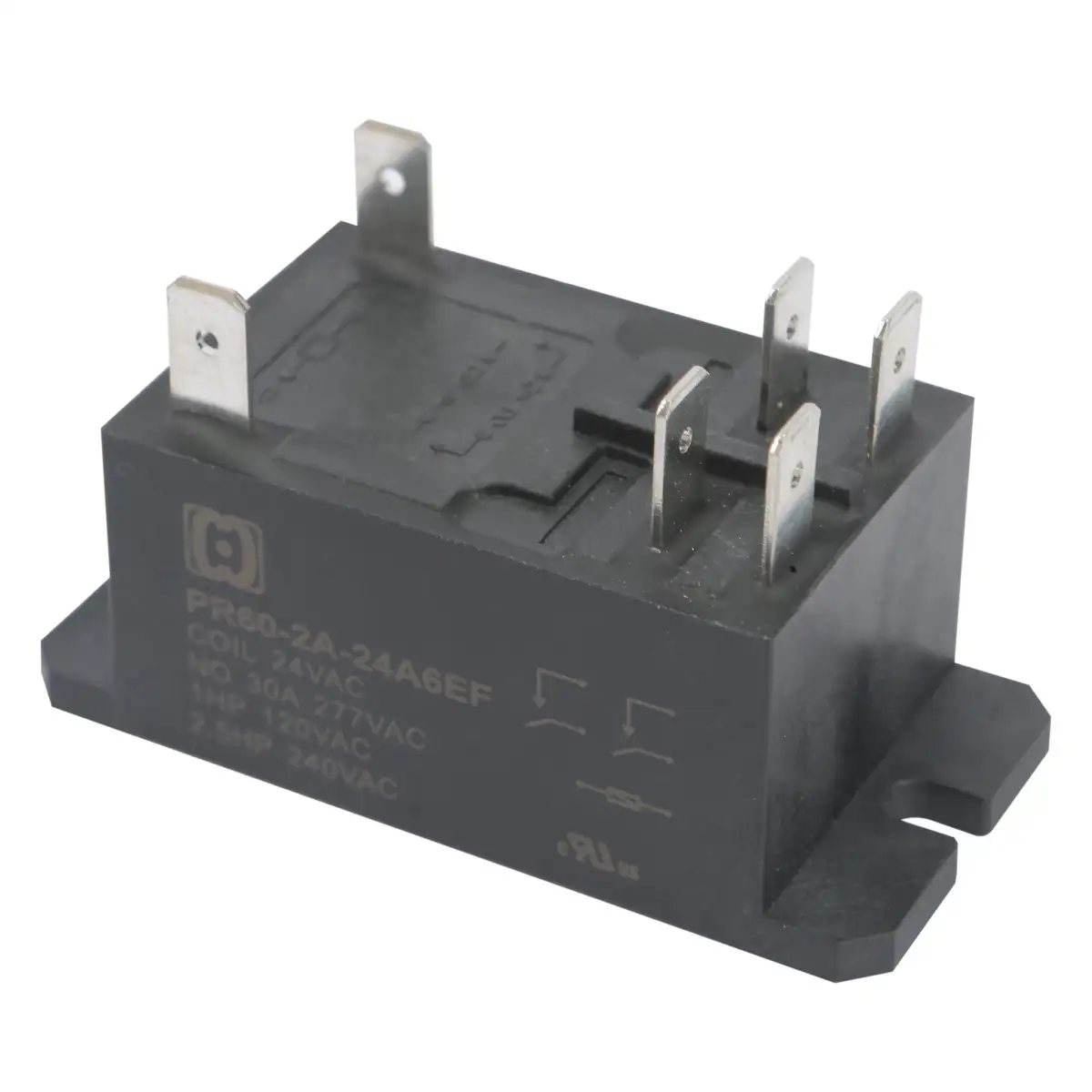

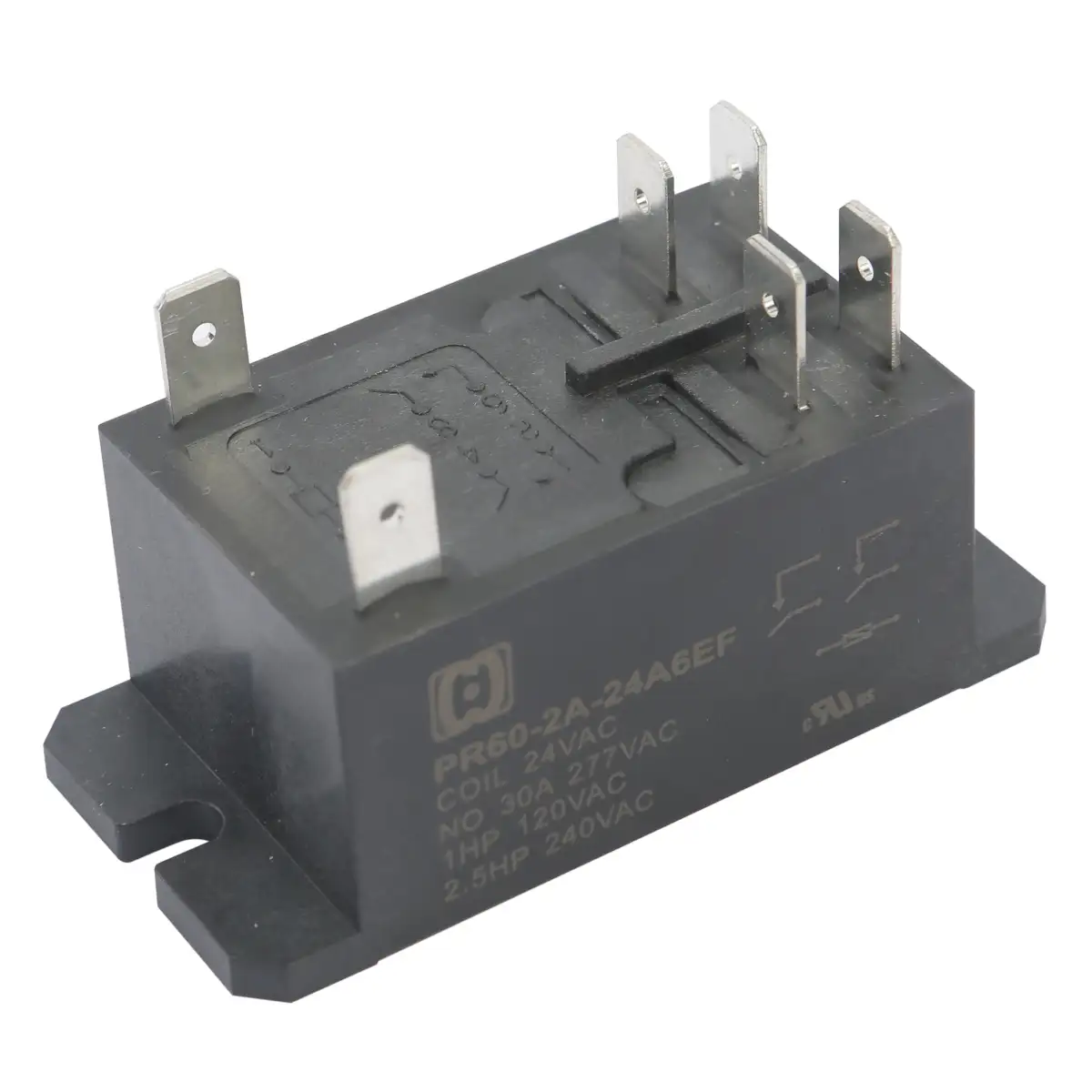

PR60 Series 40 Amp Miniature Power Relay
- DPST-NO and DPDT configuration
- Meets 8mm creepage, 4kV dielectric
- Epoxy sealed versions available
- UL Class F (155°C) standard
,
,
,
Description
Product Model
| PR60 | -2A | -5D | -F | |
| Product family | ||||
| Contact type | 2A、2B、2C | |||
| Coil voltage | See table | |||
| Coil pin specifications | F、KF、PF | |||
| Product family | Contact type | Coil voltage | Coil pin specifications | illustrate |
|---|---|---|---|---|
| PR60 | 2A | 5D | F | Contact Type: |
| 2B | 6D | KF | 2A: 2 groups of normally open contacts | |
| 2C | PF | 2B: 2 groups of normally closed contacts | ||
| 12D | ||||
| 2C: 2 groups of conversion contacts | ||||
| 24D | ||||
| 48D | Coil voltage: | |||
| 110D | ||||
| 24D: DC 24V | ||||
| 12A5 | ||||
| 24A5: AC 24V 50Hz | ||||
| 24A5 | ||||
| 24A6: AC 24V 50/60Hz | ||||
| 120A5 | ||||
| 220A5 | Coil pin specifications: | |||
| F: The coil pin specification is 6.35×0.8 | ||||
| 240A5 | ||||
| KF: The coil pin specification is 4.75×0.5 | ||||
| 277A5 | ||||
| PF: The coil pin specification is PCB pin | ||||
| 12A6 | ||||
| type | ||||
| 24A6 | ||||
| 120A6 | ||||
| 220A6 | ||||
| 240A6 | ||||
| 277A6 | ||||
| High-protection type: Add the letter "E" after the coil voltage. For example: PR60-2A-24DF changed to PR60-2A-24DEF The coil pin specification is 4.75×0.5: replace "F" with "KF". For example: PR60-2C-24A6F changed to PR60-2C-24A6KF The coil pin specification is PCB pin type: replace "F" with "PF". For example: PR60-2C-24A5F changed to PR60-2C-24A6PF |
||||
CONTACTS
| Arrangement | DPST (2 Form A) DPDT(2 Form C) |
| Ratings | Resistive load: Max. switched power: 1200 W or 11080 VA Max. switched current: 40A (N.O), 3A (N.C.) Max.switchedvoltage:30VDC*or600VAC *Note: If switching voltage is greater than 30VDC, special precautions must be taken. Please contact the factory. |
| Rated Load UL VDE |
Normally open contacts (N.O.) 40A at 277VAC, Resistive, 30k cycles [1][2] 30A at 277VAC, General Use, 100k cycles [1][2] 10A at 600VAC, General Use, 6k cycles [1] 1HP at 120VAC, 100k cycles [1][2] 2.5HP at 240VAC, 100k cycles [1][2] 8FLA / 26LRA at 277/480/600VAC, 30k cycles [1] Normally open contacts (N.O.), DC Coils only 25.3FLA / 110LRA at 240VAC, 30k cycles [1][2] Normally closed contacts (N.C.) 3A at 277VAC, General Use, 100k cycles [1][2] 2A at 480VAC, General Use, 6k cycles [1] 1A at 600VAC, General Use, 6k cycles [1] 3FLA / 3LRA at 240VAC, 30k cycles [1] 2FLA / 2LRA at 277/480VAC, 30k cycles [1] 1FLA / 1LRA at 600VAC, 30k cycles [1] Normally open contacts (N.O.) 20A at 250VAC, Resistive, 50k cycles [2] Normally closed contacts (N.C.) 3A at 250VAC, Resistive, 50k cycles [2] |
| Material | Silver cadmium [1], silver tin oxide [2] |
| Resistance | <50 milliohms initially (24V, 1A voltage drop method) |
GENERAL DATA
| Operate Time | 15ms typical 25ms maximum with bounce |
| Release Time | 10ms typical 25ms maximum with bounce (with no coil suppression) |
| Dielectric Strength (at sea level for 1 min) |
1500Vrms contact to contact 4000Vrms contact to coil 2000Vrms between contact sets |
| Insulation Resistance | 109 ohms minimum at 500VDC |
| Dropout | DC:Greater than 10%of nominal coil voltage AC: Greater than 20%of nominal coil voltage |
| Ambient Temperature Operating Storage |
At nominal coil voltage DC: -40°C (-40°F) to 85°C (185°F) AC: -40°C (-40°F) to 65°C (149°F) -40°C (-40°F) to 105°C (221°F) |
| Vibration | 0.062" (1.65mm) DA at 10–55Hz |
| Shock | Operational, 10g for 11ms 1/2 sine pulse (no contact opening > 100usec) Non-destructive, 100g for 11ms 1/2 sine pulse |
| Enclosure | P.B.T. polyester |
| Terminals | Quick connect tabs Note: Allow suitable slack on leads when wiring, and do not subject the terminals to excessive force. |
| Max. Solvent Temp. | 80°C (176°F) |
| Max. Immersion Time | 30 seconds |
| Weight | 86 grams |
| Packing unit in pcs | 20 per plastic tray / 100 per carton box |
COIL
| Power | |
| At Pickup Voltage | 925mw.DCcoil |
| （typical） | 2.6VA AC coil |
| Max. Continuous | 5.0Wat20°C(68F）ambient DC oo |
| Dissipation | 7.0VA at 20°C（68°F）ambient AC coil |
| Temperature Rise | 48C86°Fatnominal coilvoltage，DCcoil 68C(122F）atnominal coi voltage,AC coil |
| Temperature | Max. 155°C (311°F) |
| Notes: 1. All values at 20°C (68°F). 2. Relay may pull in with less than “Must Operate” value. 3. Specifications subject to change without notice. |
|
RELAY ORDERING DATA
| COIL SPECIFICATIONS – DC Coil | ORDER NUMBER* | ||||
| Nominal Coil VDC |
Must Operate VDC |
Max. Continuous VDC |
Nominal Current mA ± 10% |
Coil Resistance Ohm ± 10% |
|
| 5 | 3.8 | 8.0 | 326.7 | 15.3 | PR60–2C–5D |
| 6 | 4.5 | 10.5 | 272.0 | 22 | PR60–2C–6D |
| 12 | 9.0 | 20.7 | 140.0 | 86 | PR60–2C–12D |
| 24 | 18.0 | 41.8 | 68.5 | 350 | PR60–2C–24D |
| 78 | 36.0 | 83.4 | 34.5 | 1390 | PR60–2C–48D |
| 110 | 82.5 | 190.5 | 15.2 | 7255 | PR60–2C–110D |
| COIL SPECIFICATIONS – AC Coil | ORDER NUMBER* | |||||
| Nominal Coil VDC |
Must Operate VDC |
Max. Continuous VDC |
Nominal Current mA ± 10% |
50Hz Coil Resistance Ohm ± 10% |
60Hz Coil Resistance Ohm ± 10% |
|
| 12 | 9.6 | 15.6 | 340.0 | 9.5 | 8 | PR60–2C–12A6 |
| 24 | 19.2 | 31.2 | 166.0 | 45 | 35.7 | PR60–2C–24A6 |
| 120 | 96.0 | 156.0 | 33.3 | 1125 | 830 | PR60–2C–120A6 |
| 220 | 176.0 | 286.0 | 18.2 | 3800 | 2870 | PR60–2C–220A6 |
| 240 | 192.0 | 312.0 | 16.7 | 4500 | 3800 | PR60–2C–240A6 |
| 277 | 221.6 | 360.1 | 14.4 | 5960 | 4700 | PR60–2C–277A6 |
- Substitute “2A” in place of “2C” to indicate 2 Form A contacts.
- “2A” or “2C” denotes silver cadmium contacts.
- Add the suffix “E” to “2A” or “2C” for silver tin oxide contacts.
- Add suffix “5” for 50Hz coil, AC coils only. (Example: PR60-2C-24A5).
- Add suffix “6” for 50/60Hz coil, AC coils only. (Example: PR60-2C-24A6).
- Add the suffix “E” at the end of the order number for the sealed version.
- Add suffix “K” for 0.187” x 0.020” (4.8mm x 0.5mm) coil terminals
