| Model |

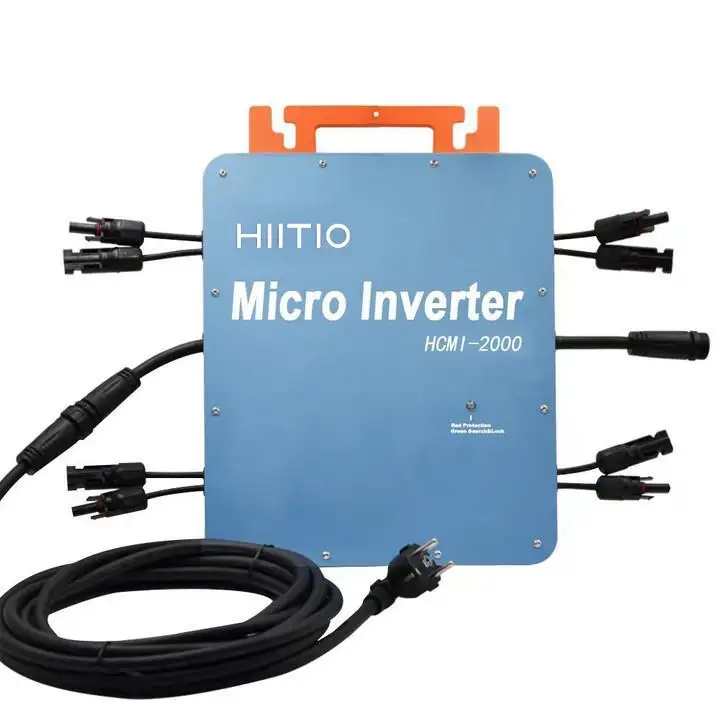

HCMI-2000 |
| Input Data (DC, PV) |
| Number of Input MC4 Connector |
4 sets |
| MPPT Voltage Range |
22V-48V |
| Operation Voltage Range |
18-60V |
| Maximum Input Voltage |
60V |
| Startup Voltage |
22V |
| Maximum input power |
2000W |
| Maximum input Current |
16A*4 |
| Output Data(AC) |
| Single-Phase Grid Type |
120V&230V |
| Rated Output Power |
2000W |
| Maximum Output Power |
2000W |
| Nominal Output Current |
@120VAC:16.6A/@230VAC:8.6A |
| Nominal Output Voltage |
120VAC /230VAC |
| Default Output Voltage Range |
@120VAC:80V-160V /@230VAC:180V-270V |
| Nominal Output Frequency |
50Hz / 60Hz |
| Default Output Frequency Range |
@50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz |
| Power Factor |
>99% |
| Total Harmonic Distortion |
THD <5% |
| Maximum Units per Branch |
@120VAC:2units /@230VAC: 2units |
| Eifficiency |
| Nominal MPPT Efficiency |
99.5% |
| Peak Efficiency |
95% |
| Night Power Consumption |
<1W |
| Mechanical Data |
| Operating Ambient Temperature Range |
-40°C to +65°C |
| Storage Temperature Range |
-40°C to +85C |
| Dimensions (L × W × H) |
255mmx340mmx45mm |
| Weight |
3.5kg |
| Max Current of AC Bus Cable |
20A |
| Waterproof rating |
IP66 |
| Cooling Mode |
Natural Convection- No Fans |
| Other Features |
| Communication |
WIFI(Cloud monitoring) |
| Power transmission mode |
Reverse transfer，load priority |
| Monitoring System |
Mobile APP, PC browser |
| Transformer Design |
High Frequency Transformers,Galvanically Isolated |
| Integrated Ground |
Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
| Protection Functions |
lsolated Island Protection,Voltage Protection, Frequency Protection, Temperature Protection,Current Protection, etc. |
| Design Compliance |
EN IEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC55014-2:2021,EN IEC55014-2:2021 |
| Certificate |
CE |
,
