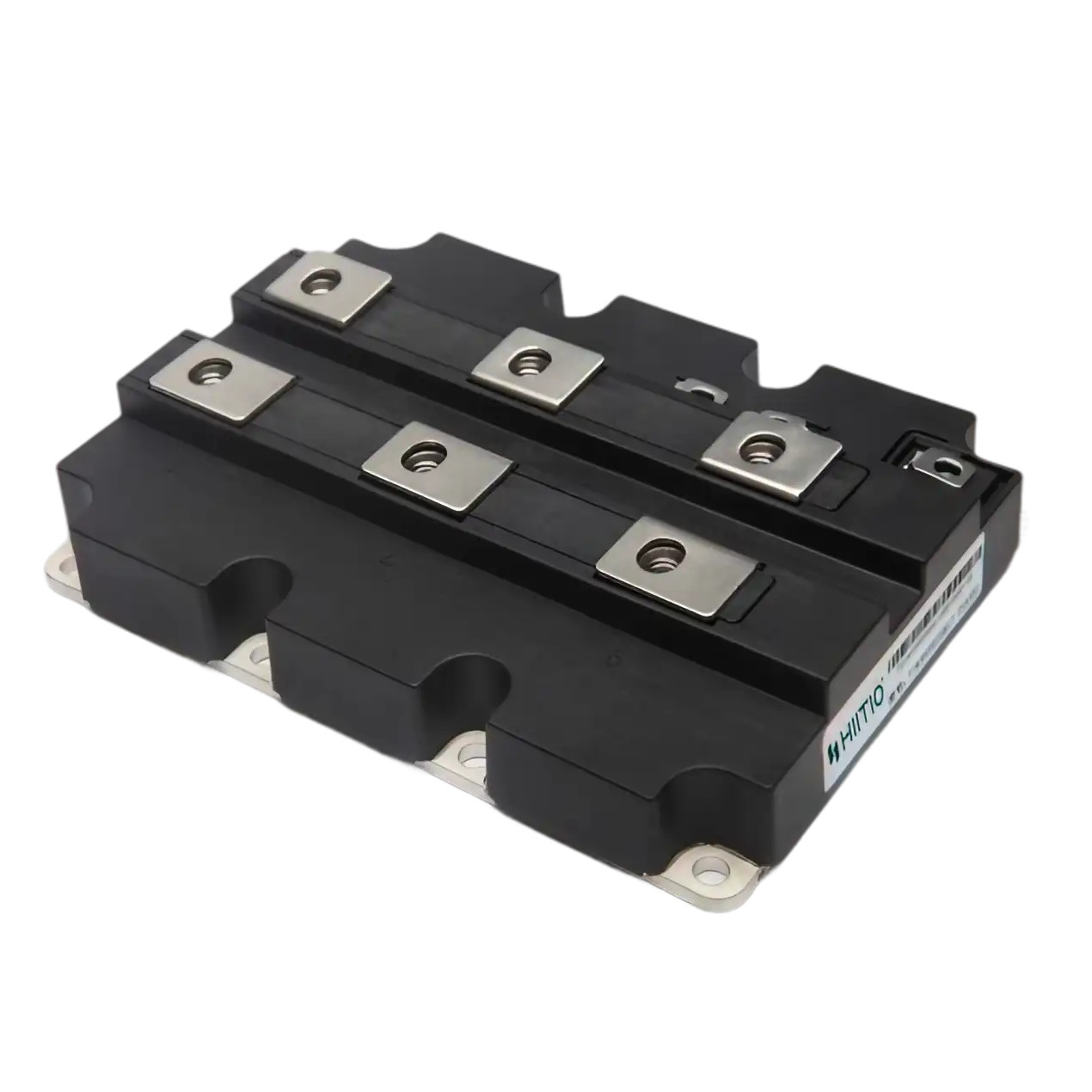

1700V 3600A High Voltage IGBT Power Module

The HCGM3600E2SM17-TSA000 single switch IGBT module features advanced AISiC baseplate and AIN substrates, supporting 1700V and 3600A ratings. It delivers excellent thermal cycling and 10μs short-circuit withstand capability, making it ideal for traction drives, motor controllers, smart grids, and high-reliability inverters.

SKU HCGM3600E2SM17-TSA000 Category
Fast Quote
Specification
Description​
Downloads

Description

Product Overview: The HCGM3600E2SM17-TSA000 single switch IGBT module utilizes cutting-edge AISiC and AIN technology, engineered for high-power industrial applications, delivering stable and efficient power conversion.

Features

  • High Voltage & High Current: Rated at 1700V and 3600A for demanding operations
  • Excellent Thermal Cycling: Ensures long service life and stable performance
  • 10μs Short-Circuit Withstand: Provides robust system protection
  • Advanced Substrate Technology: Combination of AISiC and AIN enhances heat dissipation

Applications

  • Traction drive systems
  • Motor control equipment
  • Smart grid solutions
  • High reliability inverters
