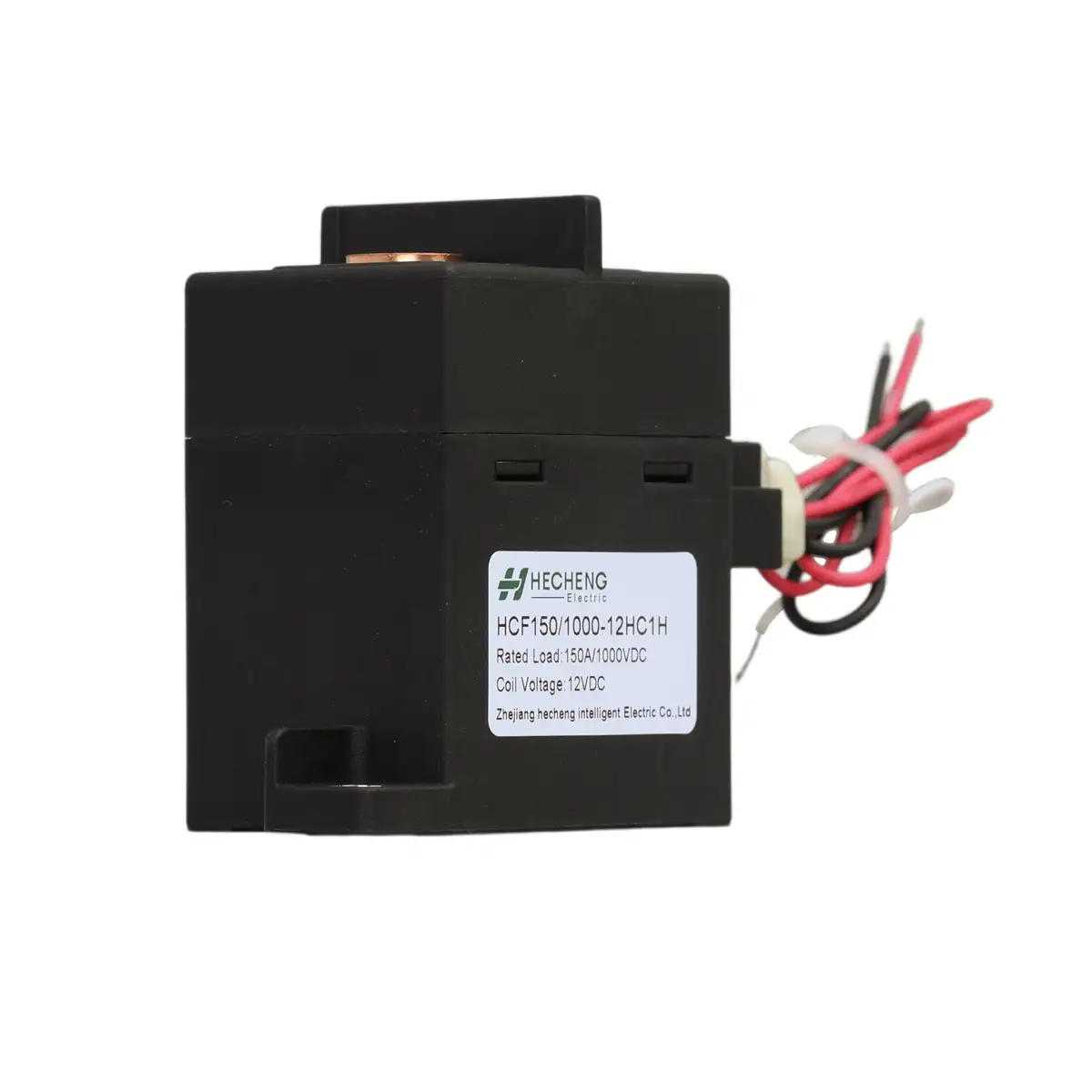

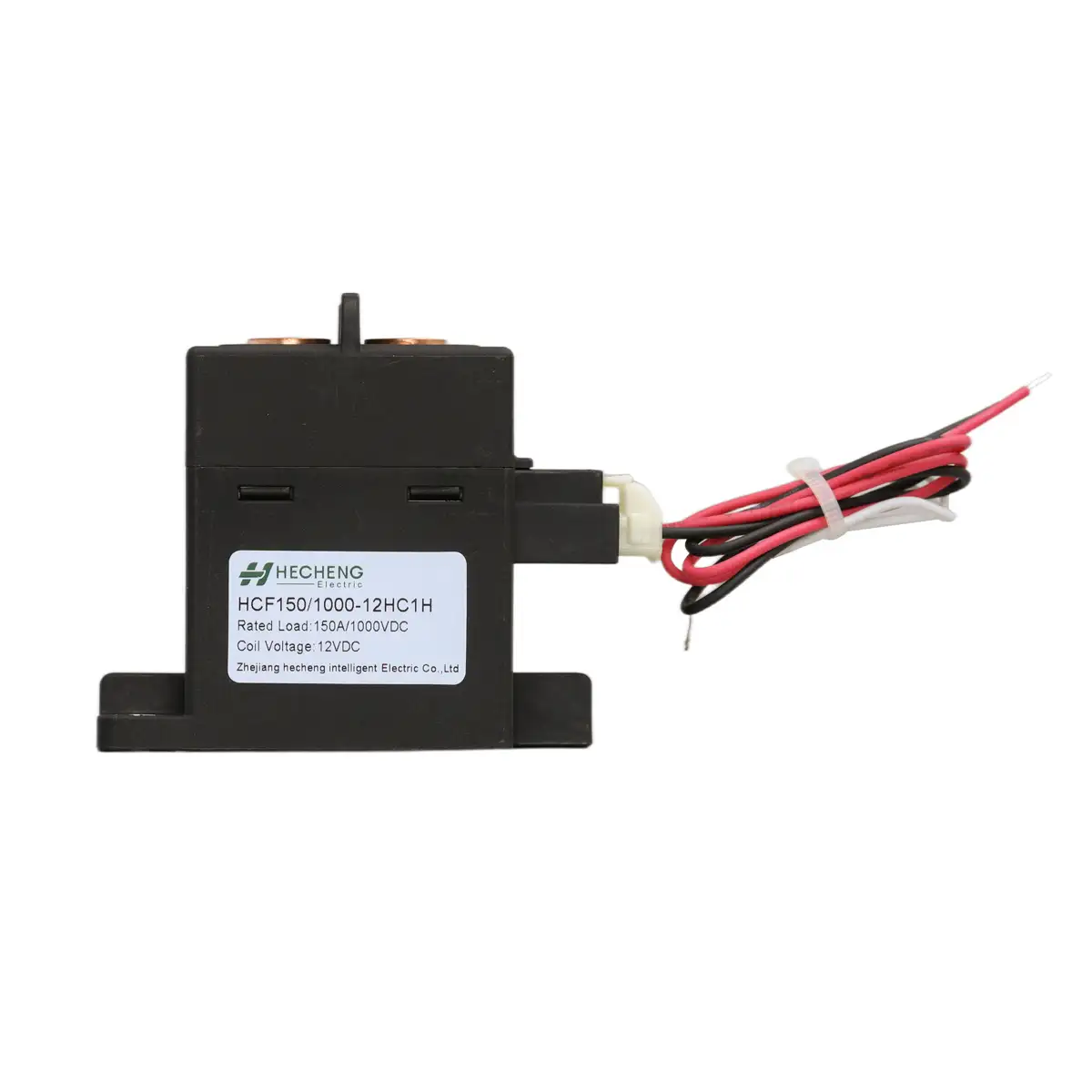

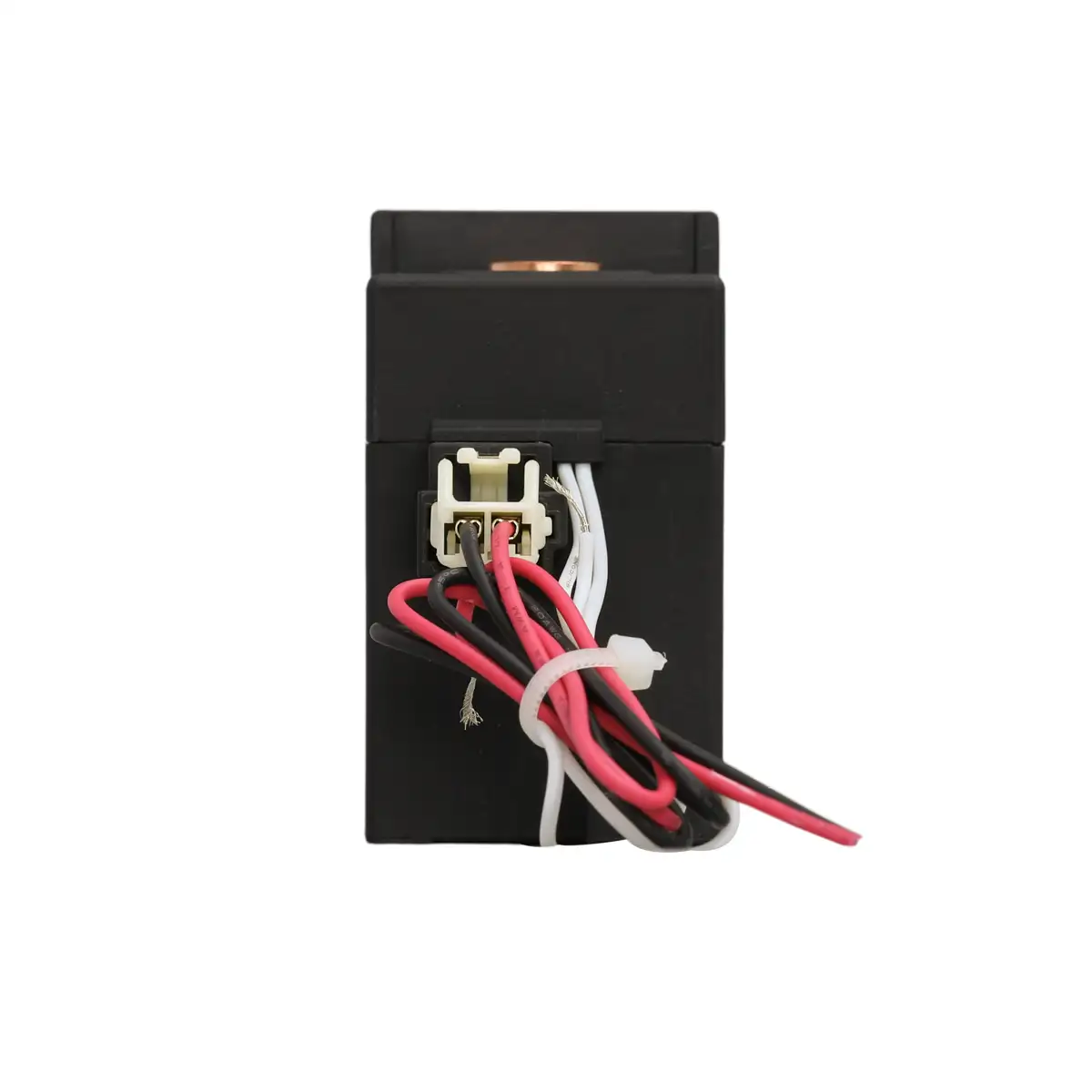

150A 450Vdc-1000Vdc High Voltage DC Relay Contactors
- Max. Switching Voltage: 1500VDC
- Rated Current: 100A
- Main Contact Type: SPST-NO
- Auxiliary Contact: Nil
- Auxiliary Contact Type: Nil
- Coil Rated Voltage : 12VDC/24VDC/48VDC
- Ambient Operation Temperature: -40°C~+85°C
- Ambient Operation Humidity: 5%~85%RH
- Approvals/Standard:
- REACH
- RoHS
- UL 60947-4
- CCC/CE/CB/S Mark
,
,
,
,
,
,
Description
| MAIN CONTACT DATA | ||||||||
| Max.Switching Voltage | 1500VDC | Rated Current | 150A | |||||
| Contact Arrangement | SPST-NO | Contact Voltage Drop | ≤0.075V(at 150A) | |||||
| Limiting Short-time Current | 180A:120min;225A:15min;300A:2min;600A:20s;900A:8s;1500A:0.6s | |||||||
| Electrical Life(Resistive Load) | 450V Model | 800V Model | 1000V Model | 1500V Model | ||||
| 150A 450VDC 3000 (ops) | 150A 800VDC 1000 (ops) | 150A 1000VDC 500(ops), Only Breaking |
15A1500VDC 6000(ops); 30A 1500VDC 11000(ops) Only Making; |
|||||
| Max.Breaking Current (Resistive Load) |
1500A 450VDC 1 (ops) | |||||||
| Overload Breaking(Resistive Load) | 300A 450VDC 100 (ops) | |||||||
| CHARACTERISTIC DATA | ||||||||
| Dielectric Strength |
Between Main Contacts And Coil |
Before Test≥4000VAC (1min) After Test≥2500VAC(1min) |
Insulation Resistance |
Between Main Contacts And Coil |
Before Test≥1000MΩ(1000VDC) AfterTest≥50MΩ(1000VDC) |
|||
| Between Open Main Contacts |
Before Test≥3000VAC (1min) After Test≥2500VAC (1min) |
Between Open Main Contacts |
Before Test≥1000MΩ(1000VDC) AfterTest≥50MΩ(1000VDC) |
|||||
| Shock Resistance |
Functional | 20g Half-Sine Wave 11ms | Vibration Resistance |
Functional | 5.79g (10~2000HZ, Random) | |||
| Destructive | 50g Half-Sine Wave 6ms | |||||||
| Operate Time | Max:30ms | Mechanical Life | 2*105(ops) | |||||
| Release Time | Max:10ms | Weight | Approx350g | |||||
| COIL DATA | ||||||||
| Rated Voltage | 12VDC | 24VDC | 48VDC | |||||
| Pick-up Voltage | ≤9VDC | ≤18VDC | ≤36VDC | |||||
| Drop-out Voltage | ≥1.2VDC | ≥2.4VDC | ≥4.8VDC | |||||
| Rated Operating Power | Approx6W | Approx6W | Approx6W | |||||
| Max.Allowable Voltage | 16VDC | 32VDC | 64VDC | |||||
| MAIN CONTACT DATA | |||||||
| Max.Switching Voltage | 1500VDC | Rated Current | 150A | ||||
| Contact Arrangement | SPST-NO | Contact Voltage Drop | ≤0.075V(at 150A) | ||||
| Limiting Short-time Current | 180A:120min;225A:15min;300A:2min;600A:20s;900A:8s;1500A:0.6s | ||||||
| Electrical Life(Resistive Load) | 450V Model | 800V Model | 1000V Model | 1500V Model | |||
| 150A 450VDC 3000(ops) | 150A 800VDC 1000(ops) | 150A 1000VDC 500 (ops). Only Breaking |
15A 1500VDC 6000(ops); 30A 1500VDC 11000 (ops) Only Making |
||||
| Max.Breaking Current (Resistive Load) |
1500A 450VDC 1(ops) | ||||||
| Overload Breaking(Resistive Load) | 300A 450VDC 100(ops) | ||||||
| CHARACTERISTIC DATA | |||||||
| Dielectric Strength |
Between Main Contacts And Coil |
Before Test≥4000VAC (1min) After Test≥2500VAC(1min) |
Insulation Resistance |
Between Main Contacts And Coil |
Before Test≥1000MΩ(1000VDC) After Test≥50MΩ(1000VDC) |
||
| Between Open Main Contacts |
Before Test≥3000VAC(1min) After Test≥2500VAC(1min) |
Between Open Main Contacts |
Before Test≥1000M口(1000VDC) AfterTest≥50MΩ(1000VDC) |
||||
| Between Main Contacts And Auxiliary Contacts |
Before Test≥3000VAC(1min) After Test≥2500VAC(1min) |
Between Main Contacts And Auxiliary Contacts |
Before Test≥1000M口(1000VDC) AfterTest≥50MΩ(1000VDC) |
||||
| Shock Resistance |
Functional | 20g Half-Sine Wave 11ms | Vibration Resistance |
Functional | 5.79g (10~2000HZ,Random) | ||
| Destructive | 50g Half-Sine Wave 6ms | ||||||
| Operate Time | Max:30ms | Mechanical Life | 2*10^5(ops) | ||||
| Release Time | Max:10ms | Weight | Approx350g | ||||
| COIL DATA | |||||||
| Rated Voltage | 12VDC | 24VDC | 48VDC | ||||
| Pick-up Voltage | ≤9VDC | ≤18VDC | ≤36VDC | ||||
| Drop-out Voltage | ≥1.2VDC | ≥2.4VDC | ≥4.8VDC | ||||
| Rated Operating Power | Approx 6W | Approx 6W | Approx6W | ||||
| Max.Allowable Voltage | 16VDC | 32VDC | 64VDC | ||||
| AUXILIARY CONTACT DATA | |||||||
| Auxiliary Contact Arrangement | SPST-NO | Auxiliary Contact Range | 100mA/8VDC~2A/30VDC | ||||
| Auxiliary Contact Resistance | ≤200mQ(at 100mA) | ||||||
Applications
- Electric vehicles
- Rail transit
- Charging system
- Energy storage system
- Photovoltaic system
- Aviation
- Military
Dimensions (mm)
HCF150-Dimension-1
HCF150-Dimension-2
