In solar photovoltaics, the inverter is a critical component that determines how well your system converts sunlight into usable electricity. Among inverter architectures, the microinverter stands out for its module-level optimization and flexibility. Since microinverters are increasingly favored in rooftop solar — especially where roof geometry, shading or future expansion matter — understanding how they work and when to use them is essential for system designers, installers, and homeowners alike.

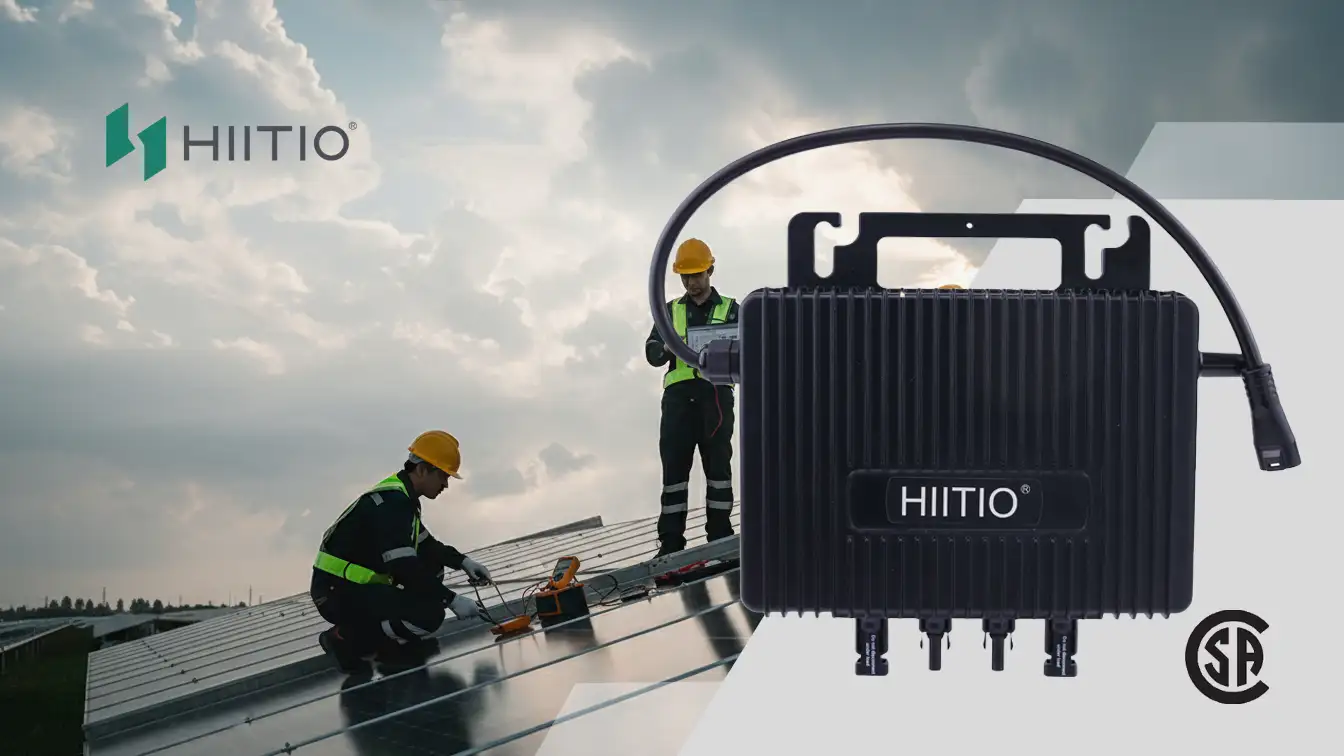

As a manufacturer of high-quality electrical accessories, HIITIO offers a full line of smart microinverters (single-module, 2-in-1, and 4-in-1) suitable for both residential and commercial PV systems. This article explains what a microinverter is, how it operates, its advantages and trade-offs, and how HIITIO’s products align with real-world needs.
What Is a Microinverter — Basic Definition & Context
A microinverter is, in essence, a small solar inverter — but instead of handling the output of many modules at once, it handles the output of a single module (or a small group). In a traditional system, solar panels are wired in a series (a “string”), and the DC output from the entire string flows into a single centralized inverter. With a microinverter — or more broadly, with module-level power electronics (MLPE) — each module is treated independently.
That architecture means:
- DC-to-AC conversion happens on (or very near) the individual solar module.
- Each module’s output is independent of its neighbors.
- AC wiring from modules goes back to the building or grid, rather than carrying high-voltage DC over long distances.
Because of that, a microinverter system behaves very differently — and often more flexibly — than a traditional string inverter system.
How Microinverters Work
The operation of microinverters centers on their ability to perform DC-to-AC conversion right at the panel site. When sunlight hits a solar panel, it generates DC electricity. The microinverter attached to that specific panel immediately converts this DC power into AC electricity, which then flows through standard AC wiring to your electrical panel.
This panel-level conversion offers a fundamental advantage: each solar panel operates independently. If one panel experiences shading, dirt accumulation, or any performance issue, it doesn’t affect the output of other panels in the system. This contrasts sharply with string inverter systems, where the entire array’s performance can be limited by the weakest-performing panel—a phenomenon known as the “Christmas light effect.”
Because each module operates independently, the performance of one does not drag down the rest. That is the core advantage of microinverter architecture.
Key Benefits of Microinverter Systems
Enhanced Energy Production
Microinverters incorporate Maximum Power Point Tracking (MPPT) technology for each individual panel. MPPT continuously adjusts voltage and current to extract maximum power based on real-time conditions like temperature, shading, and sunlight intensity. Modern microinverters achieve MPPT efficiency rates exceeding 99%, ensuring optimal energy harvest throughout the day.
In real-world applications, this translates to significant energy gains. Research indicates that systems experiencing partial shading—which affects approximately 85% of residential installations—can see power losses reduced from 7% or more down to minimal levels when using microinverters instead of string inverters.
Superior System Reliability
Microinverters eliminate single points of failure in solar systems. If one microinverter malfunctions, only its associated panel stops producing power while the rest of the system continues operating normally. This distributed architecture ensures consistent energy generation even when maintenance is needed.
Additionally, microinverters typically come with extended warranties of 20-25 years, compared to the 8-12 year warranties common with string inverters. This longevity reflects both improved technology and manufacturer confidence in product reliability.
Enhanced Safety Features
Safety represents another critical advantage. Microinverters reduce high-voltage DC wiring on rooftops, significantly decreasing fire risks and electrical hazards during installation and maintenance. They also meet rapid shutdown requirements outlined in modern electrical codes, automatically de-energizing the system during emergencies without requiring additional equipment.
Flexible Design and Easy Expansion
The modular nature of microinverter systems provides exceptional design flexibility. Solar installations can accommodate complex roof geometries, multiple roof orientations, and varying levels of shading that would prove challenging for string inverter systems. Each panel operates independently, allowing installers to optimize placement for maximum energy capture.
System expansion becomes remarkably straightforward. Adding more solar capacity simply requires installing additional panels with their accompanying microinverters—no need to worry about exceeding inverter capacity or complex system reconfigurations.
Advanced Monitoring Capabilities

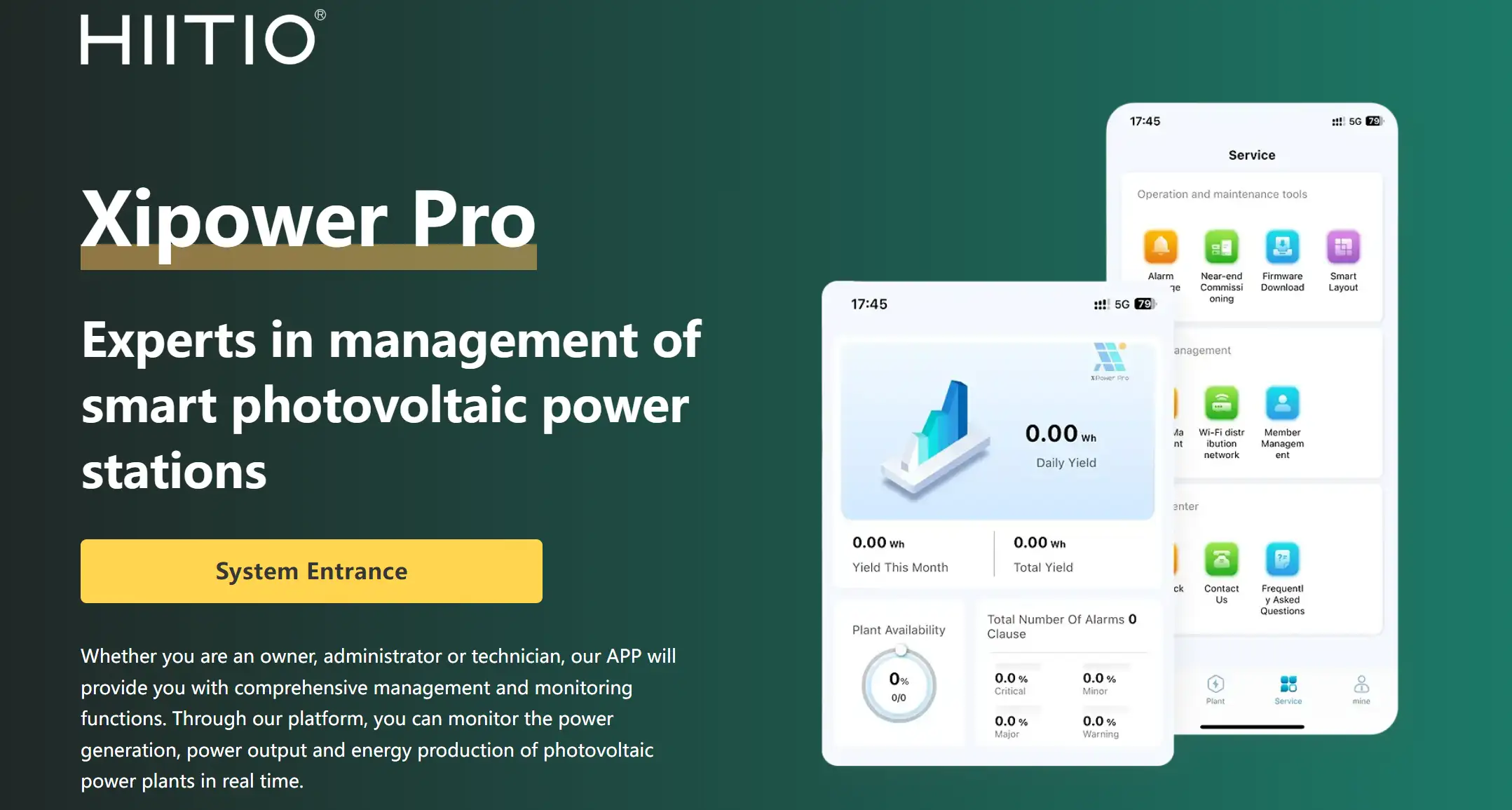

Modern microinverters offer sophisticated panel-level monitoring through WiFi connectivity and dedicated applications. This granular visibility allows system owners to track each panel’s performance in real-time, quickly identify underperforming modules, and diagnose issues before they impact overall energy production. Some systems even support remote software updates and parameter adjustments, ensuring optimal performance throughout the system’s lifetime.
Trade-offs & When Microinverters Might Not Be Ideal
However, microinverters are not universally ideal.
- Higher upfront cost: Because you need a microinverter for each module (or per small group), initial system cost (hardware + installation labor) is generally higher than a string inverter system of comparable size.
- More components → more potential fault points: More individual units means more things that could — in theory — fail. That said, high-quality microinverters (with good thermal design, IP-rating, and proper installation) mitigate much of that risk.
- Complex installation and wiring: Because every module needs its own unit and AC wiring must connect all microinverters, roof wiring is more involved, and installation time is longer than simple string systems.
- Possible “clipping” or capacity limitation: If the microinverter’s rated AC output is lower than the panel’s potential DC output under ideal sun, some energy can be “lost” (i.e., not converted) — although with proper sizing and correct MPPT this can be minimized.
Therefore, for very simple, unshaded roofs where panels are all oriented the same and expansion is unlikely, a string inverter may still offer the best cost-to-performance ratio.
Ideal Applications for Microinverter Technology
Microinverters prove particularly valuable in specific scenarios:
Residential installations with complex roof structures, dormers, vents, or nearby trees benefit enormously from panel-level optimization. Homeowners can maximize limited roof space and avoid the performance penalties associated with partial shading.
Commercial rooftop systems with varying orientations or potential shading from neighboring buildings gain significant efficiency improvements. The ability to monitor individual panel performance helps facility managers maintain optimal system operation.
Expansion-minded installations where future capacity additions are anticipated find microinverters ideal. The plug-and-play nature simplifies scaling without major system redesigns.
Areas with challenging weather conditions benefit from the durability of modern microinverters. Units rated at IP67 protection withstand dust, moisture, and temperature extremes while maintaining reliable operation.
Types of Microinverter Configurations
Microinverters come in different configurations. Broadly, these include:
- One-to-one (single-module) microinverters: each solar module gets its own inverter — maximum granularity, maximum optimization.
- Multi-module microinverters (2-in-1, 4-in-1, etc.): a single inverter serves 2–4 modules. This reduces total component count and labor per watt, while retaining many advantages of per-module optimization. This balance often suits medium-to-large residential or small commercial rooftop arrays.
- Hybrid / MLPE-combined systems: microinverters or power-optimizers can be paired with battery inverters or storage systems (AC-coupled), offering flexible retrofit or upgrade paths. Many modern solar + storage installations use this approach.
Choice among these depends on panel wattage, roof layout, project budget, and long-term maintenance strategy.
View HIITIO Smart Microinverters
How to Decide: Which Inverter Architecture is Right for You
When considering whether to use microinverters — and which type — it helps to evaluate the following factors:
- Roof characteristics & shading
- Complex roofs, different orientations, partial shading → microinverters likely beneficial
- Flat, uniform roofs with consistent sun exposure → string inverter may suffice
- Budget and long-term value
- If upfront cost is a constraint and roof conditions are optimal, string inverter often wins
- If you anticipate better yields, system expansion, or high reliability demand — microinverters often pay off over lifespan
- Panel mix and future expansion plans
- Using mixed panel wattages or adding modules later favors microinverter/MLPE design
- If all panels are identical and capacity is fixed — simpler inverter may suffice
- Maintenance, monitoring and safety preferences
- Requirement for per-module performance monitoring, quick fault isolation, or strict safety code compliance → microinverters recommended
- If maintenance simplicity and minimal rooftop wiring are prioritized → string inverter may be more convenient
- Long-term durability & warranty expectations
- High-quality microinverters often match the 20–25-year lifespan of panels (as noted by industry guides).
- Cheaper or lower-quality microinverters — or installations with poor environmental control — may underperform or fail earlier

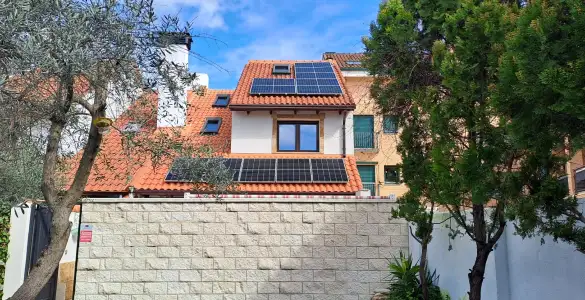

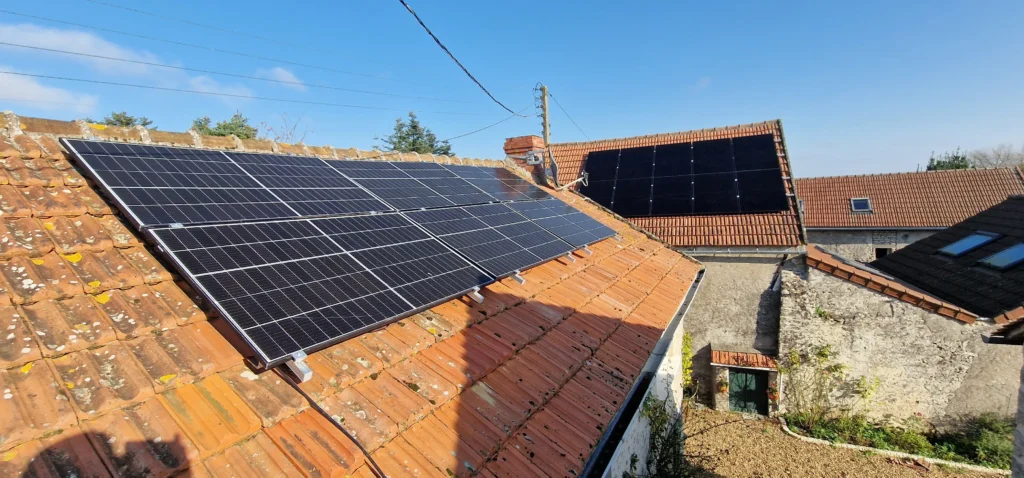

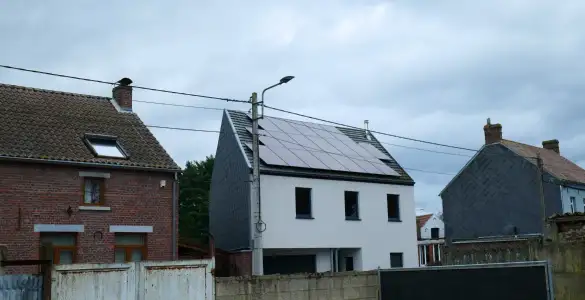

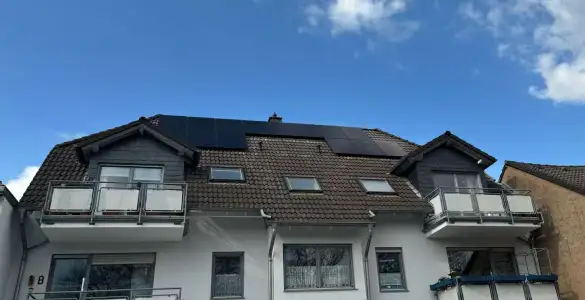

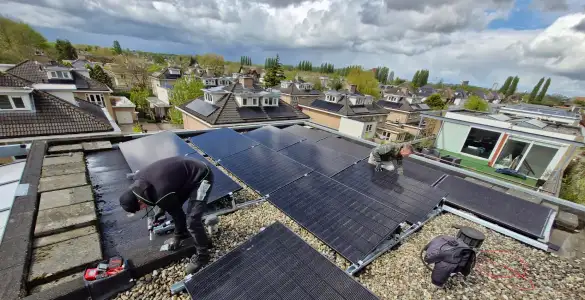

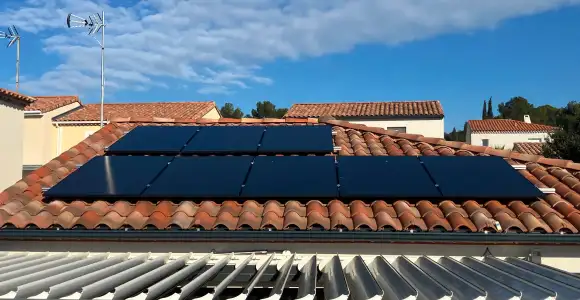

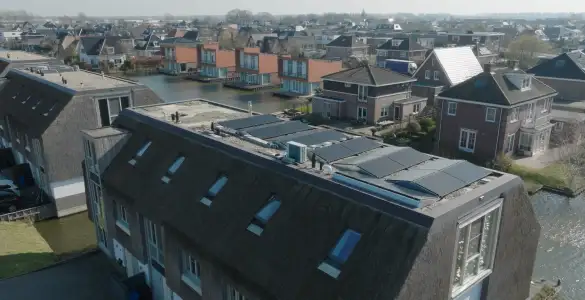

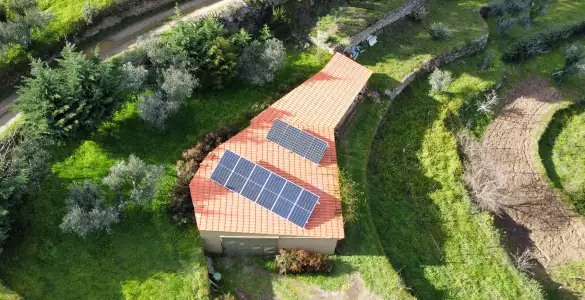

VIEW HIITIO REAL CASES OF MICROINVERTERS
Experience the Advantage of HIITIO Smart Microinverters
If you want a solar system that performs reliably under real-world conditions — shading, mixed orientations, phased expansion — HIITIO’s smart microinverters are an excellent choice. Our portfolio includes single-module units for maximum granularity, 2-in-1 models for balanced cost and performance, and high-power 4-in-1 devices suitable for larger residential or commercial rooftops.
Ready to optimize your solar system? Visit www.hiitio.com to explore our complete range of microinverter solutions. Contact us today to request datasheets, installation guidance, or a tailored system design recommendation — and make your solar project smarter and more efficient.
