UL Plug-in Homeline Miniature Circuit Breaker

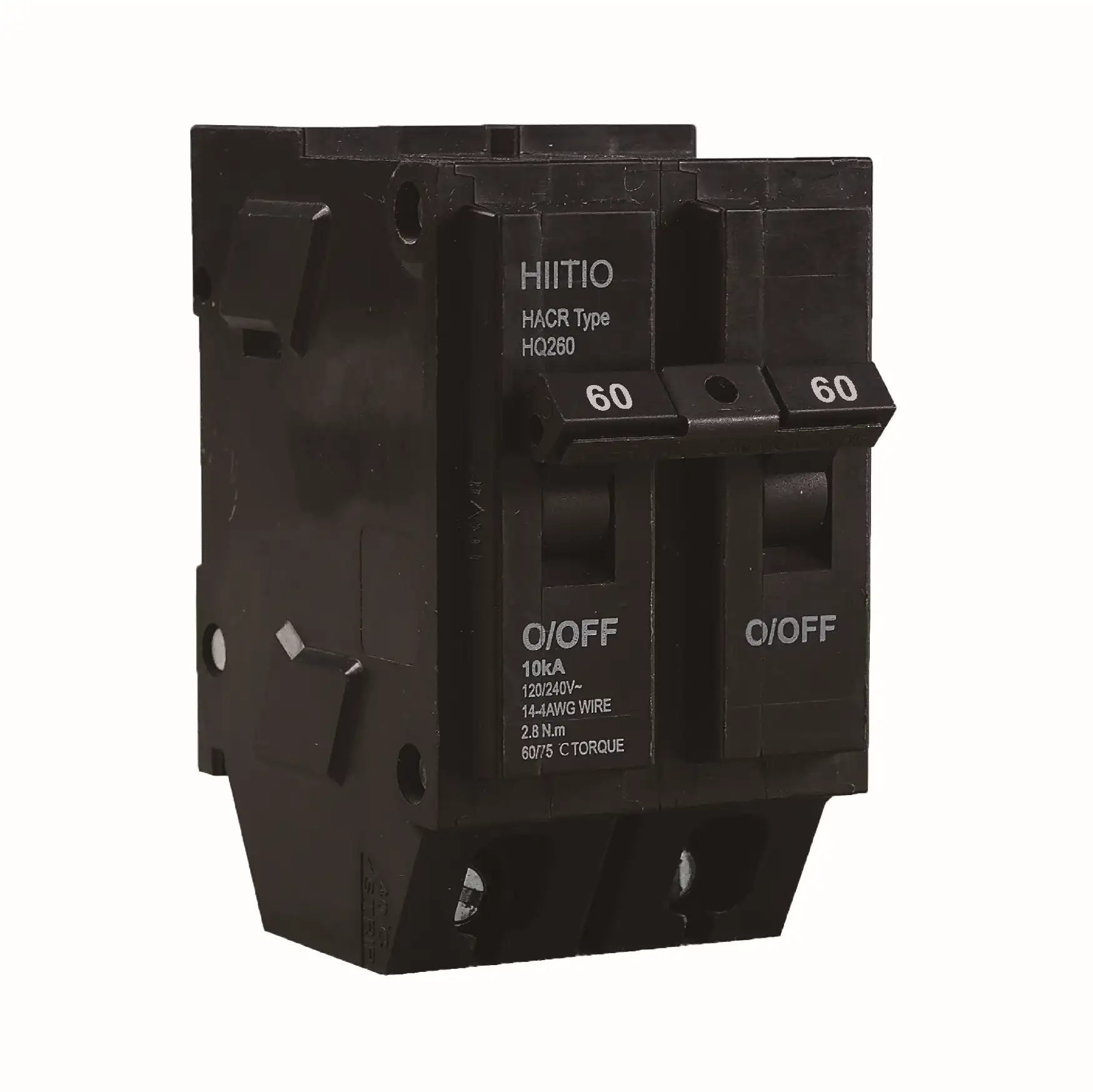

Ensure the safety and reliability of your electrical circuits with the HQ Plug-in Miniature Circuit Breaker (MCB). Part of the trusted Homeline series, this UL-certified breaker is engineered for residential and light commercial applications, offering robust protection against overloads and short circuits. Its plug-in design ensures easy installation, while its compact form makes it an ideal choice for electricians, contractors, and homeowners seeking dependable circuit protection.
Description
Features:
- Plug-in Design: Compatible with panel mounting, simplifying installation and saving time.
- Wide Current Range: Available in 5A to 60A, meeting diverse circuit protection needs.
- High Short-Circuit Capacity: 10kA IR, ensuring safe interruption of fault currents under heavy loads.
- UL Certified: Meets stringent safety standards for guaranteed quality.
- Compact Size: 1-pole breaker width of just 1 inch (25-25.2 mm), perfect for space-constrained setups.
- Single/Dual Pole Options: Supports 1-pole (120VAC) and 2-pole (120/240VAC) configurations for versatile use.
- High-Temperature Resilience: Operates reliably up to 104°F (40°C).
- Easy Wiring: Accommodates AWG 14 to AWG 4 aluminum/copper wires with clamp terminals.
Applications:
- Residential electrical panels
- Light commercial electrical systems
- Protection for standalone circuits (e.g., lighting, appliances, HVAC systems)
- Suitable for HACR (Heating, Air Conditioning, and Refrigeration) and Switching Duty-rated scenarios
Technical Specifications:
- Product Type: Homeline Miniature Circuit Breaker
- Series: Homeline
- Current Ratings: 5A, 10A, 15A, 20A, 25A, 30A, 35A, 40A, 50A, 60A
- Voltage Ratings: 120VAC (1-pole), 120/240VAC (2-pole)
- Short-Circuit Capacity: 10kA
- Certifications: UL
- Mounting Type: Plug-in
- Number of Poles: 1-pole, 2-pole
- Trip Curve: 10 In (general-purpose applications)
- Wire Size: 1 x AWG 14 to AWG 4 (aluminum/copper)
- Tightening Torque: 3.5 to 4 N.m (AWG 14-4)
- Dimensions:
- Height: 2.98 inches (75.50 mm)
- Width: 1 inch (25-25.2 mm)
- Depth: 3.18 inches (80.8 mm)
- Operating Ambient Temperature: Up to 104°F (40°C)
