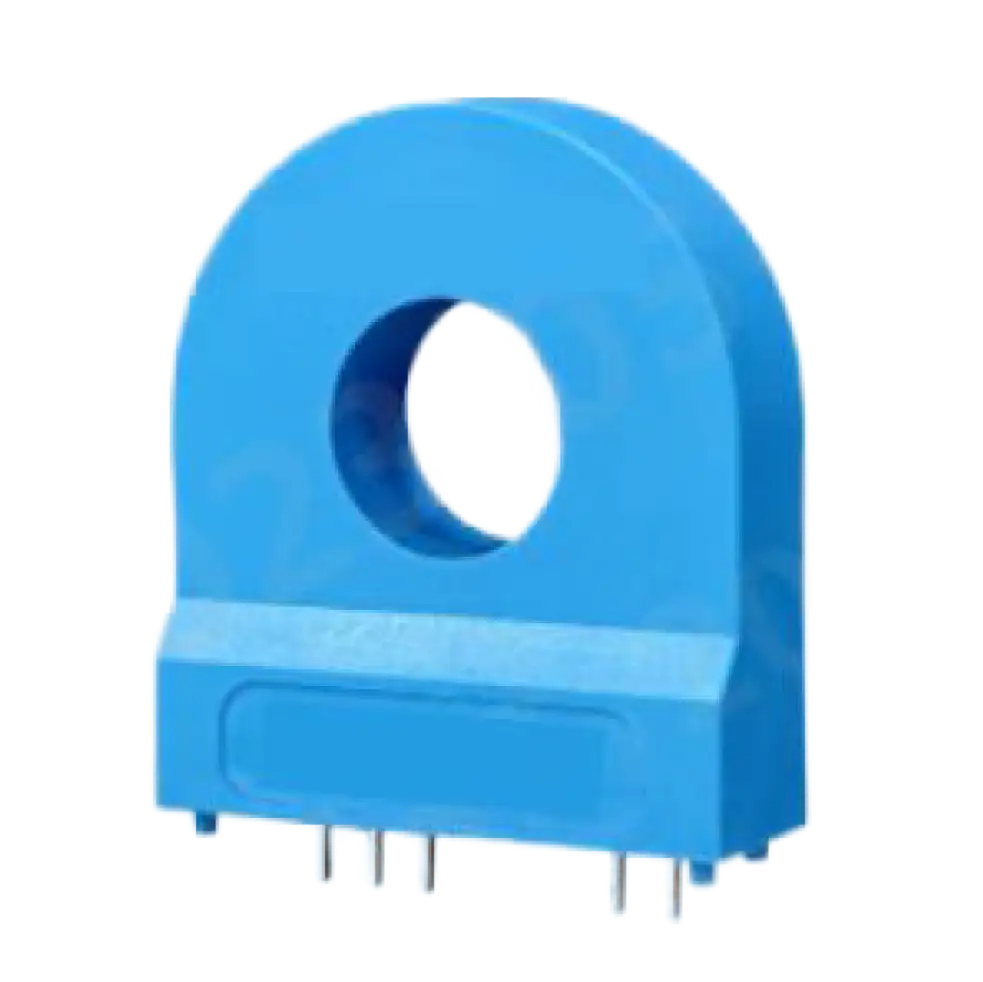

HLB6A-EP1-PVA is a type B (suitable for type A+B) residual current protection module for charging pile, which is widely used in residual current protection of charging facilities of electric vehicles. It uses fluxgate detection technology to detect DC, AC, and various pulsating residual currents. The module meets the residual current action characteristics requirements of Mode 2 (IEC 62752, GB/T 41589) and Mode 3 (IEC 62955, GB/T 40820), can detect the residual current waveform covering type B, and can detect 6mA DC residual current, the module triggers accurately and responds to leakage events in time.
Selection Guide
| Part No. | Input Voltage (VDC) |
Rated DC Residual Current (mA) |
Rated AC Residual Current (mA) |
Rated current (A) |
Maximum Power Dissipation(W) |
| HLB6A-EP1-PVA | 5 | 6 | 30 | 80A/ 40A (1 phase/ 3 phase) | 0.15 |
Electric vehicle charger industry
