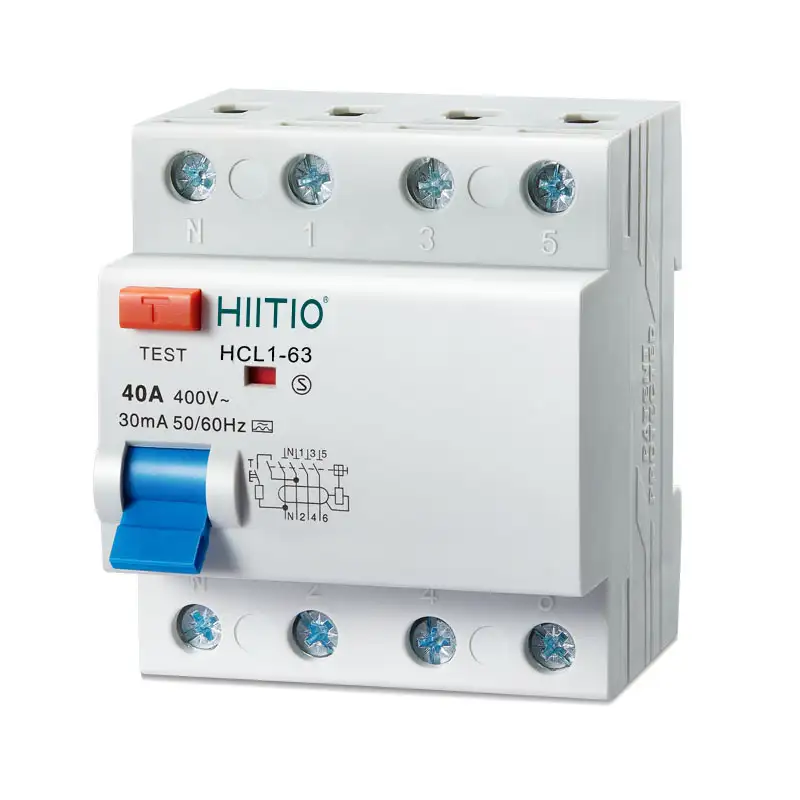

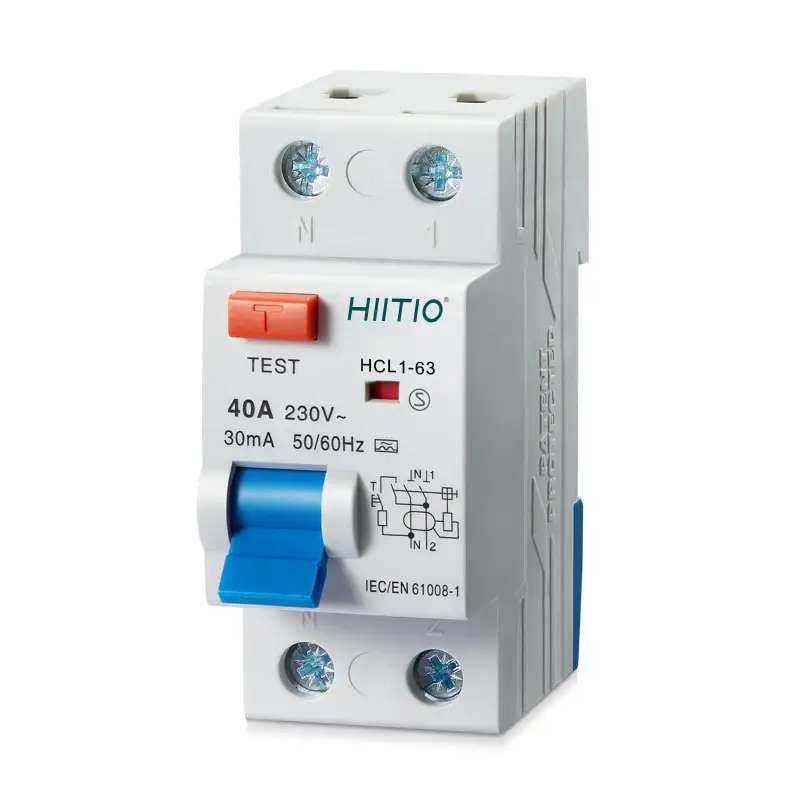

| Product Model | HCL1-63 | |
| Product Type | RESIDUAL CURRENT OPERATED CIRCUIT-BREAKERS | |
| Technical Data | ||
| Electrical Features |
Standard | IEC61008-1,GB16916-1 |
| Rated curret(In) | 16A、25A、32A、40A、63A | |
| Model | Electromagnetic | |
| Type | AC, A, A-SI, S, G,B | |
| DC tripping threshold | 6mA | |
| Pole | 2P,4P | |
| Rate voltage(Ue) | 240/415V | |
| Insulation voItage (Ui) | 500V | |
| Rated frequency | 50/60Hz | |
| Rated breaking capacity(lcn) | 6kA | |
| Rated residual operating current(IΔn) | 30mA,100mA,300mA | |
| Rated conditional short-circuit current (Inc) | 10kA | |
| Rated residual making and breaking capacity(lcn) | 1000A | |
| Rated impulse withstand voltage (Uimp) | 4kV | |
| Electrical life | 4000Times | |
| Pollution degree | 2 | |
| Mechanical Features |
Mechanical life | 10000Times |
| Protection degree | IP20 | |
| Ambient temperature (with daily averages35℃) | -25℃~+40℃ | |
| Storage temperature | -25℃~+70℃ | |
| Installation | Terminal connection type | Cable,busbar |
| Connection capacity(input) | 25mm2 | |
| Connection capacity (output) | 25mm2 | |
| Tightening torque (input) | 2.5Nm | |
| Tightening torque (output) | 2.5Nm | |
| 35mm DIN rail | ||
| Business Information |
MOQ:120pcs Payment: T/T, L/C Delivery time: 15-60 days Lodaing Port: Hangzhou, China Certification: ISO9001: 2015 Logo: pad printing, laser printing (customized design are acceptable) |
|
