Unlock the future of solar energy with the HCFM-540 Flexible Solar Modules from HITIO. These innovative semi-flexible panels deliver 540-580W of high-efficiency power using advanced TOPCon technology, achieving an impressive 23.5% conversion efficiency. Weighing just 3kg/m² and only 2.7mm thick, they’re perfect for fitting curved roofs, RVs, boats, or any unconventional surface—reducing installation costs while maximizing energy harvest.
| Cell type | TOPCon cell 182×91mm |
| Cell arrangement | 144 pcs (12×12) |

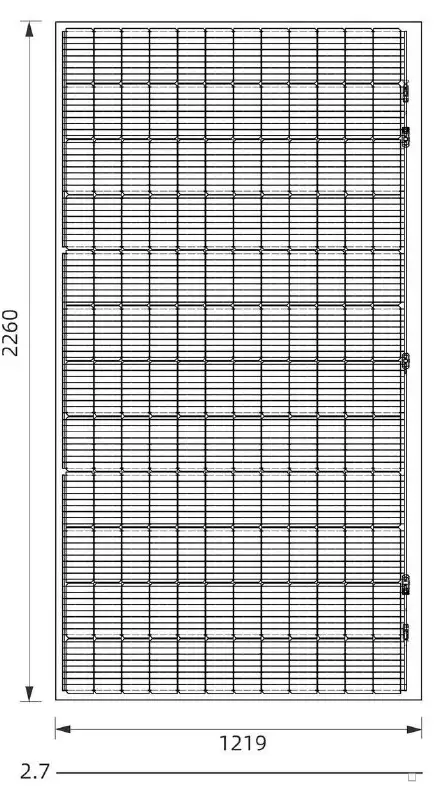

| Module size | 2260×1219×2.7mm |
| Module weight | 8.5kg |
| Junction box | Enclosure rating IP68 |
| Output cable | 4mm²,500mm cable net length. Cable length can be customized |
| Connector type | MC4 compatibility |
| Frame | N/A |
| Front static load (snow pressure) | 5400Pa |
| Rear static load (wind pressure) | 2400Pa |
| Maximum power | 540W | 550W | 560W | 570W | 580W |
| Optimum operating voltage | 42.23V | 42.63V | 43.18V | 43.68V | 44.19V |
| Optimum operating current | 12.79A | 12.91A | 12.97A | 13.05A | 13.13A |
| Open-circuit voltage | 51.98V | 52.32V | 52.58V | 52.77V | 53.03V |
| Short-circuit current | 13.58A | 13.65A | 13.69A | 13.78A | 13.86A |
| Module operating temperature range | -40 to +85℃ | ||||
| Maximum system voltage | DC1000/1500V(IEC) | ||||
| Maximum fuse current | 25A | ||||
| Power tolerance range | 0~+5W | ||||
STC(Standard test circumstance): Frontal irradiation1000W/㎡,Cell temperature 25℃,
Spectrum AM1.5,Power measurement error 0~+5W
