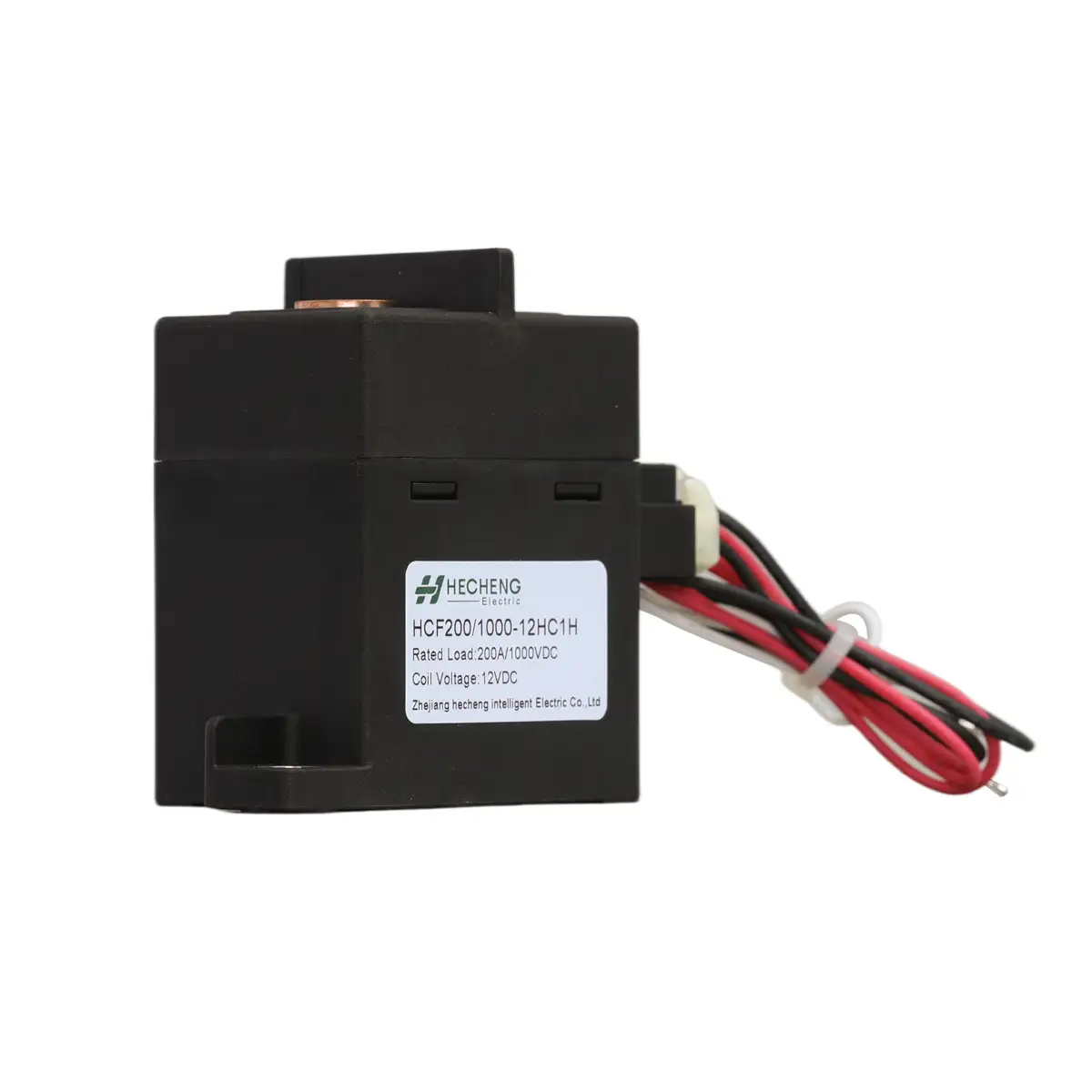

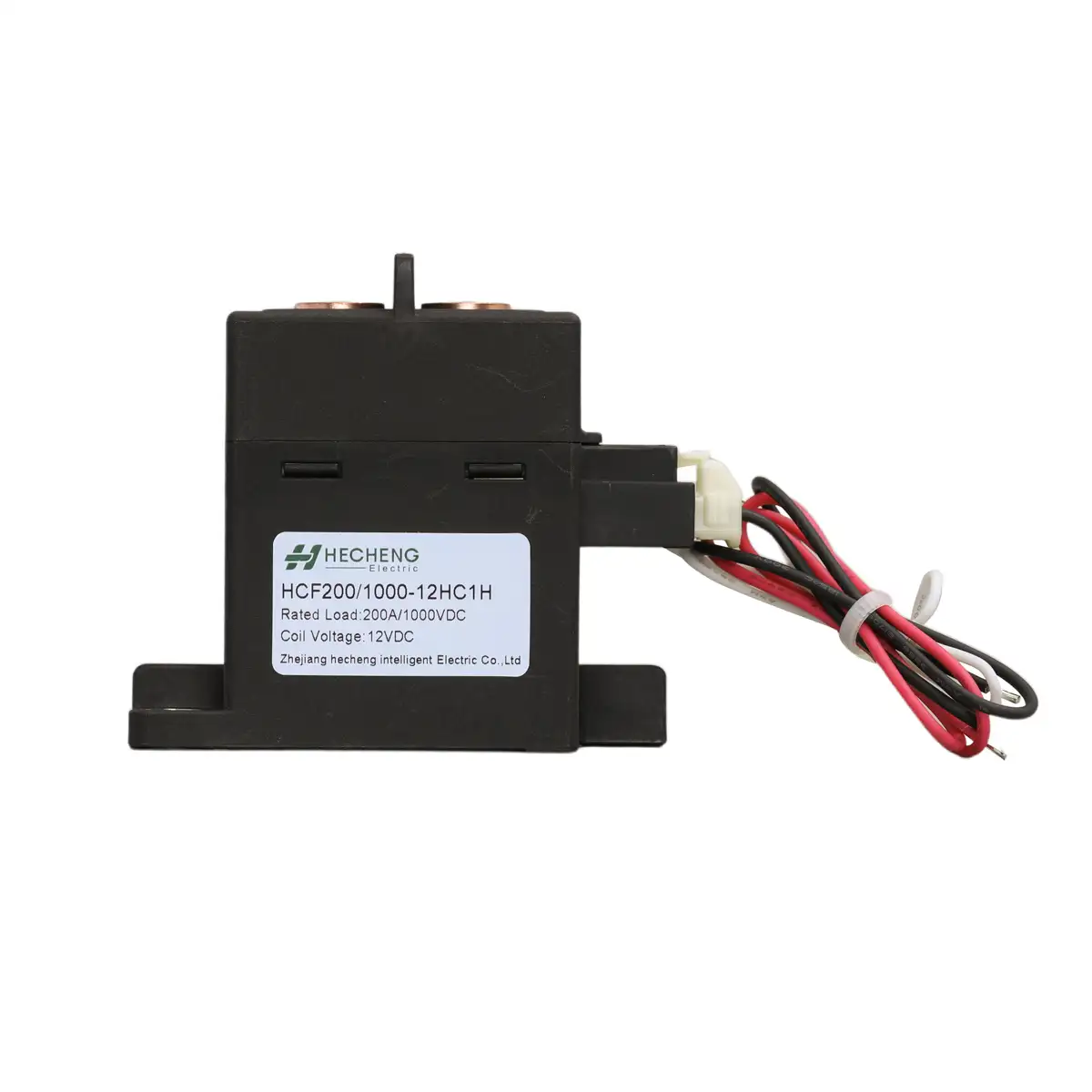

200A 1500Vdc High Voltage DC Contactors

  • Max. Switching Voltage: 1500VDC
  • Rated Current: 200A
  • Main Contact Type: SPST-NO
  • Auxiliary Contact: Optional
  • Auxiliary Contact Type: SPST-NO
  • Coil Rated Voltage: 12VDC/24VDC/48VDC
  • Ambient Operation Temperature: -40°C~+85°C
  • Ambient Operation Humidity: 5%~85%RH
  • Approvals/Standard:
    • REACH
    • RoHS
    • UL 60947-4
    • CCC/CE/CB/S Mark
, , , , , ,

Description

MAIN CONTACT DATA
Max.Switching Voltage 1500VDC Rated Current 200A
Contact Arrangement SPST-NO Contact Voltage Drop ≤0.1V(at 200A)
Limiting Short-time Current 250A:15min;320A:5min;600A:30s;900A:10s;2000A:0.6s
Electrical Life(Resistive Load) 450V 800V Model 1000V 1500V Model
200A 450VDC 1200 ops 200A 800VDC 500 ops 150A 1000VDC 500 ops, Only Breaking 15A 1500VDC 6000 ops; 30A 1500VDC 11000 ops, Only Making
Max.Breaking Current (Resistive Load) 2000A 450VDC 1 ops
Overload Breaking (Resistive Load) 300A 450VDC 100 ops
CHARACTERISTIC DATA
Dielectric Strength Between Main Contacts And Coil Before Test ≥4000VAC (1min), After Test ≥2500VAC (1min) Insulation Resistance Between Main Contacts And Coil Before Test ≥1000MΩ (1000VDC), After Test ≥50MΩ (1000VDC)
Between Open Main Contacts Before Test ≥3000VAC (1min), After Test ≥2500VAC (1min) Between Open Main Contacts Before Test ≥1000MΩ (1000VDC), After Test ≥50MΩ (1000VDC)
Shock Resistance Functional 20g Half-Sine Wave 11ms Vibration Resistance Functional 5.79g (10~2000HZ, Random)
Destructive 50g Half-Sine Wave 6ms
Operate Time Max: 30ms Mechanical Life 2*105(ops)
Release Time Max: 10ms Weight Approx 350g
COIL DATA
Rated Voltage 12VDC 24VDC 48VDC
Pick-up Voltage ≤9VDC ≤18VDC ≤36VDC
Drop-out Voltage ≥1.2VDC ≥2.4VDC ≥4.8VDC
Rated Operating Power Approx 6W Approx 6W Approx 6W
Max.Allowable Voltage 16VDC 32VDC 64VDC



MAIN CONTACT DATA
Max.Switching Voltage 1500VDC Rated Current 200A
Contact Arrangement SPST-NO Contact Voltage Drop ≤0.1V(at 200A)
Limiting Short-time Current 250A:15min;320A:5min;600A:30s;900A:10s;2000A:0.6s
Electrical Life(Resistive Load) 450V Model 800V Model 1000V Model 1500V Model
200A 450VDC 1200 ops 200A 800VDC 500 ops 150A 1000VDC 500 ops 15A 1500VDC 6000 ops; 30A 1500VDC 11000 ops; Only Making
Only Breaking
Max.Breaking Current (Resistive Load) 2000A 450VDC 1 ops
Overload Breaking (Resistive Load) 300A 450VDC 100 ops
CHARACTERISTIC DATA
Dielectric Strength Between Main Contacts And Coil Before Test ≥4000VAC(1min); After Test ≥2500VAC(1min) Insulation Resistance Between Main Contacts And Coil Before Test ≥1000MΩ(1000VDC); After Test ≥50MΩ(1000VDC)
Between Open Main Contacts Before Test ≥3000VAC (1min); After Test ≥2500VAC(1min) Between Open Main Contacts Before Test ≥1000MΩ(1000VDC); After Test ≥50MΩ(1000VDC)
Between Main Contacts And Auxiliary Contacts Before Test ≥3000VAC(1min); After Test ≥2500VAC(1min) Between Main Contacts And Auxiliary Contacts Before Test ≥1000MΩ(1000VDC); After Test ≥50MΩ(1000VDC)
Shock Resistance Functional 20g Half-Sine Wave 11ms Vibration Resistance Functional 5.79g (10~2000HZ, Random)
Destructive 50g Half-Sine Wave 6ms
Operate Time Max:30ms Mechanical Life 2*105(ops)
Release Time Max:10ms Weight Approx 350g
COIL DATA
Rated Voltage 12VDC 24VDC 48VDC
Pick-up Voltage ≤9VDC ≤18VDC ≤36VDC
Drop-out Voltage ≥1.2VDC ≥2.4VDC ≥4.8VDC
Rated Operating Power Approx 6W Approx 6W Approx 6W
Max.Allowable Voltage 16VDC 32VDC 64VDC
AUXILIARY CONTACT DATA
Auxiliary Contact Arrangement SPST-NO Auxiliary Contact Range 100mA/8VDC~2A/30VDC
Auxiliary Contact Resistance ≤200mΩ (at 100mA)

Applications

  • Electric vehicles
  • Rail transit
  • Charging system
  • Energy storage system
  • Photovoltaic system
  • Aviation
  • Military

Dimensions (mm)

HCF200 Dimension-1



HCF200 Dimension-2
