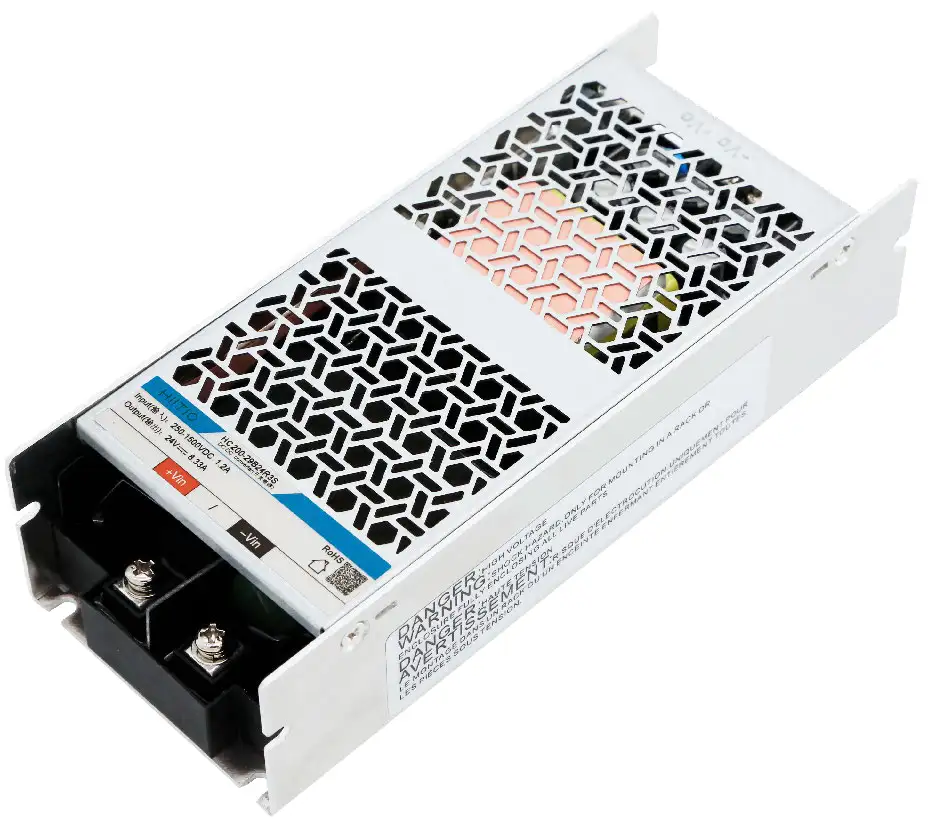

HC200-29BxxR3S is a regulated DC-DC series converter with an ultra-wide and ultra-high DC input of 250- 1500VDC, which is designed based on the standard of CSA-C22.2 No.107.1, UL1741, EN/IEC/BS EN62109. The products feature high efficiency, high reliability, high insulation, and a high level of safety protection. It is widely used in renewable energy industries, such as photovoltaic inverters, energy storage systems, charging systems, and industrial control. The converters provide multiple protection features and guarantee stable and safe operating environments even under abnormal working conditions.
| Selection Guide | |||||
| Certification | Part No.* | Output Power (W) |
Nominal Output Voltage and Current (Vo/lo) |
Efficiency at 850VDC (%) Typ. |
Capacitive Load (μF) Max. |
| / | HC200-29B12R3S | 150 | 12V/12.5A | 88 | 5000 |
| HC200-29B24R3S | 200 | 24V/8.33A | 91 | 5000 | |
| HC200-29B28R3S | 28V/7.143A | 91 | 3500 | ||
| HC200-29B48R3S | 48V/4.167A | 93 | 1250 | ||

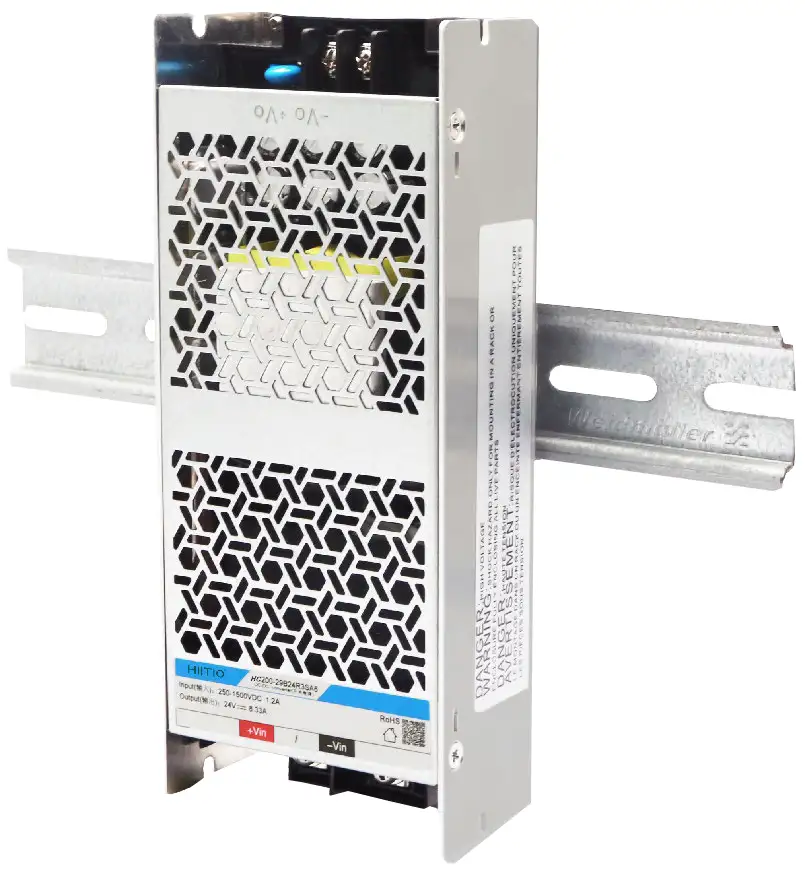

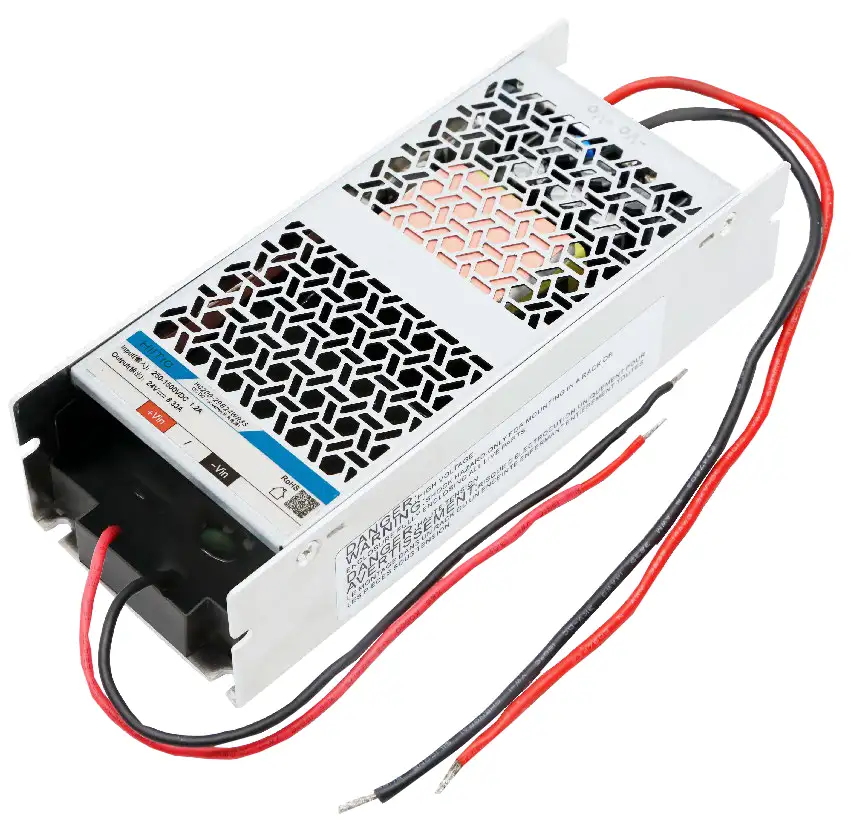

| Note: *Use suffix “WR3S” for lead type version and sufix “R3SA6” for terminal DIN-Rail mounting, suffix “WR3SA6” for lead type version DIN-Rail mounting. | |||||
| General Specifications | |||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | ||
| Isolation | Input-output | Electric strength test for 1min., leakage current ≤5mA | 4000 | — | — | VAC | |
| Input-Shell | 4000 | — | — | ||||
| Output-Shell | 2000 | — | — | ||||
| Insulation Resistance |
Input-output | Ambient temperature: 25±5℃ Relative humidity:<95%RH, no condensation Test voltage: 500VDC |
100 | — | — | MΩ | |
| Input-Shell | |||||||
| Output-Shell | |||||||
| Operating Temperature | -40 | — | +85 | ℃ | |||
| Storage Temperature | -40 | — | +85 | ||||
| Storage Humidity | Non-condensing | — | — | 95 | %RH | ||
| Power Derating | Operating temperature derating |
-40℃ to-25℃ | 3.33 | — | — | %/℃ | |
| +55℃ to +85℃ | 2.33 | — | — | ||||
| Input voltage derating | 250-300VDC | 0.40 | — | — | %/VDC | ||
| 300-400VDC | 0.20 | — | — | ||||
| 1400-1500VDC | 0.20 | — | — | ||||
| Altitude derating | 2000m-5000m | 10.00 | — | — | %/Km | ||
| Safety Standard | Design refer to UL1741,EN/IEC/BS EN62109-1 | ||||||
| Safety Class | Class |(terminal/lead type), Class II (lead type) |
||||||
| MTBF | MIL-HDBK-217F@25℃ | ≥300,000h | |||||
Ideal for solar inverters, wind turbines, energy storage systems, and other renewable energy applications requiring high-voltage DC-DC conversion.
