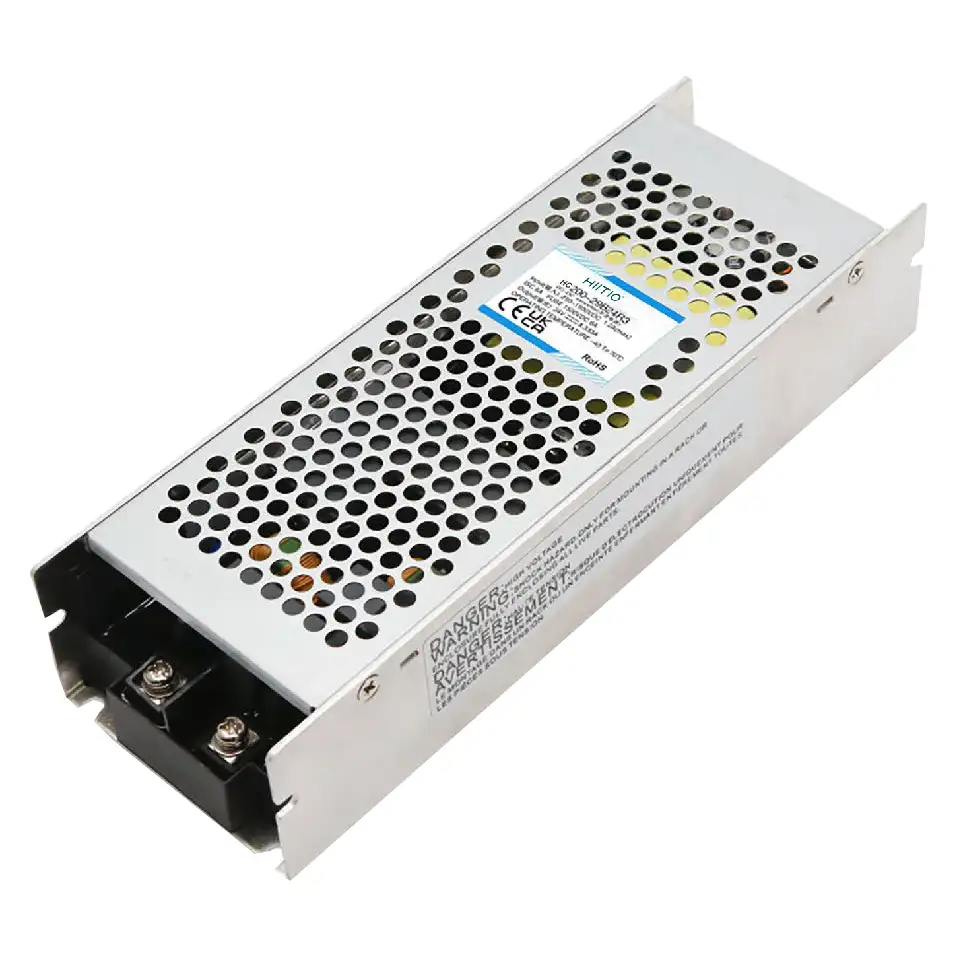

Power your renewable energy systems with the HIITIO HC200-29BxxR3 Series DC-DC Converter, designed for ultra-high performance and reliability. Engineered with an ultra-wide 250- 1500VDC input voltage range (transient up to 1700VDC for 10s), this converter is ideal for demanding applications in solar, wind, and other renewable energy setups. Compliance with standards like UL1741 and EN/IEC/BS EN62109 ensures safety and durability in extreme conditions.
| Selection Guide | |||||
| Certification | Part No.* | Output Power (W) |
Nominal Output Voltage and Current (Vo/lo) |
Efficiency at 850VDC(%)Typ. |
Capacitive Load (μF) Max. |
| EN | HC200-29B12R3 | 150 | 12V/12.5A | 88 | 5000 |
| HC200-29B24R3 | 200 | 24V/8.333A | 91 | 5000 | |
| HC200-29B28R3 | 28V/7.143A | 91 | 3500 | ||
| HC200-29B48R3 | 48V/4.167A | 93 | 1250 | ||

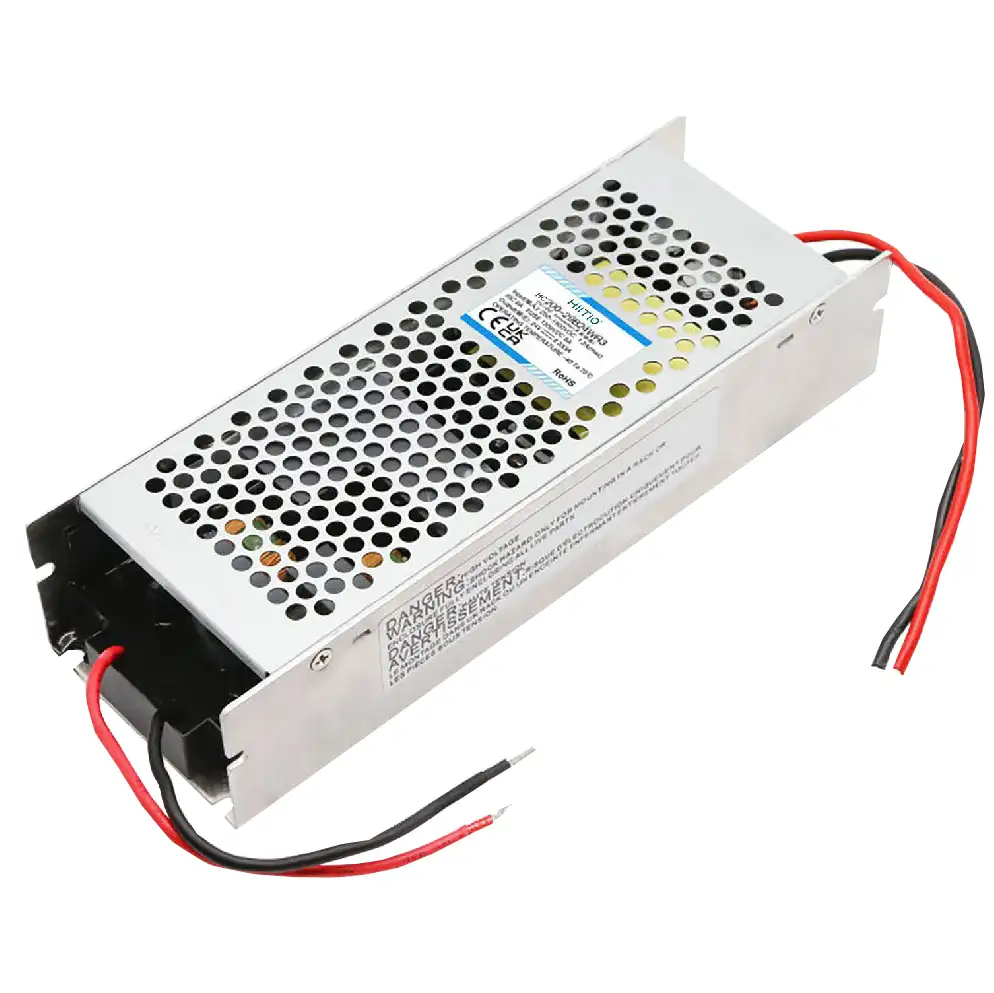

| Note:* Use suffix “W” for lead type version. | |||||
| General Specifications | |||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | ||
| Isolation | Input-output | Electric strength test for 1min., leakage current <10mA | 4000 | — | — | VAC | |
| Input-PE | 4000 | — | — | ||||
| Output – PE | Electric strength test for 1min., leakage curret <5mA | 2000 | — | — | |||
| Insulation Resistance |
Input-output | Ambient temperature:25±5℃ Relative humidity:<95%RH, no condensation Test voltage: 500VDC |
100 | — | — | MΩ | |
| Input-PE | |||||||
| Output-PE | |||||||
| Operating Temperature | -40 | — | +70 | ℃ | |||
| Storage Temperature | -40 | — | +85 | ||||
| Storage Humidity | Non-condensing | — | — | 95 | %RH | ||
| Power Derating | Operating temperature derating |
-40℃ to-25℃ | 2.67 | — | — | %/℃ | |
| +55℃ to+70℃ | 2.67 | — | — | ||||
| Input voltage derating | 250-300VDC | 0.8 | — | — | %/VDC | ||
| Altitude derating | 2000m-5000m | 6.67 | — | — | %/Km | ||
| Switching Frequency | — | 65 | — | kHz | |||
| Safety Standard | Design refer to UL1741 & EN62109-1, BS EN62109-1,IEC62109-1 |
||||||
| MTBF | MIL-HDBK-217F@25℃ | ≥300,000h | |||||
Ideal for solar inverters, wind turbines, energy storage systems, and other renewable energy applications requiring high-voltage DC-DC conversion.
