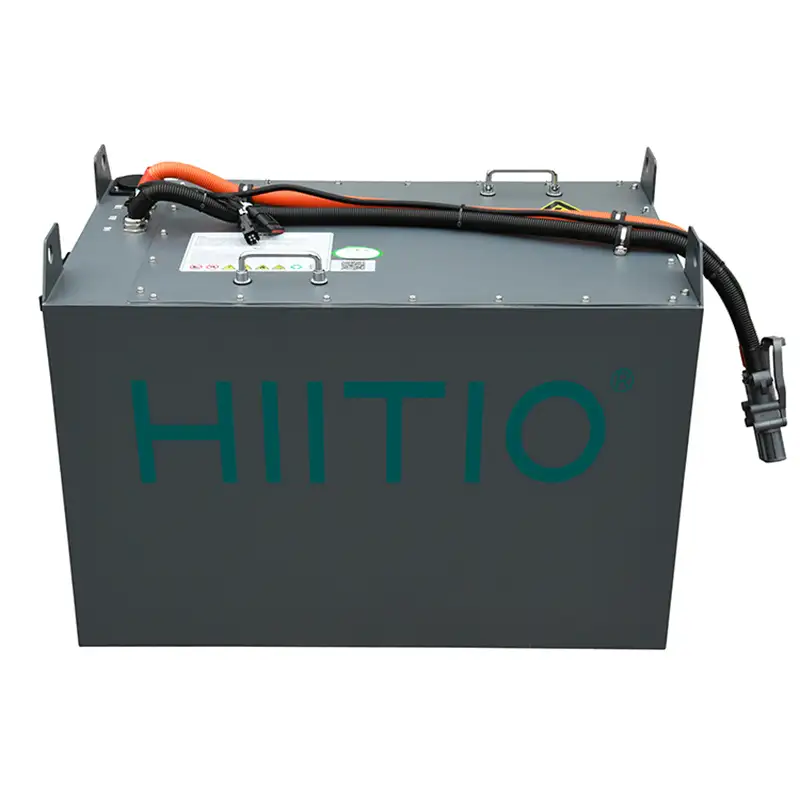

| Model | BMF80460P | |
|---|---|---|
| Type | 80V460Ah | |
| Cell Type | LiFePO4 | |
| Cell | 230AH CELL | |
| Combination Mode | 2PCS | |
| Capacity | 460Ah | |
| Nominal Volume | 36. 8KWh | |
| Nominal Voltage | 80V | |
| Overcharge protection voltage | 91.25V | |
| Discharge Cut-off Voltage | 62.5V | |
| Standard charge current | 200A | |
| Standard discharge current (continuous) | 460A | |
| Maximum continuous charge current | 200A | |
| Maximum continuous discharge current | 460A | |
| IP grade | IP54 | |
| Weight | 330kg | |
| Battery Dimensions(mm) | 800(L) x 580(W) x 510(H) | |
| Cycle Life (time) | 4000 Times | |
| Self-discharge Rate | < 4% | |
| Operating Temperature | Charge | 0℃~55℃ |
| Discharge | -20℃~60℃ | |
| Storage Temperature (SOC>60%) | 25℃ | |
| Certification | UN38.3 | |
| Warranty time | 5 years or 10,000 hours, whichever comes first | |
HIITIO® was established in 2018 as a result of Hecheng Electric introducing a mature R&D team. HIITIO specializes in producing high-voltage DC electrical devices for EV, solar energy systems, and energy storage applications.
