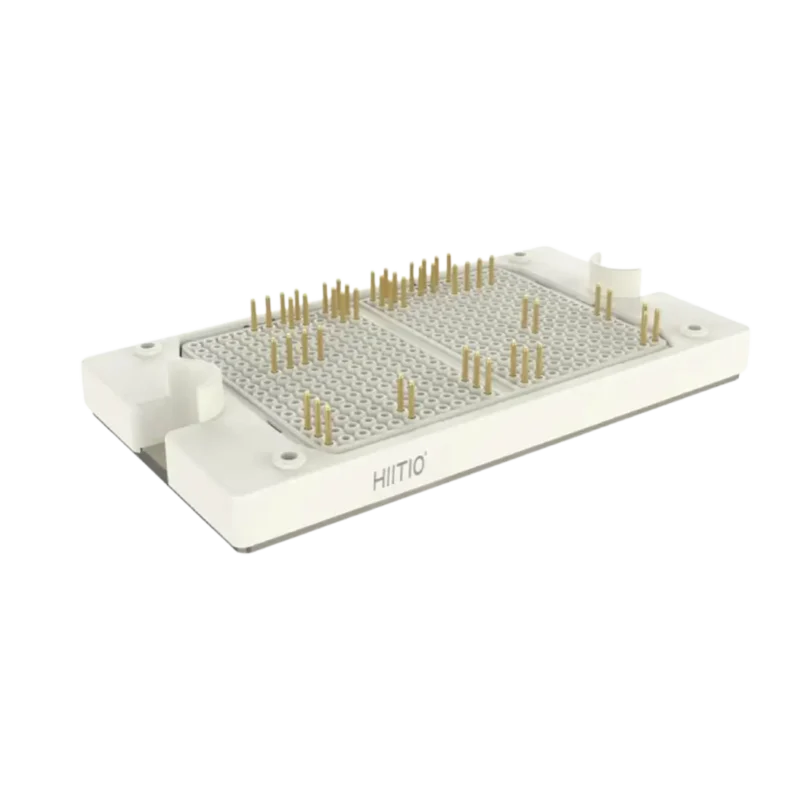

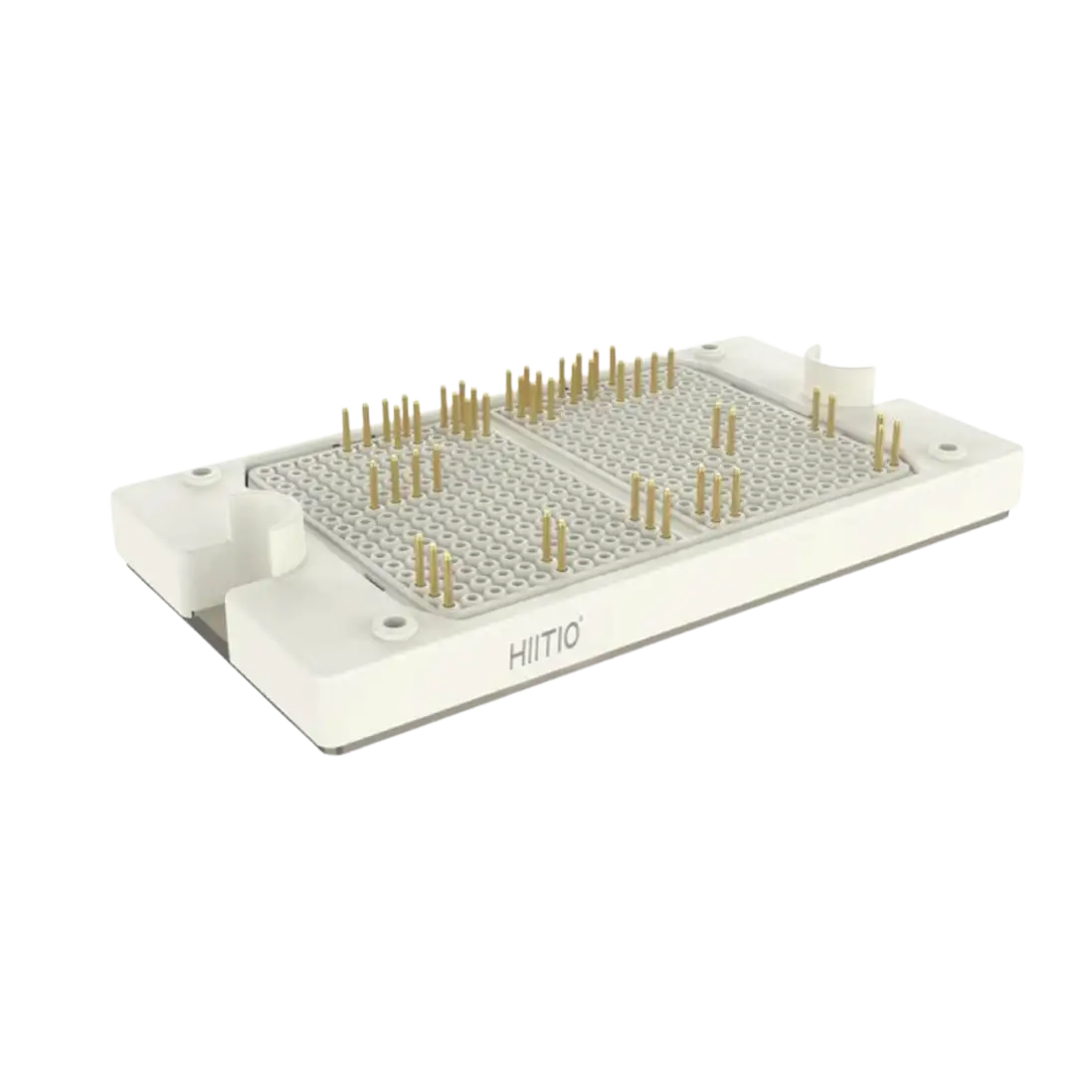

650V 450A Easy 3B IGBT Power Module
- Collector-Emitter Voltage (VCES): 650V
- DC Collector Current (ICDC): 346A (T1/T4), 271A (T2/T3)
- Repetitive Peak Collector Current (ICRM): 900A
- Total Power Dissipation (Ptot): 470W (T1/T4), 339W (T2/T3)
- Gate-Emitter Voltage (VGES): ±20V
- Operating Junction Temperature (Tj): Up to 175°C
- Thermal Resistance (RthJH): 0.202 K/W (T1/T4), 0.231 K/W (T2/T3)
Description
The HCG450FL065E3RD is a high-performance 650V 450A IGBT module from Zhejiang HIIITIO New Energy Co., Ltd., designed for I-type 3-level NPC inverter applications. Featuring advanced trench gate/field-stop technology, it offers low VCEsat, minimal switching losses, and a positive temperature coefficient for superior efficiency. The module incorporates an Al2O3 substrate for low thermal resistance, a compact low-inductance design, and DBC technology for enhanced heat dissipation, ensuring reliability in demanding conditions.
Key Features:

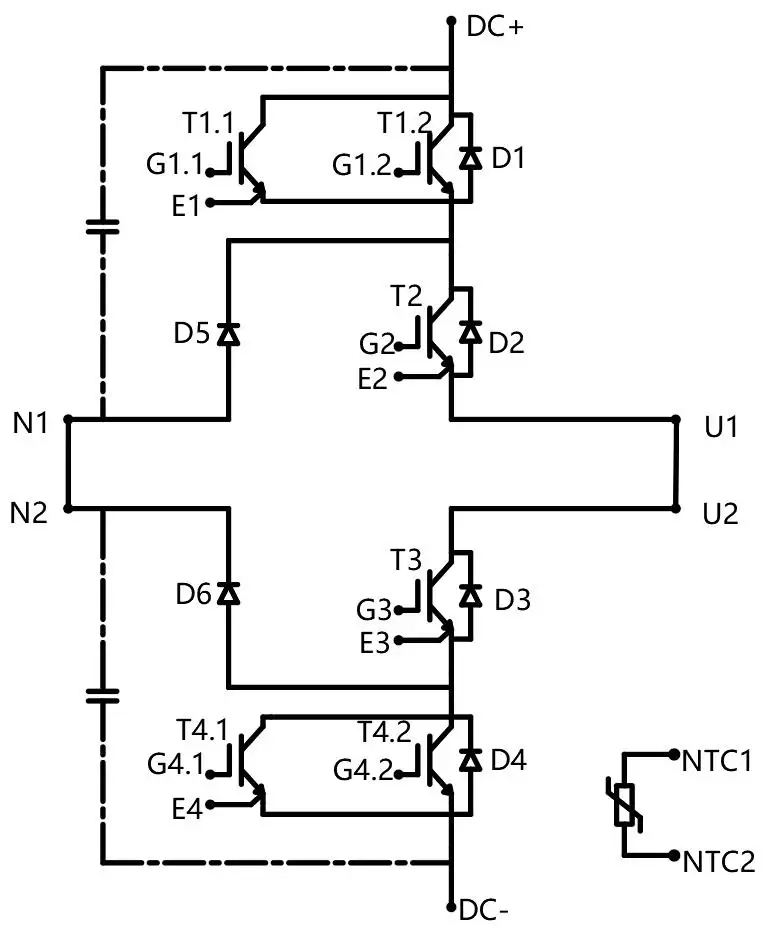

- 650V 3-Level NPC Topology: Optimized for high-power inverters.
- Low VCEsat & Switching Losses: Boosts efficiency in high-frequency operations.
- Al2O3 Substrate: Ensures low thermal resistance for reliable performance.
- Compact Low-Inductance Design: Reduces EMI and enhances stability.
- DBC Technology: Improves heat dissipation for prolonged durability.
- Wide Applications: Ideal for UPS, solar, APF/SVG, and 3-level systems.
Applications
- 3-Level-Applications
- PCS
- UPS Systems
- Solar Applications
- APF/SVG

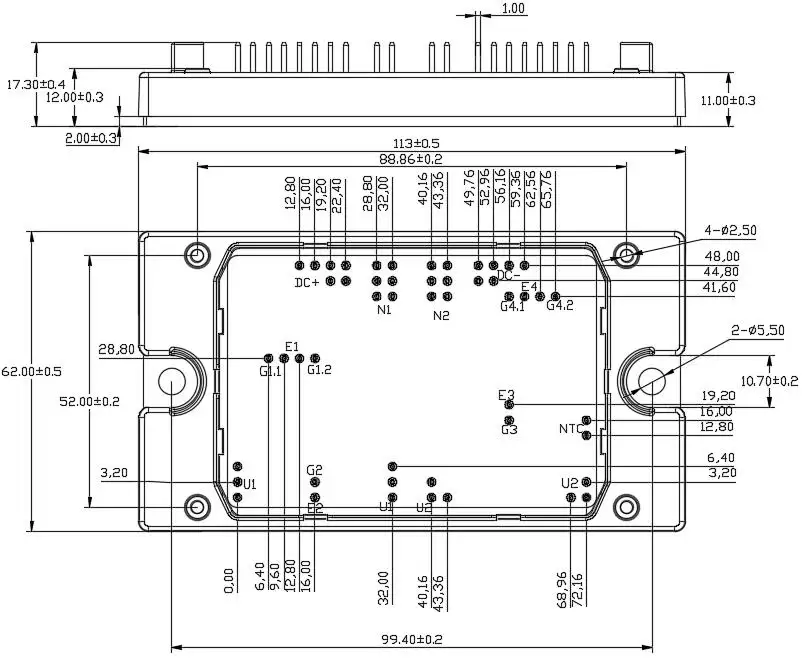

Dimensions (mm)
