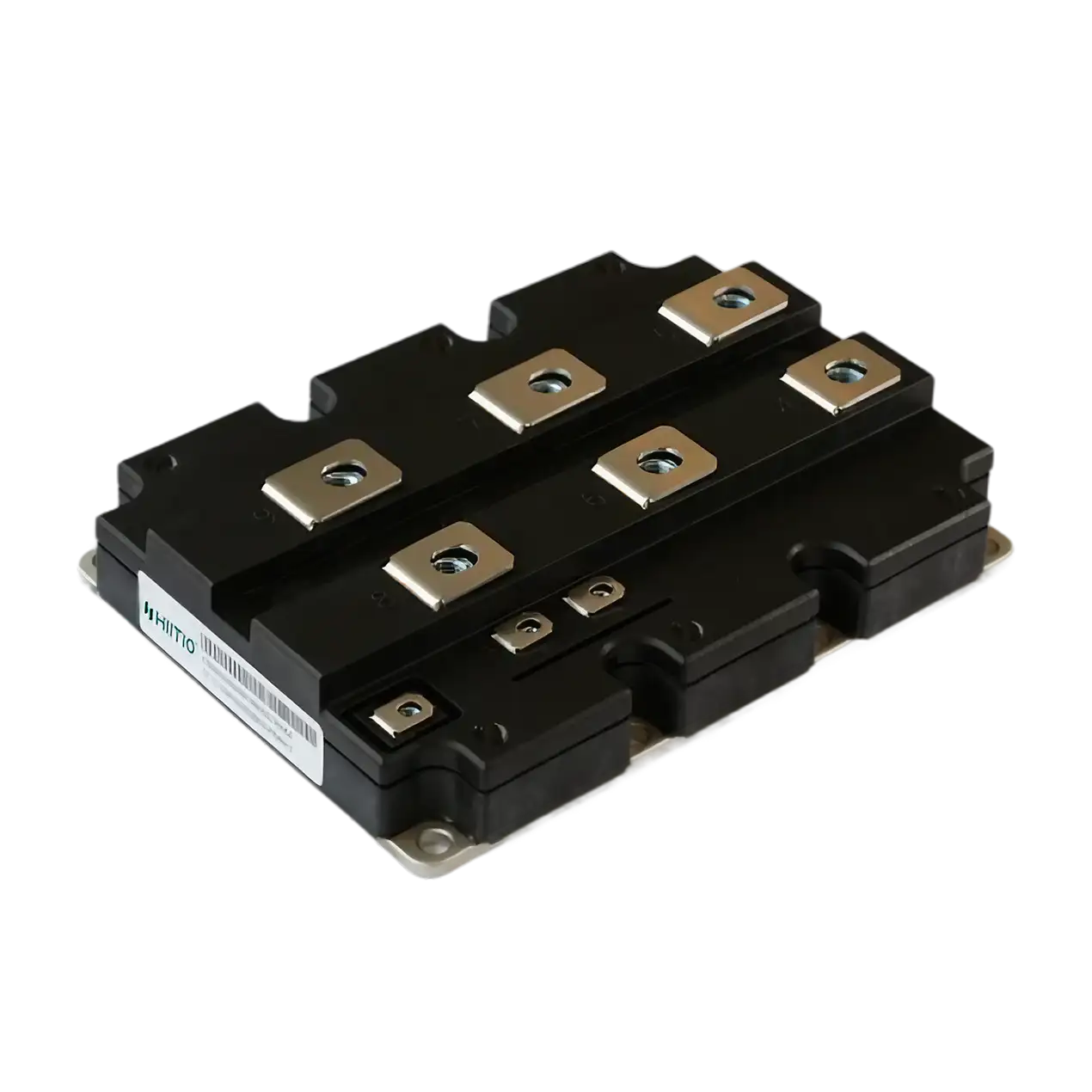

6500V 750A High Voltage IGBT Power Module-Single Switch
The HCGM750ASM65-PSA011 High Voltage IGBT Power Module (6500V/750A) features an AISiC baseplate, AIN substrates, high thermal cycling capability, and 10μs short-circuit withstand, ensuring efficient cooling and stability for traction drives, motor controllers, smart grids, and high-reliability inverters.
Description
The HCGM750ASM65-PSA011 High Voltage IGBT Power Module is designed for high-voltage, high-power applications, rated at 6500V/750A. Featuring an AISiC baseplate and AIN substrates, it ensures superior thermal management and electrical stability. With high thermal cycling capability, this module guarantees reliability under extreme conditions, while its 10μs short-circuit withstand capability enhances system safety, making it an ideal choice for traction drives, motor control, smart grids, and high-reliability inverters.
Features
- AISiC Baseplate: Enhances heat dissipation and module durability
- AIN Substrates: Improves electrical insulation and system reliability
- High Thermal Cycling Capability: Withstands harsh environments for extended lifespan
- 10μs Short Circuit Withstand: Provides superior short-circuit protection for enhanced safety
Applications
- Traction Drives (rail transportation, electric locomotives)
- Motor Controllers (industrial drives, automation systems)
- Smart Grid (efficient power management and distribution)
- High Reliability Inverters (wind and solar energy conversion systems)
