Model |
HCMI-600 |
Input Data (DC, PV) |
Number of Input MC4 Connector |
2 sets |
MPPT Voltage Range |
22V-48V |
Operation Voltage Range |
20-50V |
Maximum Input Voltage |
52V |
Startup Voltage |
18V |
Maximum input power |
600W |
Maximum input Current |
12A*2 |
Output Data(AC) |
Single-Phase Grid Type |
120V&230V |
Rated Output Power |
600W |
Maximum Output Power |
600W |
Nominal Output Current |
@120VAC:5A/@230VAC:2.6A |
Nominal Output Voltage |
120VAC /230VAC |
Default Output Voltage Range |
@120VAC:80V-160V /@230VAC:180V-270V |
Nominal Output Frequency |
50Hz / 60Hz |
Default Output Frequency Range |
@50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz |
Power Factor |
>99% |
Total Harmonic Distortion |
THD <5% |
Maximum Units per Branch |
@120VAC:5units /@230VAC: 10units |
Eifficiency |
Nominal MPPT Efficiency |
99.5% |
Peak Efficiency |
95% |
Night Power Consumption |
<1W |
Mechanical Data |
Operating Ambient Temperature Range |
-40°C to +65°C |
Storage Temperature Range |
-40°C to +85C |

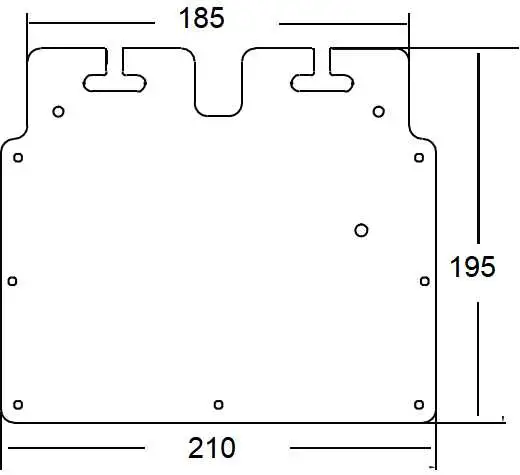

Dimensions (L × W × H) |
210mmx195mm x 35mm |
Weight |
2.45kg |
Max Current of AC Bus Cable |
20A |
Waterproof rating |
IP65 |
Cooling Mode |
Natural Convection- No Fans |
Other Features |
Communication |
WIFI(Cloud monitoring) |
Power transmission mode |
Reverse transfer,load priority |
Monitoring System |
Mobile APP, PC browser |
Transformer Design |
High Frequency Transformers,Galvanically Isolated |
Integrated Ground |
Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
Protection Functions |
lsolated Island Protection,Voltage Protection, Frequency Protection, Temperature Protection,Current Protection, etc. |
Design Compliance |
EN IEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC55014-2:2021,EN IEC55014-2:2021 |
Certificate |
CE |
