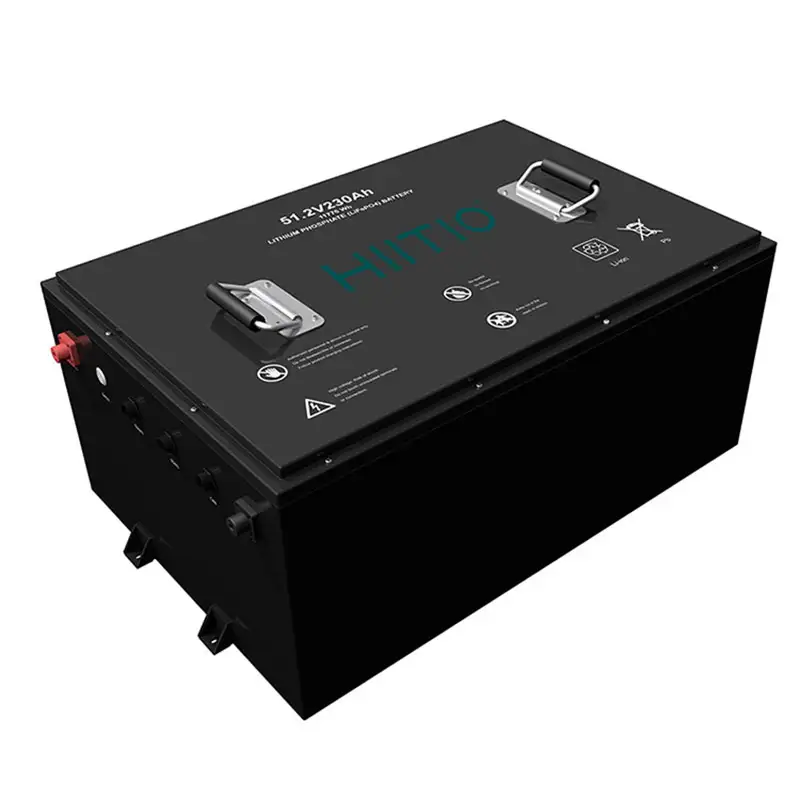

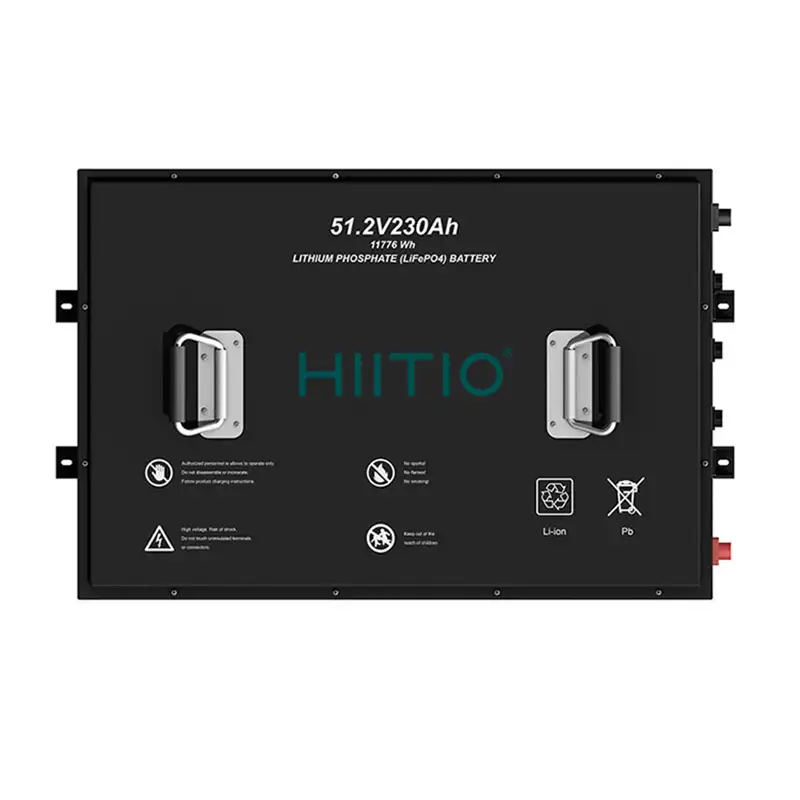

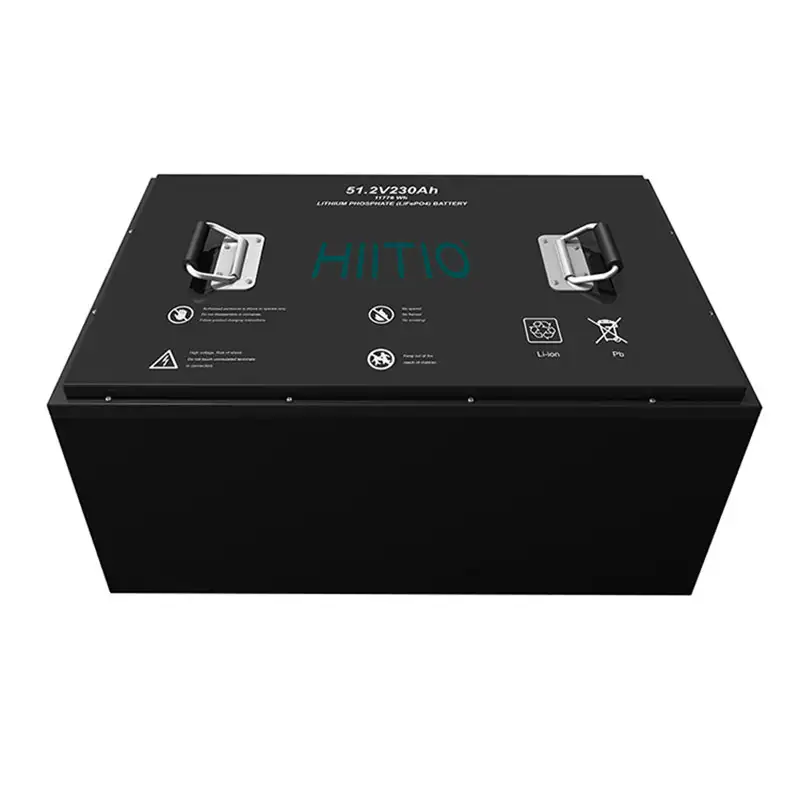

HIITIO 48V 230Ah LiFePO4 Battery for your Golf Cart fleet. Save 35% enetgy cost to upload your Golf Carts from lead-acid batteries to lithium batteries.
| Model | BMF48105P | BMF48150P | BMF48230P |
|---|---|---|---|
| Type | 51.2V105Ah | 51.2V150Ah | 51.2V230Ah |
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 105Ah | 150Ah | 230Ah |
| Effciency | >96% | >96% | >96% |
| Cell Type | LiFePO4 | LiFePO4 | LiFePO4 |
| Charge Voltage | 58.4V | 58.4V | 58.4V |
| Standard Charging Current | 21A | 30A | 46A |
| Max.Continuous Charging Current | 200A | 250A | 250A |
| Standard Discharge Current | 52.5A | 75A | 115A |
| Max Continuous Discharge Current | 200A | 250A | 250A |
| Peak Discharge Current | 500±80A (0.2s) | 500±80A (0.2s) | 500±80A (0.2s) |
| Discharge Cut-off Voltage | 40V | 40V | 40V |
| Charge Temperature Range | 0~60°C | 0~60°C | 0~60°C |
| Discharge Temperature Range | -10°C~60°C | -10°C~60°C | -10°C~60°C |
| Storage Temperature Range | -5°C~40°C | -5°C~40°C | -5°C~40°C |
| Storaqe Humidity | 65+20%HR | 65+20%HR | 65+20%HR |
| Size(LxWxH) | 472*312*243mm | 600*340*250mm | 590*400*280mm |
| Shell Material | Steel | Steel | Steel |
| Weight | 45.5KG | 64.8KG | 98.2KG |
| Cycle Life | 80% DOD, ≥6000 times | 80% DOD, ≥6000 times | 80% DOD, ≥6000 times |
| Self Discharge | 2% per month | 2% per month | 2% per month |
| SOC Indication | AVAILABLE | AVAILABLE | AVAILABLE |
| Communication Mode | RS485 and CAN | RS485 and CAN | RS485 and CAN |
| Warranty | 5 years | 5 years | 5 years |
