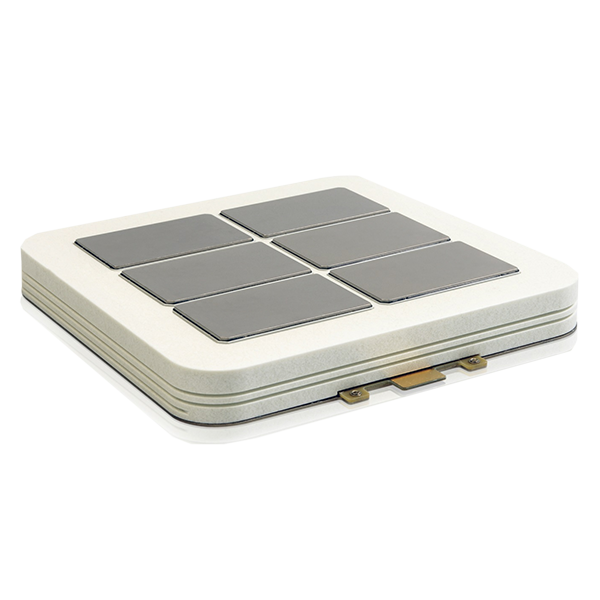

4500V 3000A IGBT Module Press-pack Package with FWD

  • Maximum Current Rating: 3000A continuous current for ultimate power handling
  • Ultra-High Voltage: 4500V collector-emitter voltage capability
  • Advanced Press-Pack Design: Optimized thermal and mechanical performance
  • Superior Switching Performance: Low switching losses with fast recovery diode
  • High Robustness: Exceptional short circuit capability (10μs)
  • Positive Temperature Coefficient: Excellent for parallel operation
SKU HCG3000S450S1K1 Category

Description

The HCG3000S450S1K1 represents the pinnacle of IGBT technology, offering the highest current rating in our 4500V family. This press-pack module is engineered for the most demanding high-power applications in renewable energy and power transmission systems.

Maximum Rated Values

Parameter Symbol Conditions Value Unit
Collector-Emitter Voltage VCES VGE=0V,Tvj=25℃ 4500 V
DC Collector Current lc Tc=100℃,Tvj=150℃ 3000 A
Peak Collector Current CM tp=1ms 6000 A
Gate-Emitter Voltage VGES ±20 V
Total Power Dissipation Ptot Tc=25°℃,Tvj=150℃ 31200 W
DC Forward Current IF 3000 A
Peak Forward Current IFRM tp=1ms 6000 A
Surge Current IFSM VR=0V,Tvj=125℃,

tp=10ms,half-sinewave

21000 A
IGBT Short Circuit SOA tpsc Vcc=3400V,VCEM CHIP≤4500V
VGE≤15V,Tvj≤125℃
10 μs
Maximum Junction Temperature Tvj(max) 125
Junction Operating Temperature Tv(op) -40~125
Case temperature Tc -40~125
Storage Temperature Tstg -40~70
Mounting force FM 80-100 kN

Applications

  • HVDC Flexible Systems
  • Offshore Wind Power Generation
  • High-Voltage Power Conversion
  • Industrial Power Systems

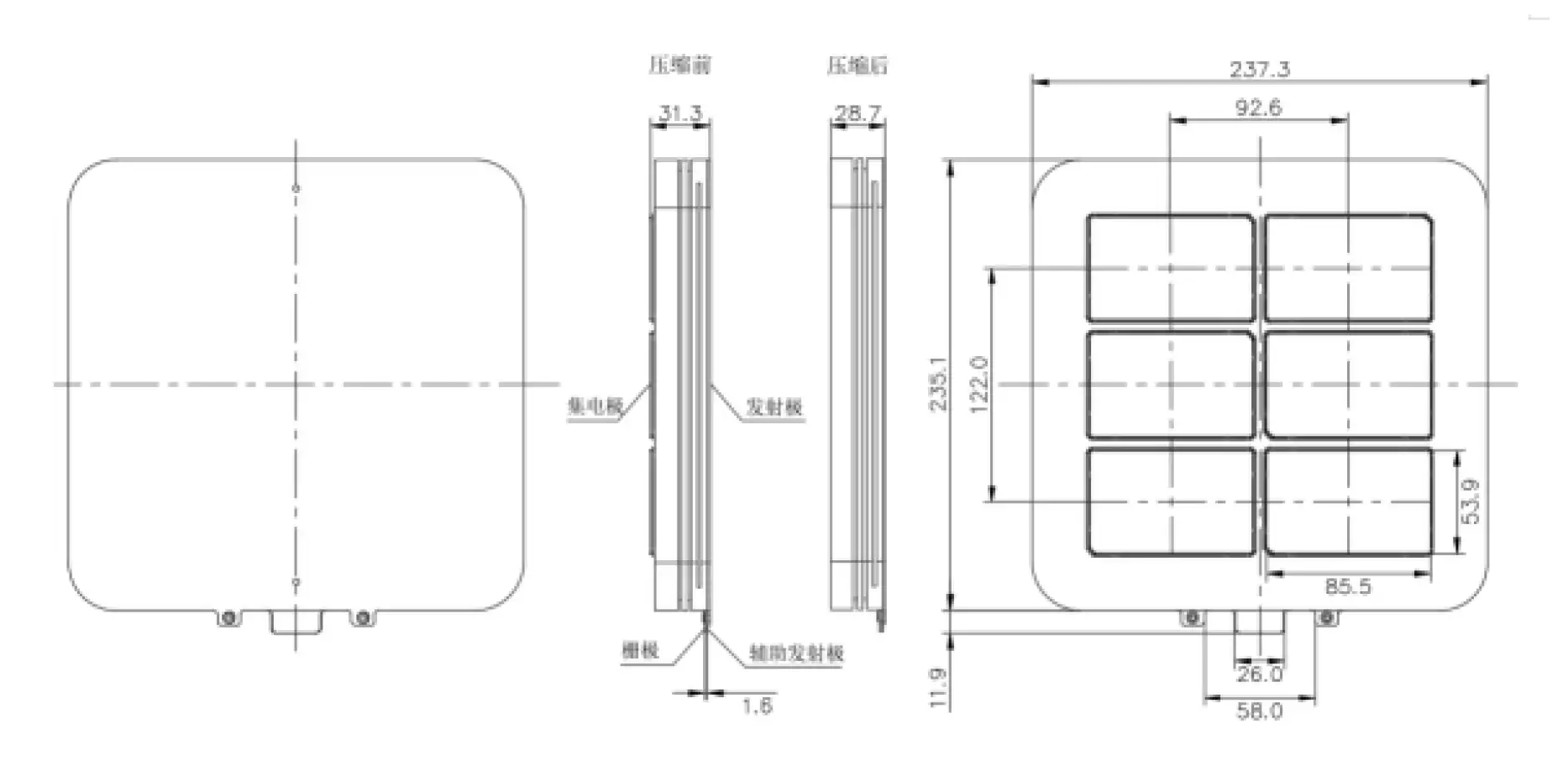

Dimensions (mm)

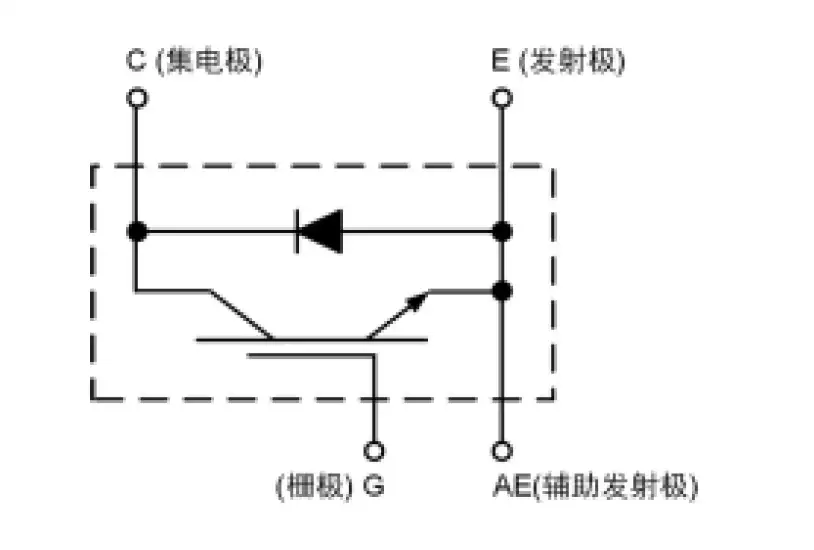

Circuit Diagram
