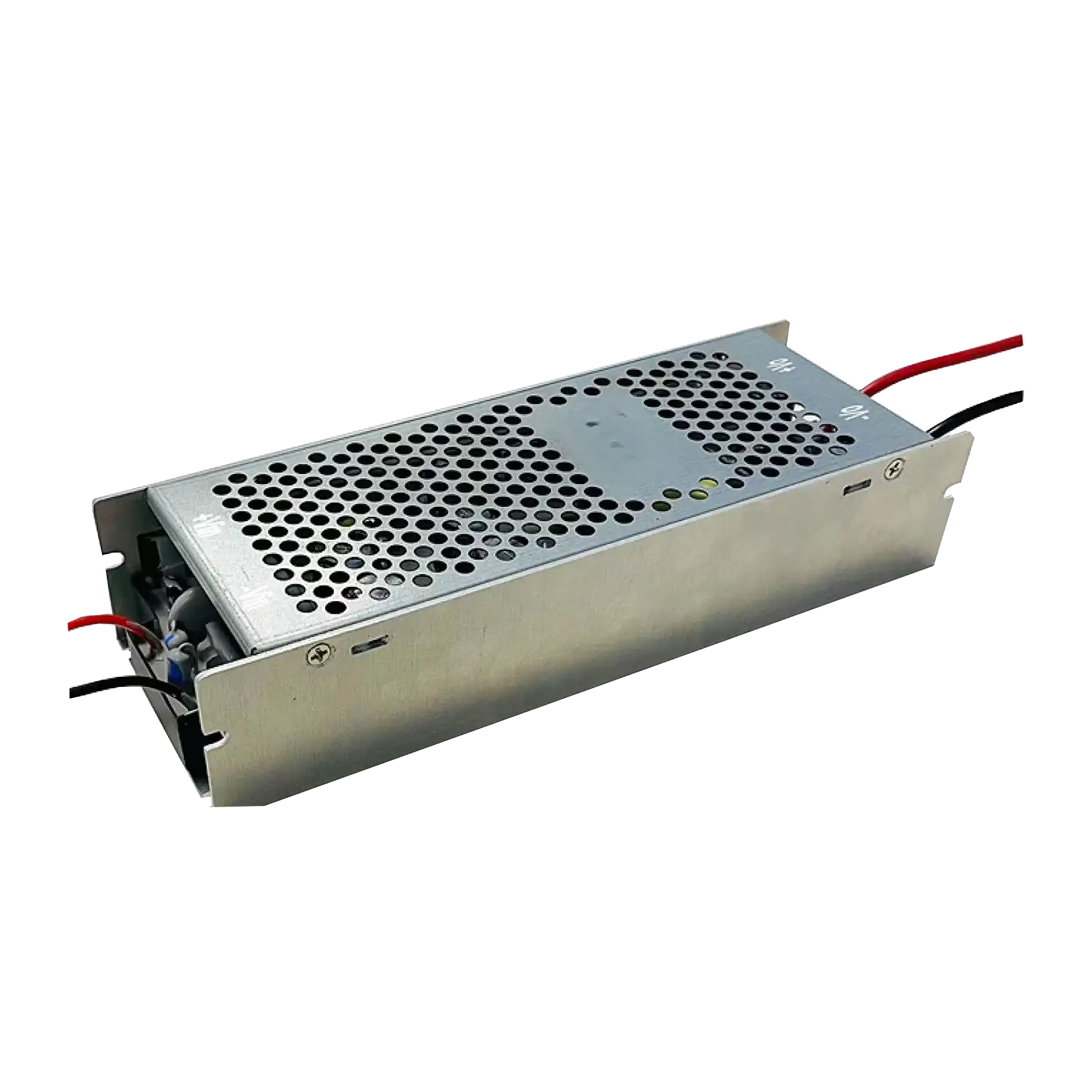

HC200-800SXXG1N6 Series —— Compact size, high efficiency DC-DC modular power supplies with compliance with UL1741, EN/IEC/BS 62109 standards, wide input voltage range, low ripple, low temperature rise, low standby power consumption, high efficiency, high reliability, and safety isolated. This series of products can be widely used in the fields of solar power generation, energy storage, industrial control, etc. The multiple protection functions can keep the power supply and the load safety under abnormal operating conditions.
| Part No. | Output Specifications | Max Capacitive Load |
Ripple & Noise 20MHz (Max) |
Efficiency@ full load/850VDC (Typ.) |
||
| Power | Voltage | Current | ||||
| (W) | Vo(V) | lo(mA) | u F | mVp-p | % | |
| HC200-800S24G1N6 | 200 | 24 | 8330 | 5000 | 300 | 91 |
| HC200-800S28G1N6 | 200 | 28 | 7143 | 3500 | 300 | 91 |
| Note 1 – The typical value of efficiency is based on the product tested after half an hour burn-in at full load. Note 2 – The full load efficiency should be in ±2% of the typical value in this table. The efficiency is calculated by the way that the full output power is divided by the input power. Note 3 – The ripple and noise are tested by the twisted pair method, please refer to the following Ripple & Noise Test Instructions. Note 4 – Please contact HIITIO sales for other output voltages requirement in this series but not in this table. |
||||||
Application Notice
1.The products should be used according to the specifications in this datasheet, otherwise it could be permanently damaged.
2. A fuse should be connected at input.
3. The product performance in this datasheet cannot be guaranteed if it works at a lower load than the minimum load defined.
4. The product performance in this datasheet cannot be guaranteed if it works under over-load condition.
5. Unless otherwise specified, all values or indicators in this datasheet are tested at Ta=25℃, humidity<75%RH, rated input voltage
and rated load (pure resistance load).
6. All values or indicators in this datasheet had been tested based on HIITIO test specifications.
7.The specifications are specially for the parts listed in this datasheet, any other non-standard model performances could be out of
the specifications. Please contact our technician for specific requirements.
8. HIITIO can provide customization service.
