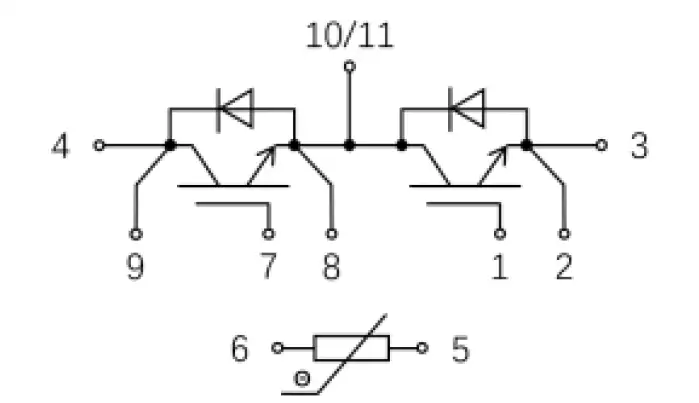

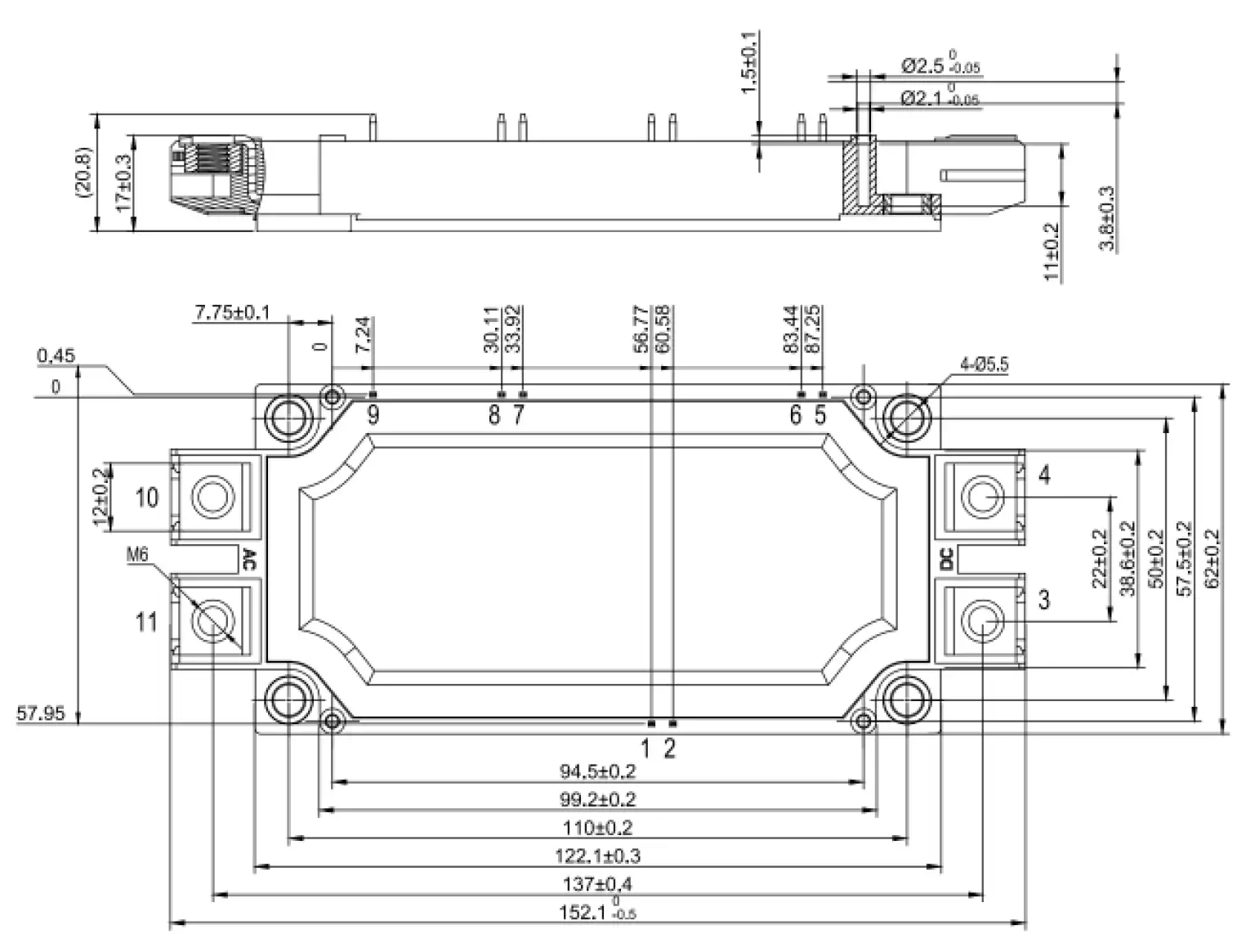

The HCG450FH170D3K4 is a high-performance IGBT module designed with a 1700V trench gate and field stop structure, featuring an integrated freewheeling diode (FWD) and NTC thermistor. With a rated collector current of 450A, it provides low switching loss, high reliability, and excellent short-circuit withstand capability.
| Parameter | Symbol | Condition | Value | Unit |
|---|---|---|---|---|
| Collector-emitter voltage | VCES | Tvj=25℃ | 1700 | V |
| DC collector current | lc | Tc=105℃,Tvjmax=175℃ | 450 | A |
| Peak collector current | ICM | tp=1ms | 900 | A |
| Gate-emitter peak voltage | VGES | ±20 | V | |
| Maximum Power Dissipation | PD | Tc=25℃,Tvjmax=175℃ | 2500 | W |
| IGBT short-circuit withstand time | tpsc | 10 | μs | |
| Maximum junction temperature | Tvjmax | 175 | ℃ | |
| Operating junction temperature | Tvjop | -40~150 | ℃ | |
| Storage temperature | Tstg | -40~125 | ℃ |
