1500V 10x85mm PV Cylindrical Ferrule Semiconductor Fuse

  • Volts: 1500Vdc
  • Amps: 1-32A
  • Breaking Capacity:
    • Max BC: 30kA @ 1500Vdc
    • Min BC: 135% In
  • Time Constant: ≤2 ± 0.5 ms
,
SKU HCPVF1500-10R Category Tag

Description

  • Low I²t value (low let-through energy)
  • Strong current limiting capability
  • Low voltage drop
  • Excellent DC performance

Standards & Approvals

  • Refer to UL-248-19 / IEC 60269-1/6
  • Reach declaration available upon request
  • RoHS compliant

Features & Benefits

  • The HCPVF1500 solar fuse is designed to integrate into an in-line assembly within a wire harness
  • Provides photovoltaic (PV) protection meeting UL 248-19 for photovoltaic applications
  • Can be electrically insulated by either over-molding or using heat-shrink
  • Meets IEC 60269-6 electrical performance requirements

Product Characteristics

Item Test Condition/Methods Standard Performance
Time/Current 100% of current rating IEC 60269/UL248-19 No Fusing;4 hours Min.
113% of current rating  *IEC IEC 60269 60 Minutes Min.
145% of current rating  *IEC IEC 60269 60 Minutes Max.
105% of current rating *UL UL-248.19 60 Minutes Min.
135% of current rating *UL UL-248.19 60 Minutes Max.
200% of current rating IEC 60269/UL248-19;1-30A 4 Minutes Max.
IEC 60269/UL248-19;31-60A 6 Minutes Max.
Endurance Test 100% of rating current for 4 hours and testing Temperature rise at the last 5min. IEC 60269-6 UL248-19 ≤65K
  • Loading 100% Rated Current (1.0In A) for flowing, and it’s available to let current keep on flowing at least 4 hour without any melting.

Fuse Ratings

Part No. Fuse Amps Average @30KA/1500Vdc Power Loss (W) Approvals
 A²s Melting A²t Clearing 80% 100% UL TUV
HCPVF1500-1A-10R 1 60 129 0.8 1.7 ○ Pending ○ Pending
HCPVF1500-2A-10R 2 119 258 1.4 2.3 ○ Pending ○ Pending
HCPVF1500-5A-10R 5 299 644 2.9 3.7 ○ Pending ○ Pending
HCPVF1500-8A-10R 8 478 1030 3.1 4.2 ○ Pending ○ Pending
HCPVF1500-10A-10R 10 606 1290 2.9 3.7 ○ Pending ○ Pending
HCPVF1500-12A-10R 12 728 1548 3.2 4.7 ○ Pending ○ Pending
HCPVF1500-15A-10R 15 910 1935 2.9 4.7 ○ Pending ○ Pending
HCPVF1500-20A-10R 20 728 1548 3.3 6.1 ○ Pending ○ Pending
HCPVF1500-25A-10R 25 918 1969 3.5 6.3 ○ Pending ○ Pending
HCPVF1500-30A-10R 30 1224 2625 3.8 7.2 ○ Pending ○ Pending
HCPVF1500-32A-10R 32 1820 3308 4.7 7.4 ○ Pending ○ Pending
  • DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃

Applications

  • Capable of interrupting low overcurrents associated with faulted PV strings

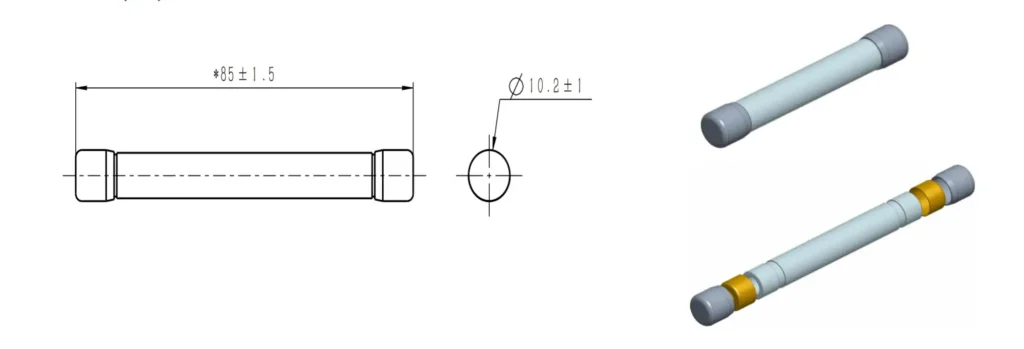

Dimensions (mm)
