Description

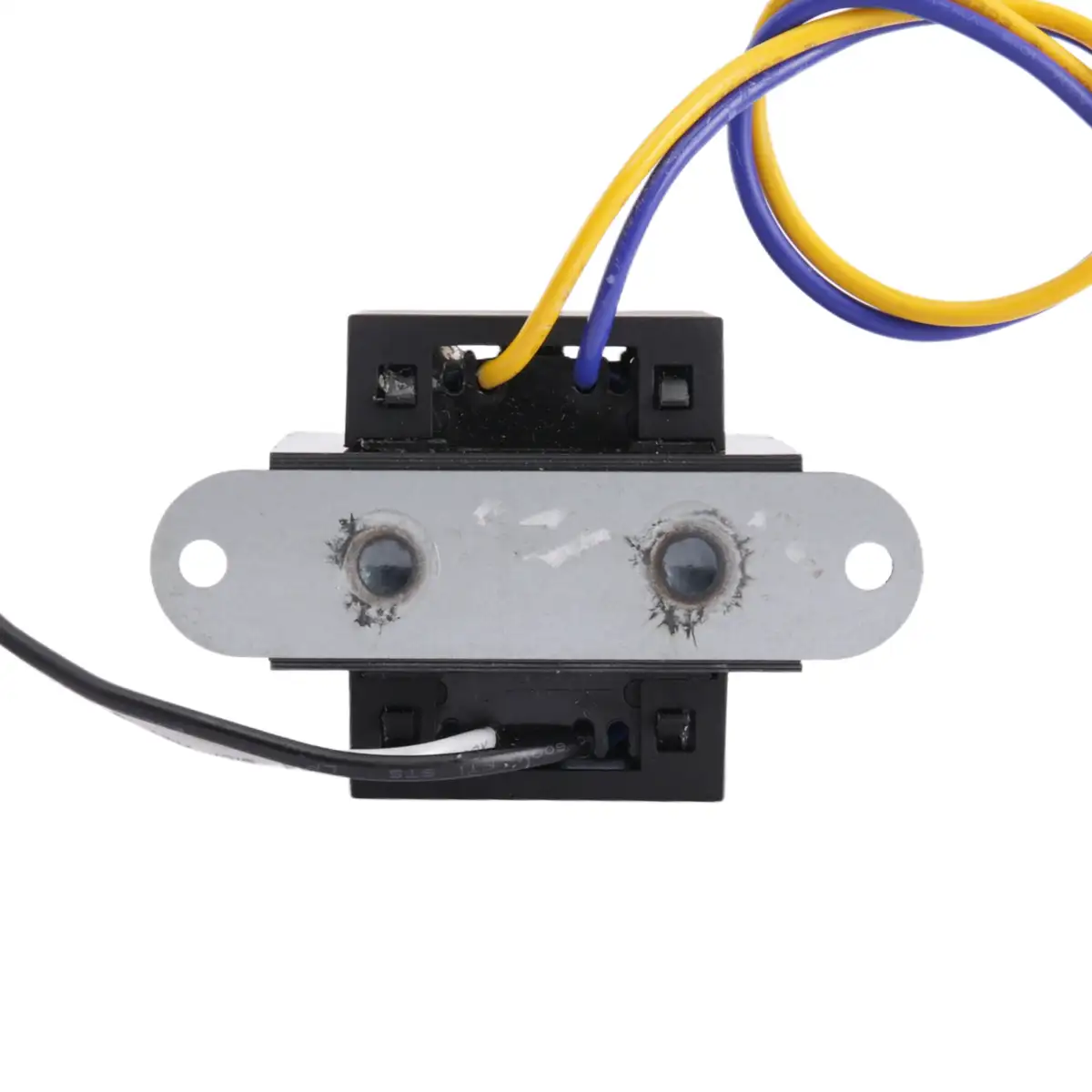

Introducing the HIITIO Control Transformer, designed for superior performance and energy efficiency. With a low standby power consumption of under 0.9W, our transformers are ideal for a variety of applications, including home appliances, medical equipment, communication devices, and solar energy systems.
Features:
- Versatile Voltage Options: Available primary voltages of 120V, 208V, 240V, 277V, 380V, 480V, and 575V.
- Reliable Output: Provides a stable secondary voltage of 24V, perfect for your power supply needs.
- Compact Design: Dimensions range from 82mm x 60mm x 49mm to 102mm x 103mm x 65mm, making it easy to integrate into your setup.
- High Isolation Voltage: Ensures safety with an impressive isolation voltage of 3500V.
- Wide Temperature Range: Operates effectively in temperatures from -25°C to +70°C.
- Customizable Options: We offer custom design solutions to meet your specific requirements.
Certifications:
Our transformers comply with UL, CE and RoHS standards, ensuring quality and safety.
Product Data Sheet
| Item | Description |
|---|---|
| rated power (VA) | 30~75 |
| Primay Voltage(V) | 120/208/240/277/380/480/575 |
| Secondary Voltage(V) | 24 |
| Dimensions | 82*60*49(30/40/50VA) |
| 102*103*65(375VA) | |
| Terminal | UL material |
| Wire lead | Shielded cable 1.0M |
| Isolation voltage | 3500V |
| Operating temperature | -25℃ ~+70℃ |
| Frequency | 50Hz-60Hz |
| Accuracy | ±5% |
| Insulation grade | Class B (130℃) |
| Temperature rise | Temp rise max 80℃ |
Product Model
| Part Number | Model | Terminal (optional) | Capacity (VA) |
Primay | Secondary | Dimensions (LAW/H ) mm |
|
|---|---|---|---|---|---|---|---|
| voltage | Frequecny | Voltage | |||||
| 284700010001 | HC203021FM | Terminals/Leads | 30 | 208/240 | 50/60 | 24 | 82*60*49 |
| 284700010002 | HC203031FM | Terminals/Leads | 120/208/240 | 50/60 | 24 | 82*60*49 | |

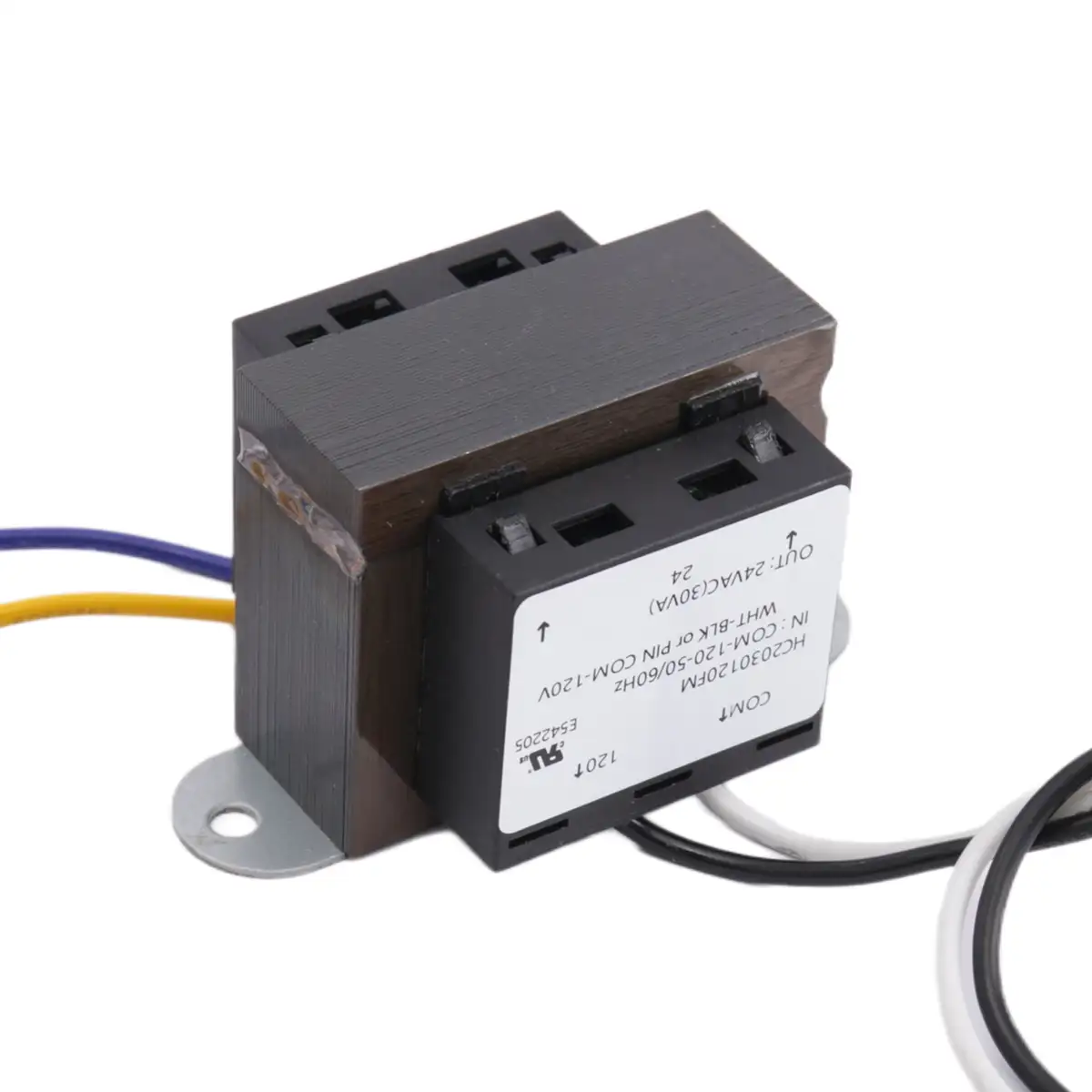

| 284700010003 | HC2030120FM | Terminals/Leads | 120 | 50/60 | 24 | 82*60*49 | |
| HC2030277FM | Terminals/Leads | 277 | 50/60 | 24 | 82*60*49 | ||
| 284700010005 | HC4021FM | Terminals/Leads | 40 | 380/415 | 50/60 | 24 | 90*60*56 |
| 284700010006 | HC4021FM-1 | Terminals/Leads | 380 | 50/60 | 24 | 90*60*56 | |
| 284700010007 | HC4021FM-5 | Terminals/Leads | 415 | 50/60 | 24 | 90*60*56 | |
| 284700010008 | HC4021FM-2 | Terminals/Leads | 208/240 | 50/60 | 24 | 90*60*56 | |
| 284700010009 | HC40240FM | Terminals/Leads | 240 | 50/60 | 24 | 90*60*56 | |
| 284700010010 | HC4031FM | Terminals/Leads | 120/208/240 | 50/60 | 24 | 90*60*56 | |
| 284700010011 | HC4031FM-3 | Terminals/Leads | 120/208 | 50/60 | 24 | 90*60*56 | |
| 284700010012 | HC4031FM-4 | Terminals/Leads | 120/240 | 50/60 | 24 | 90*60*56 | |
| 284700010013 | HC40120FM | Terminals/Leads | 120 | 50/60 | 24 | 90*60*56 | |
| 284700010014 | HC40277FM | Terminals/Leads | 277 | 50/60 | 24 | 90*60*56 | |
| 284700010015 | HC40480FM | Terminals/Leads | 480 | 50/60 | 24 | 90*60*56 | |
| 284700010016 | HC5021FM | Terminals/Leads | 50 | 380/415 | 50/60 | 24 | 90*62*56 |
| 284700010017 | HC5021FM-1 | Terminals/Leads | 380 | 50/60 | 24 | 90*62*56 | |
| 284700010018 | HC5021FM-2 | Terminals/Leads | 415 | 50/60 | 24 | 90*62*56 | |
| 284700010019 | HC5031FM | Terminals/Leads | 120/208/240 | 50/60 | 24 | 90*62*56 | |
| 284700010020 | HC5031FM-2 | Terminals/Leads | 208/240 | 50/60 | 24 | 90*62*56 | |
| 284700010021 | HC5031FM-3 | Terminals/Leads | 120/208 | 50/60 | 24 | 90*62*56 | |
| 284700010022 | HC5031FM-4 | Terminals/Leads | 120/240 | 50/60 | 24 | 90*62*56 | |
| 284700010023 | HC5031FM-5 | Terminals/Leads | 208/240/480 | 50/60 | 24 | 90*62*56 | |
| 284700010024 | HC50120FM | Terminals/Leads | 120 | 50/60 | 24 | 90*62*56 | |
| 284700010025 | HC50277FM | Terminals/Leads | 277 | 50/60 | 24 | 90*62*56 | |
| 284700010026 | HC50480FM | Terminals/Leads | 480 | 50/60 | 24 | 90*62*56 | |
| 284700010027 | HC75100FM-1 | Lead/terminal/Currentswitch/ Terminal + current switch |
75 | 277/380/575 | 50/60 | 24 | 102*103*65 |
| 284700010028 | HC75100FM-2 | Lead/terminal/Current switch/ Terminal + current s witch |
120/208/240/480 | 50/60 | 24 | 102*103*65 | |
| 284700010029 | HC75100FM-3 | Lead/terminal/Current switch/ Terminal + current switch |
208/240/480 | 50/60 | 24 | 102*103*65 | |
| 284700010030 | HC7510031FM | Lead/terminal/Current switch/ Terminal + current switch |
120/208/240 | 50/60 | 24 | 102*103*65 | |
| 284700010031 | HC75100120FM | Lead/terminal/Current switch/ Terminal + current s witch |
120 | 50/60 | 24 | 102*103*65 | |
| 284700010032 | HC75100277FM | Lead/terminal/Current switch/ Terminal +current s witch |
277 | 50/60 | 24 | 102*103*65 | |
| 284700010033 | HC75100480FM | Lead/terminal/Current switch/ Terminal + current switch |
480 | 50/60 | 24 | 102*103*65 | |
* The above dimensions are for reference, HIlTIO could design and produce according to customer requirements.
