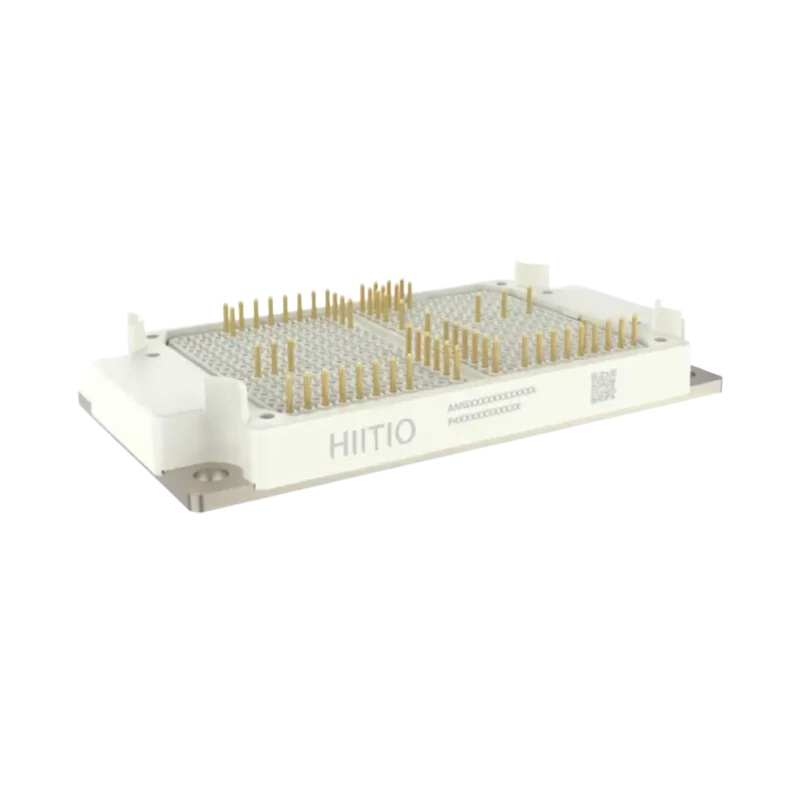

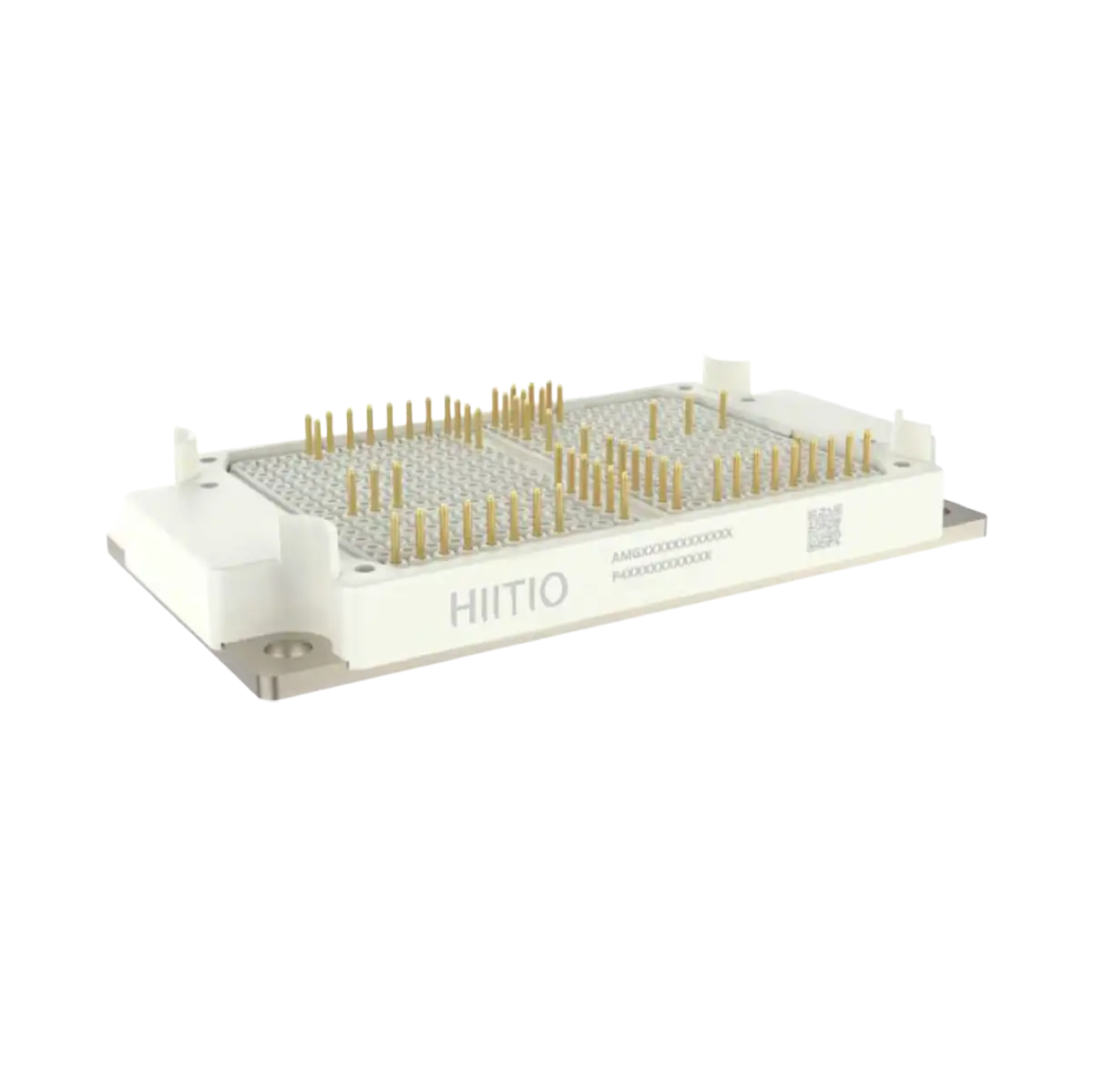

1200V 500A Easy 3B IGBT Power Module
- Collector-Emitter Voltage (VCES): 1200V (T1/T4), 650V (T2/T3)
- DC Collector Current (ICDC): 324A (T1/T4, T2/T3)
- Repetitive Peak Collector Current (ICRM): 1000A (T1/T4), 900A (T2/T3)
- Total Power Dissipation (Ptot): 543W (T1/T4), 390W (T2/T3)
- Gate-Emitter Voltage (VGES): ±20V
- Operating Junction Temperature (Tj): Up to 175°C
- Thermal Resistance (RthJH): 0.175 K/W (T1/T4), 0.243 K/W (T2/T3)
- Isolation Voltage (Visol): 3.0 kV (RMS, 50 Hz, 60s)
Description
The HCG500FL120E3TM is a high-performance 1200V 500A IGBT module from Zhejiang HIIITIO New Energy Co., Ltd., designed for T-type 3-level NPC inverter applications. Featuring trench gate/field-stop technology, it offers low VCEsat, minimal switching losses, and a compact, low-inductance design. With an integrated DC capacitor (optional), Al2O3 substrate, and copper baseplate, it ensures excellent thermal management and reliability for high-power systems.
Key Features:
- 1200V T-Type NPC Topology: Optimized for high-power inverters.
- Low VCEsat & Switching Losses: Enhances efficiency in high-frequency operations.
- Integrated DC Capacitor (Optional): Simplifies system design.
- Al2O3 Substrate & Copper Baseplate: Ensures low thermal resistance and superior heat dissipation.
- Compact Low-Inductance Design: Reduces EMI and improves stability.
- Wide Applications: Ideal for UPS, solar, APF/SVG, and 3-level systems.
Applications
- 3-Level-Applications
- PCS
- UPS Systems
- Solar Applications
- APF/SVG

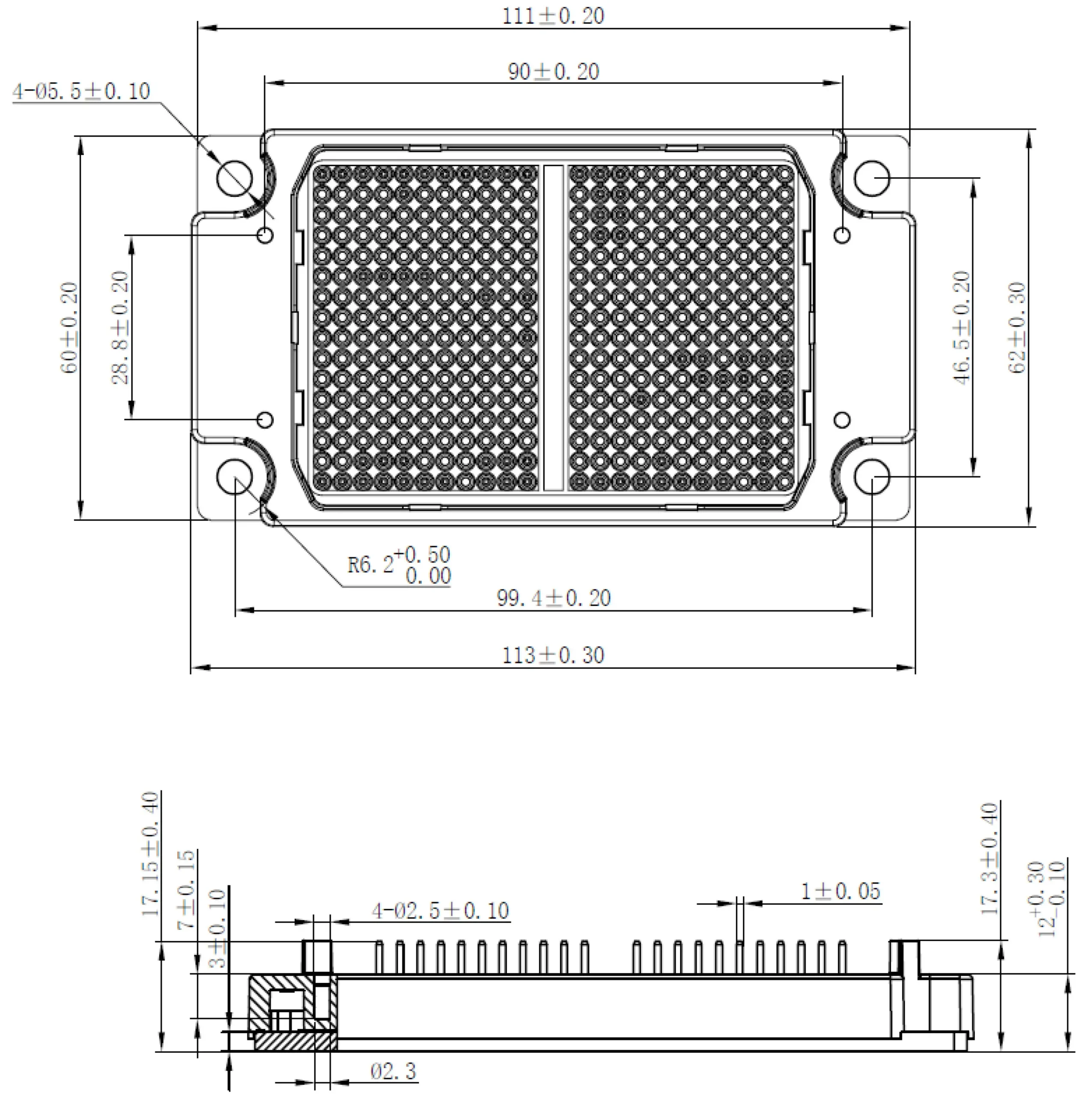

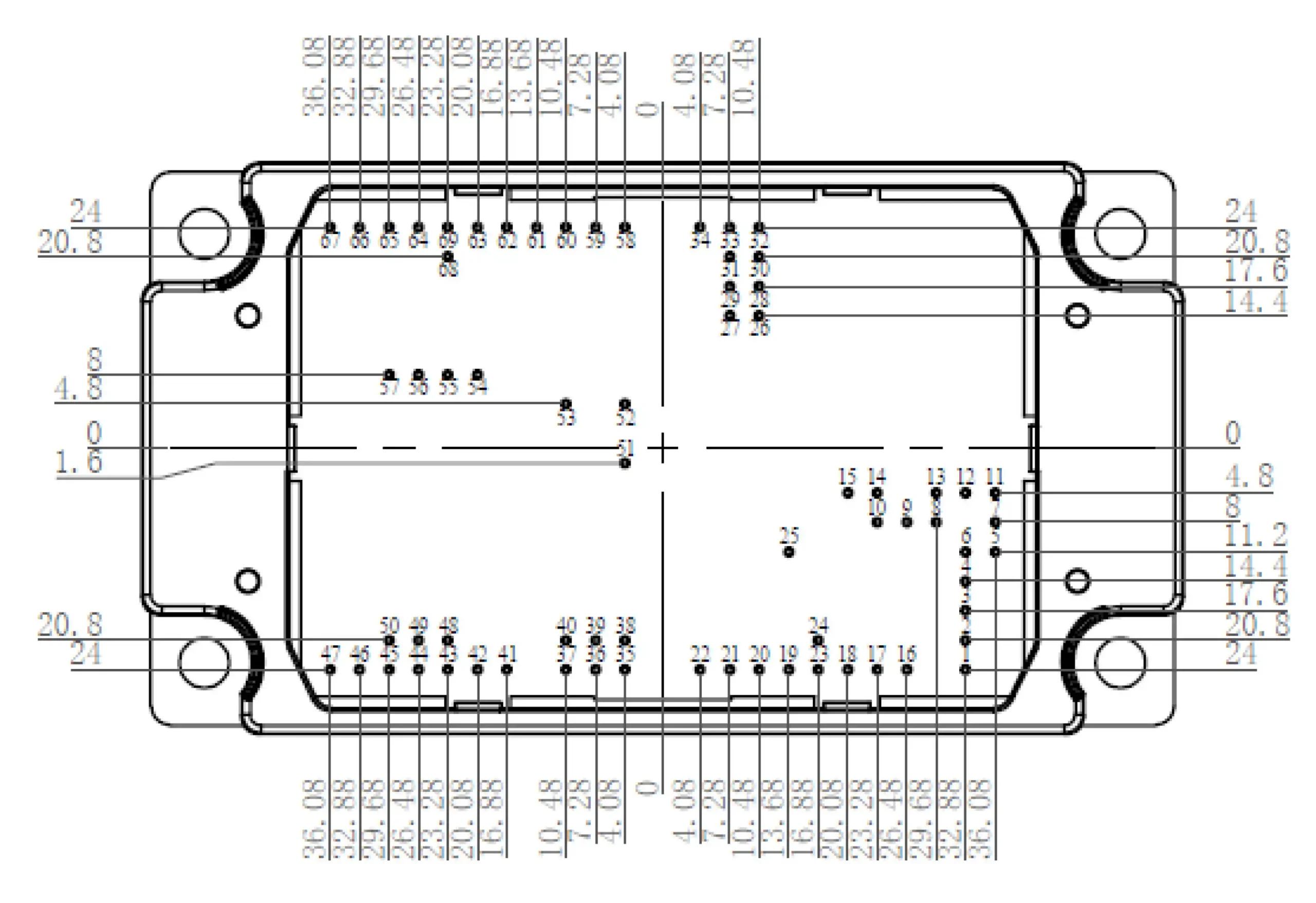

Dimensions (mm)
