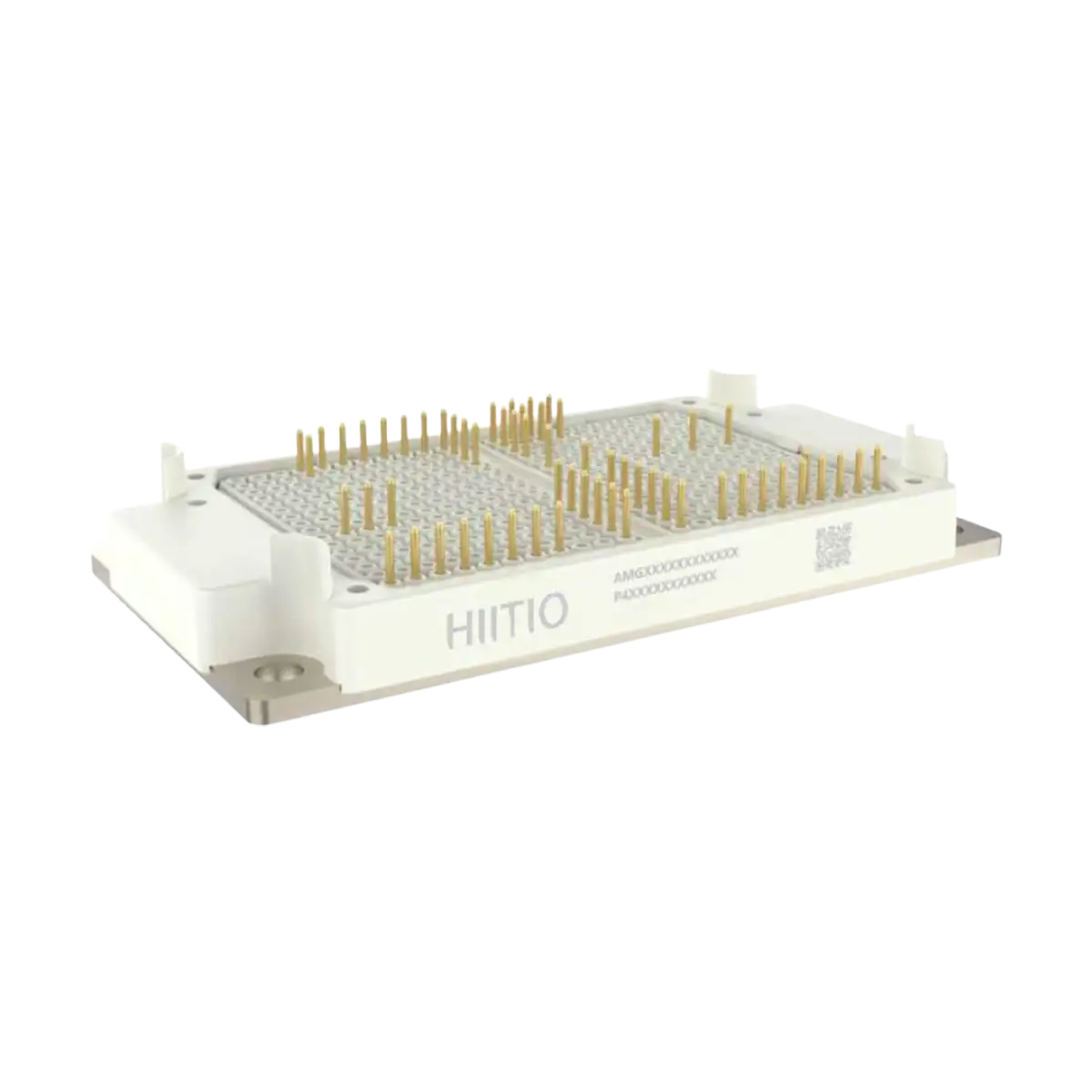

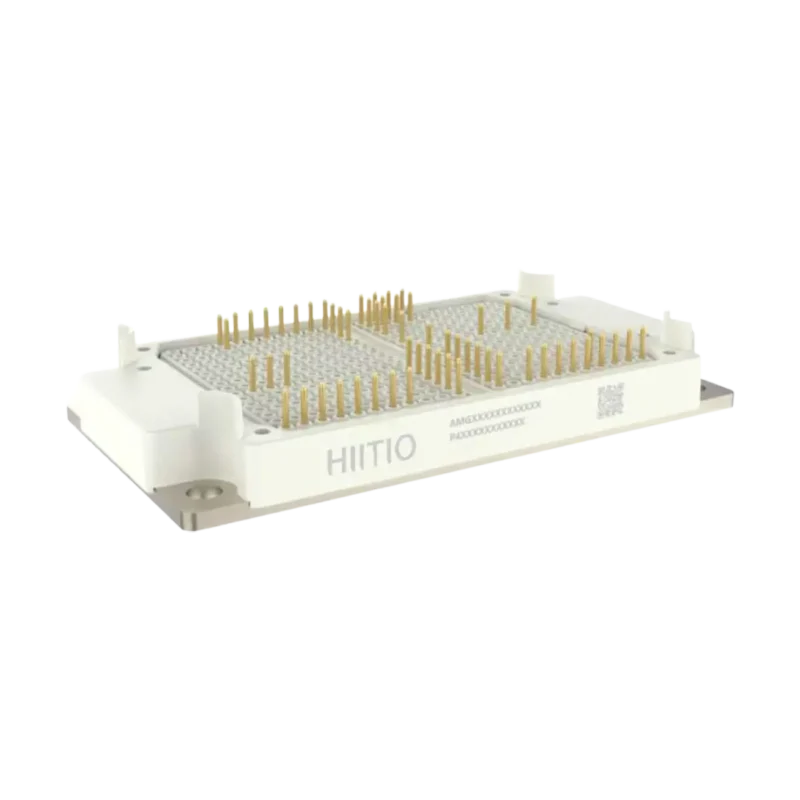

1200V 400A Easy 3B IGBT Power Module
- Collector-Emitter Voltage (VCES): 1200V
- DC Collector Current (ICDC): 298A
- Repetitive Peak Collector Current (ICRM): 800A
- Total Power Dissipation (Ptot): 500W
- Gate-Emitter Voltage (VGES): ±20V
- Operating Junction Temperature (Tj): Up to 175°C
- Thermal Resistance (RthJH): 0.19 K/W (IGBT), 0.26 K/W (Diode)
Description
The HCG400FL120E3RA is a high-efficiency 1200V 400A IGBT module from Zhejiang HIIITIO New Energy Co., Ltd., designed for I-type 3-level NPC inverter applications. Utilizing advanced trench gate/field-stop technology, it delivers low VCEsat, minimal switching losses, and a positive temperature coefficient for optimal performance. The module features a copper baseplate, Al2O3 substrate for low thermal resistance, and a low-inductance layout, ensuring superior thermal management and reliability.
Key Features:
- 1200V 3-Level NPC Topology: Optimized for high-power inverters.
- Low VCEsat & Switching Losses: Enhances efficiency in high-frequency operations.
- Copper Baseplate & Al2O3 Substrate: Superior thermal conductivity and reliability.
- Low-Inductance Layout: Minimizes EMI for stable performance.
- Wide Applications: Suitable for PCS, UPS, solar, and APF/SVG systems.
- Compact Design: Space-efficient for integration into various systems.
Applications
- 3-Level-Applications
- PCS
- UPS Systems
- Solar Applications
- APF/SVG

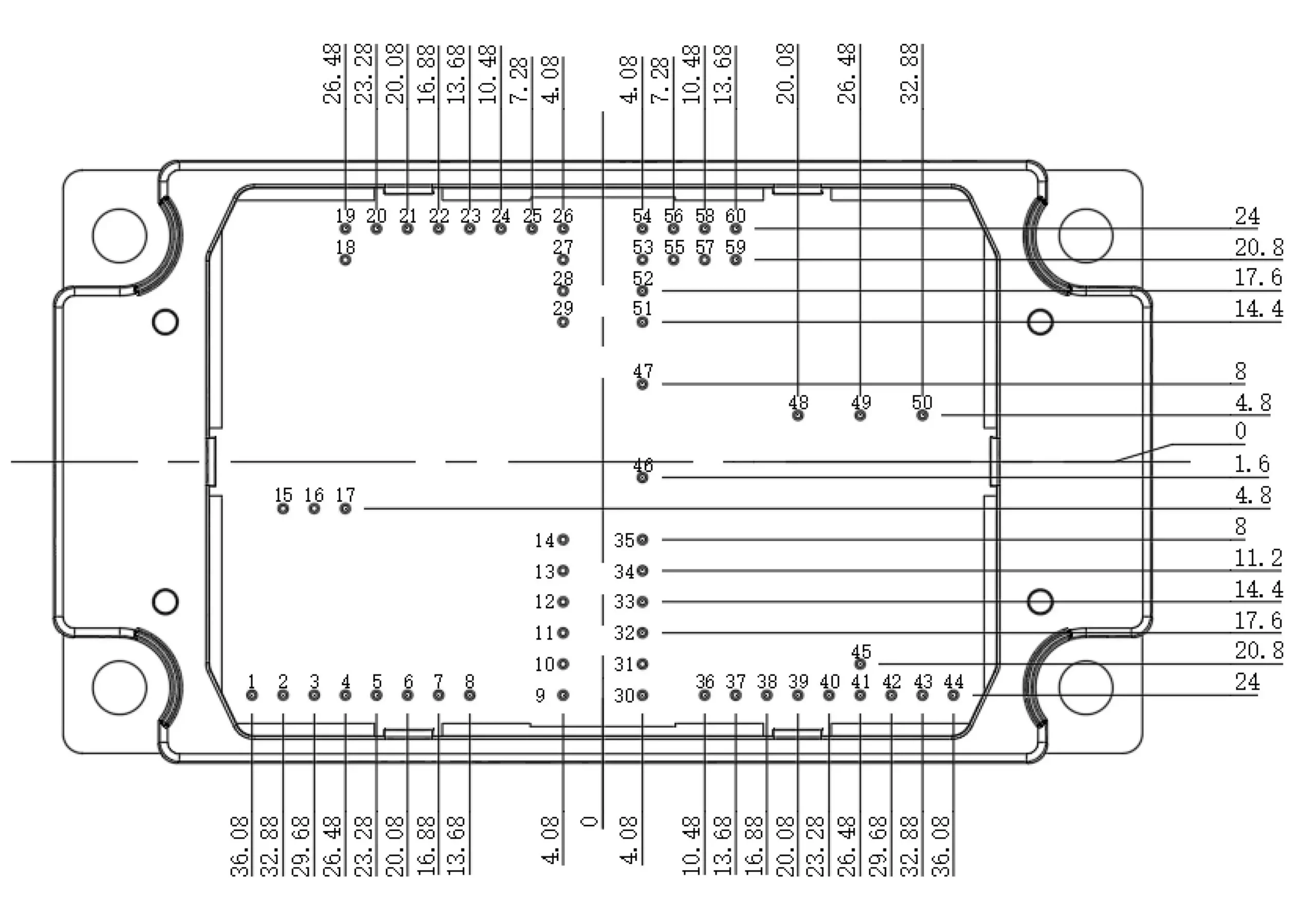

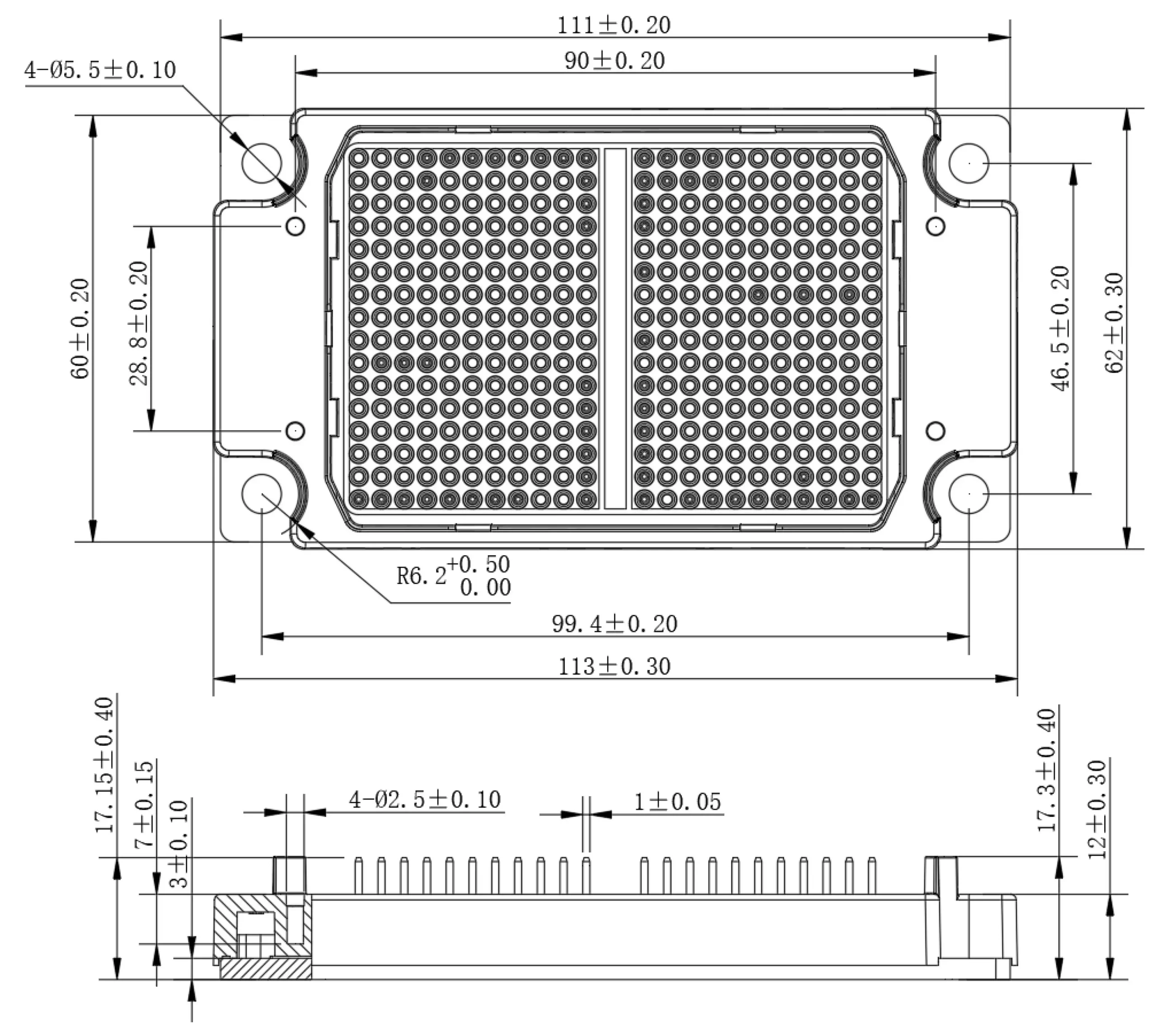

Dimensions (mm)
