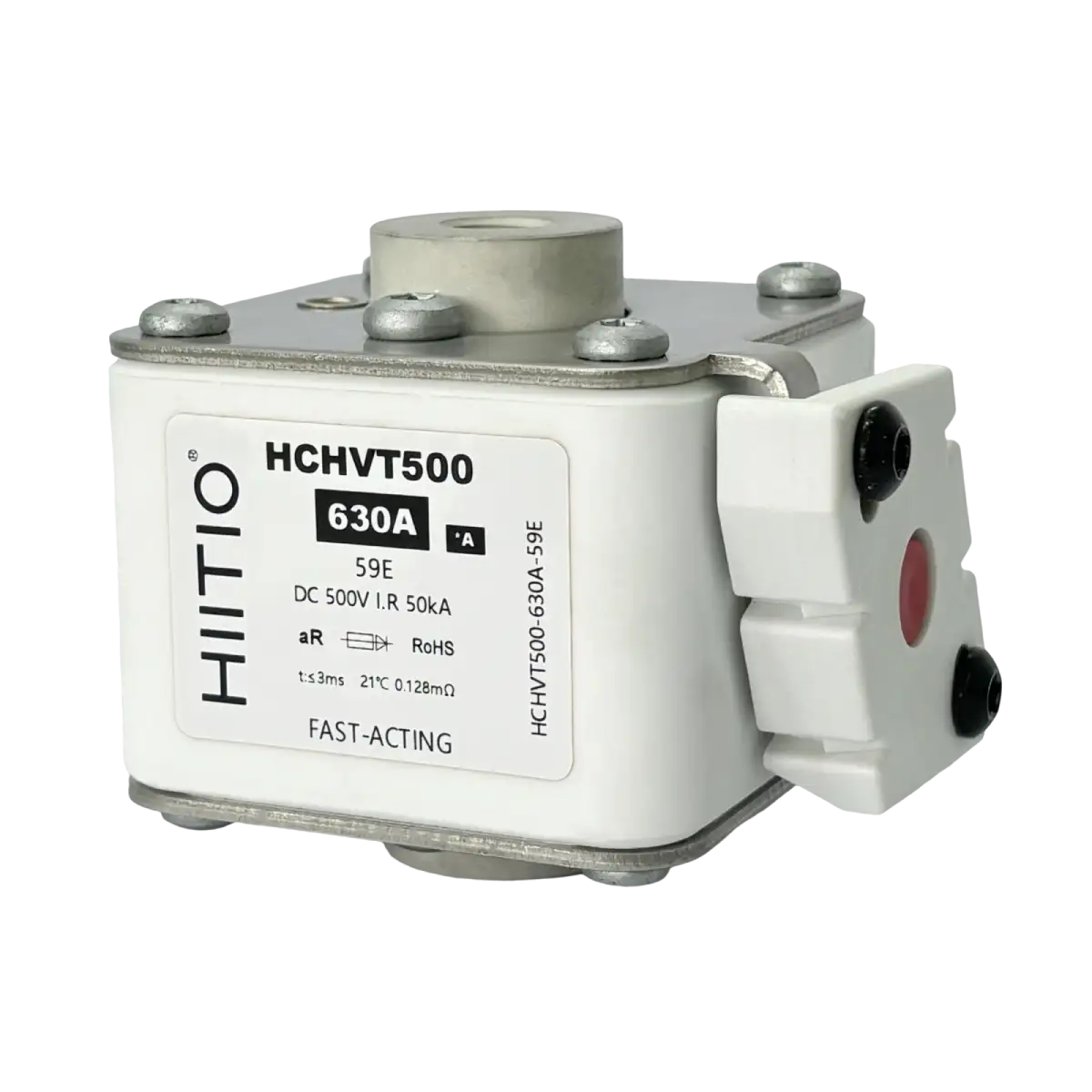

The HCHVT500-59E Series is a high-performance high-voltage DC fuse designed for critical protection in electric vehicles (EV), energy storage systems (ESS), charging stations, and industrial DC circuits. With a rated voltage of 500VDC and a current range of 100A to 1000A, it offers exceptional safety and stability under high fault conditions.
| Connect | Part No. | Fuse Amps | Size | Average @50KA/500Vdc | Power Loss (W) | |
| A²s Melting | A²t Clearing | 100% | ||||
| Flush-end contact | HCHVT500-100A-59E | 100 | 2# | 1,130 | 9,230 | 16 |
| HCHVT500-160A-59E | 160 | 2# | 1,630 | 13,010 | 22 | |
| HCHVT500-200A-59E | 200 | 2# | 2,350 | 18,350 | 26 | |
| HCHVT500-250A-59E | 250 | 2# | 3,390 | 25,870 | 33 | |
| HCHVT500-315A-59E | 315 | 2# | 4,880 | 36,480 | 48 | |
| HCHVT500-350A-59E | 350 | 2# | 7,030 | 51,430 | 56 | |
| HCHVT500-400A-59E | 400 | 2# | 10,120 | 72,520 | 68 | |
| HCHVT500-450A-59E | 450 | 2# | 14,260 | 102,900 | 74 | |
| HCHVT500-500A-59E | 500 | 2# | 19,780 | 142,100 | 78 | |
| HCHVT500-550A-59E | 550 | 2# | 25,760 | 186,200 | 82 | |
| HCHVT500-630A-59E | 630 | 2# | 38,335 | 265,400 | 86 | |
| HCHVT500-700A-59E | 700 | 2# | 56,560 | 390,900 | 94 | |
| HCHVT500-800A-59E | 800 | 2# | 80,410 | 554,870 | 100 | |
| HCHVT500-900A-59E | 900 | 2# | 116,800 | 810,600 | 135 | |
| HCHVT500-1000A-59E | 1000 | 2# | 168,300 | 1,205,550 | 142 | |
