Extend equipment runtime, significantly reduce operating costs, and exceed industry standards!
KC / UN38.3 / ISO9001 / IS014001 / CQC / CE / CB / ROHS / REACH
HIITIO mobile robot batteries empower industries, delivering consistent and reliable energy for latent robots, transfer robots, forklift robots, lifting robots, and composite robots, ensuring precise and efficient completion of complex production and transportation tasks.

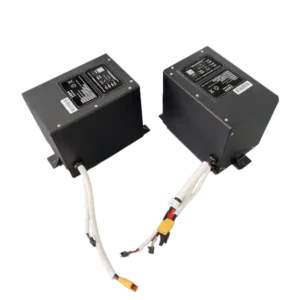

| Battery Specification | 51.2V24Ah(LFP) |
| Dimension | (190*132.5*162mm)*2 |
| Weight | 15kg |
| Standard Discharge Current | 12A |
| Max Continuous Discharge Current | 24A |
| Charge Voltage | 57.6V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | RS485 |

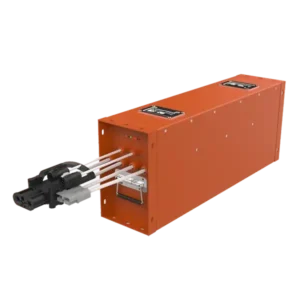

| Battery Specification | 24V200Ah(LFP) |
| Dimension | 648*170*280mm |
| Weight | 50.8kg |
| Standard Discharge Current | 80A |
| Max Continuous Discharge Current | 120A |
| Charge Voltage | 28.8V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | CAN |
| Battery Specification | 48V300Ah(LFP) |
| Dimension | 650*420*300mm |
| Weight | 125Kg |
| Standard Discharge Current | 60A |
| Max Continuous Discharge Current | 150A |
| Charge Voltage | 54V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | CAN |

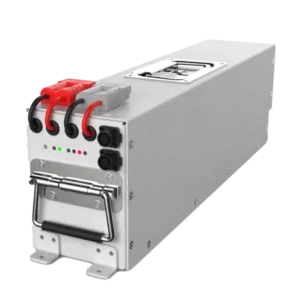

| Battery Specification | 48V24Ah(LFP) |
| Dimension | 485*110*150mm |
| Weight | 14.4K9 |
| Standard Discharge Current | 12A |
| Max Continuous Discharge Current | 20A |
| Charge Voltage | 54V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | CAN |

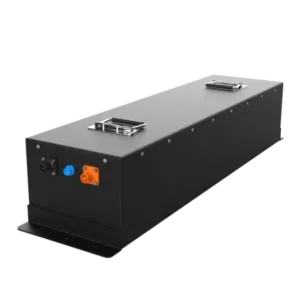

| Battery Specification | 48V120Ah(LFP) |
| Dimension | 840*230*180mm |
| Weight | 58.6Kg |
| Standard Discharge Current | 24A |
| Max Continuous Discharge Current | 50A |
| Charge Voltage | 54V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | CAN |

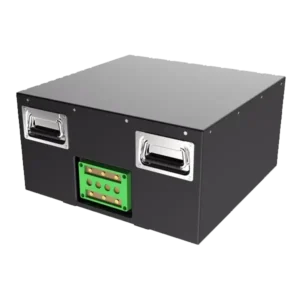

| Battery Specification | 48V160Ah(LFP) |
| Dimension | 480*470*269mm |
| Weight | 68Kg |
| Standard Discharge Current | 32A |
| Max Continuous Discharge Current | 50A |
| Charge Voltage | 54V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | RS485 |

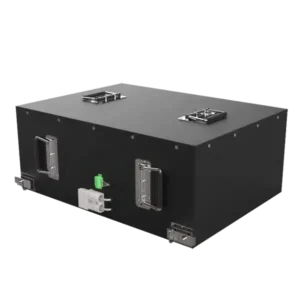

| Battery Specification | 48V125Ah(LFP) |
| Dimension | 550*400*220mm |
| Weight | 70.6Kg |
| Standard Discharge Current | 25A |
| Max Continuous Discharge Current | 50A |
| Charge Voltage | 54V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | RS485 |

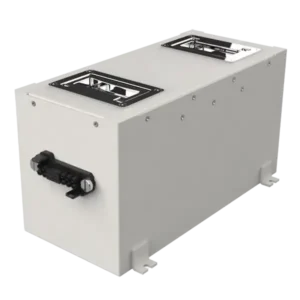

| Battery Specification | 48V48Ah(NCM) |
| Dimension | 330*150*180mm |
| Weight | 15Kg |
| Standard Discharge Current | 24A |
| Max Continuous Discharge Current | 35A |
| Charge Voltage | 54V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | RS485 |

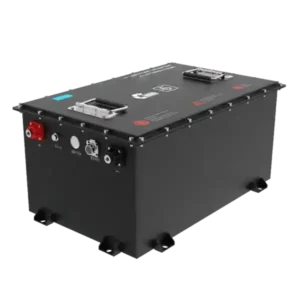

| Battery Specification | 51.2V105Ah(LFP) |
| Dimension | 540*350*260mm |
| Weight | 48kg |
| Standard Discharge Current | 20A |
| Max Continuous Discharge Current | 150A |
| 28.8V | 57.6V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥4000cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | RS485 |
| Battery Specification | 48V30Ah(NCM) |
| Dimension | 300*130*170mm |
| Weight | 12.9Kg |
| Standard Discharge Current | 15A |
| Max Continuous Discharge Current | 30A |
| 28.8V | 54V |
| Charge Temp Range | 0~45℃ |
| Discharge Temp Range | -20~50℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | RS485 |
| Battery Specification | 46V20Ah (LTO) |
| Dimension | 259*148*165mm 227*148*165mm |
| Weight | 13.6kg |
| Standard Discharge Current | 20A |
| Max Continuous Discharge Current | 30A |
| 28.8V | 54V |
| Charge Temp Range | -20~55℃ |
| Discharge Temp Range | -20~55℃ |
| Cycle Life | ≥2000cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | RS485 |

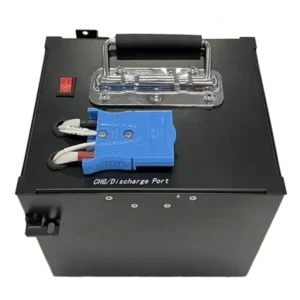

| Battery Specification | 48V10Ah(LTO) |
| Dimension | 190*160*170mm |
| Weight | 8.4kg |
| Standard Discharge Current | 10A |
| Max Continuous Discharge Current | 35A |
| 28.8V | 54V |
| Charge Temp Range | -20~55℃ |
| Discharge Temp Range | -20~55℃ |
| Cycle Life | ≥1500cycles 0.2C/0.2C 25°C±2℃ |
| Mode of Communication | RS485 |
We understand that standard products aren’t always the best fit. With extensive experience in customized solutions and product development, HIITIO offers tailored AGV battery charging systems.

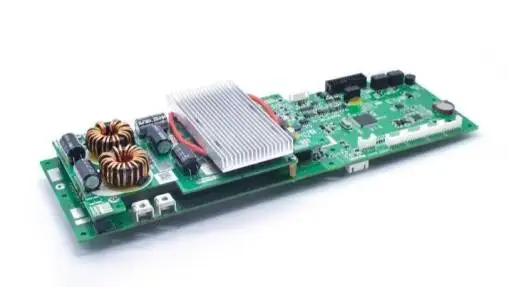

HIITIO specializes in custom AGV/AMR lithium battery PACKs, powered by our proprietary BMS hardware and software. Our expert R&D team, with years of experience in the lithium battery and BMS development sectors, collaborates with world-renowned chip and cell manufacturers. Backed by advanced production equipment, professional testing technology, robust manufacturing capabilities, and stringent quality control, we deliver highly competitive products and exceptional service.
Utilizes high-capacity, low-resistance A-grade cells, delivering compact size, high capacity, and lightweight performance for superior efficiency.
Precise capacity sizing of all battery cells. All incoming battery cells undergo secondary capacity sizing to ensure sufficient battery capacity
Cell internal resistance and voltage are grouped and matched to ensure consistent internal resistance and voltage across all cells in the battery pack, resulting in a safer, higher-quality product.
Battery packs feature scientifically designed brackets for superior heat dissipation and structural integrity, ensuring long-term reliability.
Employs pneumatic spot-welding with pure nickel connections for low resistance, high current capacity, and minimal heat generation, ensuring efficient operation.
Each battery pack includes a smart protection board with seven advanced safety features: overcharge, over-discharge, overvoltage, overcurrent, high-temperature, short-circuit protection, and cell balancing.
Battery packs are encased in shock-absorbing foam and flame-retardant, ensuring enhanced structural integrity, effective protection against external impacts, and improved resistance to fire hazards.
Every battery undergoes pre-shipment aging and charge-discharge cycle testing, thoroughly evaluating capacity and performance to ensure full capacity, safety, and stability.
AGV industry leaders often face complex challenges: achieving the ideal power-to-weight ratio and form factor, or meeting unique operational and charging demands across diverse applications. These hurdles can impede progress, but HIITIO is here to help.
Our expert team provides end-to-end customized battery solutions for AGV OEMs, from optimizing internal space to ensuring compliance with certifications and regulations, empowering businesses to overcome technical barriers efficiently.
HIITIO AGV batteries are engineered for optimal energy throughput, minimizing unplanned downtime and operational costs associated with traditional lead-acid batteries. Our solutions feature integrated battery management controls and scalable sizes/configurations to meet your unique energy needs.
Maintenance-free with faster charging to reduce non-productive downtime and boost productivity.
Built with top-grade cells, rigorously tested through 52 inspection processes for zero-risk quality.
Independent testing centers adhere to IEC62133 and GB/T31241 standards, ensuring exceptional lifespan, temperature performance, and safety.

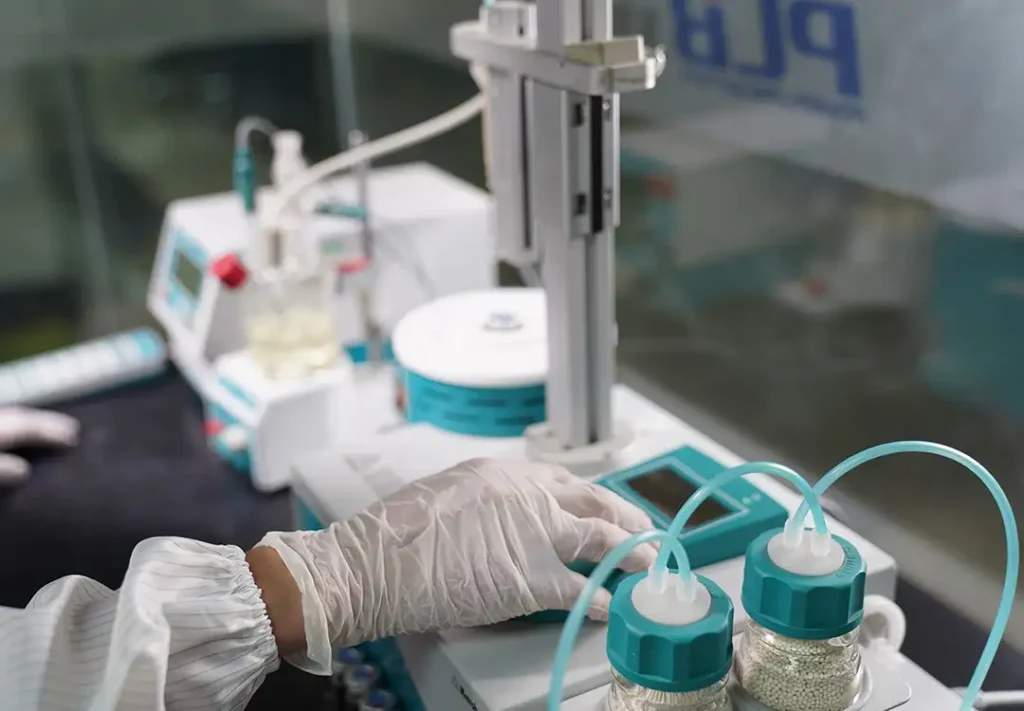

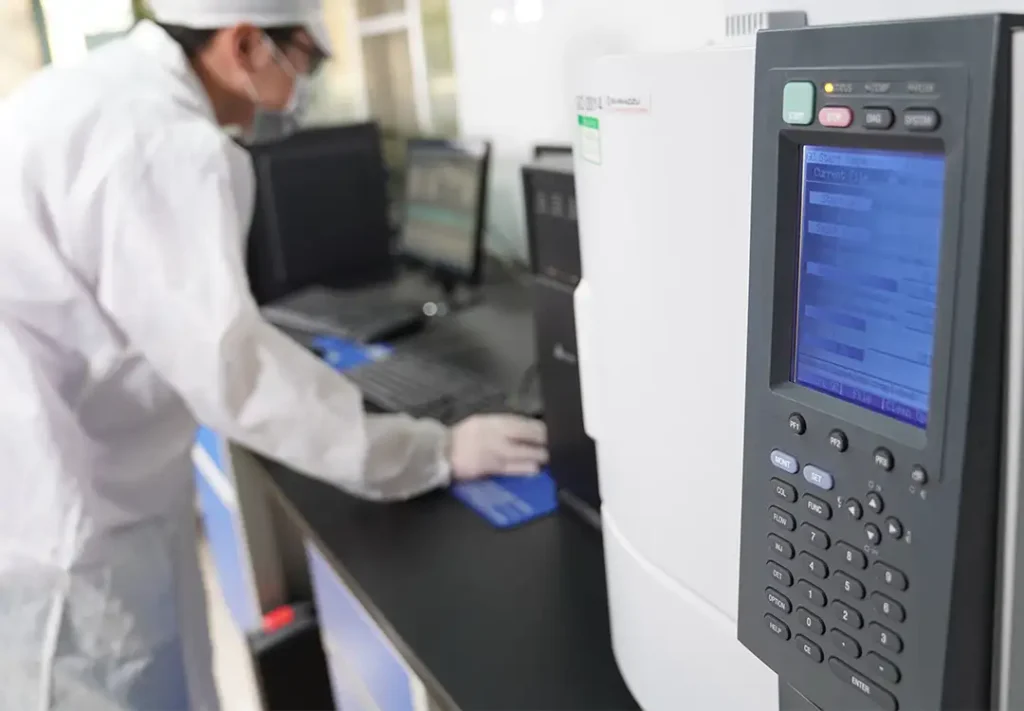

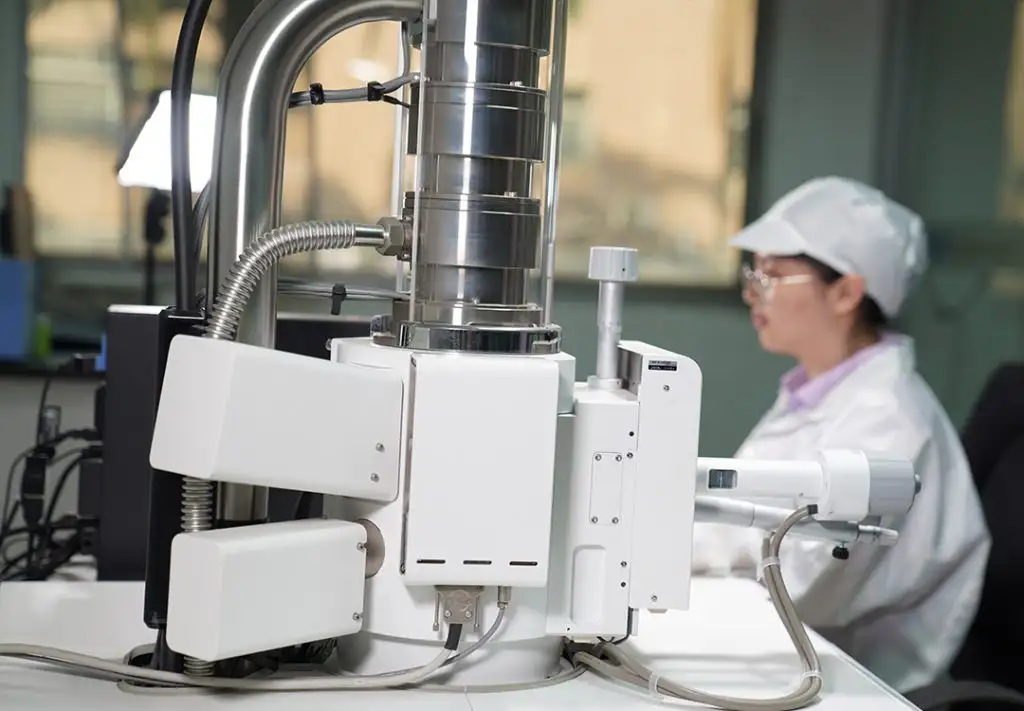

HIITIO exclusively source premium-grade cells from leading battery cell manufacturers, including EVE and CATL. We undergo a 52-step inspection process from incoming materials to shipment, ensuring zero-risk quality. We utilize an independent laboratory and testing center that conducts comprehensive reliability testing (IEC62133 and GB/T31241 standards).
This ensures the exceptional lifespan of the battery pack and energy storage system, as well as the highest temperature performance and optimal electrode materials for ultimate safety.
As a global leader in AGV battery systems, HIITIO understands diverse industry needs and AGV configurations. Our field-proven, flexible batteries and chargers meet the demands of any AGV application.
Operates reliably in -20°C to 50°C, ideal for outdoor, cold storage, steel, port, and other extreme industrial environments.
IP53-rated modules with high impact and vibration resistance for frequent movement and complex conditions.
Advanced shielding minimizes electromagnetic interference for stable performance.
Supports manual/automatic swapping, opportunity charging, and automatic charging to meet diverse needs.
HIITIO is one of the world’s most experienced AGV battery system suppliers. We understand the industry’s demands and the diverse configurations of AGVs. Our flexible, field-proven batteries and chargers are designed to meet the needs of any AGV application.
It can operate stably in extreme environments ranging from -20°C to 50°C, meeting the application needs of various extreme industrial environments such as outdoor, cold storage, steel, and ports.
The battery module adopts IP53 grade protection, has strong impact and vibration resistance, and can adapt to frequent movement and complex working conditions.
Our batteries utilize advanced shielding and design techniques to minimize the effects of electromagnetic interference, contributing to stable and reliable performance
Whether your AGV battery uses manual replacement, automatic replacement, opportunity charging, or automatic charging, our batteries can meet your needs.
Based in Hangzhou, China, HIITIO is a professional lithium battery manufacturer with over 20 years of experience. We specialize in batteries for mobile robots, AGVs/AMRs, electric forklifts, telecom stations, UPS backups, data centers, solar storage, residential/industrial energy systems, golf carts, RVs, and light vehicles.
Certified with IATF 16949:2016, ISO9001, ISO14001, CQC, CE, CB, UL, ROHS, and REACH, HIITIO holds over 30 patents and is a drafter of China’s mobile robot battery standards.
The key to an efficient AGV system lies in understanding its specific applications and operational modes. HIITIO conducts thorough application research and engineering design, evaluating your equipment, energy needs, and infrastructure to deliver the optimal battery and charger combination, ensuring sustainable solutions for your AGV fleet.
