The rise of electric vehicles (EVs) has revolutionized the automotive industry, offering a sustainable alternative to traditional internal combustion engine vehicles. However, with this shift comes the challenge of managing high-voltage electrical systems safely. One key component addressing this challenge is the pyro fuse, a specialized safety device designed to protect EVs in emergency situations. This article explores the definition, functionality, applications, and significance of pyro fuses in electric vehicles, providing a comprehensive look at their role in modern automotive safety.
What is a Pyro Fuse?
A pyro fuse, also referred to as a pyrotechnic fuse or pyrotechnical safety switch (PSS), is an advanced electrical safety device that uses a pyrotechnic charge to interrupt high-voltage circuits. In electric vehicles, pyro fuses are primarily employed to disconnect the high-voltage battery from the rest of the electrical system during emergencies such as accidents, short circuits, or other critical failures. This rapid disconnection is essential to mitigate risks like electric shocks, fires, and damage to the vehicle’s components.
How Does a Pyro Fuse Work?
The operation of a pyro fuse is both simple and highly efficient. It contains a small pyrotechnic charge—essentially a controlled explosive—encased within the device. When activated, this charge ignites, generating a small explosion that drives a mechanical component, such as a piston or blade, to physically sever the electrical conductor. This action breaks the circuit, isolating the high-voltage battery in mere milliseconds.
Image Source: https://www.daicel.com/safety/en/pyrofuse/
The activation of a pyro fuse can be triggered by several mechanisms:
- Battery Management System (BMS): Detects anomalies like overcurrent, overvoltage, or excessive temperature.
- Airbag Control Unit: Responds to collision signals, activating the fuse simultaneously with airbag deployment.
- Manual Trigger: Allows emergency responders to disconnect the system manually for safety during rescue operations.
This near-instantaneous response makes pyro fuses uniquely suited to the fast-paced, high-stakes environment of electric vehicle safety.
Applications of Pyro Fuses in Electric Vehicles
Pyro fuses serve multiple critical functions within the safety architecture of electric vehicles. Below are their primary applications:

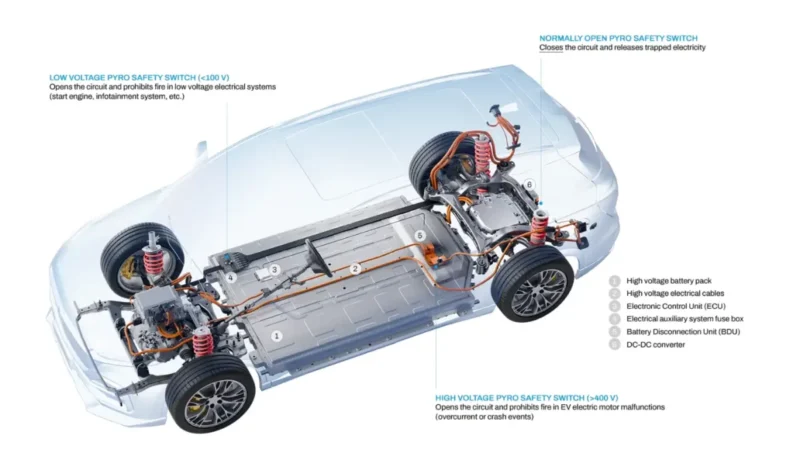

Image Source: https://www.autoliv.com/safety-solutions/electrical-safety-solutions/pyro-safety-switches/
1. Emergency Disconnection in Accidents
One of the most vital roles of a pyro fuse is to protect occupants and first responders during a collision. When an EV experiences a significant impact, the pyro fuse can be triggered—often in tandem with airbag deployment—to disconnect the high-voltage battery. This ensures that no live current flows through the vehicle’s structure, reducing the risk of electrocution or fire. For example, in a frontal collision, the airbag control unit sends a signal to the pyro fuse, cutting power within milliseconds.
2. Protection Against Electrical Faults
Electrical faults, such as short circuits or overcurrent conditions, pose significant risks in EVs due to their high-voltage systems. Pyro fuses act as a fail-safe mechanism in these scenarios. If the BMS detects an abnormal current spike or a malfunction, it activates the pyro fuse to isolate the battery, preventing damage to sensitive electronics and minimizing the chance of thermal runaway—a phenomenon where the battery overheats uncontrollably, potentially leading to a fire.
3. Integration with Battery Management Systems
The BMS is the brain of an EV’s battery system, constantly monitoring parameters like voltage, current, and temperature. Pyro fuses are seamlessly integrated with the BMS to provide an additional layer of protection. For instance, if the battery temperature exceeds a safe threshold, the BMS can trigger the pyro fuse to disconnect the battery, safeguarding the vehicle and its occupants from potential hazards.
4. Support for High-Voltage Systems
Modern electric vehicles often operate at voltages of 400V or 800V to enhance efficiency and performance. Pyro fuses are engineered to handle these high voltages, ensuring safe disconnection without arcing or other electrical phenomena that could compromise safety. Their robust design makes them indispensable in the high-power environments of contemporary EVs.

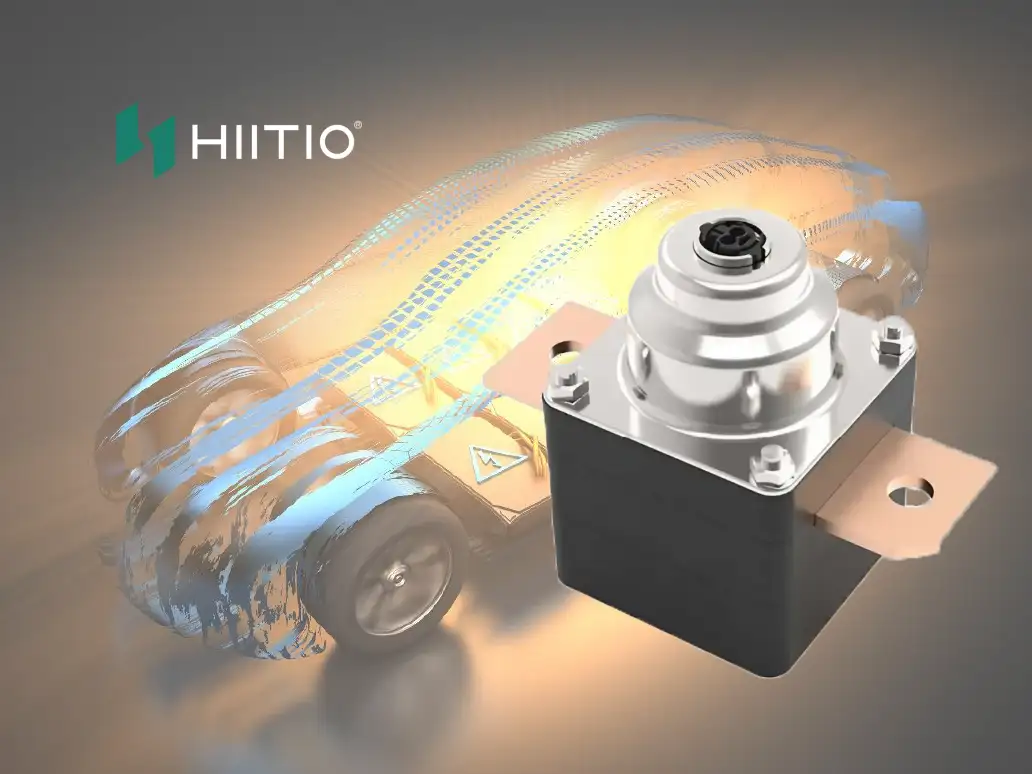

APPLICATION OF PYRO FUSE
Importance of Pyro Fuses in Electric Vehicles
The inclusion of pyro fuses in EVs is not just a technical choice—it’s a necessity driven by safety, regulatory, and practical considerations. Here’s why they are so important:
1. Enhanced Safety
Safety is the cornerstone of pyro fuse technology. By swiftly isolating the high-voltage battery, pyro fuses protect against electric shocks and fires, which are particularly dangerous in EVs due to the energy stored in their batteries. This rapid response is critical in emergencies, where every second counts.
2. Compliance with Safety Standards
Global safety regulations for electric vehicles, such as those set by the International Electrotechnical Commission (IEC) or the National Highway Traffic Safety Administration (NHTSA), often mandate that high-voltage systems be de-energized quickly after a crash. Pyro fuses enable manufacturers to meet these requirements, ensuring that EVs are compliant with stringent safety standards.
3. Reliability and Speed
Unlike traditional fuses or mechanical circuit breakers, which may take longer to interrupt a circuit, pyro fuses operate in milliseconds. This speed is crucial in high-voltage applications, where delays could lead to catastrophic consequences. Their reliability also ensures consistent performance under extreme conditions.
4. Compact and Efficient Design
Space is a precious commodity in electric vehicles, given the large battery packs and intricate electronics. Pyro fuses are compact, allowing them to be integrated into the vehicle’s design without compromising other components. This efficiency is a key advantage in the tightly packed layouts of EVs.
Technical Specifications and Examples
To illustrate the capabilities of pyro fuses, let’s examine some technical details from a leading manufacturer, Eaton Bussmann, which produces pyro fuses tailored for EVs. Below is a table of specifications for select models:
| Model | Trigger Type | Rated Voltage (V d.c.) | Continuous Current @85°C | Breaking Capacity | Operating Time |
|---|---|---|---|---|---|
| EBPS65F40 | Active Trigger | 0–500 | 0–400 A | 16kA @500Vdc & 20uH | <2ms |
| EBPS100F40 | Active Trigger | 0–1000 | 0–400 A | 20kA @1000Vdc & 20uH | <2ms |
| EBPS50F40A | Dual Trigger | 0–500 (ext), 100–500 (int) | 0–400 A | 16kA @500Vdc & 20uH | <2ms or <2ms + C-T curve |
| EBPS100F40A | Dual Trigger | 0–1000 (ext), 100–1000 (int) | 0–400 A | 20kA @1000Vdc & 20uH | <2ms or <2ms + C-T curve |
These specifications demonstrate the pyro fuse’s ability to manage high voltages and currents, with operating times faster than the blink of an eye.
Latest Developments and Future Trends
As of mid-2025, pyro fuse technology continues to advance:
- Dual-Trigger Systems: New models feature both active (external signal) and passive (internal fault detection) triggers for added redundancy.
- Higher Voltage Support: With 800V and 1000V systems becoming standard in high-performance EVs, pyro fuses are evolving to meet these demands.
- Miniaturization: Improved materials are enabling smaller, more efficient designs, ideal for next-generation EVs.
