What’s a DC Contactor

In the realm of electrical engineering and power systems, DC contactors serve as indispensable components that play a crucial role in controlling and managing direct current (DC) circuits. At the heart of many of these systems lies the high-voltage DC contactor, a device that may appear simple at first glance, but whose design and operation involve complex interdisciplinary technologies.

This is because contactors are not governed by simple engineering principles, such as those of electronics. They encompass complex and diverse aspects of engineering technology, including the inherent influences of electromagnetics, materials, and mechanics. After years of development, they have achieved the following:

1. Miniaturization
2. Strong switching performance
3. Standardization and automation
4. Intelligent integration.

Modern DC contactors are expected to handle extreme voltage and current conditions, ensure zero-arc operation, support bidirectional current flow, and maintain performance over hundreds of thousands of cycles. These expectations place immense pressure on design, material selection, arc suppression techniques, sealing methods, and structural durability.

These electromechanical devices act as switches for DC power, allowing for the efficient and safe operation of various applications across different industries. Let’s delve deeper into what DC contactors are, their structure, working principles, and applications.

What’s a DC Contactor

DC contactors are essential electrical devices used in direct current (DC) circuits to control the flow of electricity. They function as switches, opening and closing the circuit to allow or interrupt the current flow.

Unlike its AC counterpart, a DC contactor faces unique challenges due to the non-zero-crossing nature of DC current.

When the coil is energized, the core and armature become magnetized, creating a magnetic potential at the terminals and generating an electromagnetic attraction between them. When this attraction becomes greater than the spring’s reaction force, the armature begins to move toward the core and allowing current to flow through the circuit. When the current in the coil falls below a certain value or the power is interrupted, the electromagnetic attraction becomes less than the spring’s reaction force, and the armature returns to its original released position under the action of this force, opening the contacts and interrupting the current.

A contactor is an electrical device that uses the electromagnetic attraction generated by a current-carrying core coil to operate a mechanical device to achieve a desired action. It is an electromagnetic component that converts electrical energy into mechanical energy.

The operation may seem simple, but the switching event is electrically and mechanically intense, especially under load. The formation of an electrical arc between contacts during opening is unavoidable and must be effectively quenched.

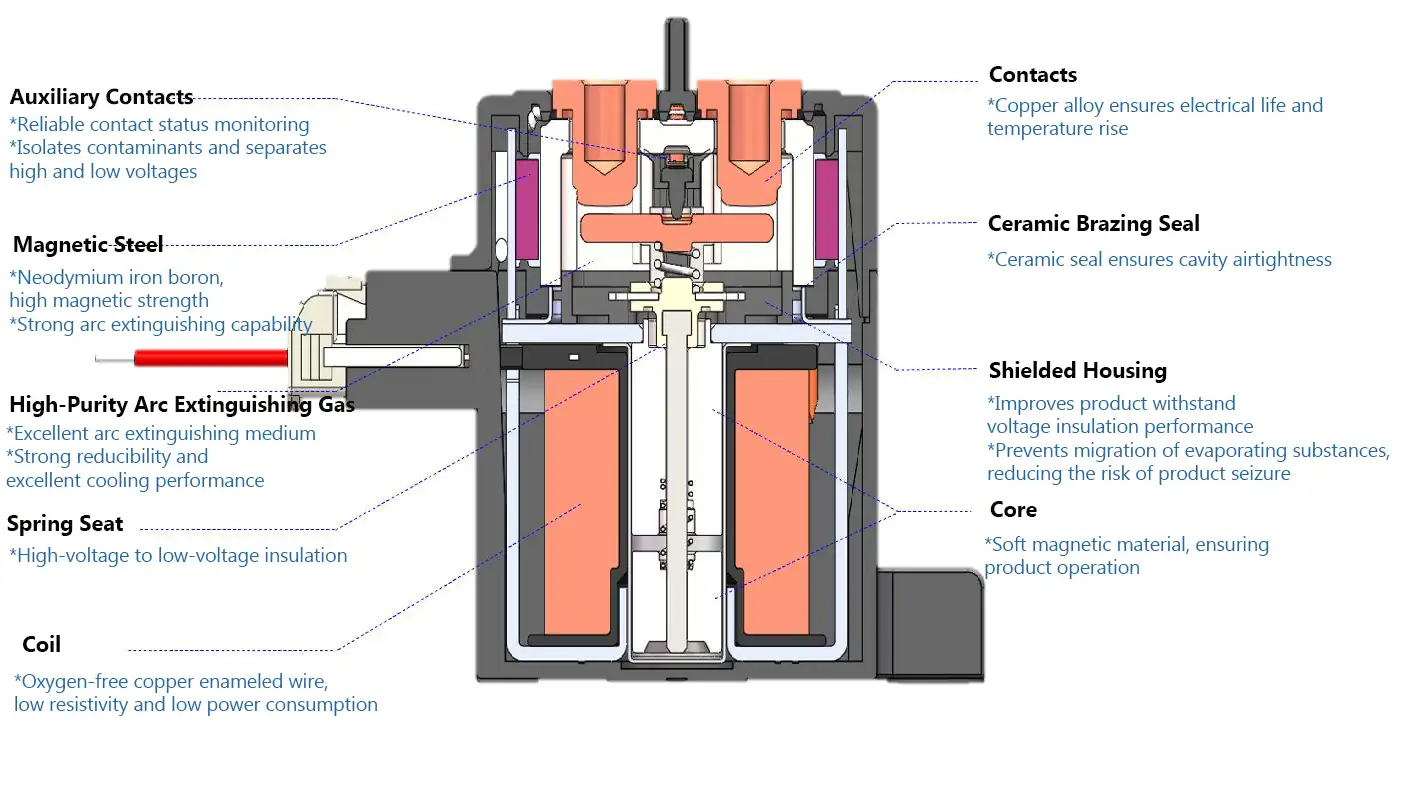

The Structure of DC Contactor

Contactors structure typically consists of an electromagnetic coil, a movable armature, fixed and movable contacts, arc suppression mechanisms, and an insulating enclosure. Each part is engineered for specific performance requirements—such as fast switching, high endurance, and reliable isolation under load. Understanding the internal structure of a contactor not only aids in proper selection and maintenance but also helps diagnose failures and enhance system reliability.

DC contactor consists of three parts: contact system, electromagnetic system and arc extinguishing system.

Key Message:

• The ceramic seal structure is filled with a hydrogen mixture to prevent contact oxidation and enhance arc extinguishing capability.
• The ceramic seal and magnetic arc extinguishing design achieve zero arcing, ensuring safety and reliability.
• Load and coil polarity-free design.
• UL, CUL, CE, CB, 3C, and S-mark certified-HIITIO.
• HIITIO’s product is RoHS and REACH compliant.

1. Contact System:

This component forms the core of the contactor’s current-carrying capability. It consists of the main contact and auxiliary contact, comprising fixed/static contacts, movable/dynamic contacts, and a shaft. When the fixed and movable contacts are apart, the circuit remains open (disconnected); when they come into contact, the circuit closes (connects).

2. Electromagnetic System:

Comprising a coil, movable iron core, yoke iron, and magnetic conductive sheet, the electromagnetic system is responsible for generating the force necessary to close the contacts. The coil, also known as the electromagnet, creates the magnetic field required for contact engagement. The enclosure, typically made of insulating materials, houses the contacts and electromagnet, providing insulation and protection against accidental contact.

3. Arc Extinguishing System:

When interrupting a load current, an electrical arc forms between the opening contacts. This arc is mainly caused by thermal electron emission and field emission.

• An arc is a plasma composed of charged particles, carrying current between the contacts.
• As the arc temperature rises, ionization increases, reducing the dielectric strength of the gap.
• If the arc cannot be extinguished quickly, it may erode contact surfaces and degrade the insulation performance of the contactor.

In high-current DC disconnections, the resulting electric arc can be challenging to extinguish. This system employs blowout coils to elongate and redirect the arc, facilitating faster and more effective arc extinguishing. The magnetic blowout arc-extinguishing equipment plays a crucial role in swiftly quenching the arc, ensuring safe and reliable operation.

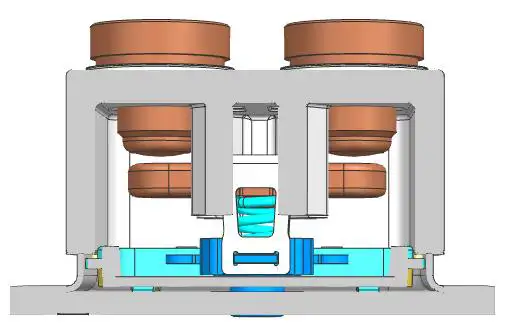

Arc Interruption Methods

a) Sealed Gas or Resin Encapsulation

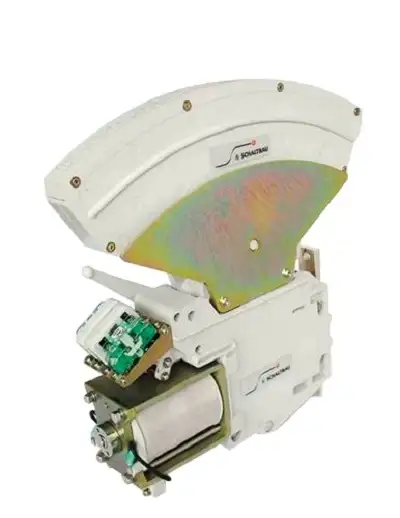

Traditional contactors often use arc chambers sealed with epoxy resin or filled with hydrogen gas.

• Epoxy resin seal: Cost-effective and provides adequate insulation, but prolonged use under high temperature may cause resin aging and micro-cracks, reducing dielectric performance.
• Hydrogen-filled ceramic seal: Offers higher arc quenching performance because hydrogen has excellent thermal conductivity and fast molecular motion, dissipating arc heat efficiently. In double-break designs, hydrogen improves dielectric recovery about 7.5 times compared to air.

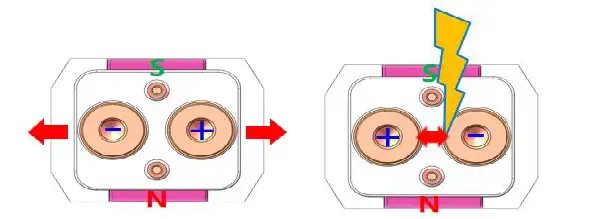

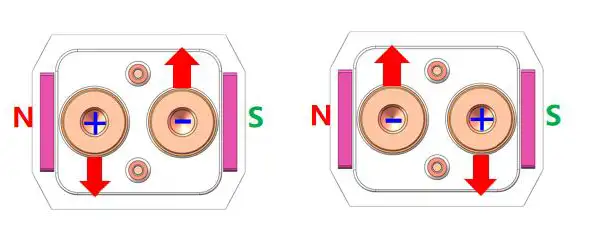

b) Magnetic Blowout

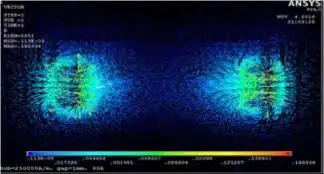

Magnetic blowout utilizes the interaction between the arc current and a transverse magnetic field to stretch and move the arc into arc chutes or splitter plates.

• When the arc lengthens and the distance between moving and fixed contacts increases, the arc voltage rises, promoting extinction.
• In non-polarized designs, the arc disperses outward regardless of current direction.
• In polarized designs, the arc is driven in a preferred direction (outward) by the magnetic field, improving arc control and extinction efficiency.

Working Principle of DC Contactors

Contactor Excitation Process

When a control voltage is applied to a high-voltage DC contactor’s coil, it generates a magnetic field as current flows through the coil. This field causes the movable core (or armature) to move toward the fixed magnetic pole. As the armature moves, it pushes a mechanical lever or a set of contacts upward, closing the circuit and allowing DC current to flow through the power circuit.

Key Steps:

1. Magnetic Field Creation: The coil generates a magnetic field when an excitation voltage is applied.
2. Armature Movement: The armature is attracted towards the coil, causing mechanical movement.
3. Contact Closing: The moving armature pushes the contacts closed, creating a current path in the circuit.

This process allows the contactor to conduct electricity, controlling high-voltage DC systems. The contactor is now in its “on” state, with the contacts closed and current flowing.

Contactor De-Excitation Process

When the control voltage is removed or the contactor is de-energized, the coil current stops, causing the magnetic field to collapse. As a result, the armature is no longer held in place by magnetic attraction. Instead, a mechanical spring or another return mechanism pushes it back to its original position.

Key Steps:

1. Magnetic Field Collapse: When the current stops, the coil’s magnetic field fades away.
2. Armature Return: A return spring or another passive mechanism pushes the armature back to its initial position.
3. Contact Opening: The armature moves and pulls the contacts apart, interrupting the current flow and deactivating the circuit.

This de-excitation process turns off the contactor, stopping the current and isolating the high-voltage DC system.

Explore more insights in our related post:

What is the difference between a contactor and a relay?

What Are the Core Parameters of High-Voltage DC Contactors?

The High Voltage DC Contactor Market Trends

Advantages of the Excitation/De-Excitation Process

This excitation and de-excitation process is crucial for managing high-voltage DC circuits, ensuring reliable switching in industries such as renewable energy, electric vehicles, and industrial automation.

Applications of DC Contactors

DC contactors find extensive use across a wide range of industries and applications, including:

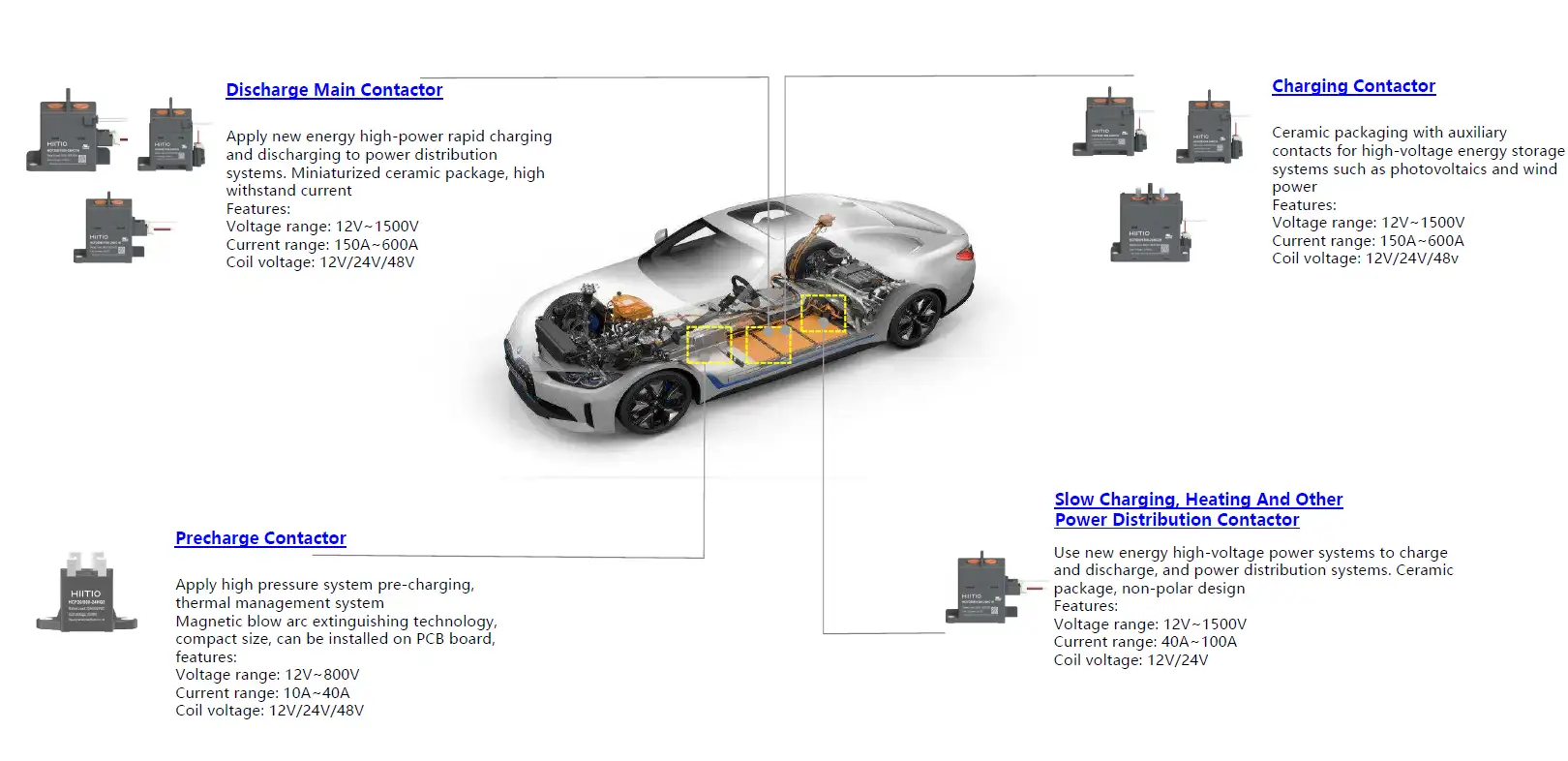

Electric Vehicles (EVs):

DC contactors are vital components in EVs, controlling the power flow between the battery pack and the electric motor. They ensure efficient energy management and safety during vehicle operation.

Electric Vehicle (EV) Charging Stations:

In EV charging infrastructure, DC contactors are used to control the charging process and manage power flow between the charging station and electric vehicles. They enable safe and efficient charging by providing isolation and switching capabilities.

Renewable Energy Systems:

DC contactors play a crucial role in renewable energy applications such as solar power plants and wind farms. They are used in the connection and isolation of DC sources, ensuring smooth operation and integration of renewable energy into the grid.

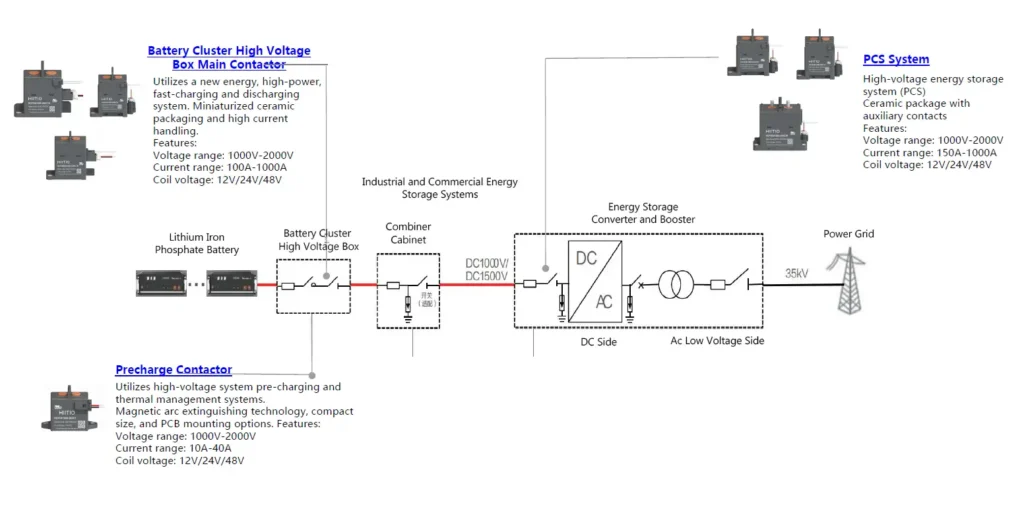

Energy Storage Systems (ESS):

DC contactors are integral to energy storage systems, including batteries and supercapacitors. They facilitate the connection and disconnection of storage devices from the power grid, enabling efficient energy storage and utilization.

Industrial Automation:

DC contactors are integral to automation systems in manufacturing plants, robotics, and process control applications. They facilitate the control of DC motors, actuators, and other electrical loads.

HVDC Transmission Systems:

High-Voltage Direct Current (HVDC) transmission systems rely on DC contactors for switching and isolating DC circuits at high voltage levels. These contactors are designed to handle substantial currents and voltages for efficient power transmission.

Don’t miss this related article:

Enhancing Solar Power Systems with High Voltage DC Contactor

Applications of DC Contactors in Energy Storage Systems

Application of High Voltage DC Contactor in Charging Stations

5 Tips to Choose Suitable DC contactor

It may encounter various environmental conditions or unexpected accidents during the application of DC contactor. Therefore, it’s necessary to understand the performance and working conditions of DC contactor, or even test it under actual conditions to choose the suitable contactor for your application.

1. Coil

Pay attention to the coil’s polarity, nominal voltage, operating voltage, releasing voltage, working voltage, and coil resistance. Factors to consider include:

• The waveform of the control coil power.
• Voltage fluctuations and power supply stability.
• Ambient temperature, coil temperature rise, and hot start conditions.
• Voltage drop considerations when driving the contactor with a semiconductor

2. Main contacts

Evaluate the main contacts’ rated control capacity, contact resistance, and electrical life. Key points include:

• The size, type, and polarity of the contact load.
• Inrush current and switching frequency.
• The position and connection of the contactor within the circuit.
• Ensuring the contactor’s electrical life aligns with the equipment it supports.
• Ambient temperature considerations during operation.

3. Operate time

Understand the contactor’s operation time (close), bounce time (open), and release time (open). Factors to consider:

• The impact of actual temperature and coil voltage on these timing parameters.

4. Mechanical characters

There are 4 aspects to consider as: Vibration resistance, shock resistance, environment and mechanical life.

• Vibration and shock conditions during use.
• Altitude, temperature, and environmental contaminants (e.g., sulfur gas, oil, silicon-based substances).
• Potential magnetic field interference in the operating environment.

5. Other characters

In addition to the above, pay attention to insulation resistance, dielectric strength, installation procedures, and the physical size of the contactor. Key considerations:

• Ensure the installation torque of the main contact, and mounting base falls within specified ranges.
• Check the flatness and smoothness of the mounting contact surface.
• Implement anti-loose measures during installation to prevent issues.

Expand your knowledge with this post:

Purchasing High Voltage DC Contactors in China: The Ultimate Guide to Balancing Quality and Price

Can I Use an AC Contactor in DC Applications?

Common Contactor Failure Modes

Understanding how they fail—what the user observes (symptom), what is physically wrong (analysis), and why it happens (cause)—is essential for improving system reliability, speeding up troubleshooting, and preventing recurrences. The following four failure modes summarize field-proven patterns our engineers see most often.

Coil energized but no actuation; no coil current

Failure Symptom: The contactor fails to operate after the coil is powered; measured coil current is zero (open-circuit behavior).

Failure Analysis: The coil drive/economizer circuit or the coil winding/termination path is damaged, leaving the coil circuit open and preventing magnetic force from developing.

Common Causes

1. Economizer/driver PCB damage: The coil power-saving (economizer) circuit uses low-voltage components. Over-voltage or surge on the supply can break down components (e.g., MOSFETs), causing an open circuit.
2. Poor termination or lead breakage: Weak soldering between magnet wire and the lead-out pin, or the coil lead being nicked/clamped and fractured by the terminal clip; high-frequency vibration raises the failure rate.
3. Enamel wire joint failure: Cold solder joints or cracked joints between the enamel wire and the pin result in intermittent or permanent opens.

Coil de-energized but contacts remain closed (no release)

Failure Symptom: After coil power is removed, the main contacts do not open and remain continuously conductive.

Failure Analysis: Contact adhesion/welding in the main circuit prevents the contact set from separating; the release spring force is insufficient to overcome the welded interface.

Common Causes

1. Capacitive load without proper pre-charge: Inrush current during charging of bulk capacitors produces heavy arcing and heat, welding the contact faces.
2. Short-circuit or fault current event: Extremely high current creates strong electromagnetic (Lorentz) forces that reduce effective contact pressure, raise contact resistance and temperature, and promote arc welding.
3. Prolonged overload operation: Continuous operation near or beyond rated current elevates I²R heating, softening plating and accelerating micro-weld growth until the contacts stick.

Contacts fail to close while coil current is normal

Failure Symptom: Coil current is within normal range, but the contact set does not close; the load remains unpowered.

Failure Analysis: Single-sided adhesion from prior events or mechanical jamming in the moving assembly blocks the travel of the contact carrier, preventing full engagement.

Common Causes

1. Single-side adhesion/partial weld: Residual welded layer on one side increases friction or physically holds one contact, so the mechanism cannot complete travel or fully release.
2. Particulate contamination: Dust, fibers, plating debris, or process residues on the contact interface or guide surfaces hinder conduction or movement.
3. Assembly tolerance or deformation issues: Over-tight fit, misalignment, bent arms, or insufficient clearance in the movable stack cause sticking, drag, or interference during motion.

Catastrophic rupture/explosion during operation

Failure Symptom: The contactor fails violently during switching, with evidence of case rupture, severe charring, or internal blast.

Failure Analysis: Abnormal arc behavior due to polarity mistakes or pre-existing single-side adhesion concentrates arc energy at a reduced gap, exceeding the contactor’s interruption capability.

Common Causes

1. Reversed polarity on the main DC path: During reverse-polarity breaking, the magnetic field can draw the arc inward, making it difficult to elongate and extinguish; the arc persists and escalates to catastrophic damage.
2. Single-side adhesion before opening: One pole remains stuck, turning a double-break path into an effective single-break with shortened gap; under load, arc energy at the remaining break becomes excessive and destroys the device.
3. Fault current beyond interrupt rating with inadequate protection: Very large short-circuit currents and missing/slow upstream protection (fuse or breaker) cause sustained arcs at the contacts, leading to severe burning and possible rupture.

HIITIO’s Innovations in High-Voltage DC Contactor Technology

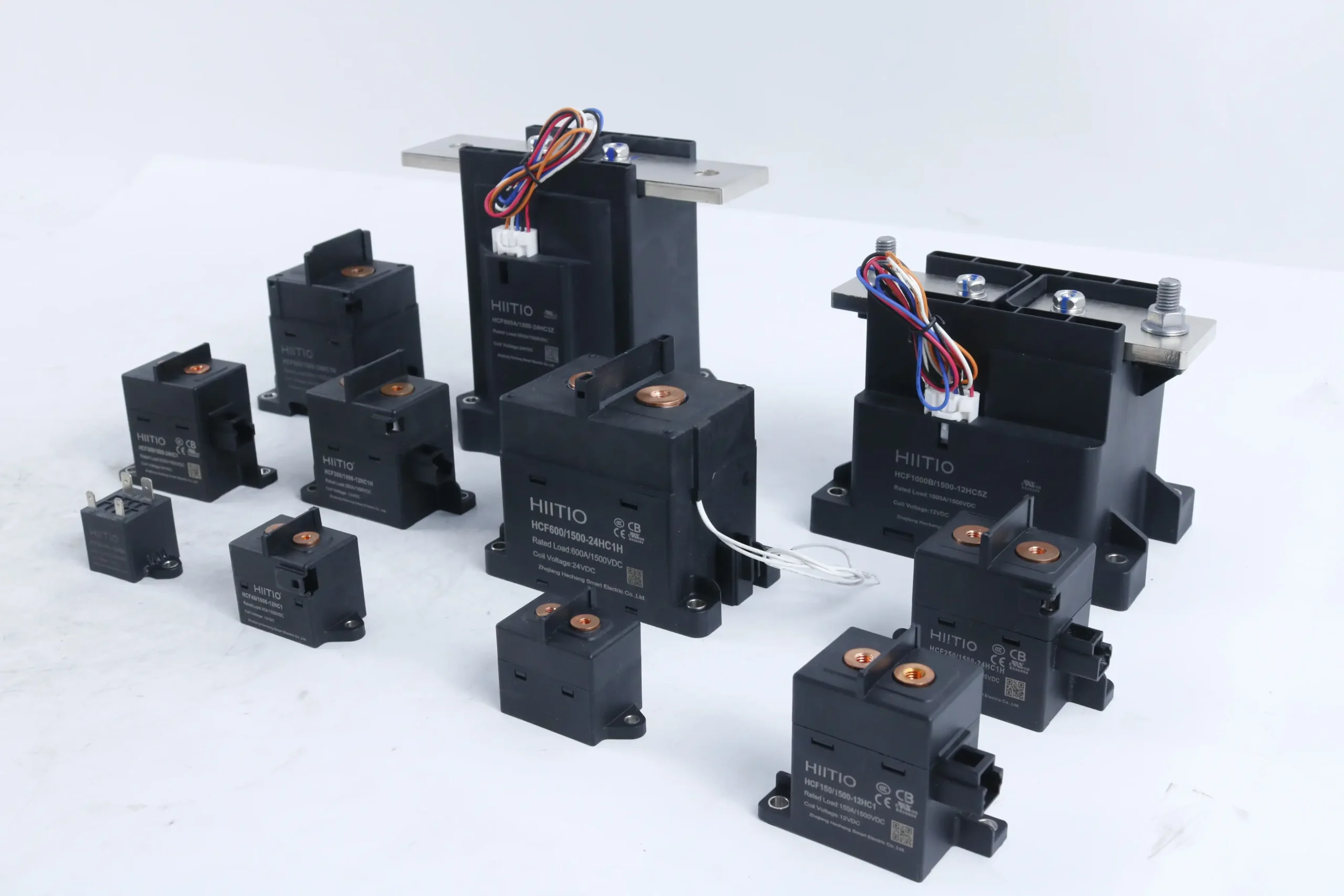

HIITIO has built a comprehensive portfolio of high-voltage DC contactors tailored for emerging needs. Let’s explore their core technological differentiators:

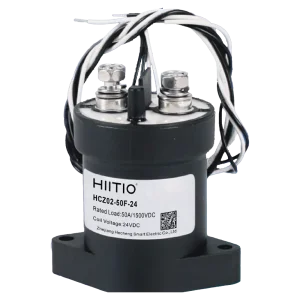

HIITIO Resin High Voltage DC Contactors

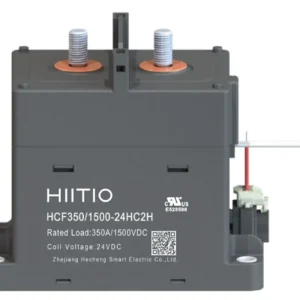

HIITIO Ceramic High Voltage DC Contactors

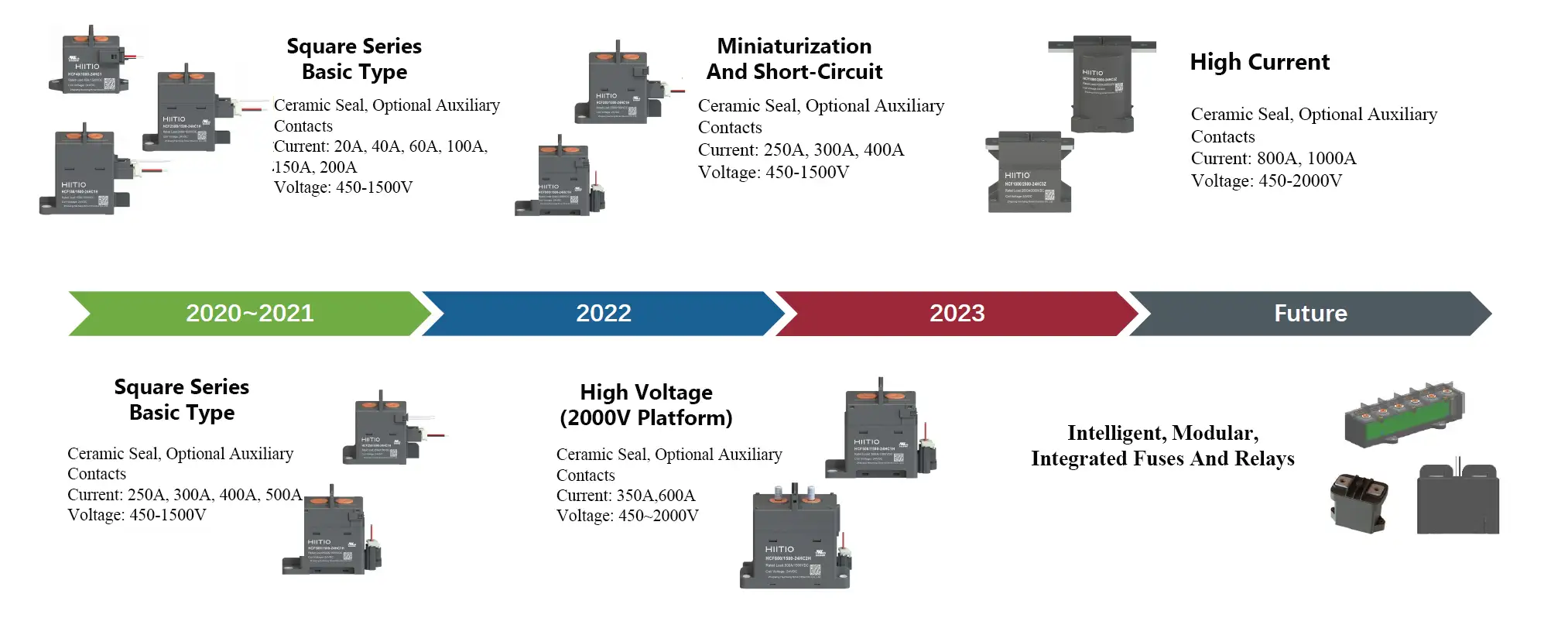

HIITIO CONTACTOR ROADMAP

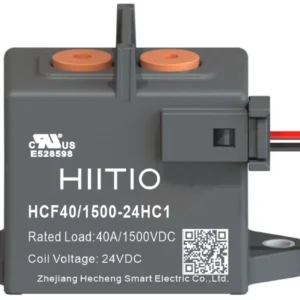

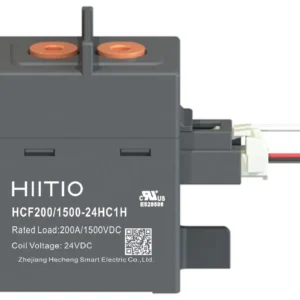

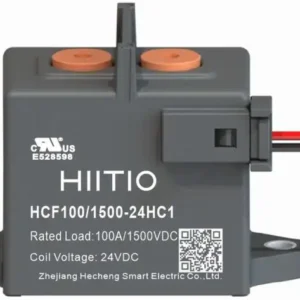

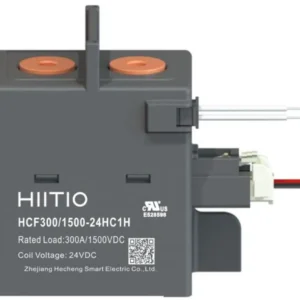

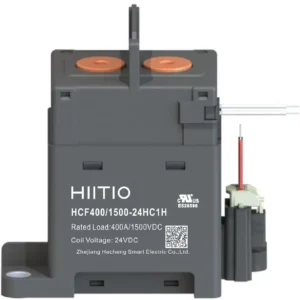

HIITIO-Product Introduction-1500V Series

Model	HCF20B	HCF40/HCF60/ HCF100	HCF150/HCF200	HCF250/HCF300	HCF400/HCF500	HCF600/HCF700	HCF800A/HCF100 0A/HCF1200A	HCF800B/HCF100 0B/HCF1200B
Appearance Picture
Product Size	78*43.2*46.1	67*36.8*47	76.5*39*70	84.5*42.5*74.5	100*58*91	120.6*70*105.2	196.1*113.95*159.3	185.6*104.6*131.7
Rated Current/A	20	40/60/100	150/200	250/300	400/500	600/700	800/1000/1200	800/1000/1200
Maximum Operating Voltage/V	1500	1500	1500	1500	1500	1500	1500	1500
Coil Power Consumption/W	4	3	6	6	Start Up 55	Start Up 60	Start Up 50	Start Up 50
					Maintain 5	Maintain 5.4	Maintain 10	Maintain 10
Coil Voltage/V	12/24/48
Auxiliary Contact Function	—-	—-	Optional	Optional	Optional	Optional	Optional	Optional
Safety Certification	—-	UL/cUL/CE/CB /CCC/SEMKO	UL/cUL/CE/CB /CCC/SEMKO	UL/cUL/CE/CB /CCC/SEMKO	UL/cUL/CE/CB /CCC/SEMKO	UL/cUL/CE/CB /CCC/SEMKO	UL	UL

HIITIO-Product Introduction-2500V Series

Model	HCF100B	HCF50	HCF150B	HCF250B	HCF350	HCF600	HCF800B/ HCF1000B/ HCF1200B	HCF800A/ HCF1000A/ HCF1200A
Appearance Picture
Product Size	76.5*39*70	84.5*42.5*74.5	100*58*101.5	120.6*70*105.2	120.6*70*105.2	120.6*70*105.2	185.6*104.6*131.7	196.1*113.95*159.3
Rated Current/A	100A	50A	150A	250A	350A	600A	800A/1000A/1200A	800A/1000A/1200A
Maximum Operating Voltage/V	2000VDC	2500VDC	2500VDC	2500VDC	2500VDC	2500VDC	2500VDC	2500VDC
Coil Power Consumption/W	6W	6W	6W	Start Up 60W	Start Up 60W	Start Up 60W	Start Up 50W	Start Up 50W
				Maintain 5.4W	Maintain 5.4W	Maintain 5.4W	Maintain 10W	Maintain 10W
Coil Voltage/V	12/24/48
Auxiliary Contact Function	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Electrical Life	2000V 40A Only Connect≥25000 times; Only Break≥1000 times	2500V 50A Only Connect≥25000 times; Only Break≥ 500 times	2000V 150A Only Break≥1000 times; 2500V 150A Only Break≥500 times	2000V 250A Only Break≥500 times; 2500V 250A Only Break≥200 times	2000V 350A Only Break≥500 times; 2500V 350A Only Break≥200 times	2000V 600A Only Break≥500 times; 2500V 600A Only Break≥200 times	2000V 800A ≥100 times; 2000V 1000A ≥150 times; 2500V 1000A ≥30 times	2000V 800A ≥100 times; 2000V 1000A ≥100 times; 2500V 1000A ≥30 times;

HIITIO Contactor Product Advantages

With exceptional craftsmanship, innovative structural design, and stringent quality control, HIITIO contactors not only meet the performance demands of high-requirement applications but also set new benchmarks in safety and reliability.

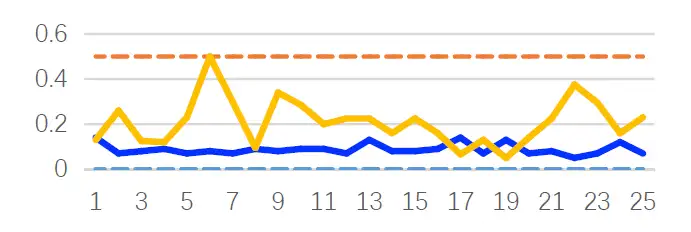

1. Superior Contact Resistance Control
HIITIO employs advanced manufacturing techniques and rigorous resistance testing to ensure stable contact resistance even after over 200,000 mechanical operations, delivering low loss and high reliability over the long term.

Note: After 200,000 mechanical cycles, polishing treatment is more stable than current cleaning.

2. Polarity-Free Main Contact Design
The innovative polarity-free design allows flexible installation without orientation limits, making it suitable for various bidirectional current applications while ensuring safety and reliability in all conditions.

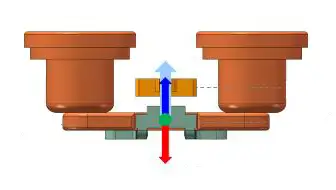

3. Excellent Short-Circuit Withstand Capability
An integrated magnetic structure greatly enhances short-circuit endurance, ensuring the contacts remain free from sticking or welding under fault currents exceeding 8kA, effectively preventing safety hazards.

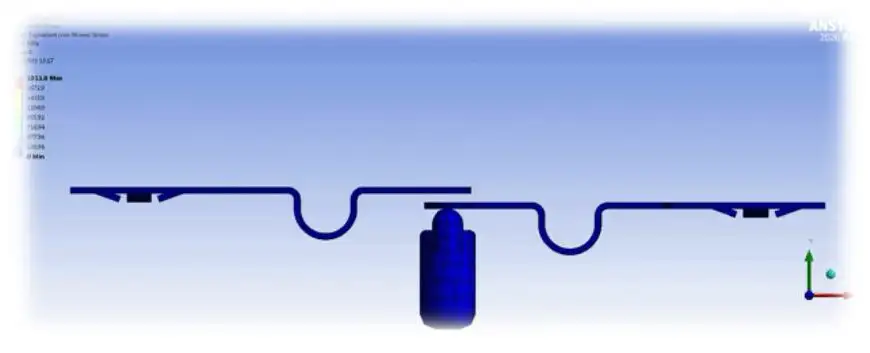

4. Unique Auxiliary Contact Design
Addressing the limited space within ceramic-sealed chambers, HIITIO’s precision auxiliary contact system is ideal for products rated above 100A, providing accurate and reliable monitoring of main contact status for enhanced system diagnostics.

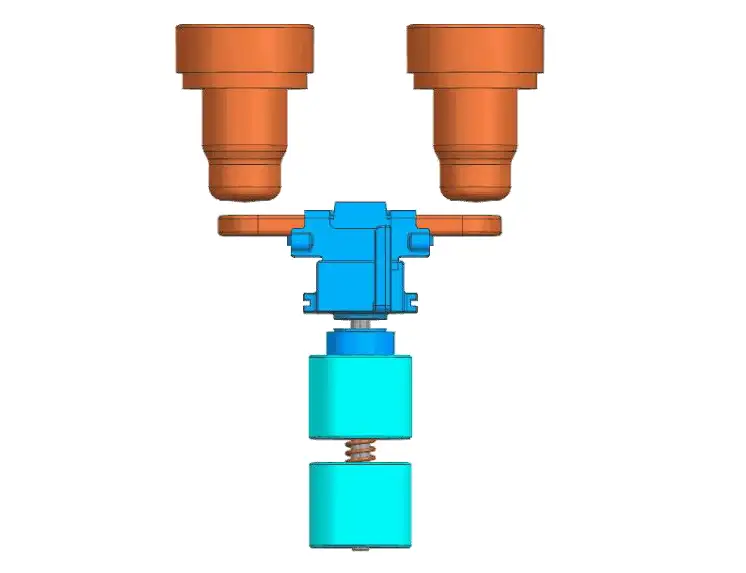

5. Integrated Push-Rod Structure

HIITIO contactors adopt an integrated push-rod structure that delivers smoother and more stable mechanical motion. This design reduces mechanical wear, extends service life, and ensures consistent performance even in applications requiring frequent switching and high operational demands.

Note: The push rod assembly and contact bridge are integrated by injection molding.

6. Plasma-Welded Push-Rod and Iron Core

Using advanced plasma welding technology, HIITIO bonds the push-rod and iron core into a single high-strength assembly. This enhances structural integrity, minimizes deformation under load, and improves fatigue resistance for long-term reliability in industrial environments.

Note: Compared with sealing glue, plasma welding process has better reliability and no risk of organic volatiles from glue contaminating the arc extinguishing cavity.

7. Ceramic-Sealed Chamber Design

The ceramic-sealed chamber provides outstanding electrical insulation and arc resistance, making it ideal for high-voltage and high-current conditions. It also offers excellent protection against dust, moisture, and extreme temperatures, ensuring the contactor’s stability in harsh environments.

8. Safe and Reliable Material Selection

HIITIO carefully selects materials that meet stringent safety and performance standards. Components are chosen for their high thermal stability, electrical strength, and environmental durability, ensuring that the contactor operates safely and efficiently across a wide range of conditions.

Note: Through product structure simulation analysis, stress distribution is improved, and the product structure strength can withstand impacts of more than 50G.

• Selected from top-tier international plastic materials, with a UL Yellow Card RTI rating of up to 150°C.
• Meets V-0 flame retardancy and high-temperature durability requirements.
• Uses NdFeB magnets for strong magnetism and improved arc extinguishing.
• 2UEW/180 grade enameled wire.
• Copper alloy contacts for arc corrosion resistance and excellent conductivity.

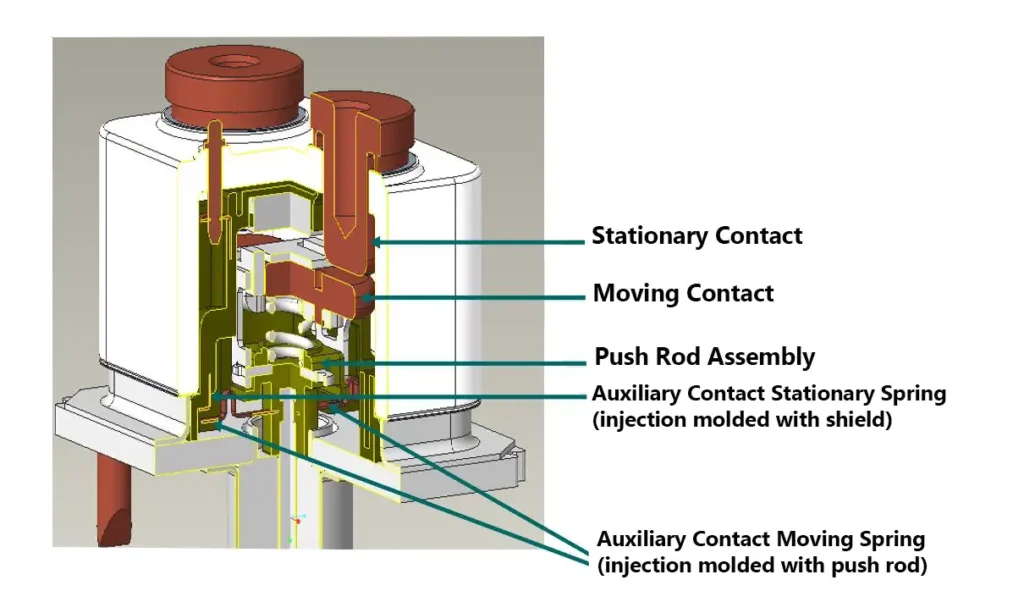

9. High-Reliability Auxiliary Contact Design

HIITIO’s auxiliary contact system is engineered for precise signal feedback and monitoring. It supports accurate position detection, enabling intelligent control in automated systems. The design incorporates wear-resistant materials and optimized contact geometry to reduce signal loss and contact bounce, thereby extending operational lifespan. This high-reliability configuration ensures stable performance even in high-frequency switching scenarios, making it ideal for mission-critical applications.

Why install an auxiliary switch?

• The auxiliary switch is a monitoring mechanism synchronized with the on/off status of the main contacts. It has a very low load and its primary function is signal feedback.
• Many applications today require monitoring the operating status of contactors, such as whether they are in the off state or whether they are switching normally.

Difficulties with ceramic auxiliary switches:

• The internal space of the ceramic is limited, and the electrical life and temperature rise performance must be guaranteed. Ceramic welding is more difficult, resulting in an increased leakage rate.

Implementation of the auxiliary switch:

• This function is achieved through brazing processes, structural design, and material research.

HIITIO-New Energy Electric Vehicle Applications

HIITIO-New Energy Storage Applications

Continue your journey with:

Top 10 High-Voltage DC Contactor Suppliers in China

Top 5 High-Voltage DC Contactor Brands in the United States

The High Voltage DC Contactor Market Trends

Conclusion

DC contactors operate primarily through excitation and de-excitation processes, enabling efficient switching of high-voltage DC circuits. The transition between “on” and “off” states involves electromagnetic forces and mechanical components, ensuring precise power control. This functionality is essential for applications such as electric vehicles and renewable energy systems.

Their efficiency and rapid response times enhance electrical infrastructure, leading to a safer and more reliable future for high-voltage DC applications.

For further inquiries and in-depth knowledge about DC contactors, you can contact the HIITIO R&D team.
