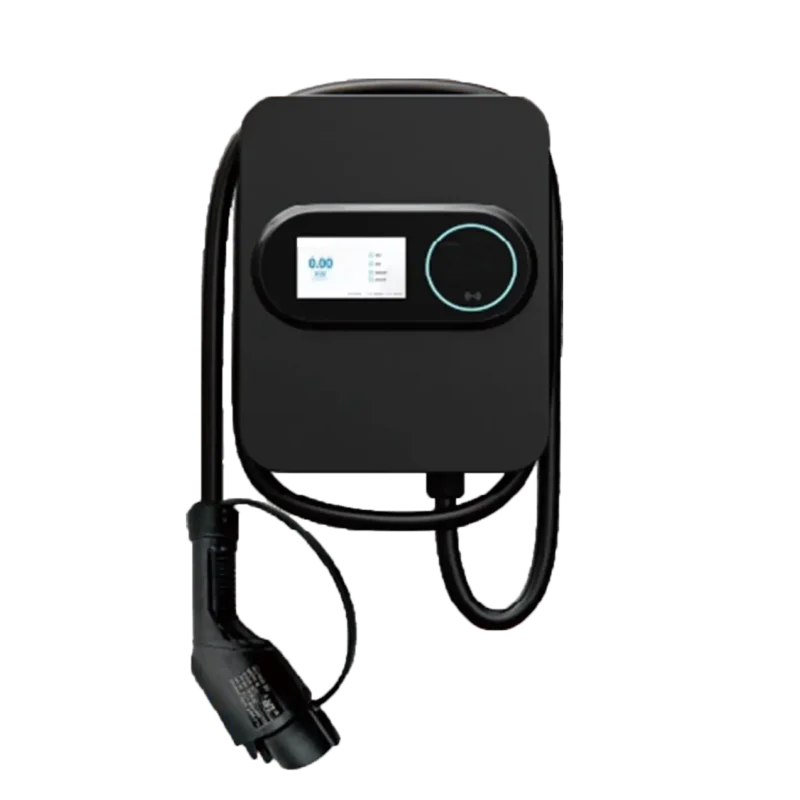

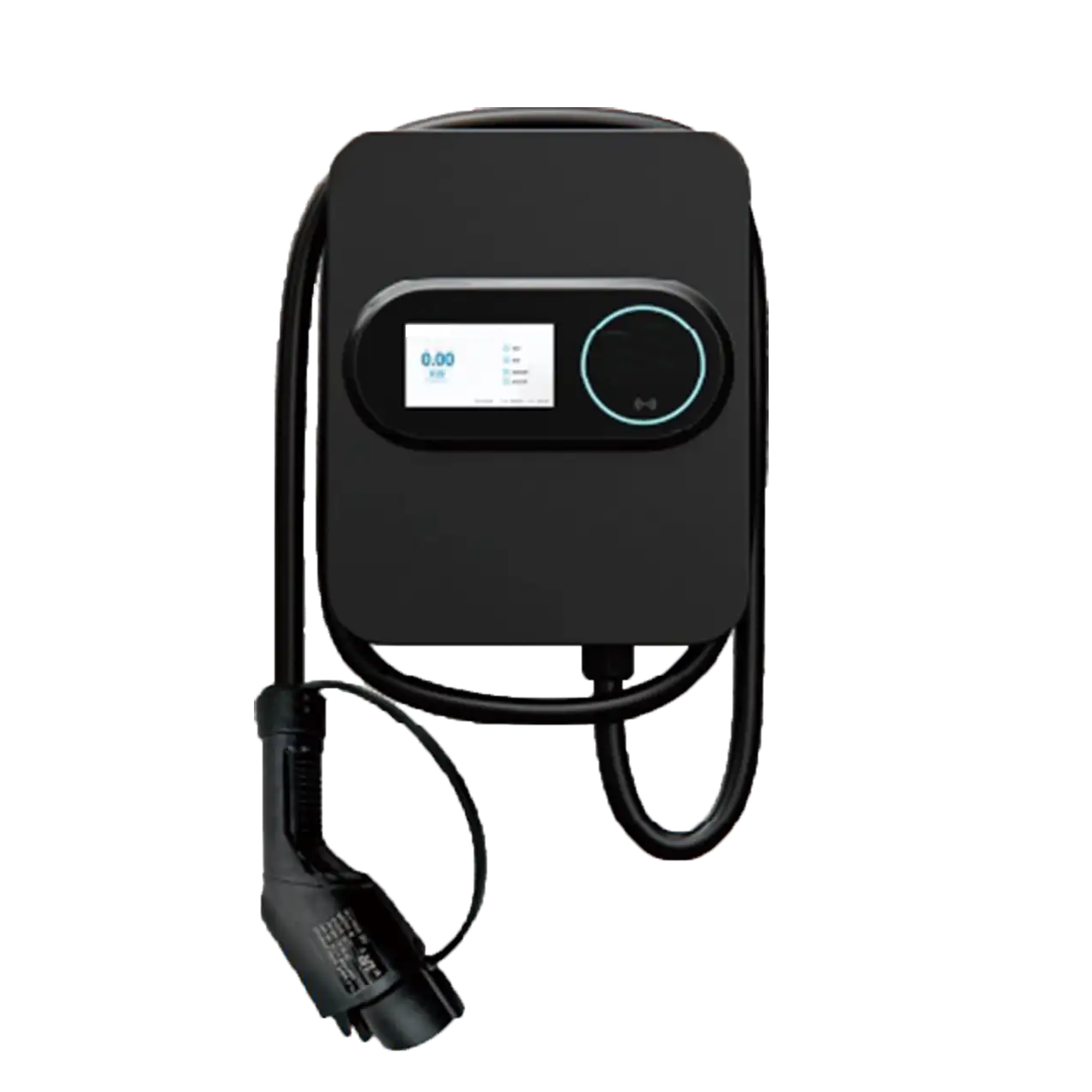

The HIITIO HC48AS Wall Box AC Charging Station delivers a professional-grade charging solution for electric vehicles, combining advanced safety features, intuitive operation, and flexible installation. Built to meet international standards, it supports SAE J1772 and NACS (Tesla) connectors for broad compatibility across EV models. Its compact wall-mounted design and durable construction make it ideal for both residential garages and commercial parking areas.
| Item | Specification | |
|---|---|---|
| ProductInformation | Model HC32/40/48AS | HC48AN |
| Standard SAE J1772 | NACS | |
| Input Voltage 208/240VAC | 208/240VAC | |
| Output Voltage 208/240VAC | 208/240VAC | |
| Rated Current 32A/ 40A /48A | 48A | |
| Rated Power 7KW/10KW/11.52KW | 11.52KW | |
| Frequency 60Hz | 60Hz | |
| Static Power <5W | <5W | |
| Standards | RCD CCID20+GMI | |
| Degree Type 3R | ||
| Warranty 2 years (warranty extension possible) | ||
| Certification UL ROHS | ||
| Certification Standard UL2594 UL2231 UL991 UL1998 | ||
| Electrical Protection Over-voltage protection Under-voltage protection | ||
| Features | Bluetooth 5.2 Yes | |
| WIFI 2.4G/5G Yes | ||
| 4G Optional | ||
| loT Yes | ||
| OCPP 1.6/2.0 | ||
| APP Control Yes | ||
| RFID Yes | ||
| Support for RS485 Optional | ||
| Dynamic Load Balancing Yes | ||
| Sequential charging Yes | ||
| Smart charging Yes | ||
| User interface | Cable Length 5m/7.5m (Customizable) | |
| Cable Jacket TPE | ||
| LCD Display 4.3inches | ||
| Charge Connector Type 1/NACS Plug | ||
| Environment | Operating Temperature -30℃~+50℃ | |
| Operating Humidity 5%RH~95%RH | ||
| Operating Altitude <2000m | ||
| Cooling Natural air cooling | ||
| Package | Product Dimension 400(L)x246(W)x100(H)mm | |
| External Package Color box (Customizable) | ||
| Weight 6KG-8KG | ||
HIITIO® was established in 2018 as a result of Hecheng Electric introducing a mature R&D team. HIITIO specializes in producing high-voltage DC electrical devices for EV, solar energy systems, and energy storage applications.
