The largest modern manufacturing base for vanadium flow battery (VRFB) equipment in the world. Provide low-cost, stable and efficient VRB ESS solutions according to your projects in grid peak shaving, renewable energy integration, and commercial and industrial microgrids.
Energy Storage Duration Hours
Years VRB Experience
Energy Storage Battery Patents
Mkw Installed Capacity

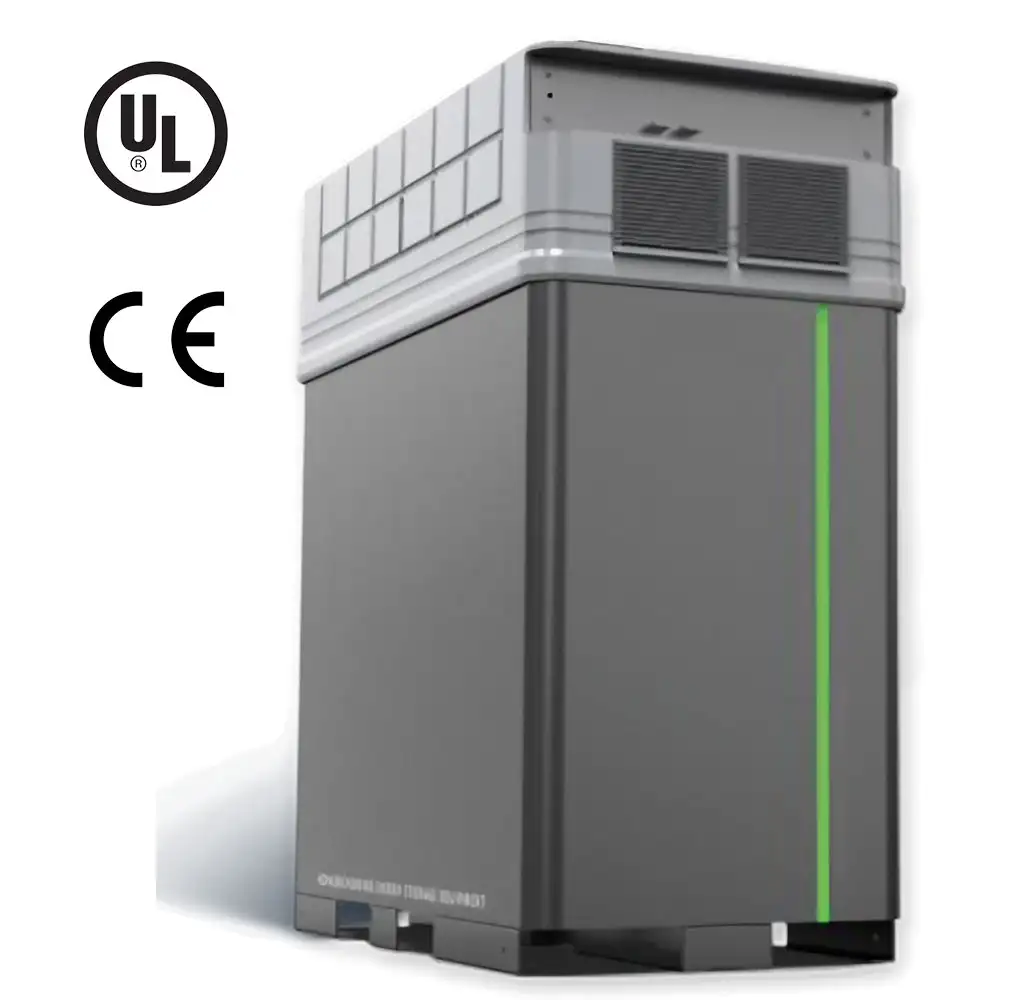

Unite Capacity: 10kW / 40kWh x n + PCS (n=12~24)
Certifications: UL1973，CE
You can choose the number of units according to demand, matching with PCS to flexibly build systems of different sizes.

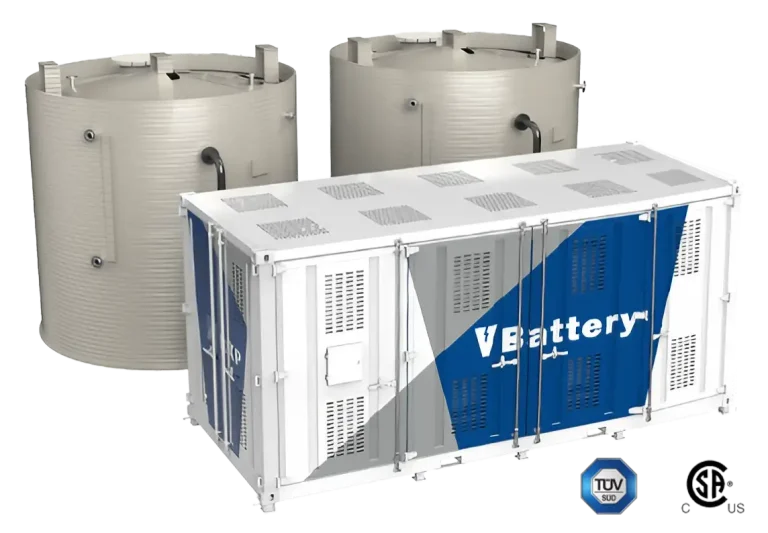

Unite Capacity: 500kW/2000kWh
(20GP Container x 2 + External Storage Tanks x 4 + PCS)
2 sets of containers and positive and negative storage tanks can be connected in series with a 500kW energy storage converter, constituting a 500kW/2000kWh ESS unit. You can construct different sizes of ESS flexibly based on that.

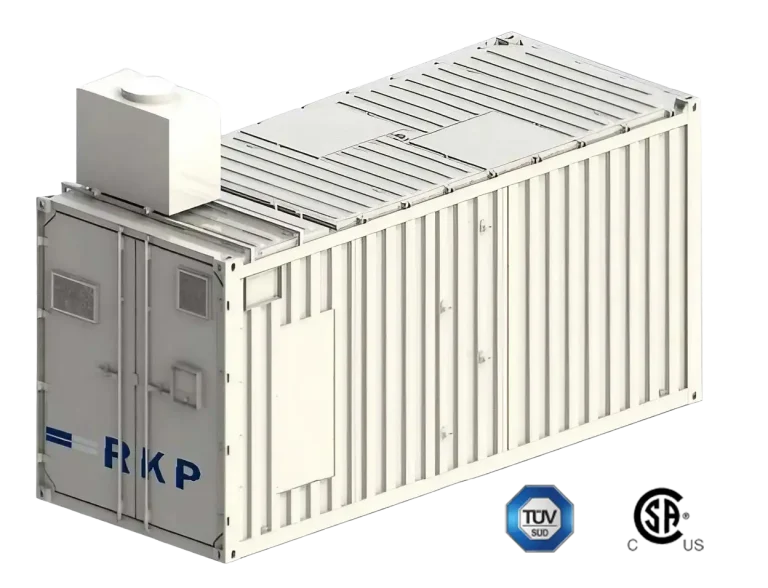

Unite Capacity: 500kW/2000kWh
(20GP Container x 4 + PCS)
4/5/6 units can be connected in series to an energy storage converter. For e.g. 4 units connecting a 500kW storage converter constitutes a 500kW/2000kWh unit ESS.
On-line, low-cost capacity regeneration with 100% capacity retention and no efficiency degradation over the life cycle
The vanadium can be recycled with a mature reused recycling technology, no environment pollution
Improve your power system’s economic performance
Balance regional loads by shaving peaks and filling valleys, storing power during low periods and releasing it at peak times to improve the utilization of generating equipment.
Solve the short-time random power imbalance problem of the regional power grid, and improve the reliability and security of power grid operation.
When the grid is shut down due to a fault and cannot be restored by an external power source, a large-scale energy storage battery system can be used to realize a black-start.
Product recommendation:

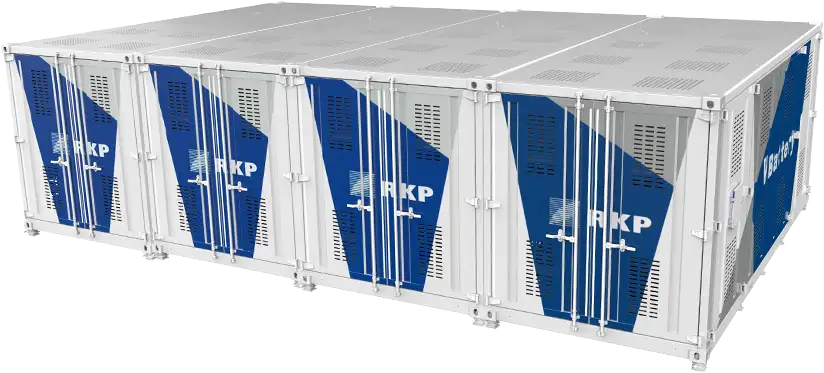

Tpower Full Containerized Products – No Civil Engineering Required
Vanadium redox flow battery features safety, environmental friendliness, and a long lifespan, making it ideal for large-scale, long-duration energy storage on the power generation side.
It effectively ensures the economic and stable operation of modern power systems with a focus on renewable energy sources.
vanadium redox batteries are also used in commercial and industrial energy storage to provide electricity economy and reliability.
Product recommendation:
Upower Series – Flexible selection of several units according to needs
Microgrids ESS 160kW/640kWh

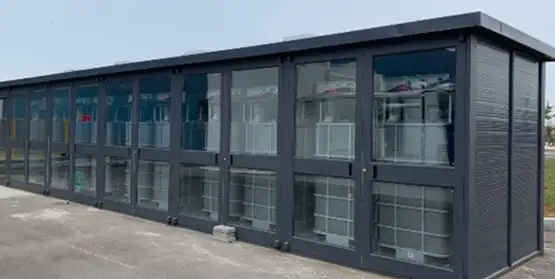

Harbor ESS 60kW/240kWh

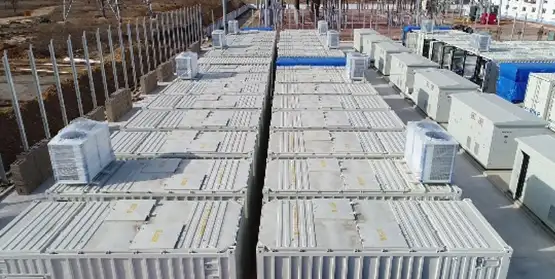

Wind Energy Storage 10MW/40MWh
Grid Peaking, ESS 1MW/2 MWh

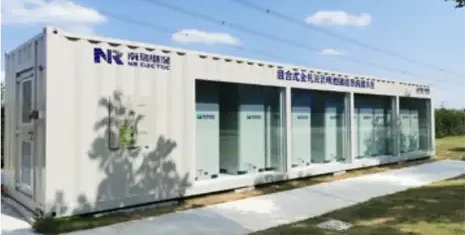

Industrial ESS 125kW/500kWh
Wind Energy Storage 10MW/40MWh
Our vanadium flow battery equipment base in Dalian covers an area of 600,000 square meters, with more than 300 employees and a production capacity of 300MW/year, and we have invested in and constructed production bases in Sichuan, Anhui, Jiangsu and other places.
As one of the earliest companies involved in all-vanadium liquid current battery energy storage, we have a wealth of engineering experience, and our products have been widely used in China, as well as the United States, Australia, Germany and other countries.
Hiitio specializes in producing high-voltage DC electrical devices for EV, solar energy systems, and energy storage applications.
No. 1125, Zhixing Road, Qiaonan Development Zone, Xiaoshan Economic and Technological Development Zone, Hangzhou, Zhejiang Province, China 311215
Phone: +86 132 1617 9977
Email: sales@hiitio.com
Powered by HIITIO | Privacy Policy | Cookie Policy
| Electrical Performance Parameters | Value | Physical Parameters | Value |
|---|---|---|---|
| Rated Power | 10 kW | Dimensions | 875 x 1775 x 2060 mm |
| Rated Capacity | 40 kWh | Weight | 2800 kg |
| Maximum Capacity | 45 kWh | Protection Level | IP20 |
| DC Voltage Range | 36 ~ 57.6 V | Operating Temperature | 5 ~ 45 ℃ |
| Maximum DC Current | 390 A | Operating Humidity | 5 ~ 95% |
| Energy Conversion Efficiency | DC: 77% (including pump loss), AC: 72% | Maximum Altitude | 1000 m |
| Discharge Depth | 0~100% DOD | Communication Interface | Ethernet, Modbus TCP |
| Cycle Life | Calendar Life: 20 years, Charge-Discharge Cycles: 16,000 or more | Compliance Standards | UL1973, CE certified |
| Electrical Performance Parameters | Value |
|---|---|
| Rated Power | 500 kW |
| Rated Capacity | 2000 kWh or customizable according to user requirements |
| Maximum Capacity | Customizable according to user requirements |
| Output Voltage | 416 V - 645 V (DC) |
| Output Current | 1200 A |
| Energy Conversion Efficiency | DC: 76% (including pump consumption), AC: 71% |
| Discharge Depth | 0~100% DOD |
| Cycle Life | Calendar life of 20 years, more than 16000 charge and discharge cycles |
| Physical Parameters | Value |
|---|---|
| Size and Footprint | 16,100mm x 7,700mm (2 sets of 20-foot containers and positive and negative pole tanks) |
| Load Bearing Requirement | 3.5t/m² |
| Protection Level | IP 20 |
| Operating Environment Temperature | 5 ~ 35 °C |
| Operating Environment Humidity | 5 ~ 95% |
| Maximum Operating Altitude | No altitude requirement |
| Communication Interface and Protocol | Modbus TCP |
| Execution Standard | IEC 62932 International Standard for Flow Battery |
| Electrical Performance Parameters | Value | Physical Parameters | Value |
|---|---|---|---|
| Rated Power | 500 kW | Size and Footprint | 16,100mm x 7,700mm (2 sets of 20-foot containers and positive and negative pole tanks) |
| Rated Capacity | 2000 kWh or customizable according to user requirements | Load Bearing Requirement | 3.5t/m² |
| Maximum Capacity | Customizable according to user requirements | Protection Level | IP 20 |
| Output Voltage | 416 V - 645 V (DC) | Operating Environment Temperature | 5 ~ 35 °C |
| Output Current | 1200 A | Operating Environment Humidity | 5 ~ 95% |
| Energy Conversion Efficiency | DC: 76% (including pump consumption), AC: 71% | Maximum Operating Altitude | No altitude requirement |
| Discharge Depth | 0~100% DOD | Communication Interface and Protocol | Modbus TCP |
| Cycle Life | Calendar life of 20 years, more than 16000 charge and discharge cycles | Execution Standard | IEC 62932 International Standard for Flow Battery |
