Leading Building Integrated Photovoltaics (BIPV) Manufacturer
Extend Clean Energy Generation to Your Curtain Walls, Siding, Roofs and Even Tiles.
Combining Highly Efficient BIPV System Technology with Seamless Aesthetics.
Perfectly Integrated Without Compromising Aesthetics
30 Years Product and Performance Warranty
Customizable Colors and Patterns to Your Needs
Conforms to Building System Standards, Fast-to-Install
BIPV Module Series
We offer a complete range of integrated pv panels to meet your project needs. With the built-in new-generation mainstream battery platform technology——Heterojunction Battery, these modules have excellent light absorption and passivation effects, and exceeds PERC technologies in both efficiency and performance.
Transparent PV Module
Thin Film CadTel PV Module
Transparent Solar Glass
Specification：
Power range: 50~105W
Size: 1200*600*18.24mm, 1800*1200*18.24mm
Features：
- 10% -60% transmittance customizable
- -0.29%/°C Better Temperature Coefficient
- Crystal clear appearance
- Standardized modular design for easy installation
House Siding BIPV Solution
Solar Siding Module
Stone Veneer Solar Panel
Specification：
Power range: 250~380W
Size: 1805×1150×14.4mm
Features：
- Combining highly efficient solar technology with seamless aesthetics
- Custom color, pattern, and surface finishing effects available
- Seamlessly hidden wiring and circuitry mounted
- Easily incorporated into building system standards for fast installation
- Reduce their reliance on carbon-emitting energy from the grid
High-rise Facades BIPV Solution
PV Curtain Wall Module
Colored Solar Glass Panel
Specification：
Power range: 180-400W
Size: 1805*1150*14.4mm
Features：
- Applicable to the exterior vertical facades: eastern, southern and western facades of the building
- Incorporated as color glass into curtain wall, without compromising aesthetics
- High reliability packaging materials ensure a service life up to 30 years
- Customizable tempered glass facing layer
- Conforms to the building system standards, easy to install
Curved Roof BIPV Solution
Mono Flexible PV Module
Shingled Semi-Flexible Solar Panels
Specification：
Nominal Power: 60-160W
Module Size (mm): 880*350*2, 1200*1000*1070, 1200*1000*840
Cable: 900mm / 1.5mm², 900mm / 2.5mm²
Features：
- Upgraded efficiency and unprecedented flexibility.
- Weakened hot-spot effect, extremely low risk of micro cracks and increased stability by shingle-tech.
- Special connection method lowers the internal resistance and ensures better performance than traditional connection with busbar.
- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.
BIPV House Roof Solution
PV Slate Roof Module
Plane PV Tile
Specification：
Power range: 125-135W
Size: 1580*522*37mm
Features：
- Replaces conventional cement and clay tiles, weighing only half as much while being several times stronger than ordinary tiles
- Suitable for high-end villas, clubs, venues, and public buildings
- Offers a perfect blend of modern technology and traditional architecture, with multiple color choices
- Integrated solar power roof design, providing a comprehensive system solution.
- Compliant with building system standards, allowing for easy installation.
- Individual panels can be easily disassembled for future maintenance.
New-generation Mainstream Battery Platform Technology
Heterojunction (HJT) solar cells combine the advantages of crystalline silicon and thin-film amorphous silicon technologies. They demonstrate excellent light absorption and passivation effects, surpassing PERC (Passivated Emitter Rear Contact) technology in both efficiency and performance.
HJT is considered one of the leading cell technologies in the solar industry for achieving higher conversion rates and power outputs, representing the direction of development for the next generation of solar cell platforms.
-0.26%/°C Extreme temperature coefficient
The temperature coefficient of the heterojunction battery is about -0.26%/°C. Under high-temperature environment, the bifacial heterojunction battery can generate utmost 3.9% more power than the bifacial PERC battery.
Bifaciality factor: 95%
The natural bifacial symmetrical structure of the heterojunction battery can make the bifaciality factor up to 95%. The power generation per W of the heterojunction battery is about 3%~6% higher than the bifacial PERC battery.
+0.5~1% low-light power generation
The N-type monocrystalline silicon wafer of the heterojunction battery has a more excellent low-light effect than the P-type monocrystalline silicon wafer of the PERC battery, with the former’s power generation per W being about 0.5~1% higher than the latter.
We Are Here to Ensure the Success of Your BIPV Project
We have leading international expertise in developing high-efficiency batteries and components like HJT and CIGS. With our experienced team of industry experts, we can provide comprehensive technical support and services for BIPV system projects in areas such as architectural design and steel structure.

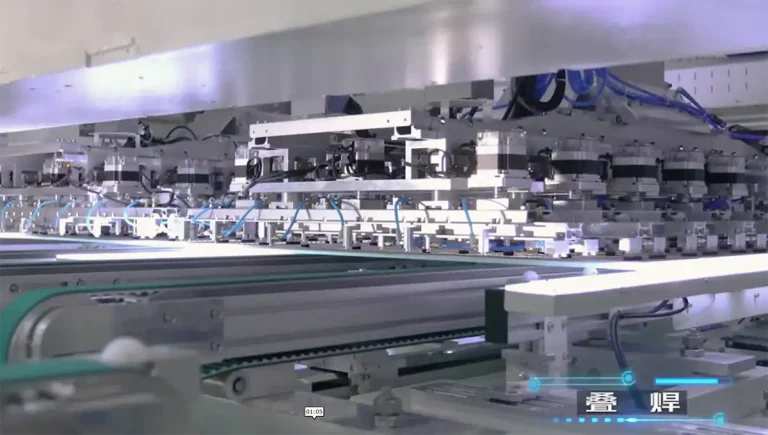

World's 1st Fully Automated BIPV Production Line
Stable & Fast delivery time
Regarding your project, if the product delivery time delays your schedule, it results in financial losses every day. Our fully automated production line absolutely ensures a stable delivery time: for areas under 10,000 square meters, we guarantee quick delivery around 20-30 days.
Play Video
Customizable Product Specifications
High Quality, High Stability, And High Efficiency
Through innovative design and development of processes, products, and equipment, we have achieved the capability to process and manufacture a wide range of BIPV modules on a single automated production line, providing customized processing for multi-specification products and delivering high-quality, stable, and efficient BIPV products.
Stringent Product Quality Testing
Ensures Long-Term Stability for Your BIPV Project
We enforce the most stringent quality control measures at each process and subject the final products to rigorous quality and performance tests as well as environmental simulation experiments. This ensures the highest level of manufacturing quality.
Power Testing
Static Load Test
Electroluminescence (EL) Test
Wet Leakage Test
Hail Impact Test
Our BIPV Projects in Operation
Transparent Glass wall project in Taipa Bei
Macau Waste Incineration Center Phase 3
20% light-transmitting glass with a thickness of 6mm is installed on the southeast, northwest and four sides, totaling 1,500 square meters.
Solar Roof Project in Nanjing
36KW, 360pcs flat photovoltaic roof tile
PV Curtain Wall Project in Shanghai
Shanghai Qingpu District Garbage Incineration Station.
65.8kW, using 280 simulated aluminum panel color photovoltaic curtain wall components
People's Electrical Appliance Building, Shandong Province
1256pcs colorful non transparent curtain wall, installed capacity 282.79kW
PV canopy in Nantong
Shingled Semi-Flexible Solar Panels project
Photovoltaic trees in Jiangsu
Qianxi Park, Nanyuan East Road, Zhangjiagang City.
90 hexagonal pieces with a length of 60cm, 20% light transmittance, 5mm thickness
Colored Solar Roof project
Mangrove Ecological Wind and Rain Corridor on Meizhou Island, Putian City, Fujian Province
Roof Photovoltaics in Guangdong
Collaborate with Us to Create a Distinct Impact in BIPV
Our unwavering dedication revolves around delivering comprehensive services that propel your business toward success.
